Overview

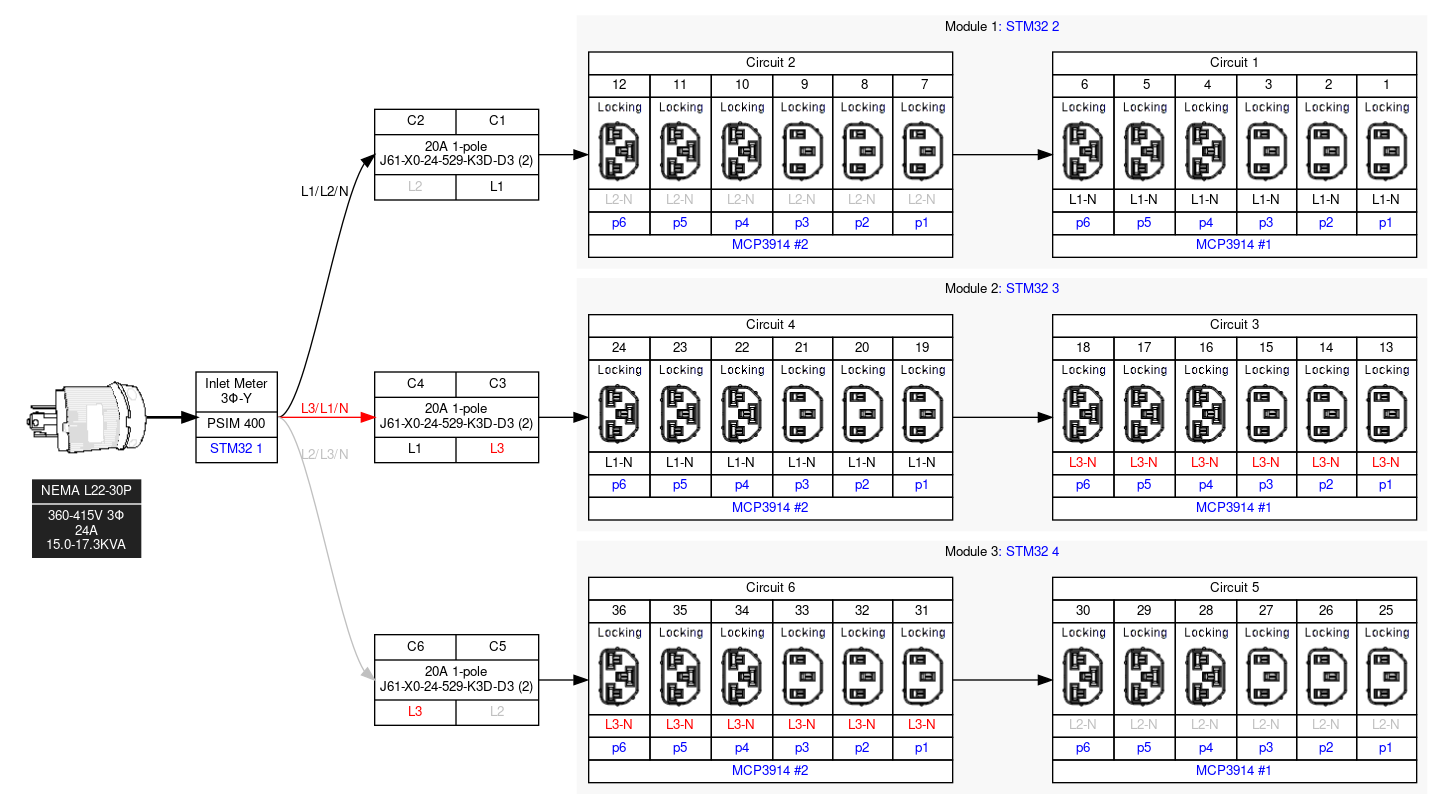

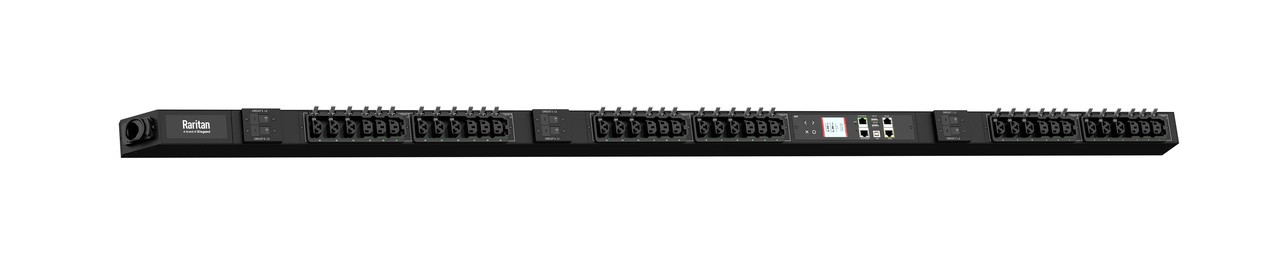

3PH, 415V, 30A (derated to 24A), 36 Outlets: 18 x Locking C13, 18 x Locking Cx, Input: NEMA L22-30P, 0U, 17.3kVA, 6 x 10kAIC breakers, Outlet Metered and Switched, iX controller with 2 x 10/100/1000 ETH port, 2 x USB-A, 1 x USB-B, RJ-45 Sensor and PDU Link port. This product is designed for modern data centers and enterprise environments, ensuring reliable power management and advanced monitoring capabilities.

Key Features

• Efficient power distribution with advanced monitoring.
• Supports both IEC C13 and C19 outlets for versatile connectivity.
• Designed for high-density environments with a compact 2U form factor.

Specifications

• Input Voltage: 208V
• Total Outlets: 18 (C13 and C19)
• Form Factor: 2U

Applications

• Ideal for data centers and enterprise IT setups.
• Supports high-performance server and networking equipment.
• Enables remote power monitoring and control.
