Description:

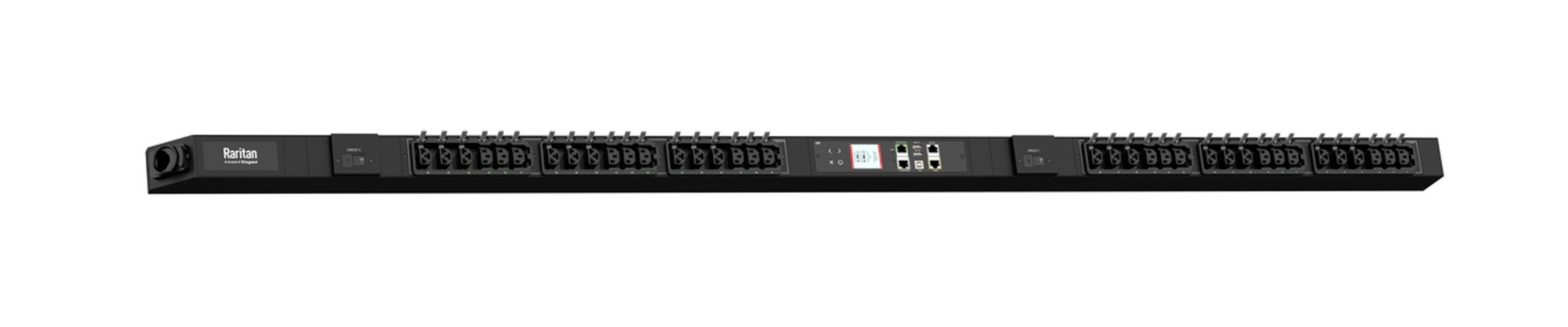

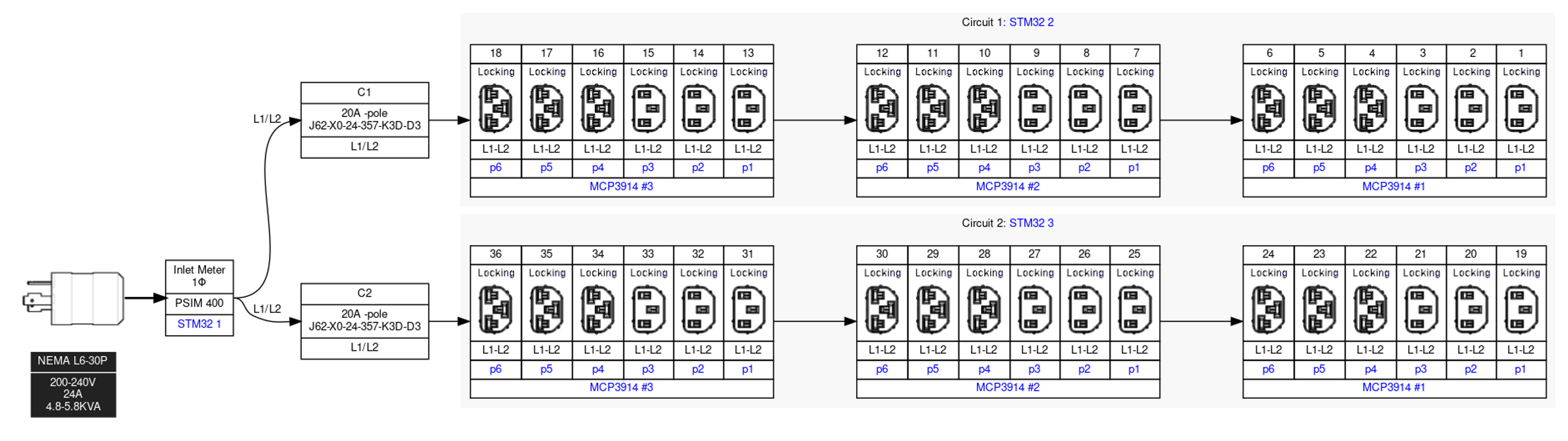

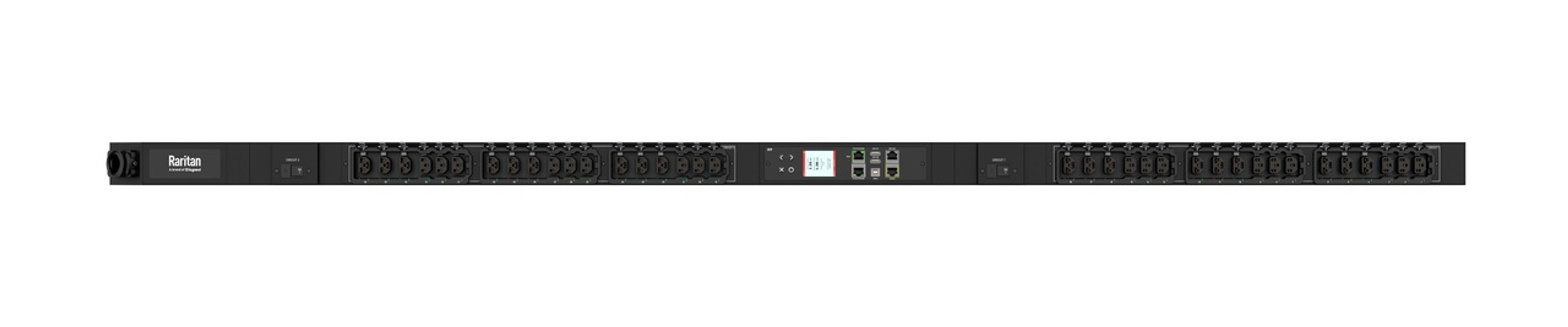

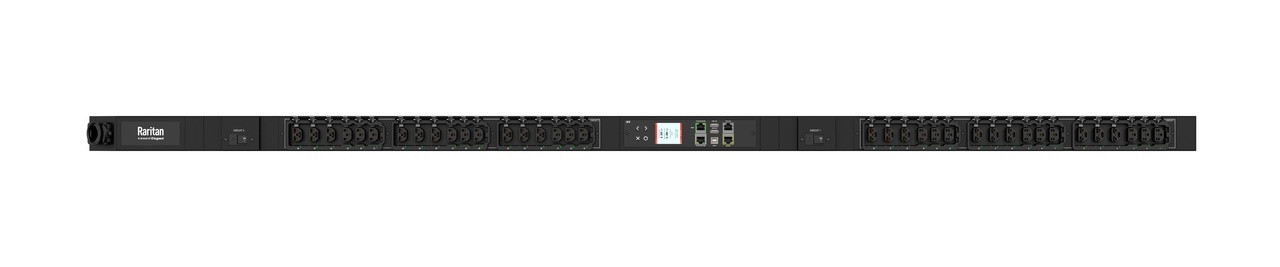

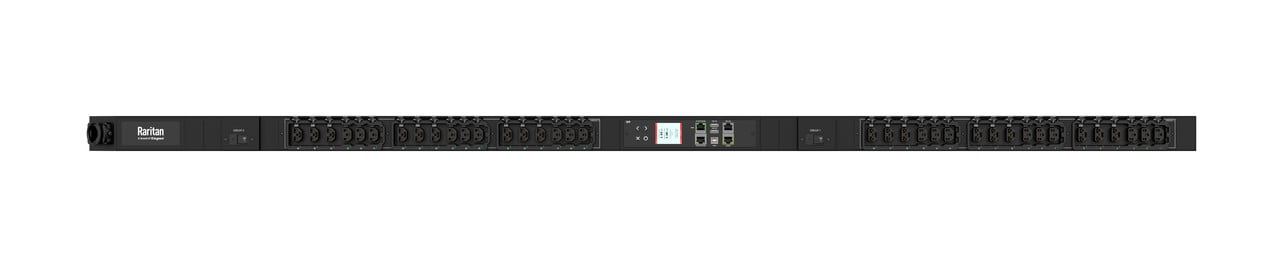

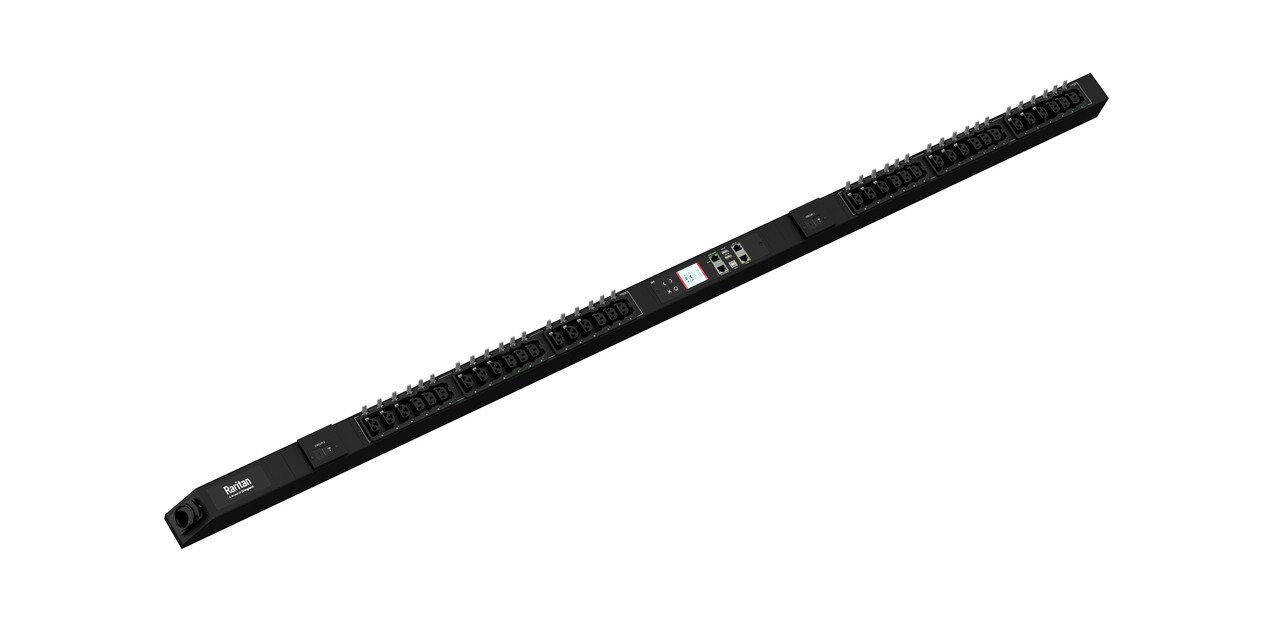

1PH, 208V, 30A (derated to 24A), 36 Outlets: 18 x Locking C13, 18 x Locking Cx, Input: NEMA L6-30P, 0U, 5.0kVA, 2 x 10kAIC breakers, Outlet Metered and Switched, iX controller with 2 x 10/100/1000 ETH port, 2 x USB-A, 1 x USB-B, RJ-45 Sensor and PDU Link port
Features
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications
Input
Input Plug
NEMA L6-30P
Nominal Voltage
208V
Maximum Input Current
30A
Rated Input Current
24A
Power Capacity
5.0kVA
Cord Length
3m
Output
Nominal Voltage
nullV
Receptacles (Output Connections)
(18) C13, (18) Cx
Overload Protection
2
Physical

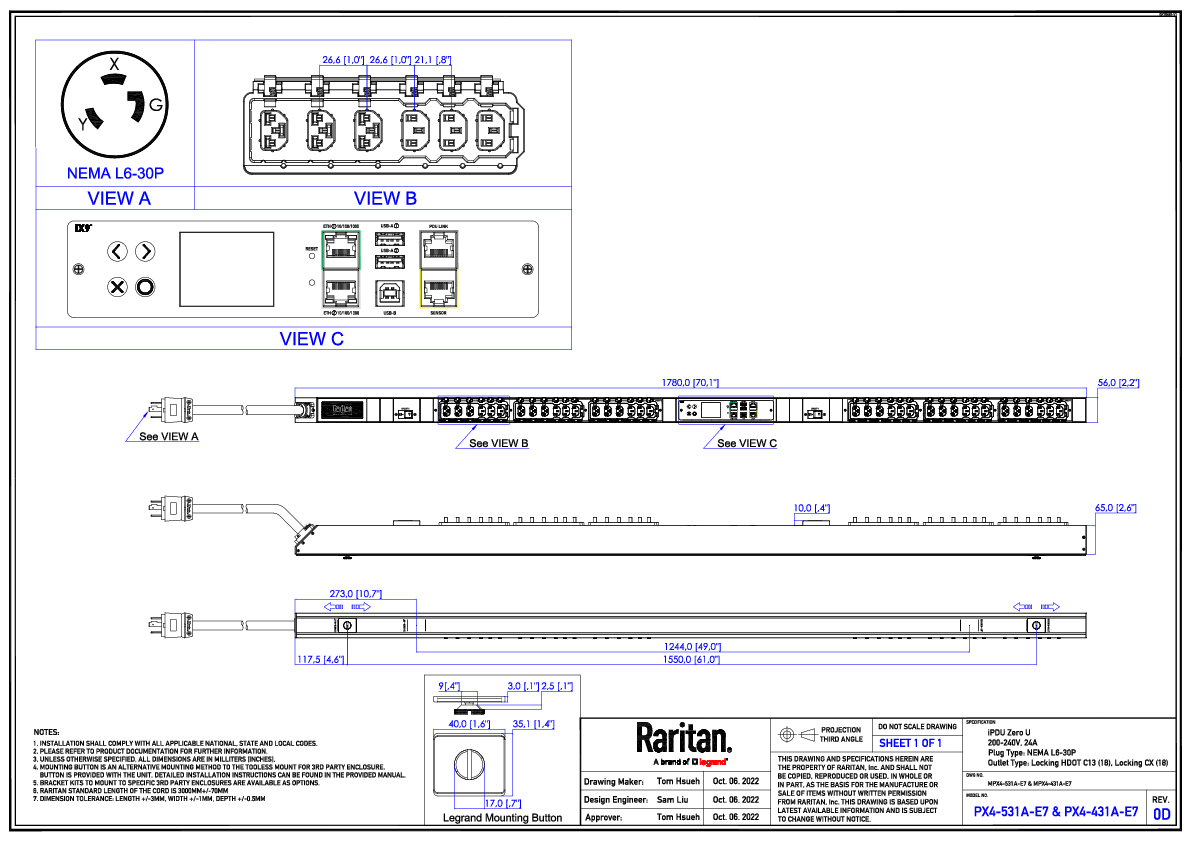

Dimensions (WxDxH)
56mm x 65mm x 1780mm
Unit Weight
14kg
Shipping Weight
21.8kg
Shipping Dimensions
1940 x 255 x 125 mm
Mounting
G4-HOLDER-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
Warranty
Standard 2 years manufacturer warranty
