Description:

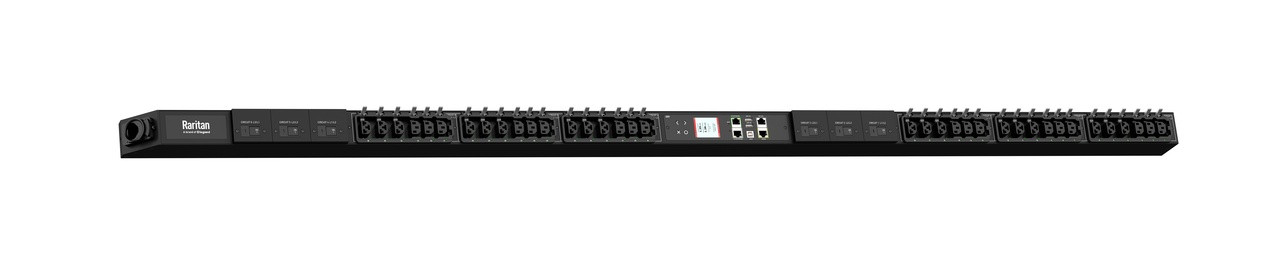

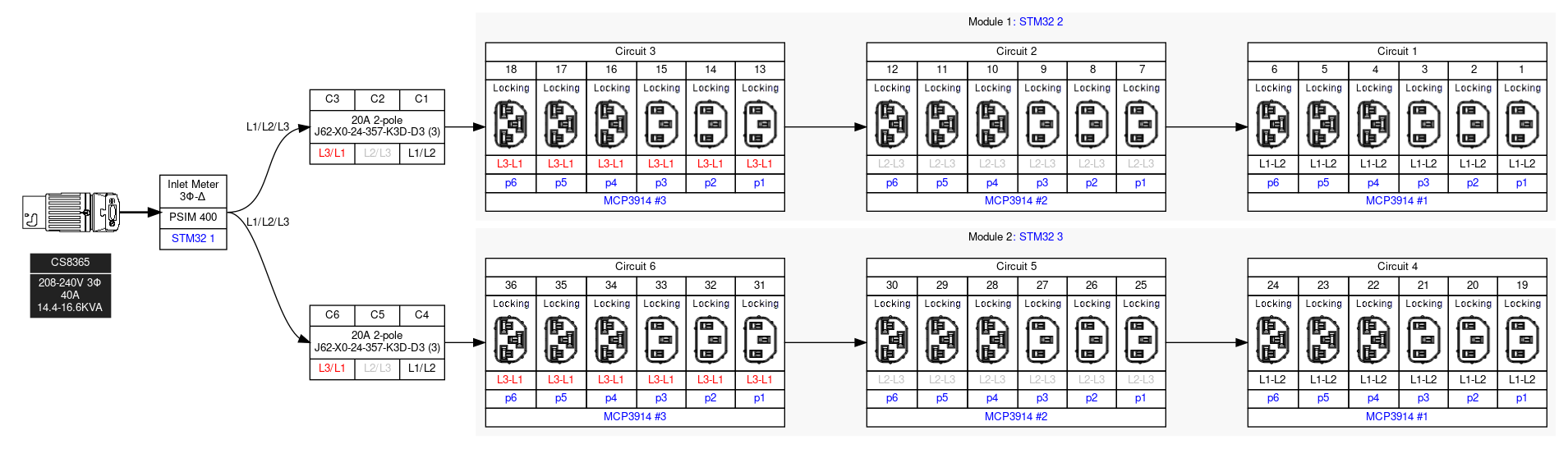

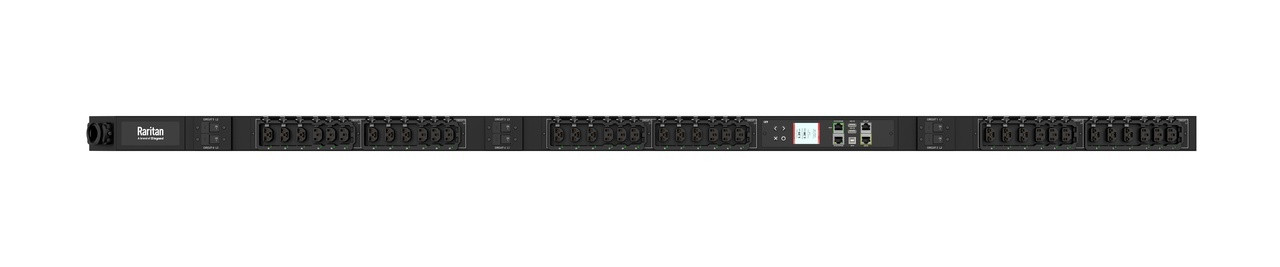

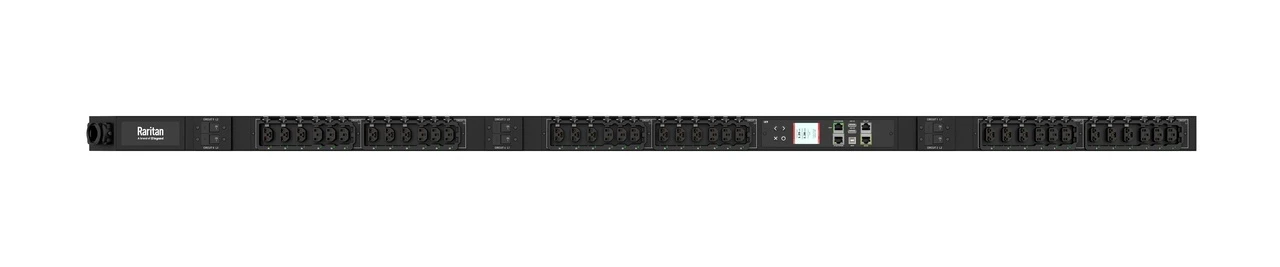

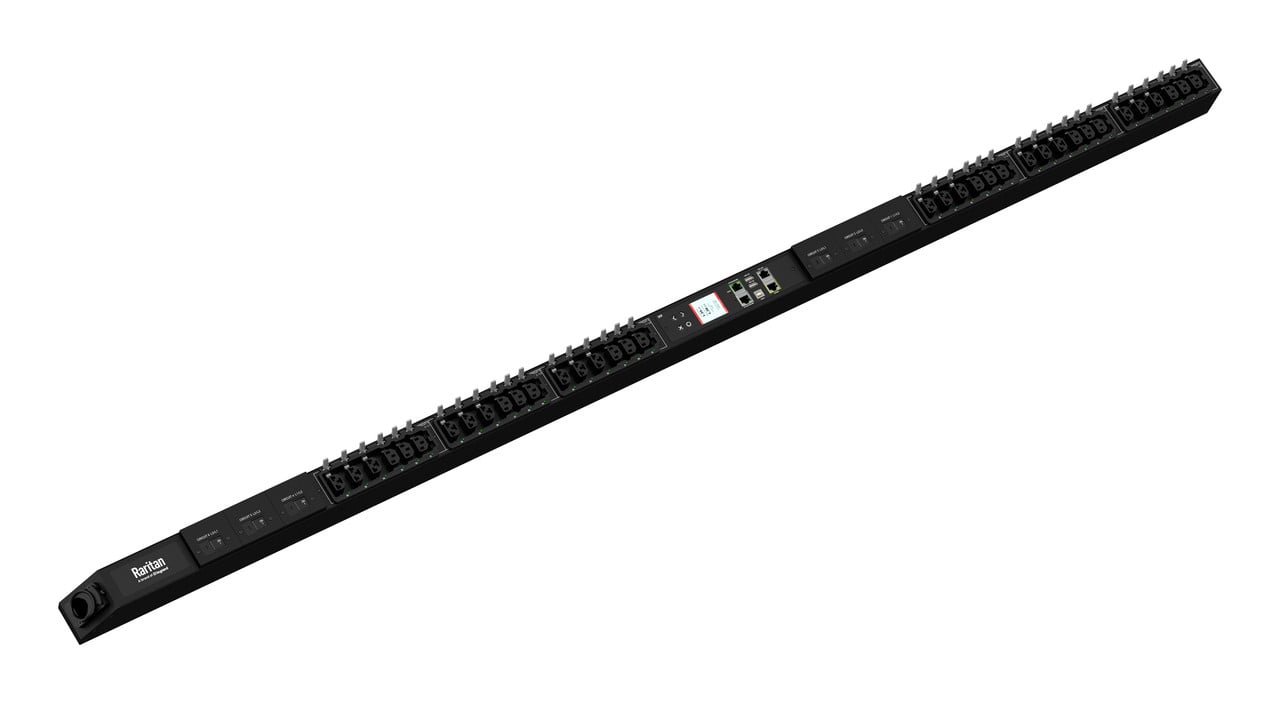

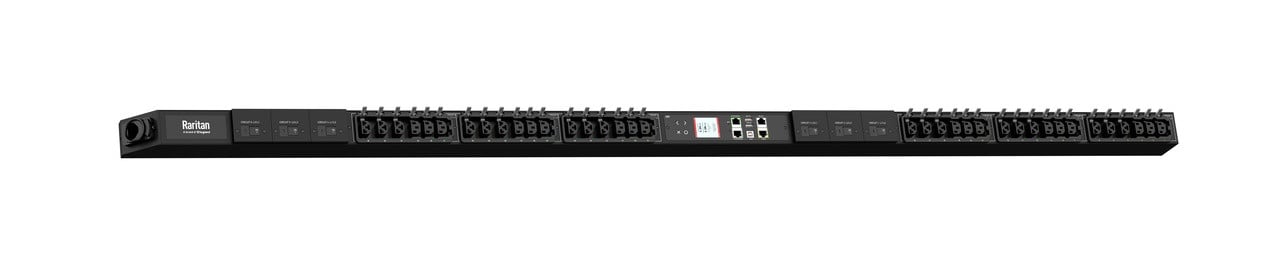

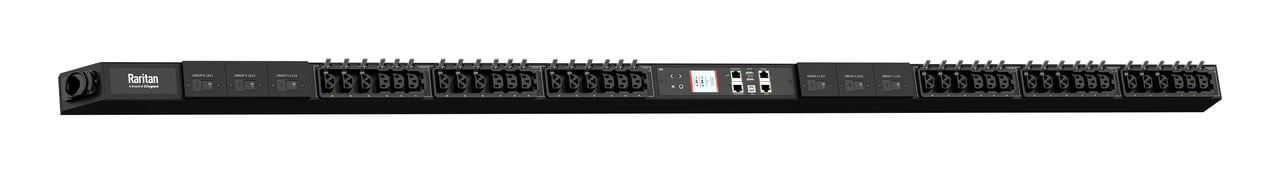

3PH, 208V, 50A (derated to 40A), 36 Outlets: 18 x Locking C13, 18 x Locking Cx, Input: CS8365C 50A, 0U, 14.4kVA, 6 x 10kAIC breakers, Outlet Metered and Switched, iX controller with 2 x 10/100/1000 ETH port, 2 x USB-A, 1 x USB-B, RJ-45 Sensor and PDU Link port
Features
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications
Input
Input Plug
CS8365 3P+G 50A
Nominal Voltage
208V
Maximum Input Current
50A
Rated Input Current
40A
Power Capacity
14.4kVA
Cord Length
3m
Output
Nominal Voltage
nullV
Receptacles (Output Connections)
(18) C13, (18) Cx
Overload Protection
6
Physical

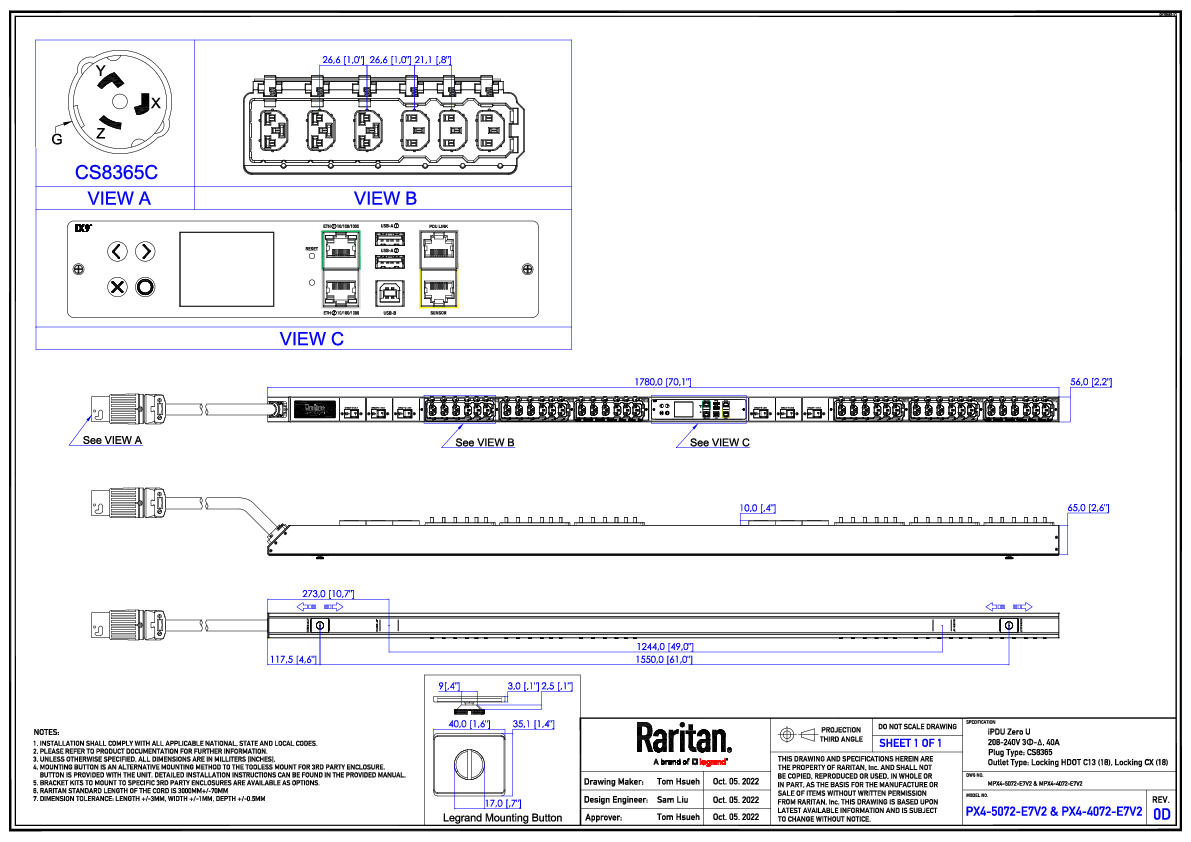

Dimensions (WxDxH)
56mm x 65mm x 1780mm
Unit Weight
24kg
Shipping Weight
nullkg
Shipping Dimensions
Mounting
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
Warranty
Standard 2 years manufacturer warranty
