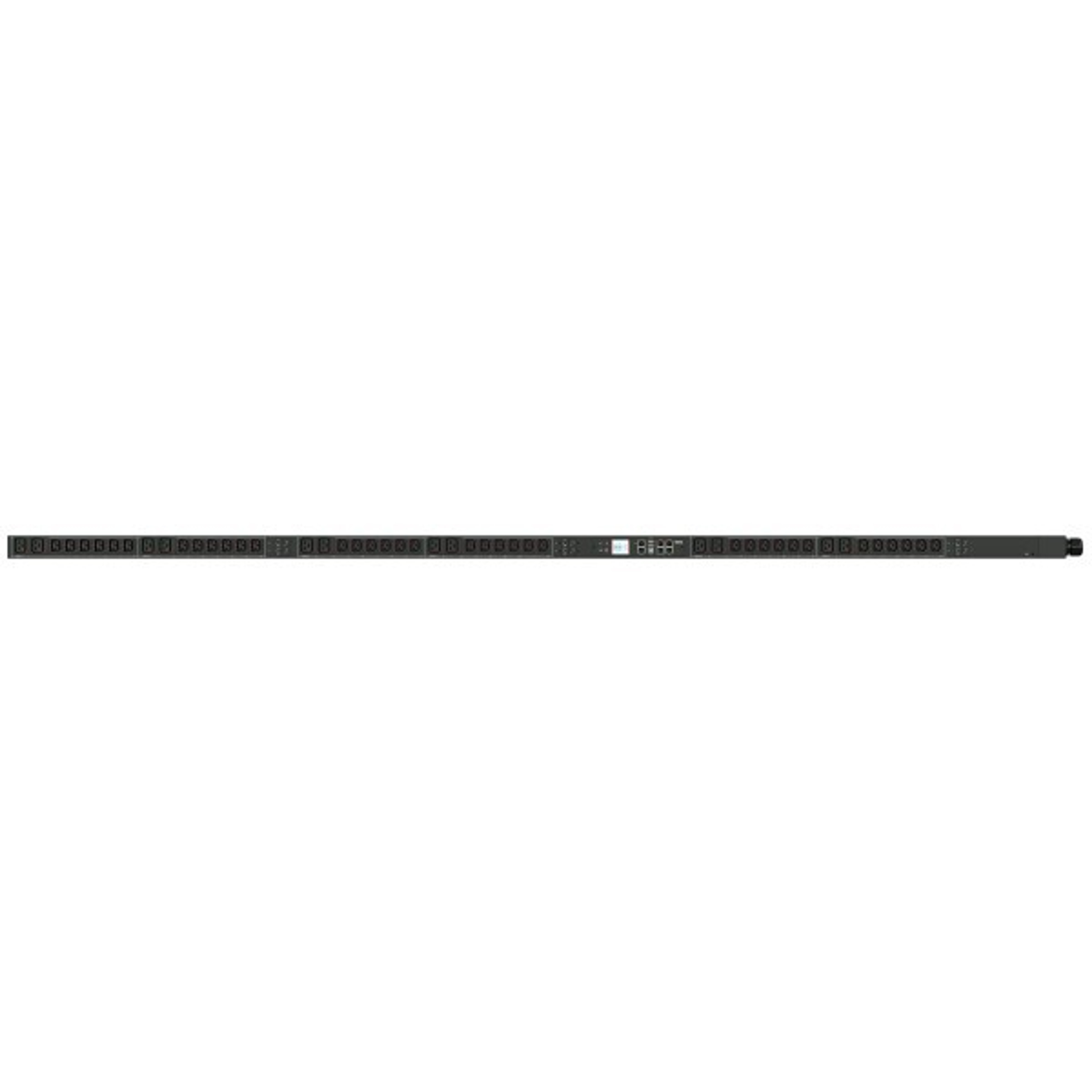

Raritan PX3-5696V-M17V2 48-Outlets PDU
Raritan
SALE PRICE$3,270.00
REGULAR PRICE $3,988.00
MFG#:PX3-5696V-M17V2
Product Category:PDU
Model or Line:PX3
Availability:Call for Availability
Additional information
Description:
Raritan PX3-5696V-M17V2 48-Outlets PDU - Monitored - NEMA 15-60P (3P4W) - 48 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Features
- Three Phase phase PDU for reliable performance with maximum productivity
- NEMA 15-60P (3P4W) plug/connector type for better, dependable connectivity and desired power output
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- 230 V AC input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for better reliance and maximum usability
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
Specifications:
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5696V-M17V2 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5696V-M17V2 |
| Product Name | PX3-5696V-M17V2 48-Outlets PDU |
| Product Type | PDU |
| Technical Information: | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA 15-60P (3P4W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Protection Type | Overload Protection Overcurrent Protection Splash Proof Double Pole |
| Power Description: | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Input Current | 60 A |
| Management: | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 78" |
| Width | 2.3" |
| Depth | 3.9" |
| Weight (Approximate) | 34.39 lb |
| Miscellaneous: | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty: | |
| Warranty | 2 Year |
