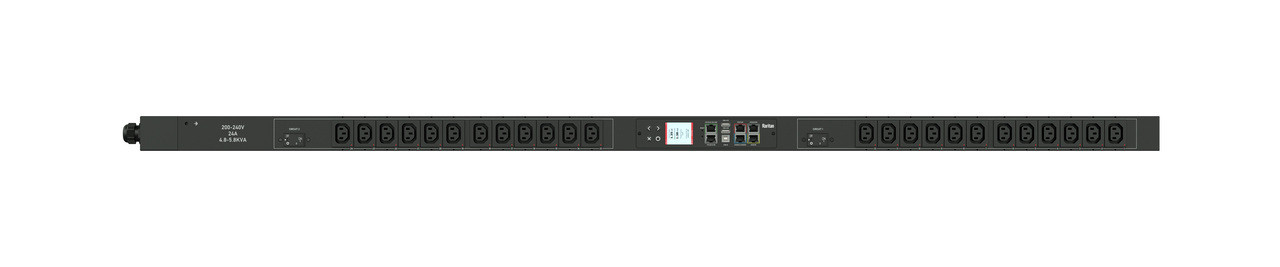

Name: Raritan PX3-5130YU-M10O1V2 30-Outlet PDU - 0U - Vertical
Brand: Raritan
SKU: PX3-5130YU-M10O1V2
Price: 3855.35 USD
Availability: InStock

Features

Securelock
Removable Controller

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Yes

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Specifications

Input

Input Plug

(N/A) AC Terminal (N/A)

Nominal Voltage

415V

Maximum Input Current

80A

Rated Input Current

80A

Power Capacity

57.5kVA

Cord Length

(N/A) N/Am

Output

Nominal Voltage

240V

Receptacles (Output Connections)

(18) IEC320 C13

(12) IEC320 C19

Overload Protection

(18) LEJBX6-20

Physical

Dimensions (WxDxH)

2.8in x 3.5in x 79.9in; 71mm x 89mm x 2030mm

Unit Weight

11.9 kg

Shipping Weight

14.9 kg

Shipping Dimensions

215mm x 165mm x 2197mm

Mounting

Tool-less Button Mount

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-10000ft

Conformance

Regulatory Approvals

Warranty

Standard 2 years manufacturer warranty

Tender Text/Bid Submittal Text

Monitored and switched rack power distribution unit (0U [vertical], 57.5kVA, 30 outlets). INPUT: 415v (3-phase WYE), 80a - Hardwired [AC Terminal Block, No Cord]; OUTPUT: 18@ C13, 12@ C19 outlets; on 18@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote Outlet Switching (Bi-State Latching Relays); Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation; Field-Replaceable, hot-swappable network module with 536MHz processor, 16MB SPI Flash, and 64MB DDR2 RAM; Gigabit(10/100/1000) Ethernet port. Secondary, redundant Ethernet port. Redundant power sharing between network modules.Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 71mm x 89mm x 2030mm (2.8in x 3.5in x 79.9in). Max Weight 11.9 kg. Maximum ambient temperature 60C at full load.

Vendor: Raritan; Part Number: PX3-5130YU-M10O1V2

Download PDF

Good company to do business with, they respond quickly and really commit to serve.

Very good pricing, and the item arrived within a reasonable time frame undamaged.

Delivery was a little slow, but it got there in time for the installation. Turned out to be the wrong part. Katie was easy to work with to get an RMA number and return it.

Communication is excellent. They confirmed what might be an atypical order. Carried it out, in less time than advertised. (The advertised lead time was long, but written; their actual time to deliver was much less than that.) Their website search function worked well, though they did have an error on one of their website on the pictures, but the description was correct. I pointed this out to them, and they fixed it immediately, and the correction was live on their site the next day, that is responsive (and errors happen). For people, it’s how it goes after a nit that matters, these people seem to get that and work hard and professionally to do business. I am buying again.
