Description:

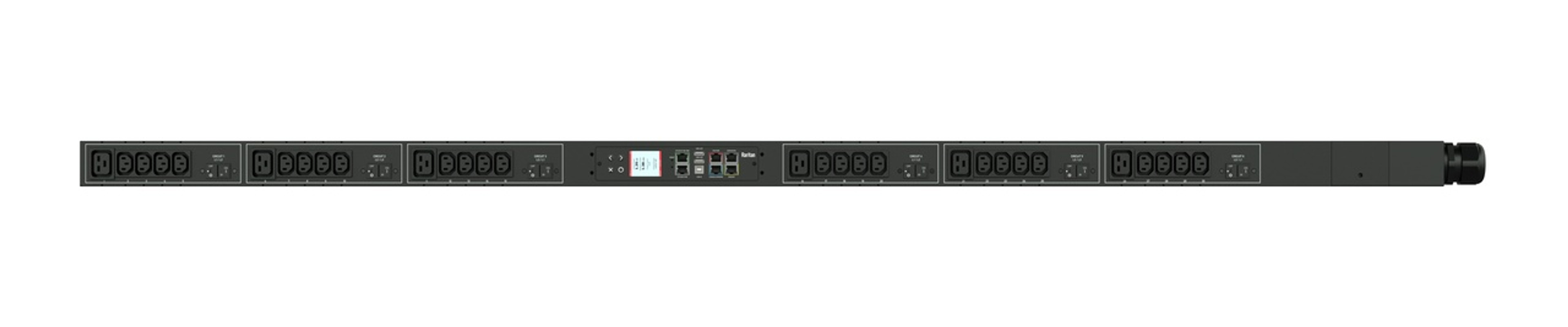

Monitored rack power distribution unit (0U [vertical], 14.4kVA, 30 outlets). INPUT: 208v (3-phase DELTA), 50a - CS8365C plug (3P4W); OUTPUT: 24@ C13, 6@ C19 outlets; on 6@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 59mm x 80mm x 1780mm (2.3in x 3.2in x 70.1in). Max Weight 9.5 kg. Maximum ambient temperature 60C at full load.
Specifications:
Input
Input Plug
CS8365 3P+G 50A
Nominal Voltage
208V
Maximum Input Current
50A
Rated Input Current
40A
Power Capacity
14.4kVA
Cord Length
3m
Output
Nominal Voltage
240V
Receptacles (Output Connections)
(24) C13, (6) C19
Overload Protection
N/A
Physical
Dimensions (WxDxH)
TBD
Unit Weight
20 lbs
Shipping Weight
27.55775 lbs
Shipping Dimensions
2110 x 380 x 160 mm
Mounting
G3-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
