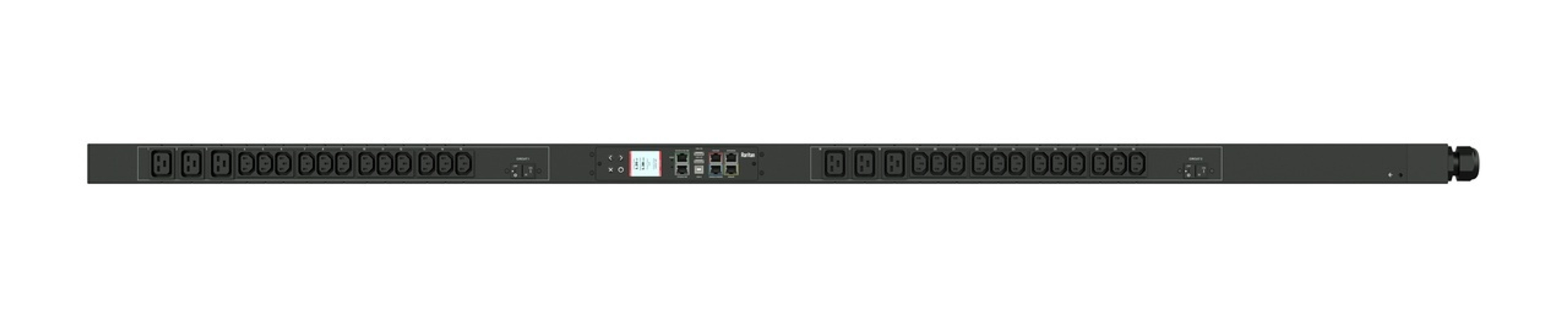

Description:
3PH, 208V AC, 30A (24A/PH rated); 48 outlets: 48x C13; plug: NEMA L21-30P (Wye Bottom-front feed), 8.6kVA; Unit Metered, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-
Specifications:
FEATURES
Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA),
Energy (kWh), Power Factor
Metering Accuracy ISO/IEC 62053-21 1% (see page 3 for details)
Metering per Input Line Yes
Metering per Branch Circuit Breaker Yes
Metering per Output Receptacle Yes
Remote Outlet Switching Yes
Environmental Sensor Ready Yes
Replaceable Controller Yes
Compatible Sensors Temperature, Humidity, Air Flow, Differential Pressure, Water
Leak, and Contact Closure
Networking Gigabit (10/100/1000 BaseT) Ethernet port; secondary, redundant
(10/100/1000 BaseT) Ethernet port. Optional WiFi (802.11a/b/g/n)
Remote Management HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version
v2/v3; SMTP; JSON-RPC; Modbus over TCP
Cascading Yes, Max 16 PDUs can be daisy chained using a USB connection
and 32 PDUs using Ethernet connection
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line,
per breaker, or per receptacle / outlet); Alarms; Configuration information
(name, ratings, IP / Networking information); Auto-flip orientation
Embedded Processor ARM Cortex A5 536MHZ (Atmel A5D35A), 16MB SPI Flash, 64MB DDR2 RAM
1
Technical Specifications / Engineering Submittals
Raritan Model Number: PX3-5497V rev20240510
INPUT
Input Plug NEMA L6-30P (2P3W)
Cord Length 3 meters (9.84 feet) standard
Cord Entry Bottom-bottom feed
Cable Type IP44("splashproof")
Number of Power Cords 1
Maximum Input Current 30A
Nominal Input Voltage 208V
Rated Input Voltage 200 - 240V
Input Frequency 50/60Hz
Power Capacity 4.8kVA at 200V, 5.8kVA at 240V
OUTPUT
Nominal Output Voltage 208V
Rated Output Voltage 200 - 240V

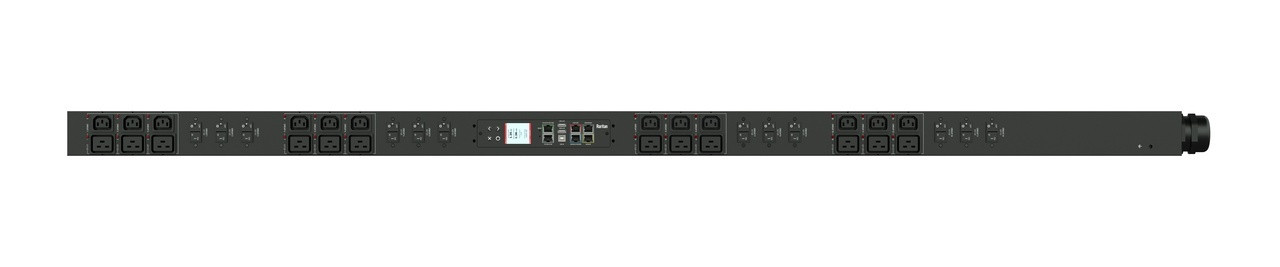

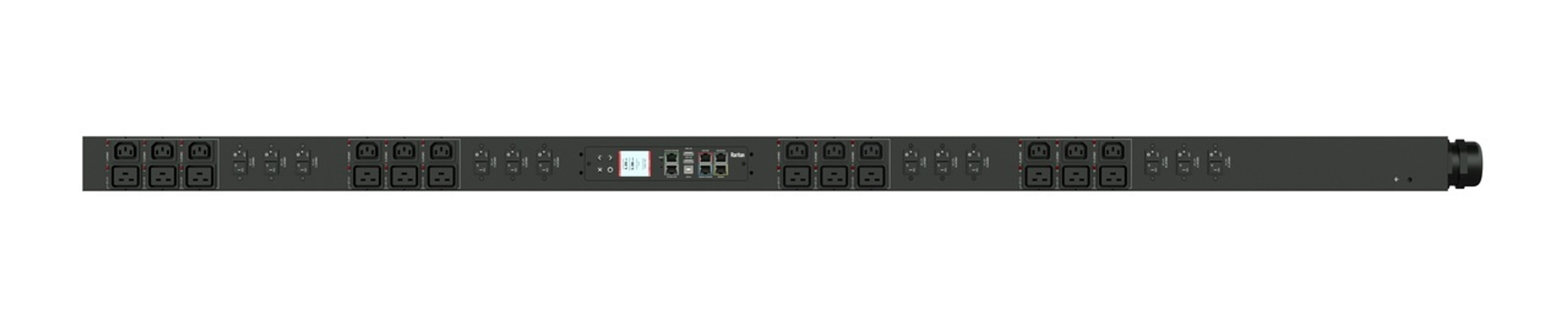

Receptacles (Output Connections) (20) IEC320 C13, 12A
(4) IEC320 C19, 16A
Securelock Support Yes
Cord Retention Yes
Overload Protection (2) LEGBXA66-20
PHYSICAL
Color Black powder coat (custom colors available)
Unit Dimensions (WxDxH) 2.1" x 2.6" x 60.6" ; 52mm x 65mm x 1539mm
Unit Weight 5.4 kg
Shipping Weight 7.8 kg
Shipping Dimensions (WxDxH) 11.02" x 4.53" x 71.46" ; 280mm x 115mm x 1815mm
Mounting G2-RACK-FOR-ZU
