Description:

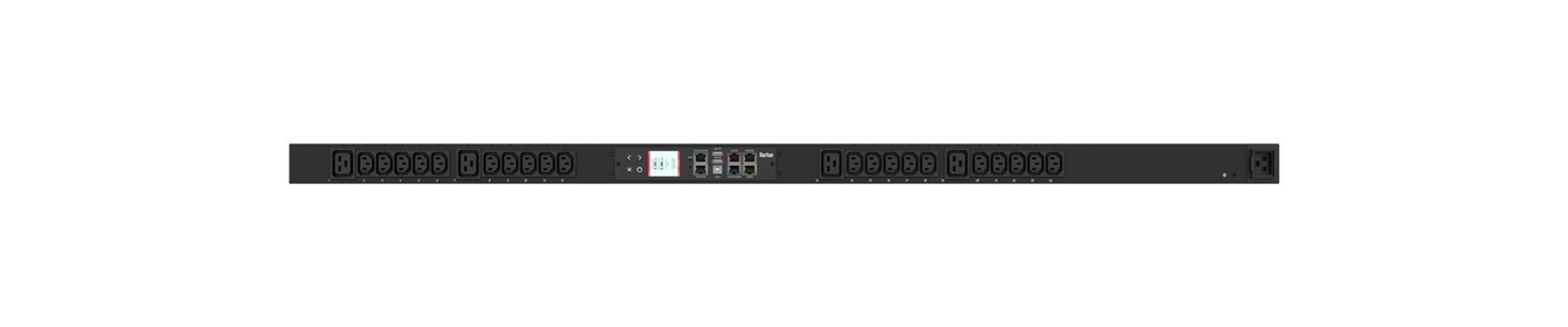

Monitored rack power distribution unit (0U [vertical], 3.7kVA, 24 outlets). INPUT: 230v, 16a - IEC 60309 2P+E 6h 16A plug (2P3W); OUTPUT: 20@ C13, 4@ C19 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Max Dimensions 52mm x 43mm x 1298mm (2.1in x 1.7in x 51.1in). Max Weight 3.2 kg. Maximum ambient temperature 60C at full load.
Specifications:
Input
Input Plug
IEC 230V/16A 2P+PE 6Hr
Nominal Voltage
230V
Maximum Input Current
16A
Rated Input Current
16A
Power Capacity
3.7kVA
Cord Length
3m
Output
Nominal Voltage
240V
Receptacles (Output Connections)
(20) C13, (4) C19
Overload Protection
N/A
Physical
Dimensions (WxDxH)
TBD
Unit Weight
7 lbs
Shipping Weight
13.22772 lbs
Shipping Dimensions
1428 x 230 x 118 mm
Mounting
RACK-KIT-PX2-1K-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
CE
Warranty
Standard 2 years manufacturer warranty
