Description:

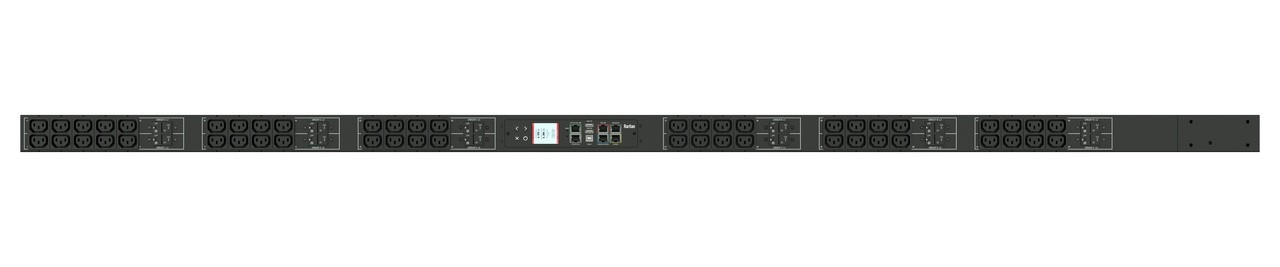

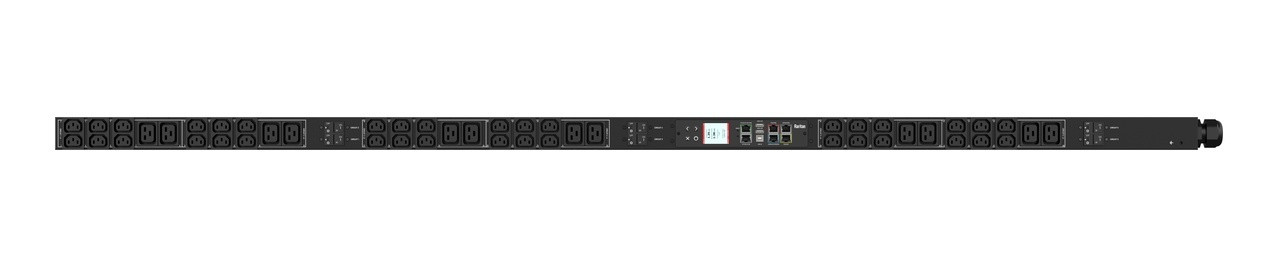

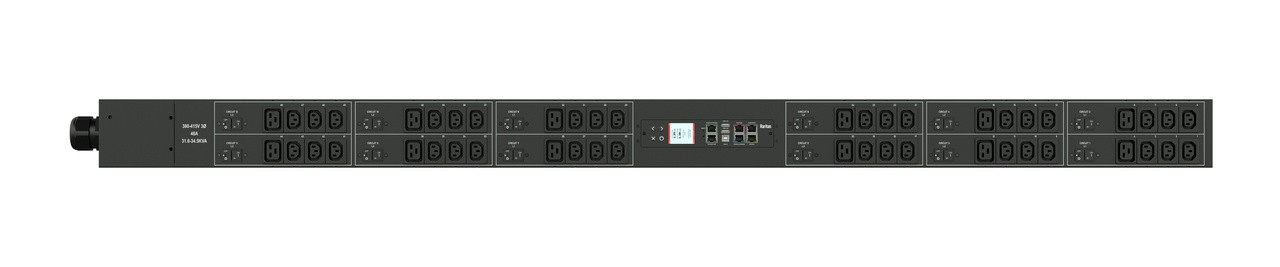

Monitored rack power distribution unit (0U [vertical], 57.5kVA, 50 outlets). INPUT: 415v (3-phase WYE), 80a - Hardwired [AC Terminal Block, No Cord]; OUTPUT: 50@ C13, 12@ outlets; on 12@ 1-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 59mm x 80mm x 1981mm (2.3in x 3.1in x 78.0in). Max Weight TBD. Maximum ambient temperature 60C at full load.
Specifications:
Input Plug
Terminals_AC
Nominal Voltage
415V
Maximum Input Current
80A
Rated Input Current
80A
Power Capacity
57.5kVA
Cord Length
3m
Output
Nominal Voltage
240V
Receptacles (Output Connections)
(50) C13
Overload Protection
N/A
Physical
Dimensions (WxDxH)
TBD
Unit Weight
15 lbs
Shipping Weight
21.384814 lbs
Shipping Dimensions
2157 x 215 x 165 mm
Mounting
G3-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
