Description:

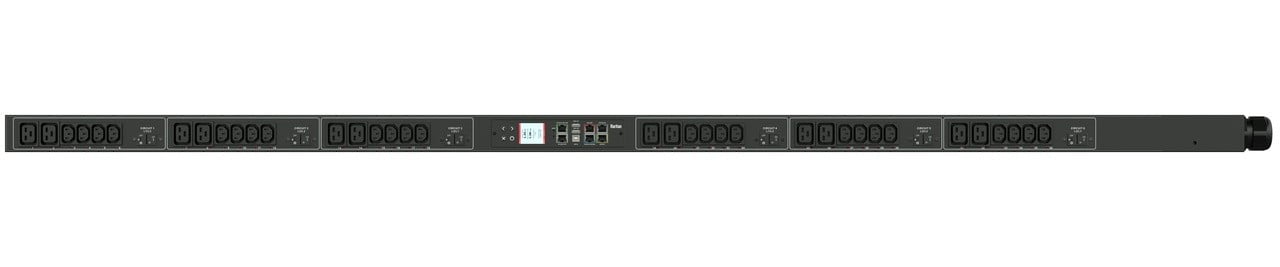

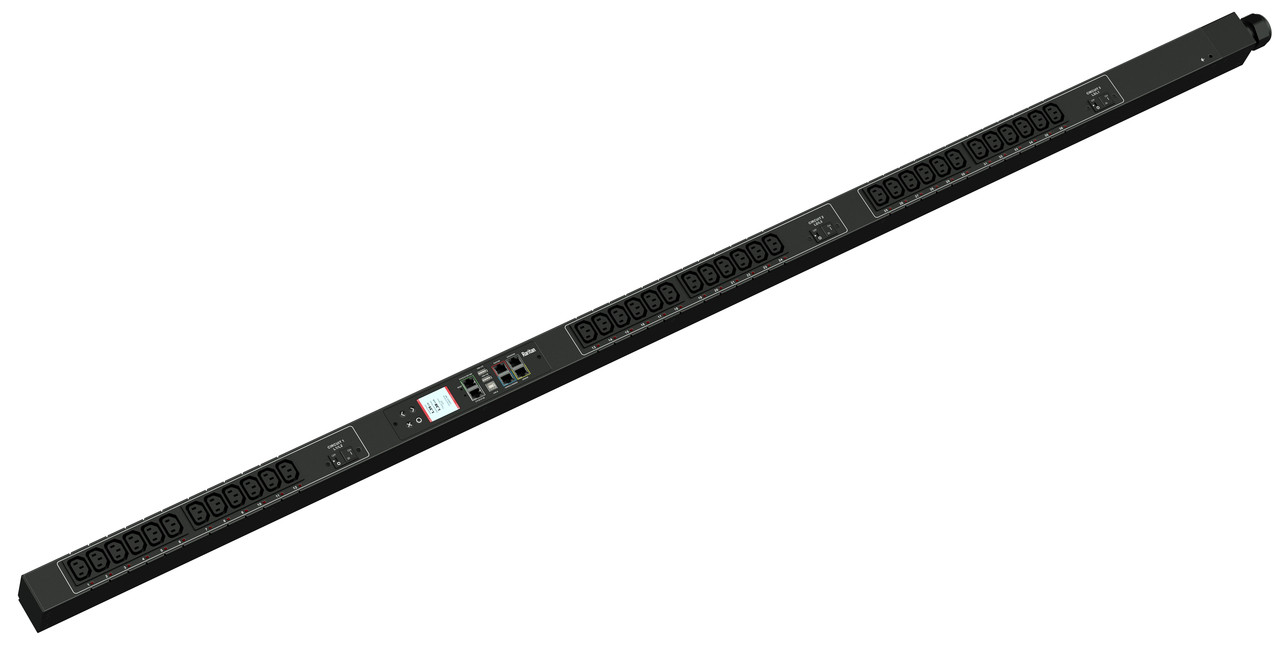

Raritan Dominion PX3 36-Outlets PDU - NEMA L21-30P - 36 x IEC 60320 C13 - 230 V AC - 8600 W - Network (RJ-45) - 0U - Rack-mountable
Features
- Three Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L21-30P plug/connector type for reliable, productive connectivity and optimal power output
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- 230 V AC input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for optimal performance with maximum feasibility
Specifications:
| Interfaces/Ports |
| Network (RJ-45) |
Yes |
| Management |
| Management |
- SNMP 2
- Telnet
- SNMP 3
- HTTP
- HTTPS
- SSH
|
| Miscellaneous |
| Country of Origin |
Taiwan |
| Environmentally Friendly |
Yes |
| Physical Characteristics |
| Weight (Approximate) |
15.43 lb |
| Mount Type |
Rack-mountable |
| Rack Height |
0U |
| Height |
70.1" |
| Width |
2" |
| Depth |
2.6" |
| Technical Information |
| Protection Type |
Overload Protection |
| Plug/Connector Type |
NEMA L21-30P |
| Phase |
Three Phase |
| Receptacle Type |
IEC 60320 C13 |
| Receptacle Detail |
36 x IEC 60320 C13 |
| Plug/Connector Detail |
1 x NEMA L21-30P |
|
| Power Description |
| Input Voltage |
230 V AC |
| |
230 V AC |
| Output Voltage |
208 V AC |
| |
208 V AC |
| Input Current |
24 A |
| Input Voltage Range |
190 V AC - 208 V AC |
| |
190 V AC - 208 V AC |
| Power Rating (VA) |
8600 VA |
| General Information |
| Product Type |
PDU |
| Manufacturer Part Number |
PX3-5701V-K1 |
| Manufacturer Website Address |
http://www.legrand.us |
| Packaged Quantity |
1 |
| |
1 |
| Manufacturer |
Legrand Group |
| Product Name |
Dominion PX3 36-Outlets PDU |
| Product Line |
Dominion |
| Product Series |
PX3 |
| Brand Name |
Raritan |
|
