Description:

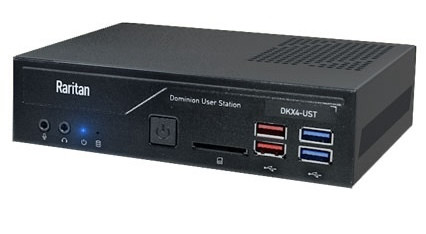

The Dominion® KX IV User Stations are standalone
appliances for high-performance IP access to servers
connected to Dominion® KX III and KX IV switches,
accessed by DSAM, RDP, VNC, VMware virtual
machines, web links, and SSH connections, together
with optional CommandCenter integration. The slim
form factor allows them to sit on a desk, be mounted
in a standard 19” rack, or VESA-mounted on the back
of a monitor. Deploy using standard Cat5 cabling and
Ethernet/IP technology.
Simultaneously access, view, and control multiple
servers spread across up to four (KX IV User Station)
monitors. Or use the innovative keyboard and mouse
APPLICATIONS
■ Broadcast Labs & Studios
■ Control Rooms
■ Government & Military
■ Transportation & Energy
■ Factory & Industrial
■ Data Centers
ENHANCED USER STATION
DOMINION® KX IV
sharing feature to work across 4, 8, 12, or more monitors! Use Web-based and API-based remote control to expand
the capability of User Stations to display walls and control rooms.
Dominion KX IV User Station is recommended for use with the Dominion KX IV-101 High-Performance KVM for
resolutions up to 4K. This model also supports more KVM sessions and up to 4 monitors.
DKX4-EUST can replace outdated analog matrix switches, supplement inflexible broadcast systems, or be
deployed anywhere hassle-free IP access is needed. They are perfect for broadcast labs, studios, control rooms,
offices, and data centers
Specifications:

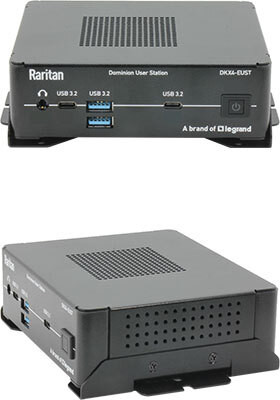

KX4 ENHANCED USER STATION PORTS AND CONNECTIONS
Front View
Rear View
Audio
Output
Type-C
USB 3.2
(Video)
Type -A
USB 3.2
Power
Button
Type-C
USB 3.2
(Video)
DC Power
Input
USB ports
HDMI
Display
Port
1 Gigabit &
2.5 Gigabit
Ethernet
Product Description DKX4-EUST: DKX4 Enhanced User Station
CPU AMD Ryzen V2516
Video
Controller AMD RadeonTM Graphics
HDMI HDMI 2.0a, Max resolution up to
4096x2160@60Hz
DisplayPort DisplayPort 1.2a, DP++ , Max resolution up
to 4096x2160@60Hz
MultiDisplay Max 4 display (Include 2 outputs Type C@
front)
Memory 8GB
Storage 128GB Solid State Disk
Network LAN1: 10 / 100 / 1000 / 2500 Mbps
LAN2: 10 / 100 / 1000 Mbps
Front I/O
Button Power button w/LED
USB
USB 3.2 Gen2 *2 USB 3.2
Gen2 *2 (Type-C, Supports
DP1.2a display output)
Audio: Headphone & Microphone
jack
Rear I/O
Display HDMI 2.0a *1 , DP 1.2a *1
USB Port USB 2.0 *2
LAN (RJ45) Gigabit LAN (RJ45) 2.5G
Gigabit LAN (RJ45)
DC in Support 12~19V
Power Adapter
(DC-IN Jack)
Input: 100~240VAC, 1.5A, 50/60 Hz
Output: 19VDC, 3.42A, 65.0Wintel
Level 6
Certifications EMC - FCC, CE, VCCI. RCM, BSMI
Safety - cUL, CB, KCC
Environmental
Operating Temperature & Operating Humidity : -20~40°C , 5~90%
Storage Temperature & Storage Humidity : -40~80°C , 5~90%
Altitude: Adapter 5000M
Vibration: 5-500 Hz, 3.0 Grms random vibration, 60-min each axis
Shock: 50g acceleration rate, 11 ms duration, 3 times each axis and
6 faces
MTBF 222265hrs (60℃)
Power Consumption 49.78W (19Vx2.62A max)
Unit dimensions (W*D*H) 130mm x 109.25mm x 40mm
Unit Weight 610g (1.35lbs)
