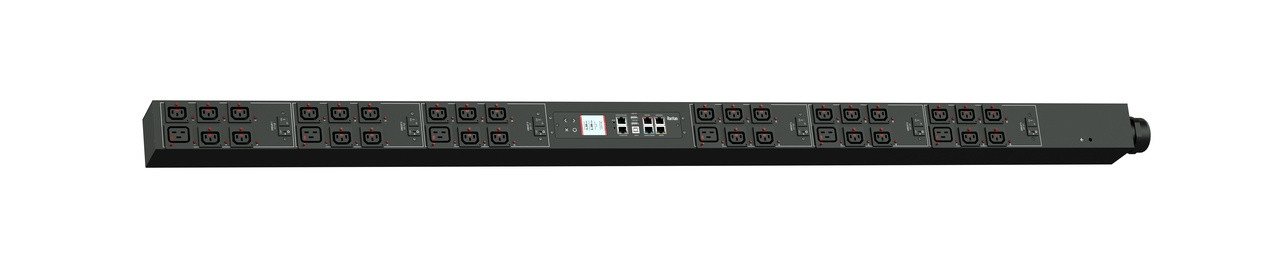

Raritan PX3-4563V-E2N1V2 3PH 208V AC 50A 36 outlets

Raritan PX3-4563V-E2N1V2 3PH 208V AC 50A 36 outlets

Raritan

MSRP: $3,167.00
Regular Price $2,691.95
Discount Price: $2,596.94
(You save $570.06 )
Shipping:
Free Shipping
Product Overview:

3PH, 208V AC, 50A (40A/PH rated); 36 outlets:

MFG#:
PX3-4563V-E2N1V2
Product Category:
PDU
Platform:
PX3
Metering and Switching:
Outlet Metered
Total Outlets:
36
Plug Type:
CS8365 3P+G 50A
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
14.4 kW
Input Voltage:
208 V
Input Current:
50
Form Factor:
0U
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX3-4563V-E2N1V2
Model or Line:
PX3
Adding to cart… The item has been added

Description:

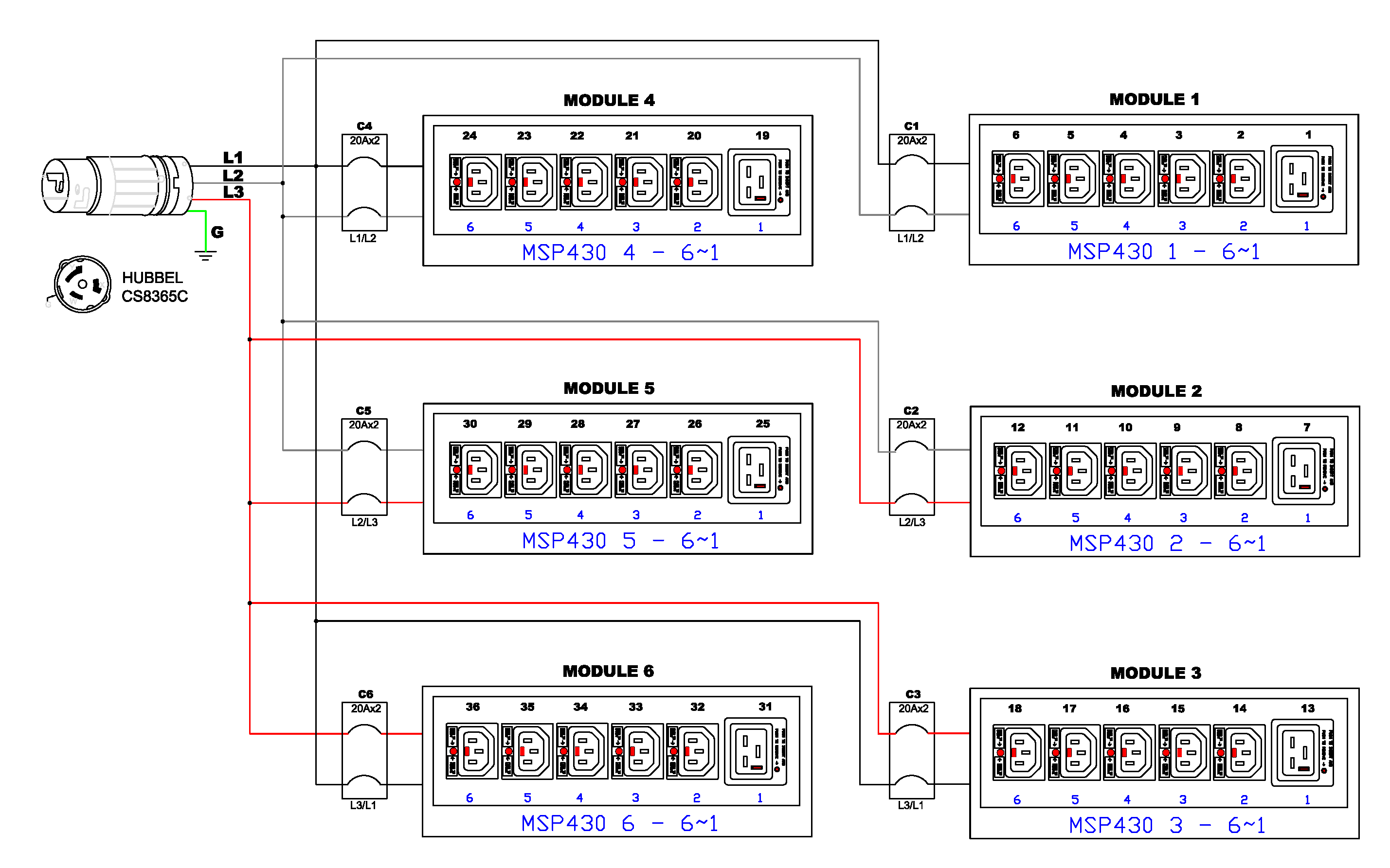

3PH, 208V AC, 50A (40A/PH rated); 36 outlets: 30x C13 Locking, 6x C19 Locking; plug: Hubbell CS8365C (Delta Bottom-bottom feed), 14.4kVA; Outlet Metered, Zero U vertical PDU, V2 Outlet Sequence, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections

Specifications:

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

No

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Specifications

Input

Input Plug

CS8365C (3P4W)

Nominal Voltage

208V

Maximum Input Current

50A

Rated Input Current

40A

Power Capacity

14.4kVA

Cord Length

3m

Output

Nominal Voltage

208V

Receptacles (Output Connections)

(30) IEC320 C13 Locking

(6) IEC320 C19 Locking

Overload Protection

(6) LEGBX66-20

Physical

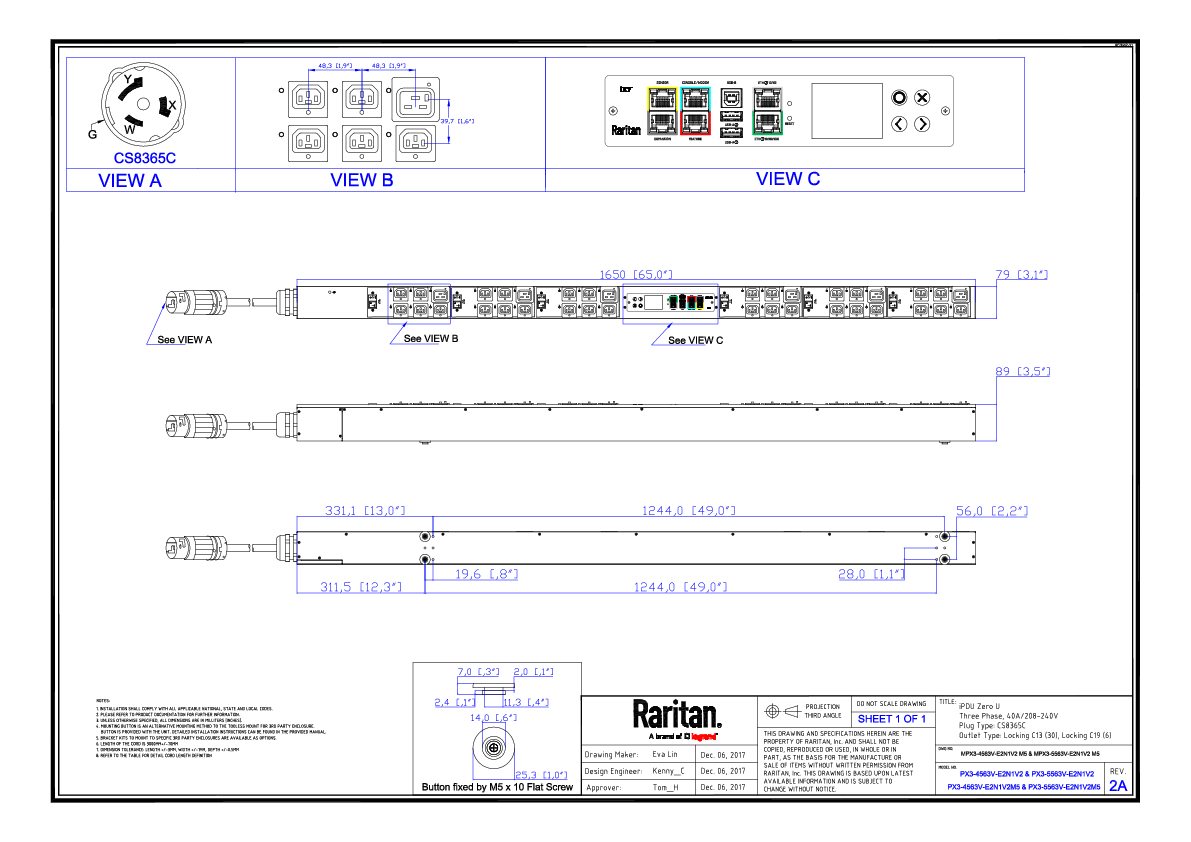

Dimensions (WxDxH)

3.1in x 3.5in x 65.0in; 79mm x 89mm x 1650mm

Unit Weight

18

Shipping Weight

18

Shipping Dimensions

330mm x 140mm x 1910mm

Mounting

Tool-less Button Mount

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals

UL

Warranty

Standard 2 years manufacturer warranty

Tender Text/Bid Submittal Text
Monitored rack power distribution unit (0U [vertical], 14.4kVA, 36 outlets). INPUT: 208v (3-phase DELTA), 50a - CS8365C plug (3P4W); OUTPUT: 30@ C13 Locking, 6@ C19 Locking outlets; on 6@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 79mm x 89mm x 1650mm (3.1in x 3.5in x 65.0in). Max Weight TBD. Maximum ambient temperature 60C at full load.
!
