Product Overview
The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/– 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.
Product Specification
| Cable | ||||
| Connectivity Details Length: | 10 ft | |||
| Connectivity Details Type: | Power cable | |||
| Environmental Parameters | ||||
| Humidity Range Operating: | 5 - 85% | |||
| Max Operating Temperature: | 140 °F | |||
| Min Operating Temperature: | 41 °F | |||
| Header | ||||
| Brand: | Raritan | |||
| Compatibility: | PC | |||
| Manufacturer: | Raritan | |||
| Model: | PX3-5721U | |||
| Packaged Quantity: | 1 | |||
| Product Line: | Raritan Dominion PX | |||
| Interface Provided | ||||
| Connector Type: | RJ-45 | |||
| Qty: | 1 | |||
| Type: | LAN | |||
| Connector Type: | 9 pin D-Sub (DB-9) | |||
| Type: | RS-232 | |||
| Connector Type: | RJ-12 | |||
| Type: | Monitoring | |||
| Connector Type: | 4 pin USB Type A | |||
| Qty: | 2 | |||
| Type: | USB | |||
| Connector Type: | 4 pin USB Type B | |||
| Miscellaneous | ||||
| Color: | Black powder coat | |||
| Color Category: | Black | |||
| Compliant Standards: | cULus , FCC Part 15 A , ICES-003 Class A , RoHS , UL | |||
| Height (Rack Units): | 0 | |||
| Networking | ||||
| Remote Management Interface: | Ethernet 10/100 , RS-232 | |||
| Remote Management Protocol: | HTTP , HTTPS , SNMP 2 , SNMP 3 , SSH , Telnet | |||
| Power Device | ||||
| Circuit Protection: | Circuit breaker | |||
| Cord Length: | 10 ft | |||
| Form Factor: | Rack-mountable | |||
| Frequency Required: | 50/60 Hz | |||
| Input Connector Qty: | 1 | |||
| Input Connector Type: | Power NEMA L21-30 | |||
| Input Voltage Range: | AC 190 - 208 V | |||

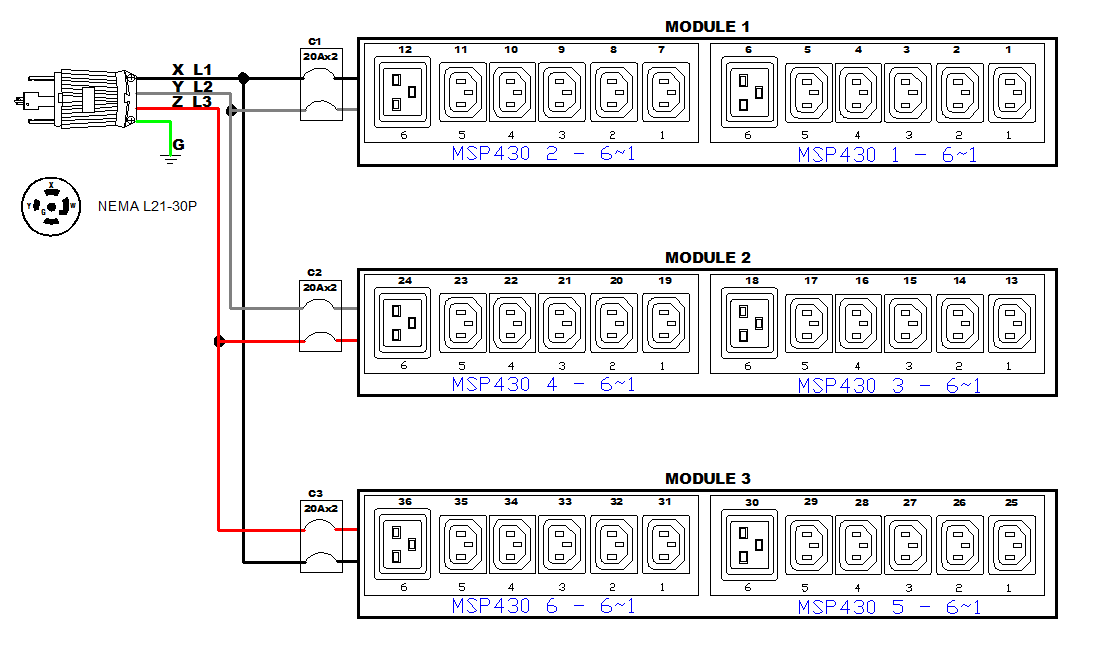

| Input Wiring: | 3-phase 4 Wire delta | |||
| Max Electric Current: | 24 A | |||
| Output Connector Qty: | 36 | |||
| Power Capacity (VA): | 8600 VA | |||
| Power Device Features: | Active power meter , Cascadable , Current meter , Energy meter , LED display , Overload protection , Power factor meter , Raritan SecureLock Ready , Real power meter , Voltage monitoring | |||
| Voltage Provided: | AC 208 V | |||
| Voltage Required: | AC 208 V | |||
| Power Output Connectors Details | ||||
| Connector Qty: | 30 | |||
| Connector Type: | Power IEC 320 EN 60320 C13 | |||
| Current: | 12 A | |||
| Connector Qty: | 6 | |||
| Connector Type: | Power IEC 320 EN 60320 C19 | |||
| Current: | 16 A | |||
| Dimensions & Weight | ||||
| Depth: | 2.6 in | |||
| Height: | 70.1 in | |||
| Width: | 2 in | |||
| General | ||||
| Product Type: | Power distribution unit | |||
| Subcategory: | Power distribution devices | |||
| Cable Details | ||||
| Form Factor: | Integrated | |||
| Included Qty: | 1 | |||
