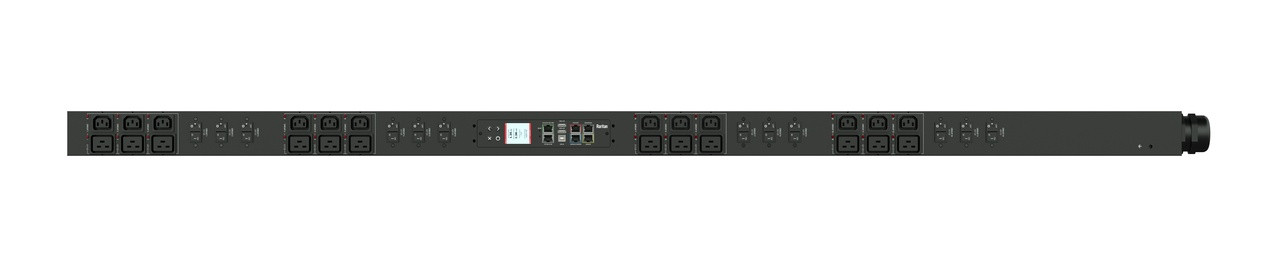

3PH, 208V AC, 100A (80A/PH rated); 30 outlets: 18x C13, 12x C19; plug: IEC 60309 3P+E 9h 100A (Delta Bottom-bottom feed)

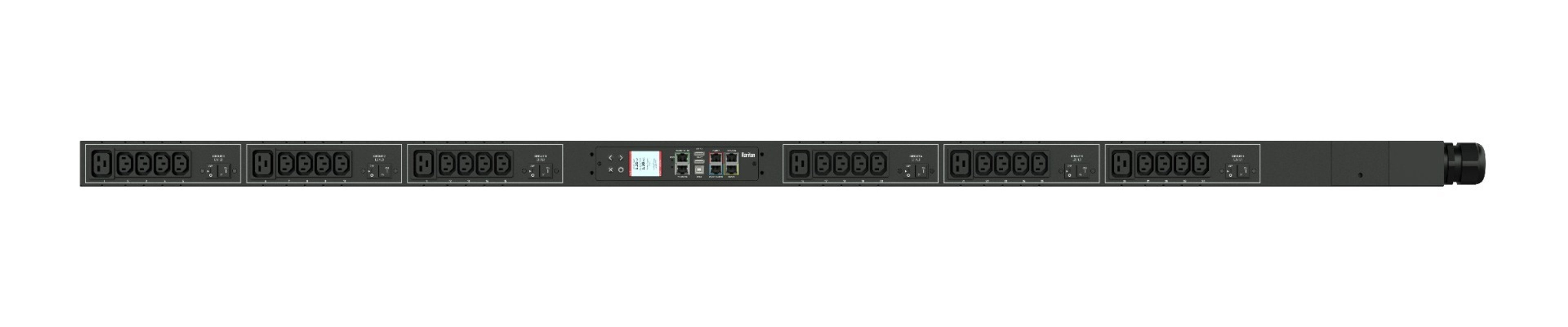

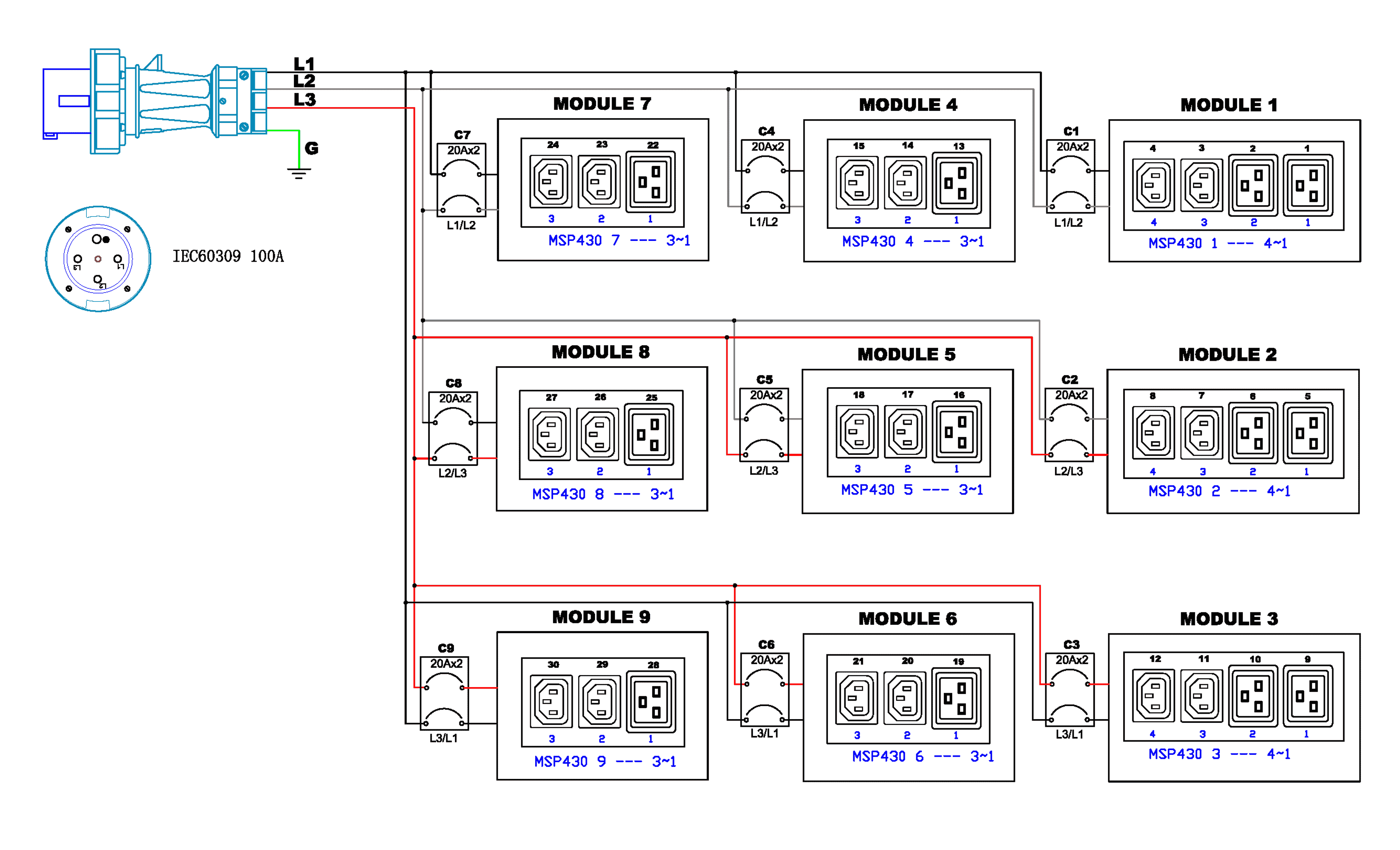

Monitored and switched rack power distribution unit (0U vertical, 28.8kVA, 30 outlets). INPUT: 208V (3-phase delta), 100A – IEC 60309 3P+E 9h 100A plug (3P4W). OUTPUT: 18× C13, 12× C19 outlets; 9× 2-pole, 20A overcurrent protectors. FEATURES: Billing-grade (±1%) energy metering (kW, kVA, V, A, power factor) per inlet, per breaker/fuse, per outlet; remote monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Embedded processor (≥536MHz), 16MB SPI flash, 64MB DDR2 RAM. Daisy-chain up to 16 PDUs over a single Ethernet or USB connection. Environmental monitoring (temp/humidity) up to 32 sensors. Wi-Fi capable. USB webcam capable. Mobile app support (iOS/Android). Dual 10/100/1000 Ethernet ports. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max dimensions: 71mm × 89mm × 2030mm (2.8in × 3.5in × 79.9in). Max weight: 19.9kg. Maximum ambient temperature: 60°C at full load.
| Energy metering | Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor |
|---|---|
| Metering accuracy | ISO/IEC 62053-21 1% |
| Remote outlet switching | Yes |
| Metering per input line | Yes (all models) |
| Metering per branch circuit breaker | Yes |
| Environmental sensor ready | Yes |
| Compatible sensors | Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, Contact Closure |
| Cascading | Yes, max 16 PDUs can be daisy-chained using USB or Ethernet |
| Networking | (10/100/1000 Base-T) Ethernet + secondary redundant (10/100/1000 Base-T) Ethernet; optional Wi-Fi (802.11 a/b/g/n) |
| Onboard display | Color matrix LCD; voltage/current/active power (per line, breaker, or outlet); alarms; configuration info; auto-flip orientation |
| Input | |
| Input plug | IEC 60309 3P+E 9h 100A (3P4W) |
| Nominal voltage | 208V |
| Maximum input current | 100A |
| Rated input current | 80A |
| Power capacity | 28.8kVA |
| Cord length | 3m |
| Output | |
| Nominal voltage | 208V |
| Receptacles (output connections) | (18) IEC320 C13 (12) IEC320 C19 |
| Overload protection | (9) LEGBX66-20 |
| Physical | |

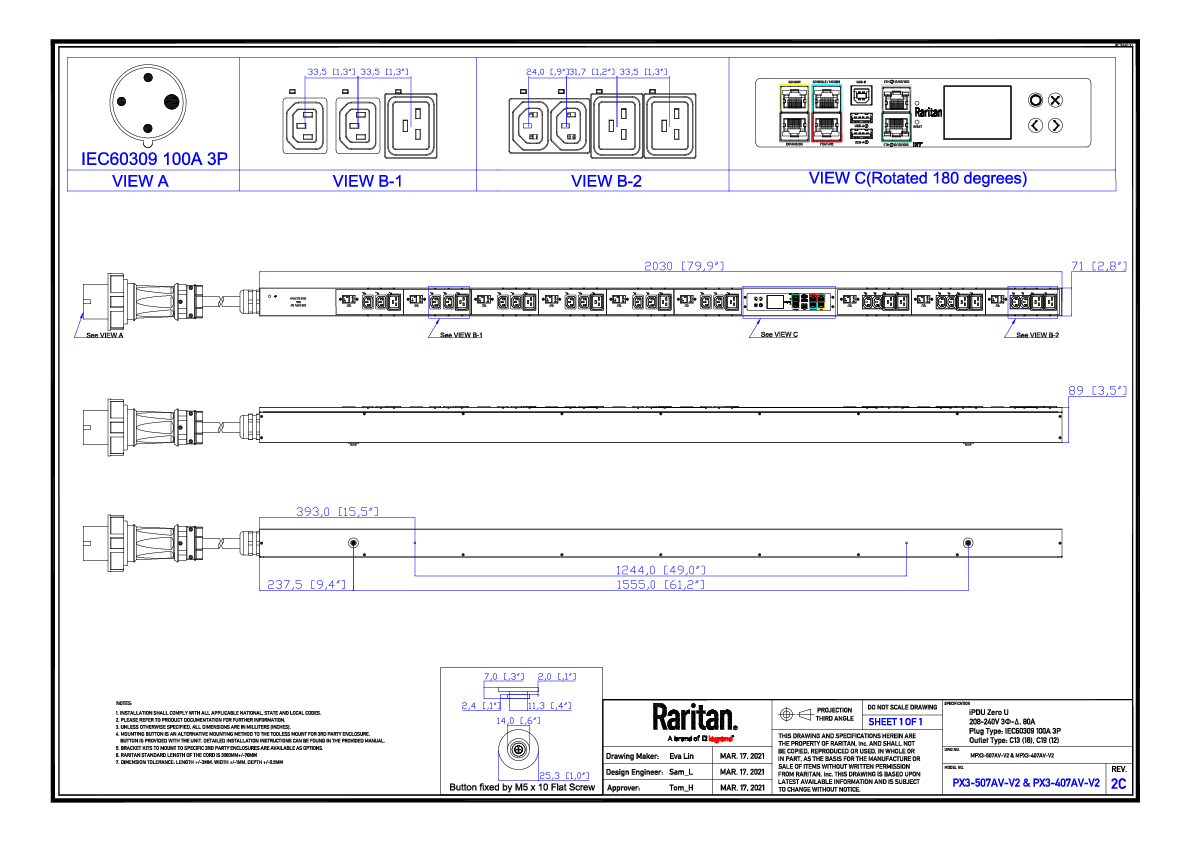

| Dimensions (W×D×H) | 2.8in × 3.5in × 79.9in; 71mm × 89mm × 2030mm |
| Unit weight | 19.9kg |
| Shipping weight | 23.4kg |
| Shipping dimensions | 370mm × 160mm × 2355mm |
| Mounting | Tool-less button mount |
| Environmental | |
| Operating temperature | 60°C |
| Operating relative humidity | 85% |
| Operating elevation | 0–6000ft |
| Conformance | |
| Regulatory approvals | UL |
| Warranty | Standard 2-year manufacturer warranty |
