Model Specifications

SRC-0100: 1U Smart rack controller with 2 x C14 power inputs, 1 x RJ-45 sensor port, 1 x RJ-45 RS-232 port, 2 x USB-A ports, 1 x USB-B port, 2 x RJ-45 (10/100/1000 Mbps) Ethernet ports, 1 x RJ-45 feature port, multi-color LCD display.

SRC-0102: 1U Smart rack controller with 2 x C14 power inputs, 1 x RJ-45 sensor port, 1 x RJ-45 RS-232 port, 2 x USB-A ports, 1 x USB-B port, 2 x RJ-45 (10/100/1000 Mbps) Ethernet ports, 1 x RJ-45 feature port, with built-in 2 x DX2-DH2C2 (Door Handle Interface), multi-color LCD display.

SRC-0103: 1U Smart rack controller with 2 x Terminals (48VDC), 1 x RJ-45 sensor port, 1 x RJ-45 RS-232 port, 2 x USB-A ports, 1 x USB-B port, 2 x RJ-45 (10/100/1000 Mbps) Ethernet ports, 1 x RJ-45 feature port, 2 x DX2-DH2C2, multi-color LCD display.

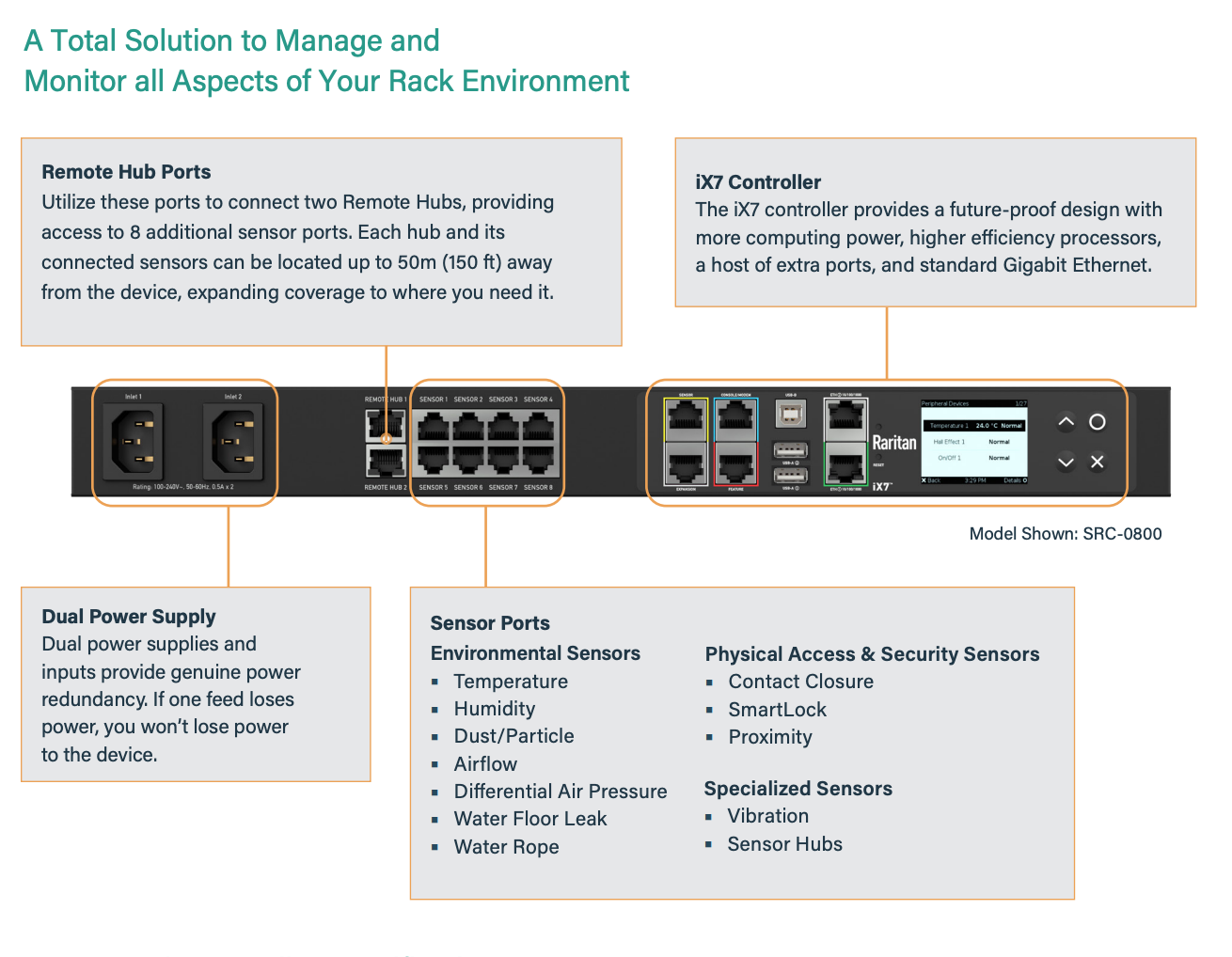

SRC-0800: 1U Smart rack controller with 2 x C14 power inputs, 8 x RJ-45 sensor ports, 1 x RJ-45 RS-232 port, 2 x USB-A ports, 1 x USB-B port, 2 x RJ-45 (10/100/1000 Mbps) Ethernet ports, 1 x RJ-45 feature port, with built-in 2 x RJ-45 ports to connect remote hubs, multi-color LCD display.
