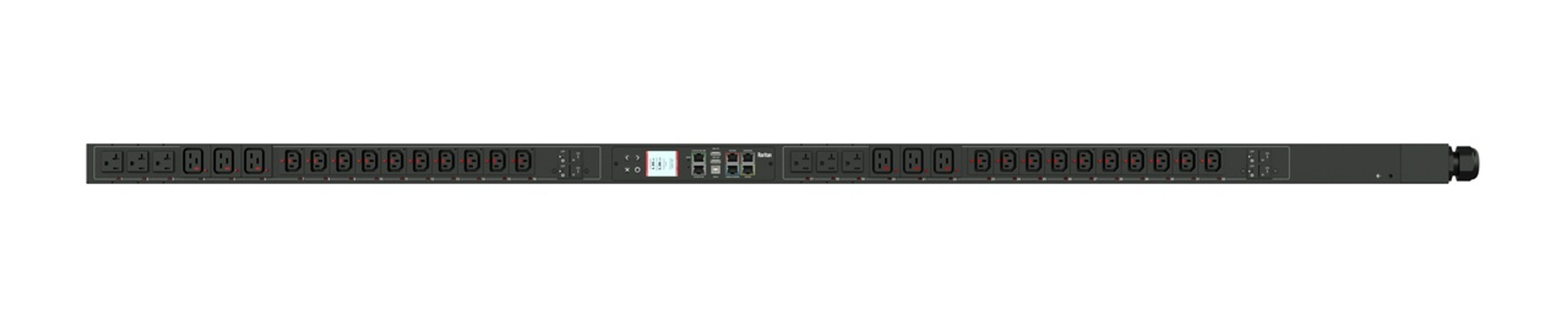

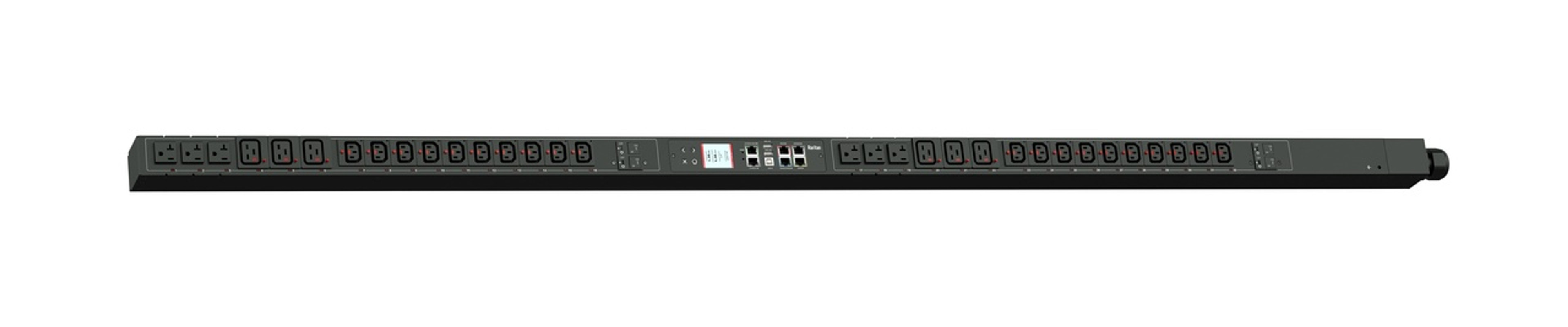

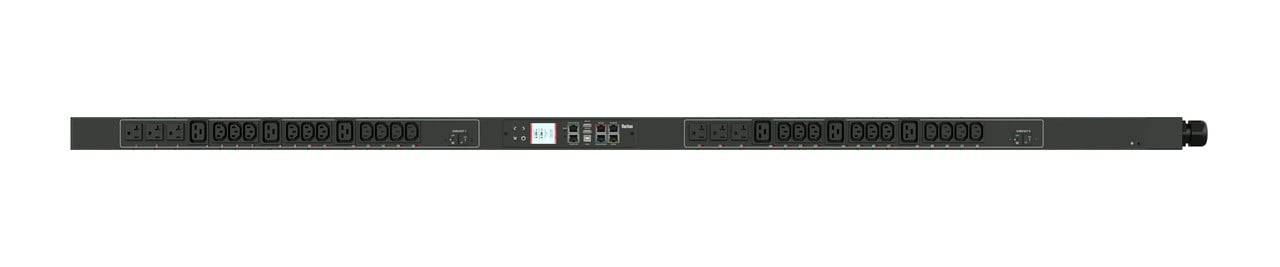

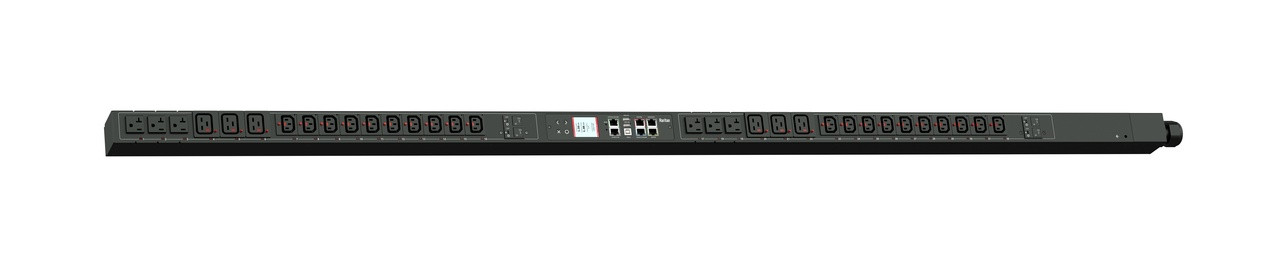

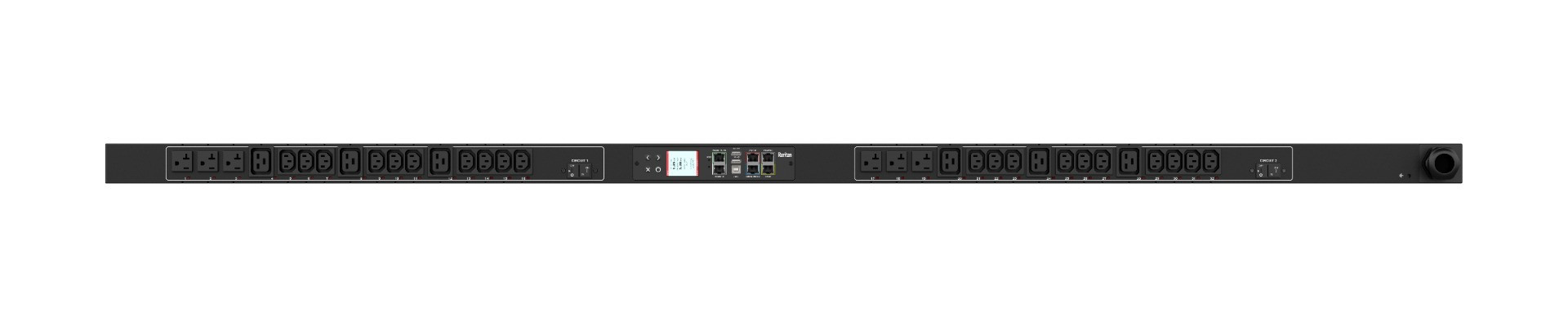

Raritan PX3-4039V 1PH 208V AC 24A Zero U PDU

Raritan PX3-4039V 1PH 208V AC 24A Zero U PDU

Raritan

MSRP: $4,222.00
Regular Price $3,589.00
Discount Price: $3,462.00
(You save $760.00 )
Shipping:
Free Shipping
Product Overview:

1PH, 208V AC, 24A (24A rated); 32 outlets: 20x C13 Locking, 6x C19 Locking, 6x NEMA 5-20R; plug: NEMA L14-30P (Bottom-bottom feed), 5.0kVA; Outlet Metered, Zero U vertical PDU

MFG#:
PX3-4039V-E2
Product Category:
PDU
Platform:
PX3
Metering and Switching:
Outlet Metered
Total Outlets:
32
Plug Type:
NEMA L14-30P
Input Phase:
1 Phase (L-L)
Power Capacity:
5 kW
Input Voltage:
208 V
Input Current:
30
Form Factor:
0U
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX3-4039V-E2
Model or Line:
PX3
Adding to cart… The item has been added

Description:

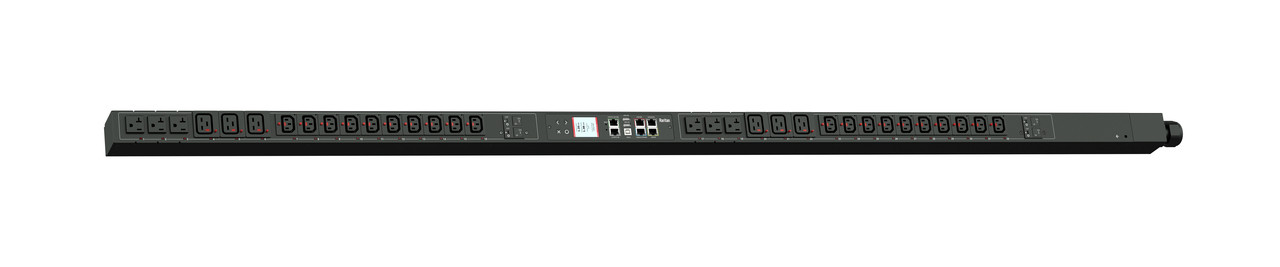

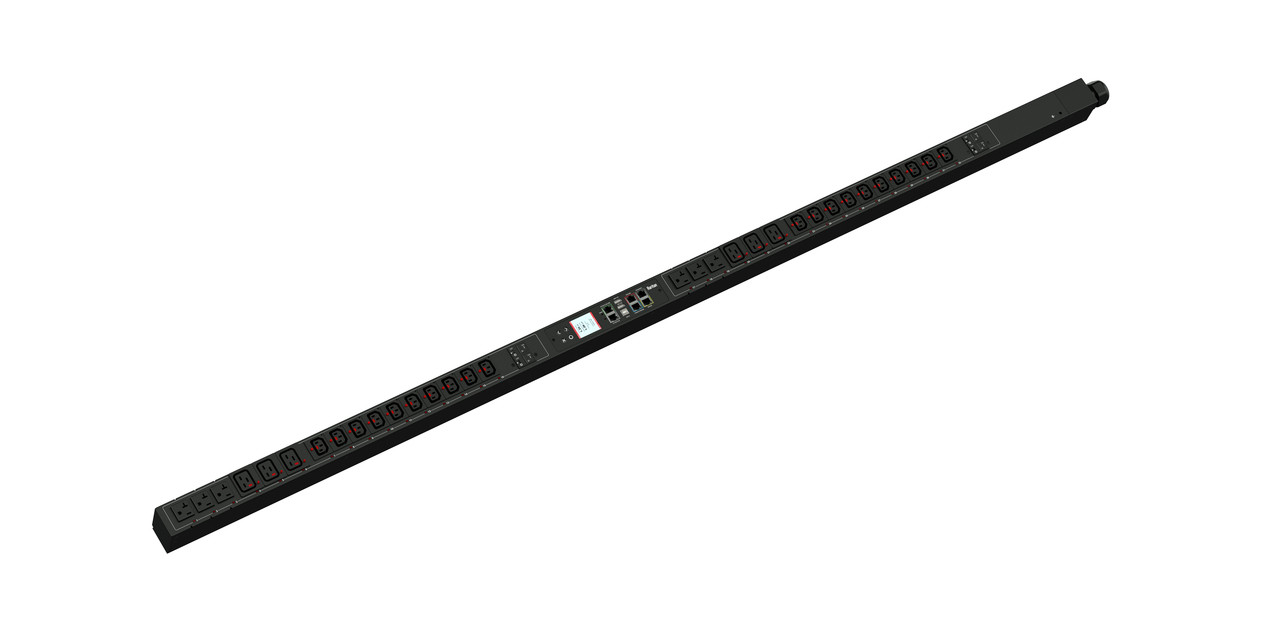

Monitored rack power distribution unit (0U [vertical], 5kVA, 32 outlets). INPUT: 208v, 30a - NEMA L14-30P plug (3P4W); OUTPUT: 20@ C13 Locking, 6@ C19 Locking outlets; on 2@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 71mm x 1780mm (2.1in x 2.8in x 70.1in). Max Weight 7.6 kg. Maximum ambient temperature 60C at full load.

Features

  • img-features_placeholderIEC Locking
  • img-features_placeholderRemovable Controller


Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

No

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Specifications

Input

Input Plug

NEMA L14-30P (3P4W)

Nominal Voltage

208V

Maximum Input Current

30A

Rated Input Current

24A

Power Capacity

5kVA

Cord Length

3m

Output

Nominal Voltage

208V

Receptacles (Output Connections)

(20) IEC320 C13 Locking

(6) IEC320 C19 Locking

(6) NEMA 5-20R

Overload Protection

(2) LEGBX66-20

Physical

Dimensions (WxDxH)

2.1in x 2.8in x 70.1in; 52mm x 71mm x 1780mm

Unit Weight

7.6 kg

Shipping Weight

9.6 kg

Shipping Dimensions

280mm x 115mm x 2070mm

Mounting

Tool-less Button Mount

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft


Conformance

Regulatory Approvals

UL

Warranty

Standard 2 years manufacturer warranty







Technical Specifications

Mechanical Diagram

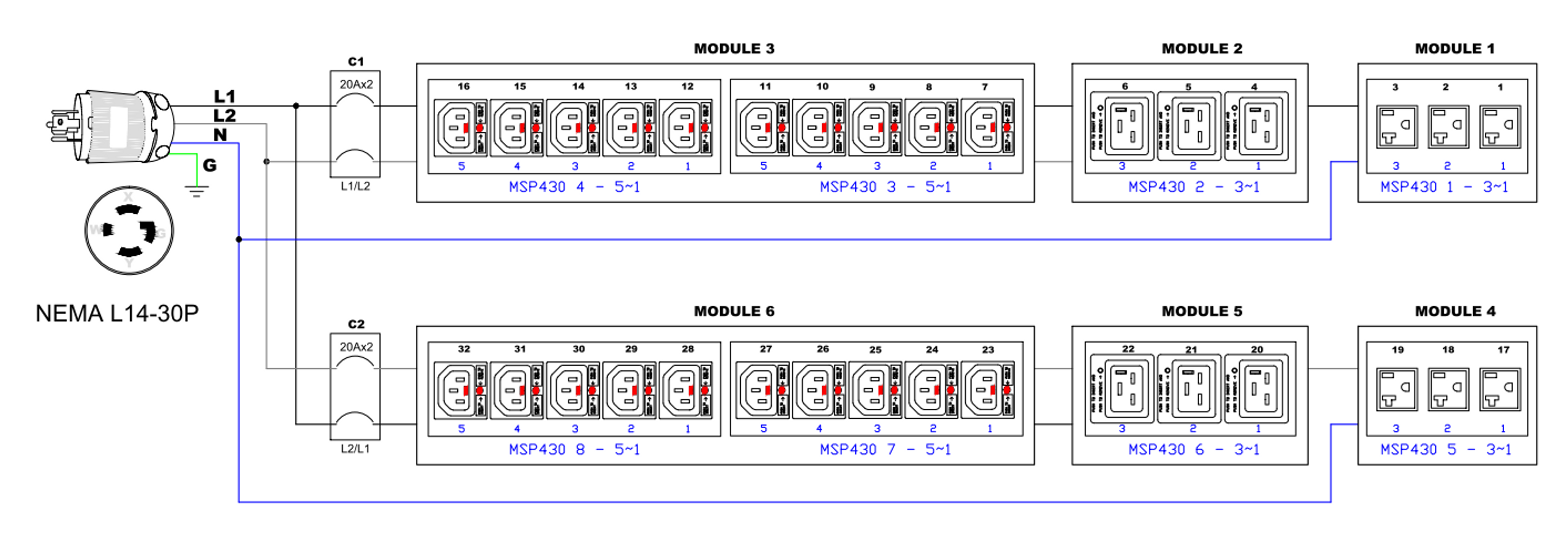

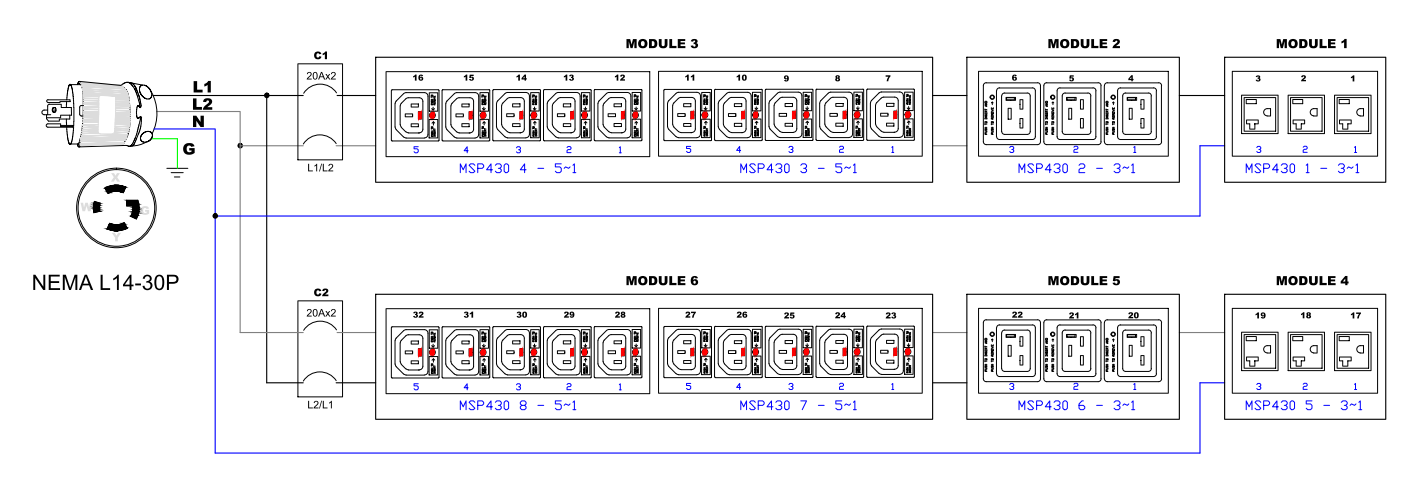

Electrical Drawing Detail

Data Sheet



Additional Resources

Product Catalog

!
