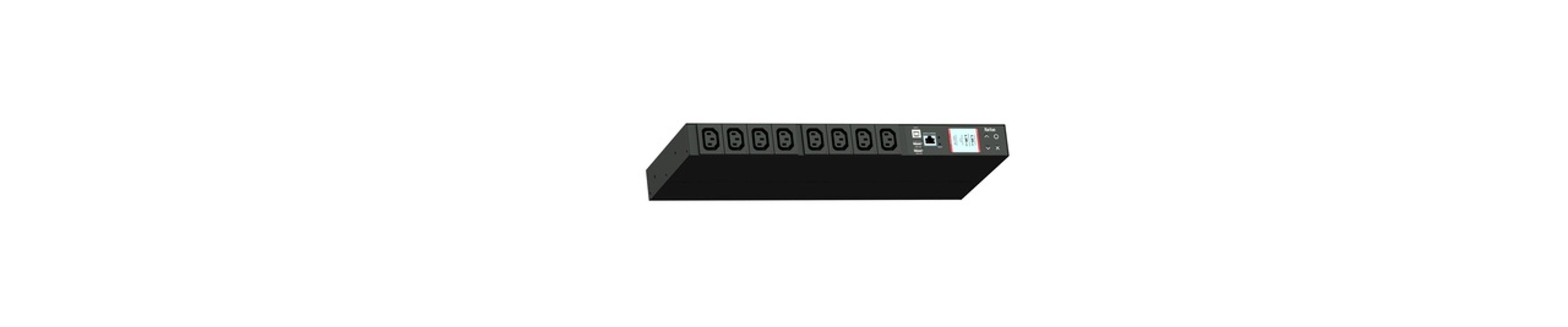

Raritan PX3-5176R 1PH 208V AC 20A 8 outlets 1U

Name: Raritan PX3-5176R 1PH 208V AC 20A 8 outlets 1U
Brand: Raritan
SKU: PX3-5176R
Price: 949 USD
Availability: InStock

Raritan

MSRP: $1,157.00

Regular Price $983.00

Discount Price: $949.00

(You save $208.00 )

UPC:

Shipping:: Free Shipping

Product Overview:: 1PH, 208V AC, 20A (16A rated); 8 outlets: 8x C13; plug: NEMA 6-20P (Rear feed), 3.3kVA; Outlet Metered/Switched, 1U horizontal PDU, SecureLock ready

MFG#:: PX3-5176R

Product Category:: PDU

Platform:: PX3

Metering and Switching:: Outlet Metered and Switched

Total Outlets:: 8

Plug Type:: NEMA 6-20P

Input Phase:: 1 Phase (L-L)

Power Capacity:: 3.3 kW

Input Voltage:: 208 V

Input Current:: 20

Form Factor:: 1U

Remote Switching:: 1

Manufactures Website:: https://www.raritan.com

Manufactures Product Page:: https://www.raritan.com/product-selector/pdu-detail/PX3-5176R

Model or Line:: PX3

Detail

Description:

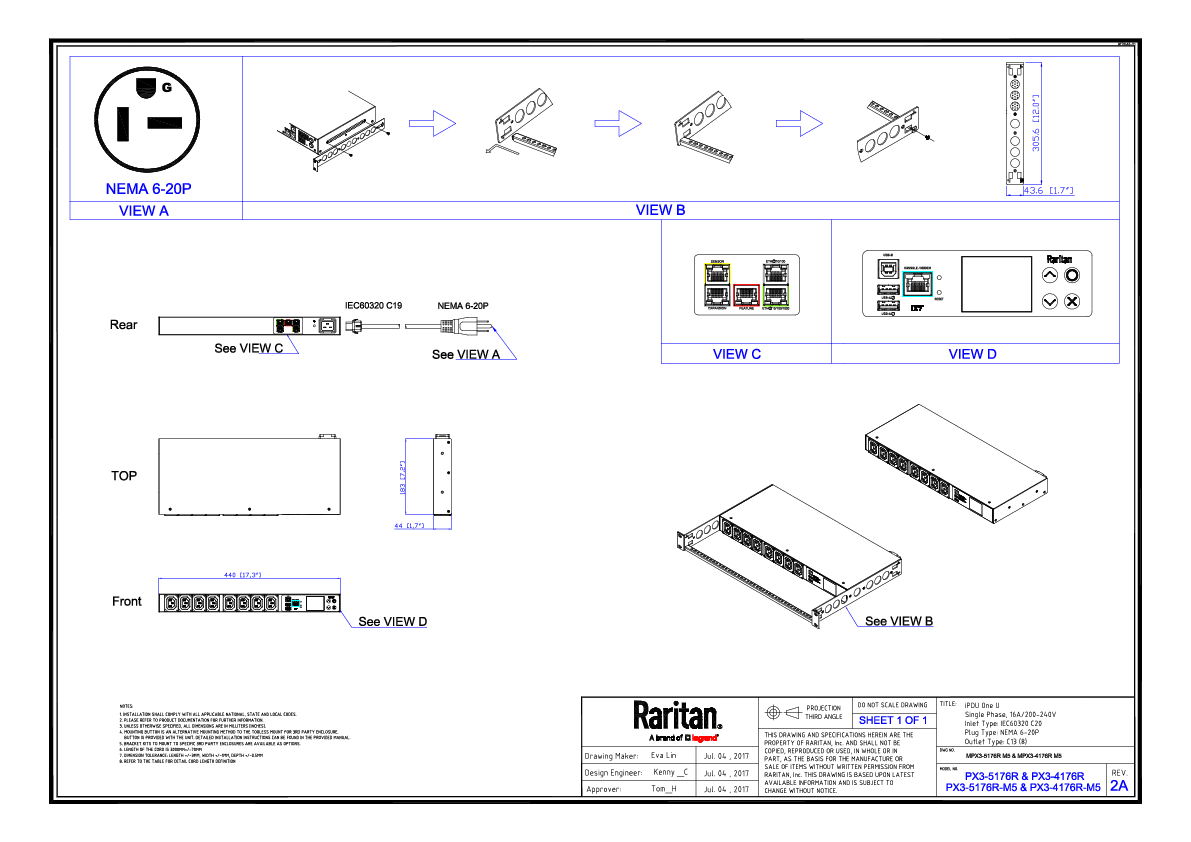

Monitored and switched rack power distribution unit (1U [horizontal], 3.3kVA, 8 outlets). INPUT: 208v, 20a - NEMA 6-20P plug (2P3W); OUTPUT: 8@ C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight TBD. Maximum ambient temperature 60C at full load.

Features

Securelock

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Yes

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
