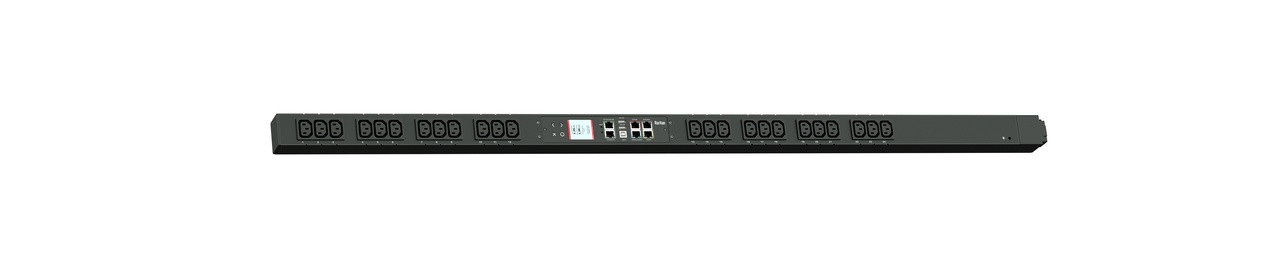

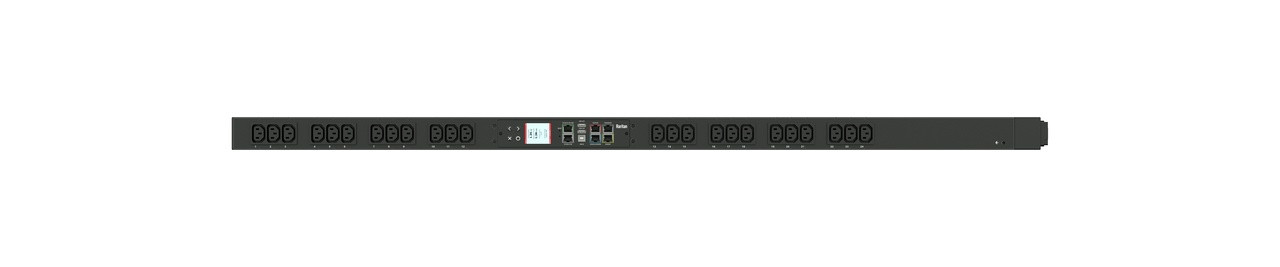

Raritan PX3-1482V 1PH 208V AC 20A 24 outlets Zero U

Name: Raritan PX3-1482V 1PH 208V AC 20A 24 outlets Zero U
Brand: Raritan
SKU: PX3-1482V
Price: 2020 USD
Availability: InStock

Raritan

MSRP: $2,463.00

Regular Price $2,094.00

Discount Price: $2,020.00

(You save $443.00 )

UPC:

Shipping:: Free Shipping

Product Overview:: 1PH, 208V AC, 20A (16A rated); 24 outlets: 24x C13; plug: NEMA L6-20P (Bottom-bottom feed), 3.3kVA; Unit Metered, Zero U vertical PDU

MFG#:: PX3-1482V

Product Category:: PDU

Platform:: PX3

Metering and Switching:: PDU Metered

Total Outlets:: 24

Plug Type:: NEMA L6-20P

Input Phase:: 1 Phase (L-L)

Power Capacity:: 3.3 kW

Input Voltage:: 208 V

Input Current:: 20

Form Factor:: 0U

Manufactures Website:: https://www.raritan.com

Manufactures Product Page:: https://www.raritan.com/product-selector/pdu-detail/PX3-1482V

Model or Line:: PX3

Detail

Description:

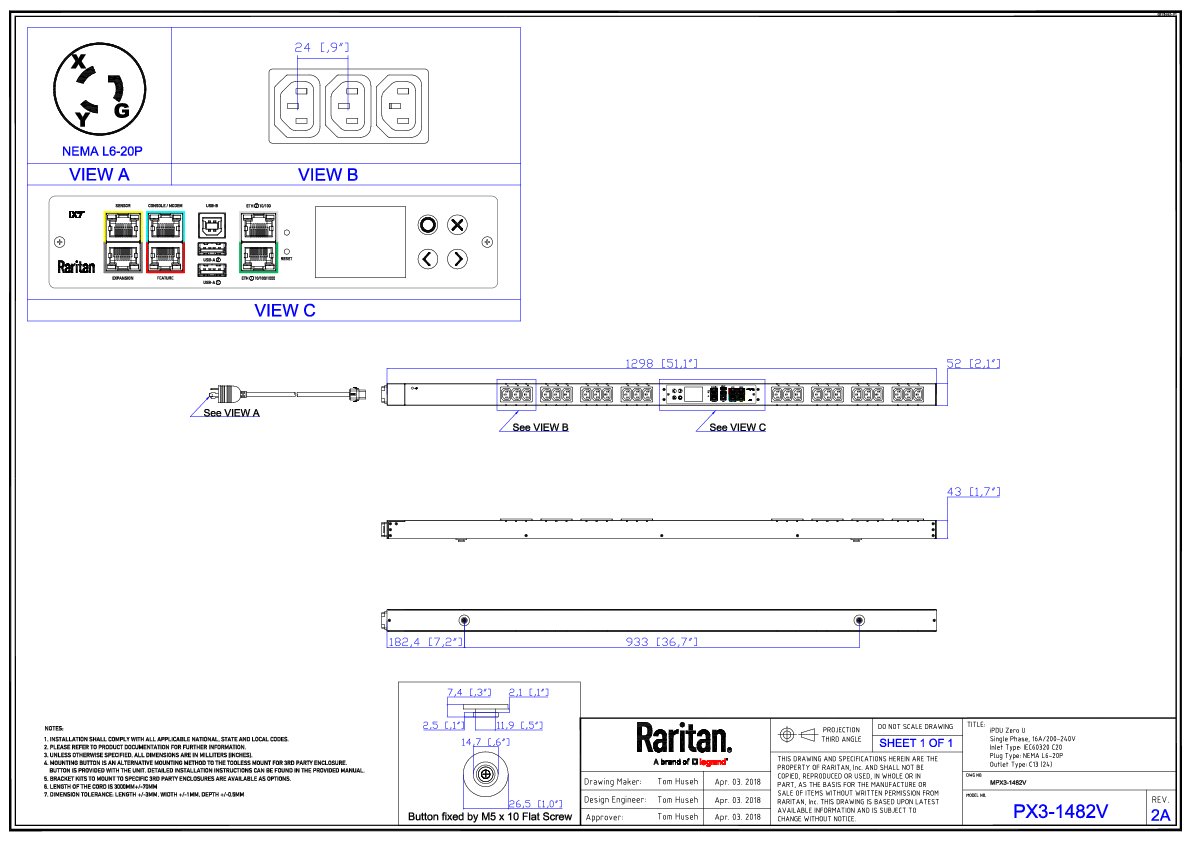

Monitored rack power distribution unit (0U [vertical], 3.3kVA, 24 outlets). INPUT: 208v, 20a - NEMA L6-20P plug (2P3W); OUTPUT: 24@ C13, 3@ outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Max Dimensions 52mm x 43mm x 1298mm (2.1in x 1.7in x 51.1in). Max Weight TBD. Maximum ambient temperature 60C at full load.

Features

Securelock
Removable Controller

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.
