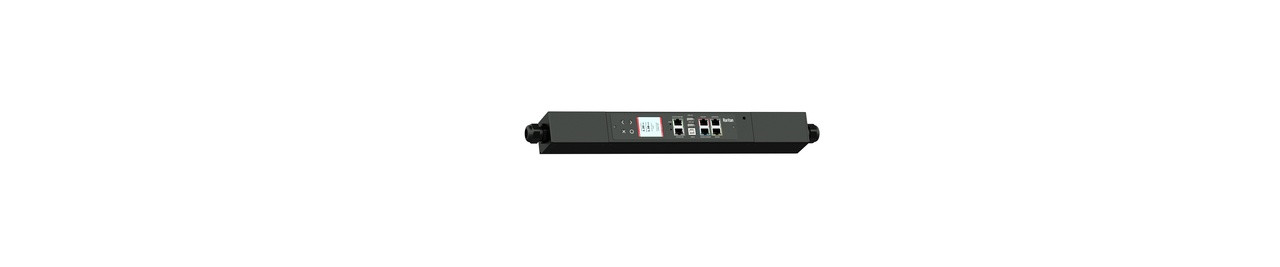

Description:
1PH, 200-240V AC, 30A (24A rated), 1 line, input type: L6-30P, output type: L6-30R, 0U, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Features
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information).
Specifications
Input
Input Plug
NEMA L6-30P (2P3W)
Nominal Voltage
208V
Maximum Input Current
30A
Rated Input Current
24A
Power Capacity
0kVA
Cord Length
3m
Output
Nominal Voltage
208V
Receptacles (Output Connections)
(1) NEMA L6-30R
Overload Protection
NA
Physical
Dimensions (WxDxH)
2.1in x 2.6in x 17.3in; 52mm x 65mm x 439mm
Unit Weight
2.6 kg
Shipping Weight
3.9 kg
Shipping Dimensions
230mm x 113mm x 1140mm
Mounting
G2-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
