Description:
The PX series boasts the most reliable and sophisticated rack PDUs on the market. It offers metering at the inlet, outlet, and PDU circuit breaker level. And tracks current, voltage, power, power factor, and energy usage within 1% billing-grade accuracy. In short, it helps you to better manage existing power capacity, and save energy.
But the PX series offers more than reliable power distribution and metering. It also supports sensors that ensure your equipment is operating in a safe environment. And remote outlet switching to ensure proper provisioning and avoid tripped circuit breakers. Or reboot hung servers. All without stepping foot in the data center.
We offer hundreds of models that meet all your needs. Whether you have a small, medium, or large data center; densely packed 400V three-phase racks; high power blade servers; or a lights-out colo deployment -- there’s a PX just for you.
Features
Securelock
Removable Controller
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy -
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 8 PDUs can be daisy chained using a single Ethernet connection
Networking
10/100 BaseT Ethernet. Optional WiFi (802.11a/b/g/n)
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications
Input
Input Plug
IEC 60309 3P+E 9h 60A (3P4W)
Nominal Voltage
208V
Maximum Input Current
60A
Rated Input Current
48A
Power Capacity
17.3kVA
Cord Length
3m
Output
Nominal Voltage
208V
Receptacles (Output Connections)
(12) IEC320 C13
(12) IEC320 C19
Overload Protection
(6) LEGBX66-20
Physical
Dimensions (WxDxH)
2.3" x 3.1" x 70.1"; 59mm x 80mm x 1780mm
Unit Weight
10.7 kg
Shipping Weight
14 kg
Shipping Dimensions
368mm x 135mm x 2104mm
Mounting
G3-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-10000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty

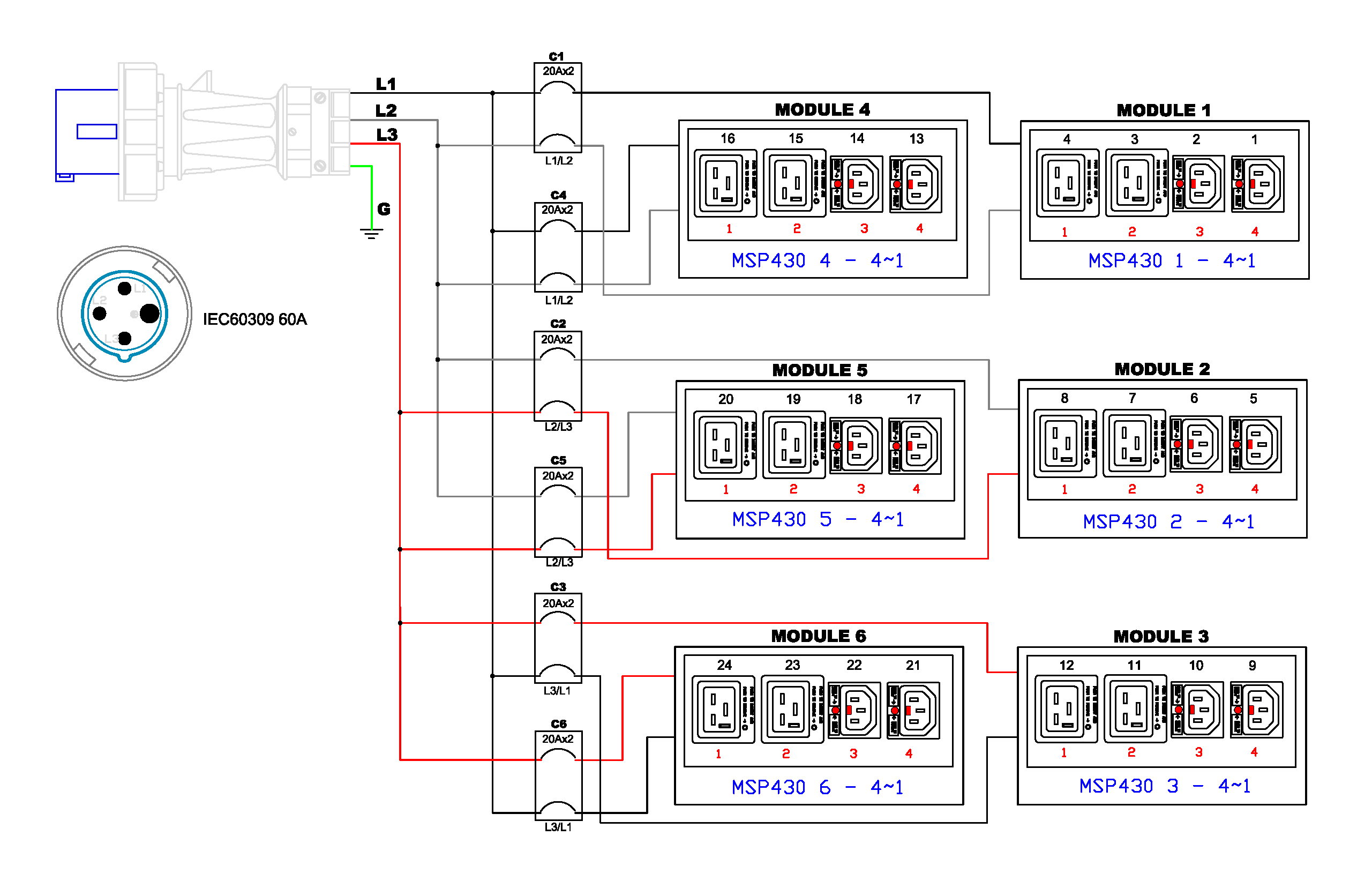

Electrical (One Line) Diagram

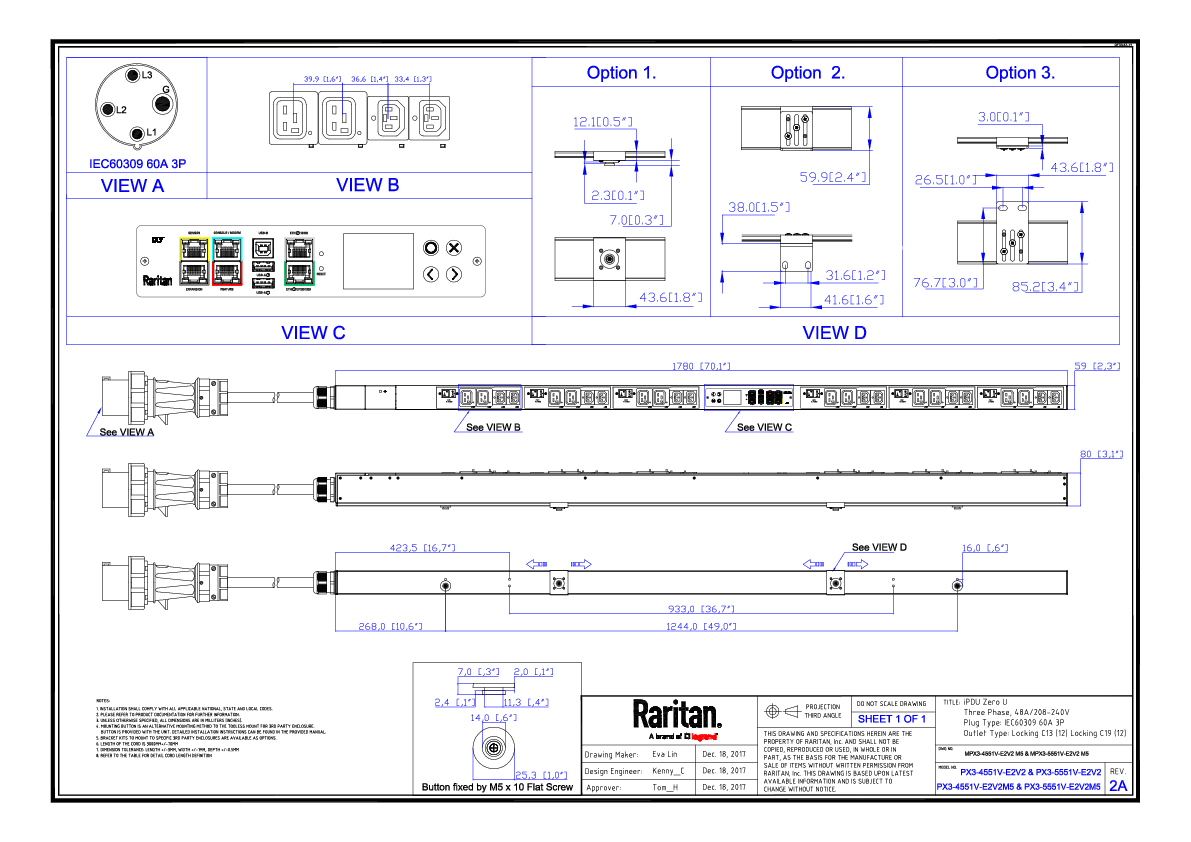

Mechanical Diagram
