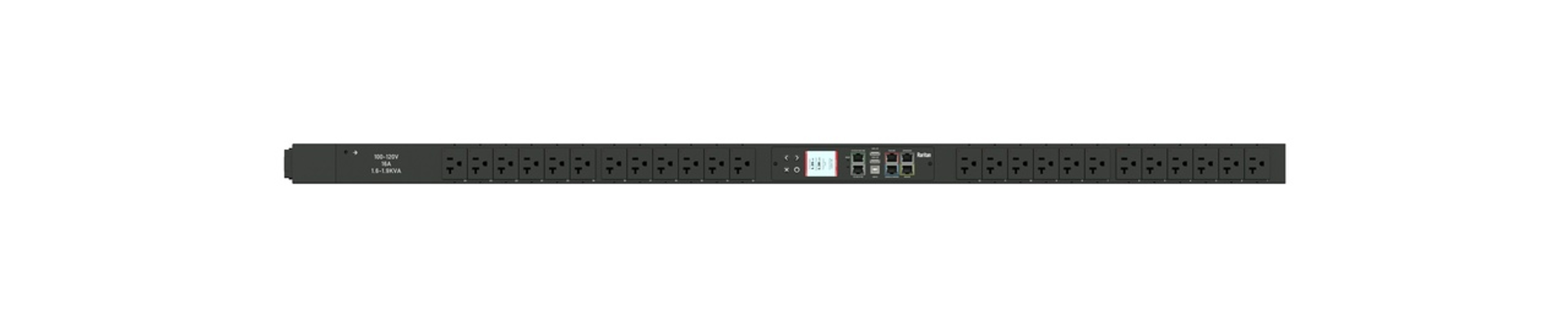

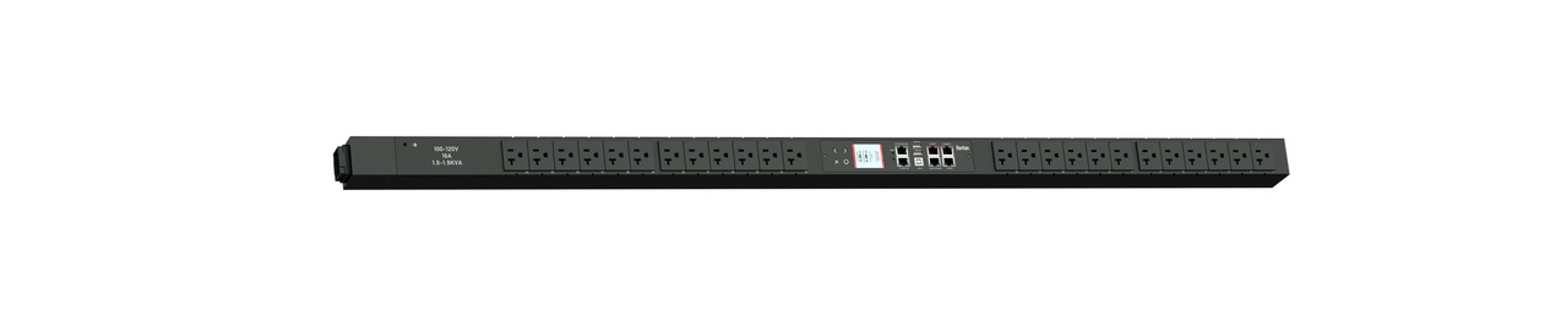

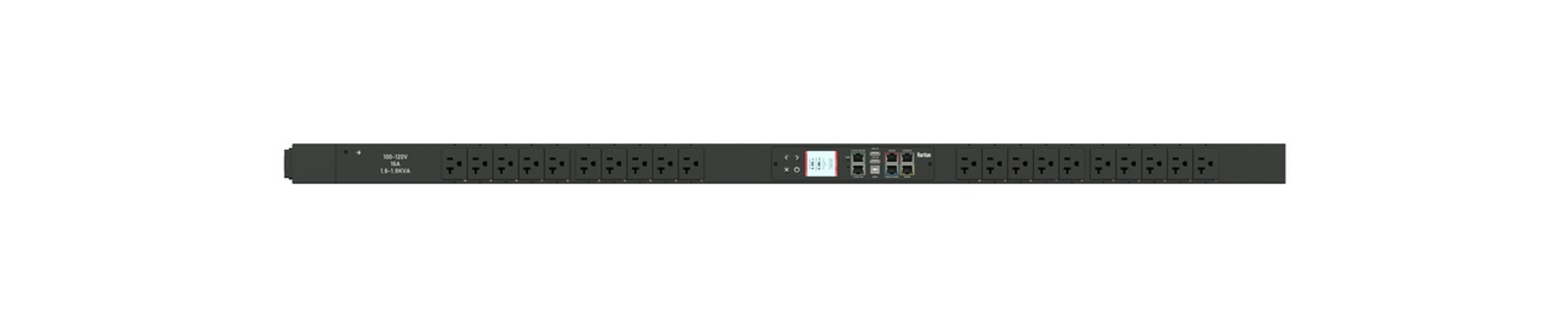

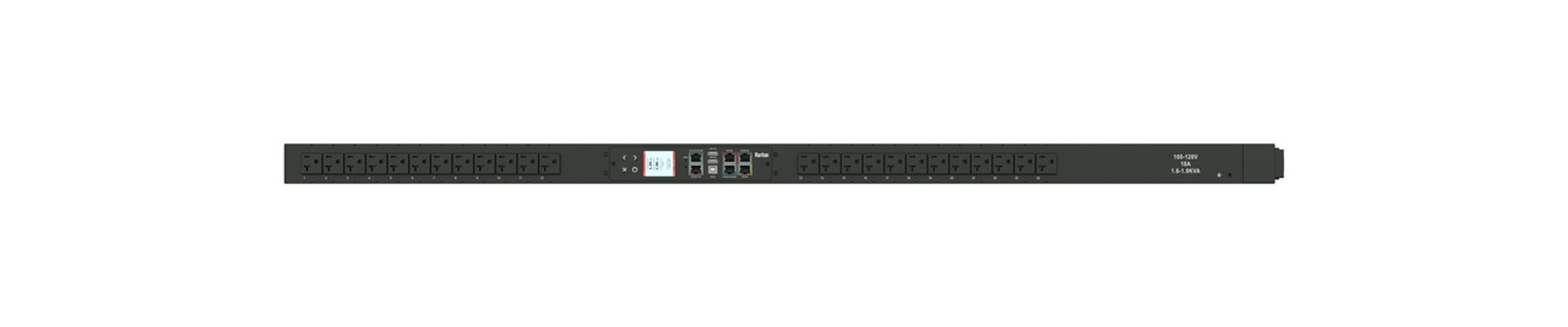

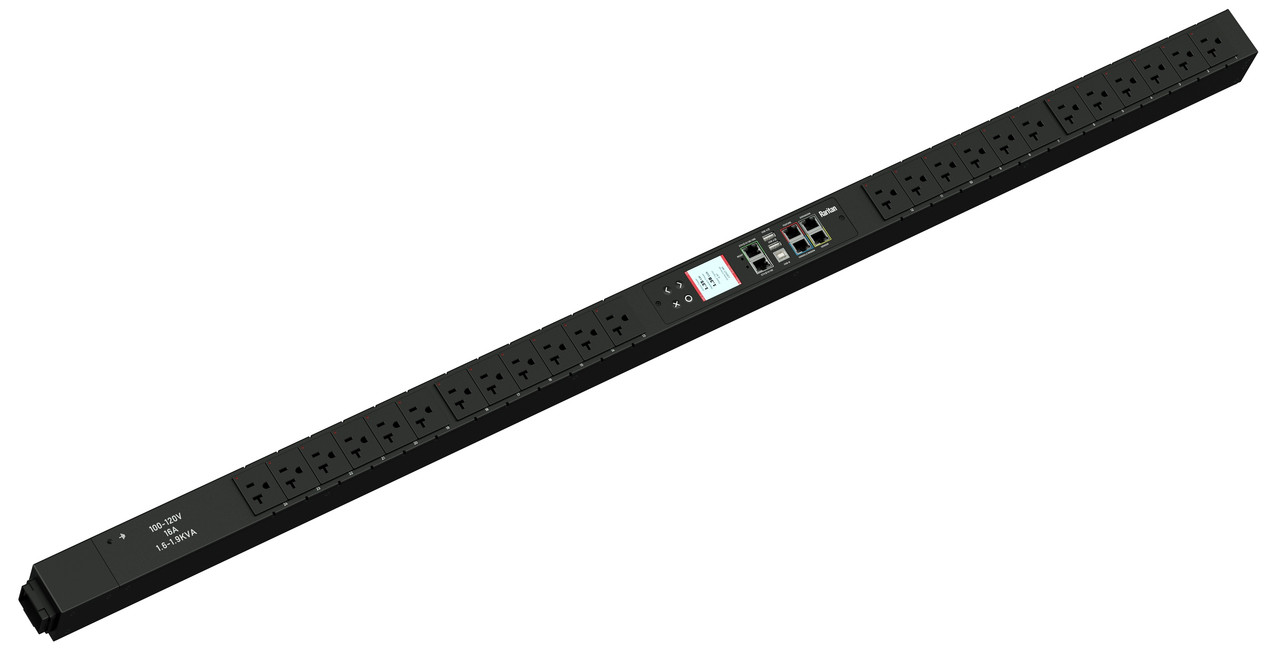

Description:
| 1PH, 120V AC, 20A (16A rated): 24 outlets: NEMA L5-20R; plug: NEMA 5-20P, (bottom/end feed 1.9kVA, Outlet Meter/Switched, Zero U |
| vertical PDU, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections |
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy -
ISO/IEC 62053-21 1%
Remote Outlet Switching
Yes
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 8 PDUs can be daisy chained using a single Ethernet connection
Networking
10/100 BaseT Ethernet. Optional WiFi (802.11a/b/g/n)
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications
Input
Input Plug
NEMA L5-20P (2P3W)
Nominal Voltage
120V
Maximum Input Current
20A
Rated Input Current
16A
Power Capacity
1.9kVA
Cord Length
3m
Output
Nominal Voltage
120V
Receptacles (Output Connections)
(24) NEMA 5-20R
Overload Protection
NA
Physical
Dimensions (WxDxH)
2.1" x 2.6" x 51.1"; 52mm x 65mm x 1298mm
Unit Weight
4.6 kg
Shipping Weight
6.6 kg
Shipping Dimensions
185mm x 120mm x 1408mm
Mounting
Tool-less Button Mount
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-10000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty

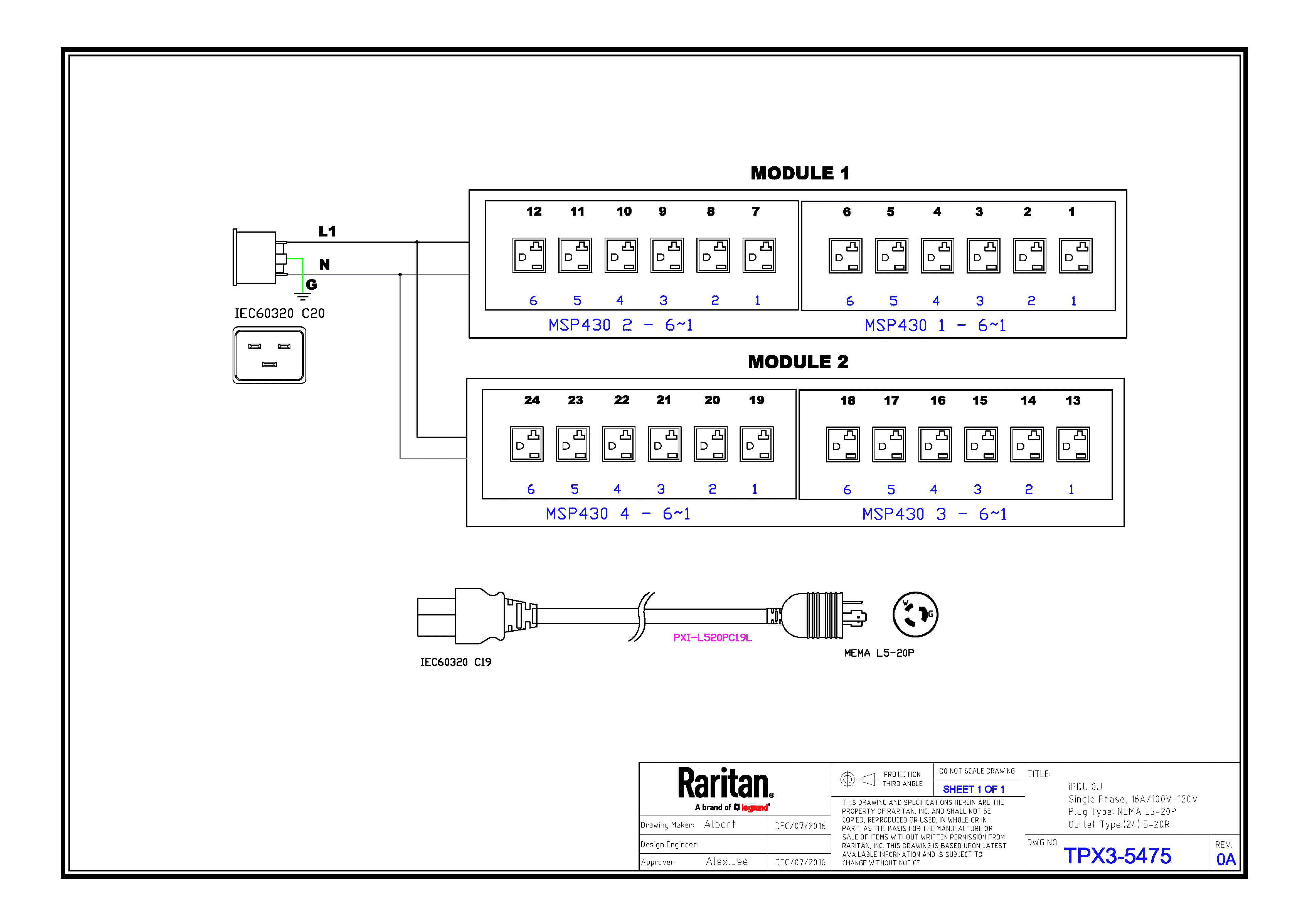

Electrical (One Line) Diagram

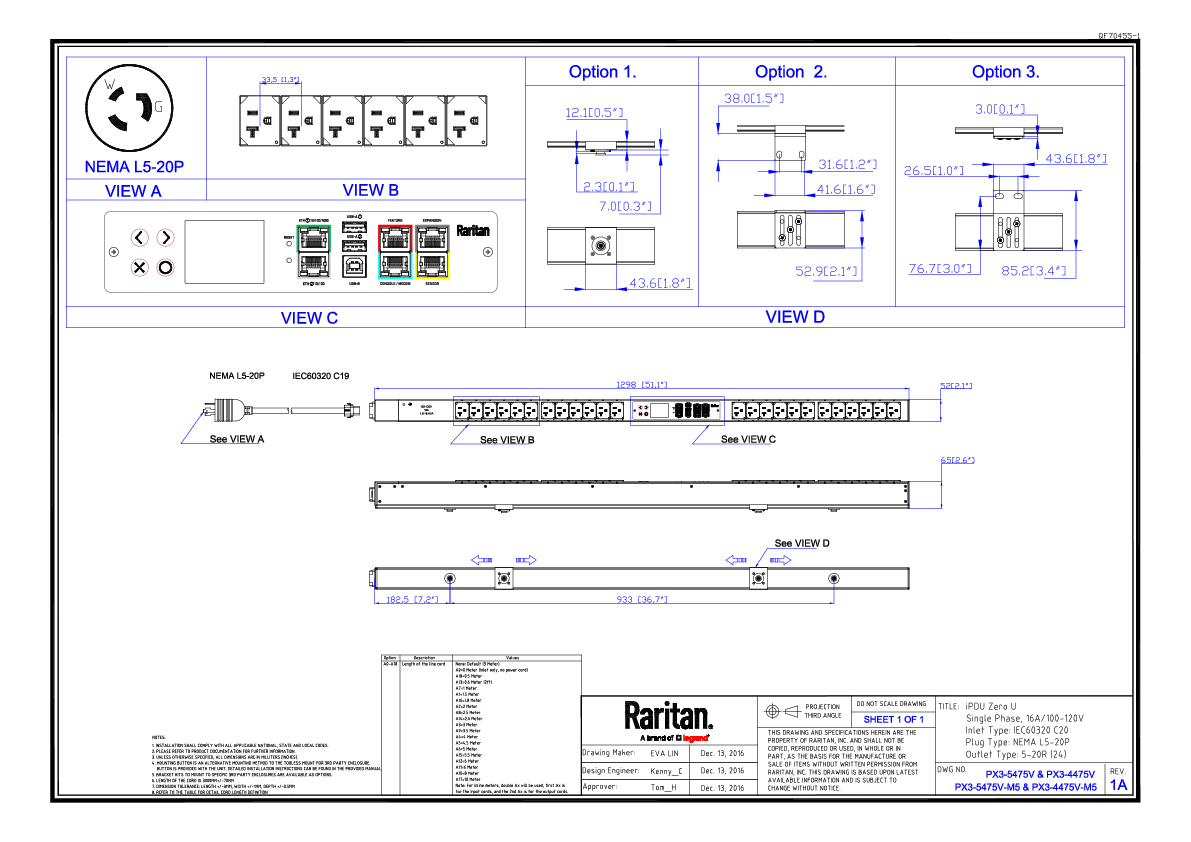

Mechanical Diagram
