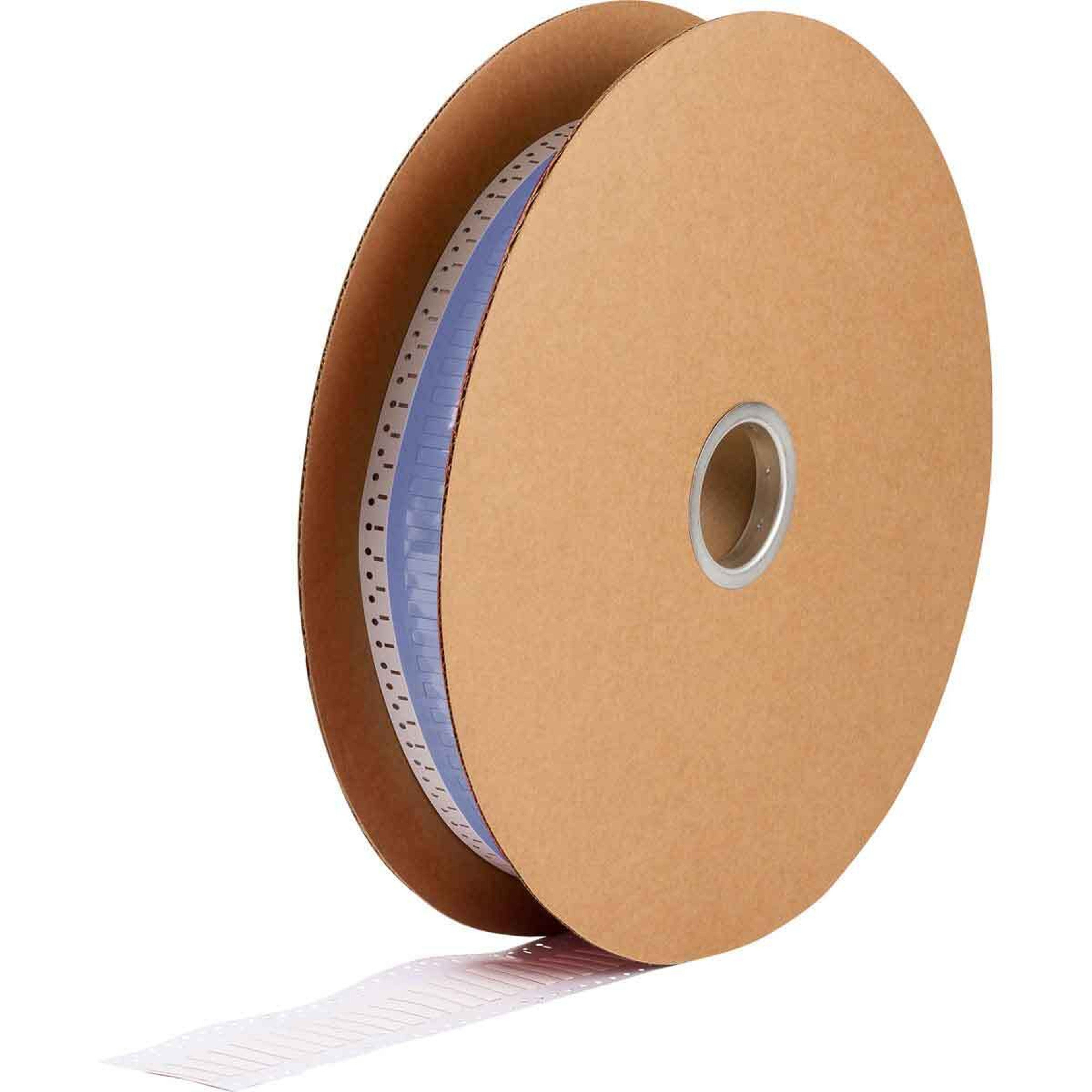

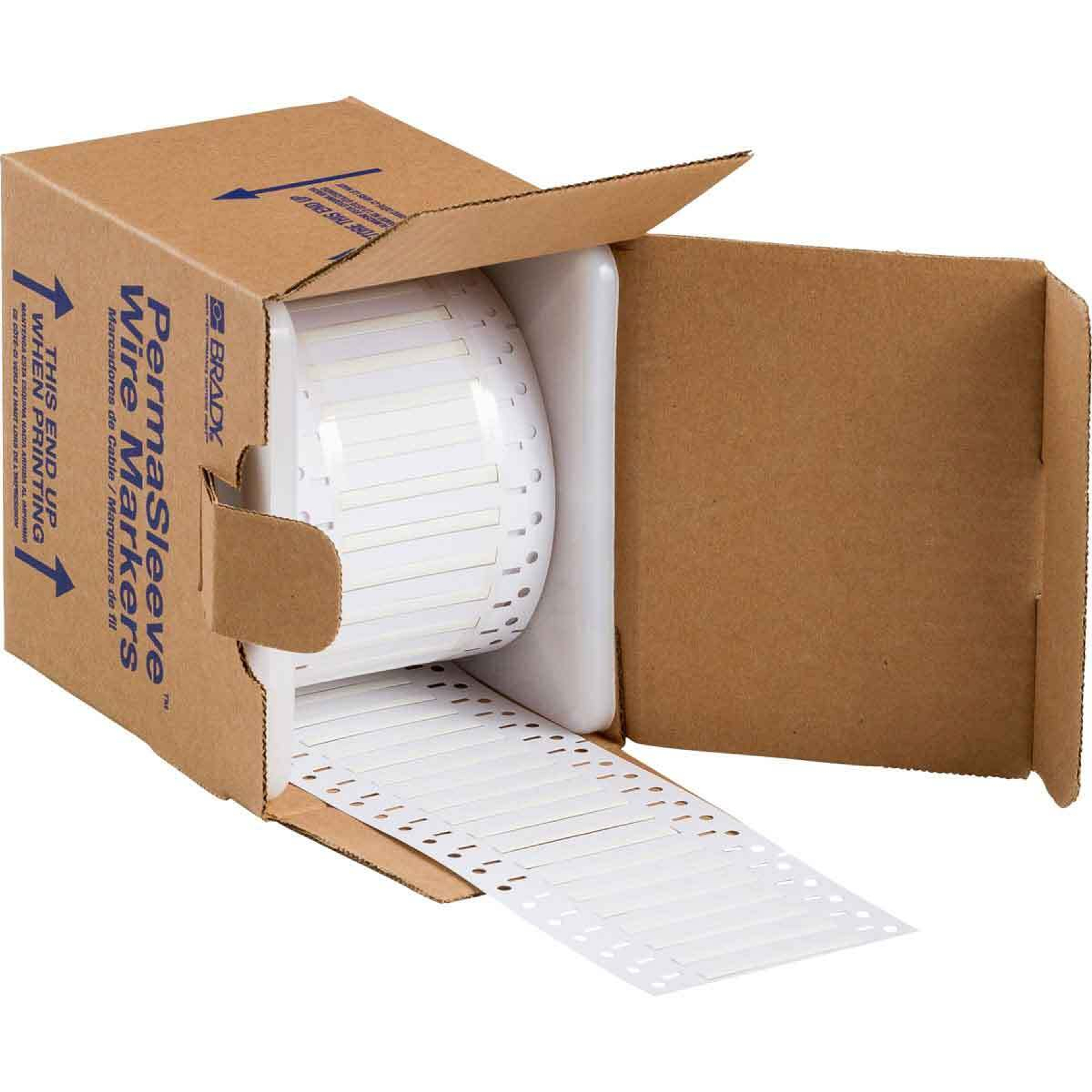

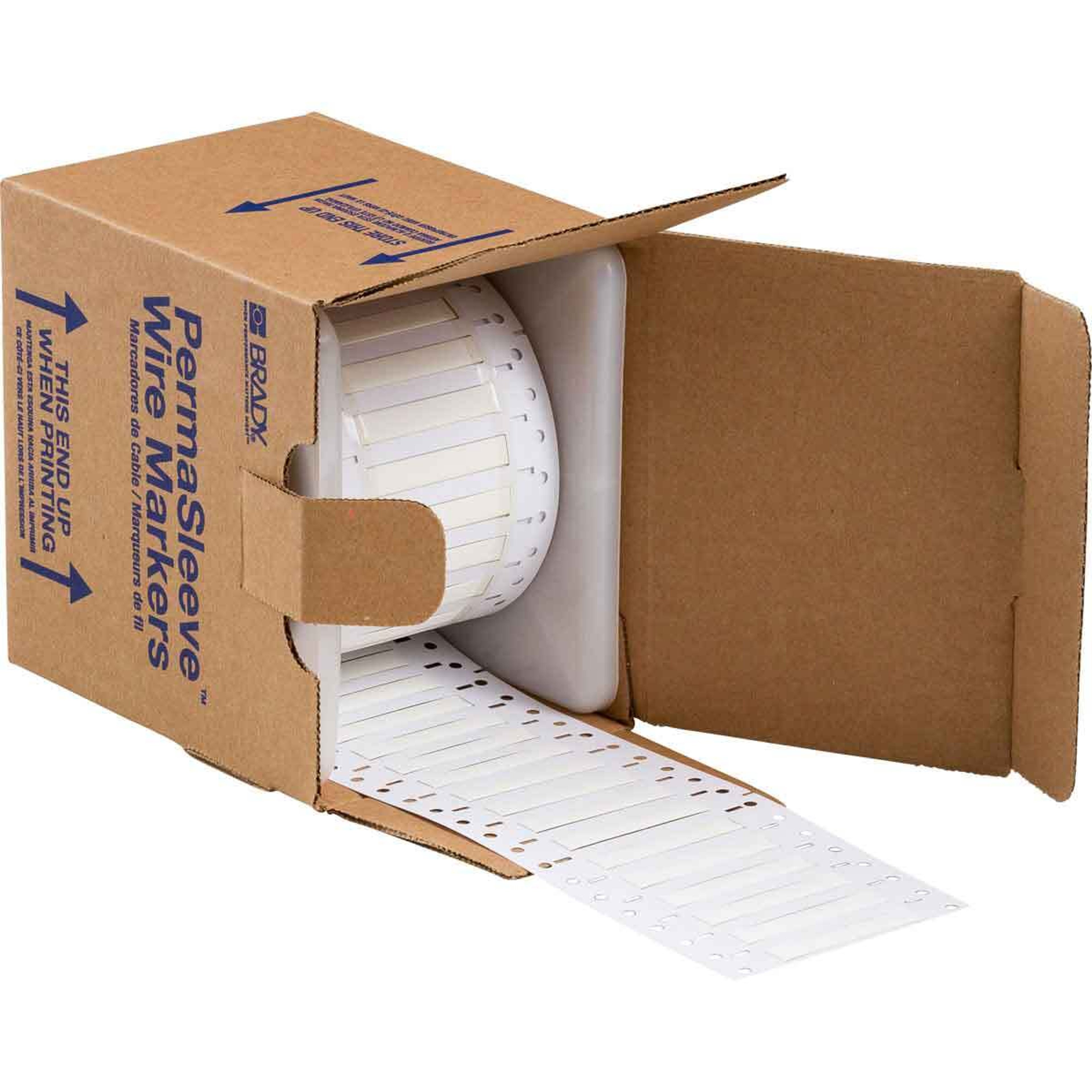

PermaSleeve Heat Shrink Wire and Cable Labels, 3/32" Dia, 2", White, Double-Sided
Brady
SALE PRICE$5,021.77
REGULAR PRICE $6,849.00
UPC:754473908256
MFG#:3PS-094-2-WT-J
Product Category:Printer Labels
Additional information
Overview
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
- A ribbon is required to print this material. Use Part Number IP-R6600 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6600 for a different printer
Specifications
| Key Characteristics | ||
| Product Number | 133580 | |
| UPC | 754473908256 | |
| UOM | Roll of 10000 Each | |
| Quantity per Roll | 10000 | |
| Trade Name | PermaSleeve® | |
| Brand Name | Brady® |
| Dimensions | Dimensions | 0.182 in H x 2 in W |
| Height | 0.182 in | |
| Width | 2 in | |
| Sleeve Size | 0.094 in Dia x 2 in W | |
| Vertical Repeat | 0.5 in | |
| Recovered Diameter | 0.023 in | |
| Recovered Wall Thickness | 0.024 in | |
| Web Width | 3.49 in | |
| Diameter as Supplied | 0.094 in | |
| Core Diameter | 3 in |
