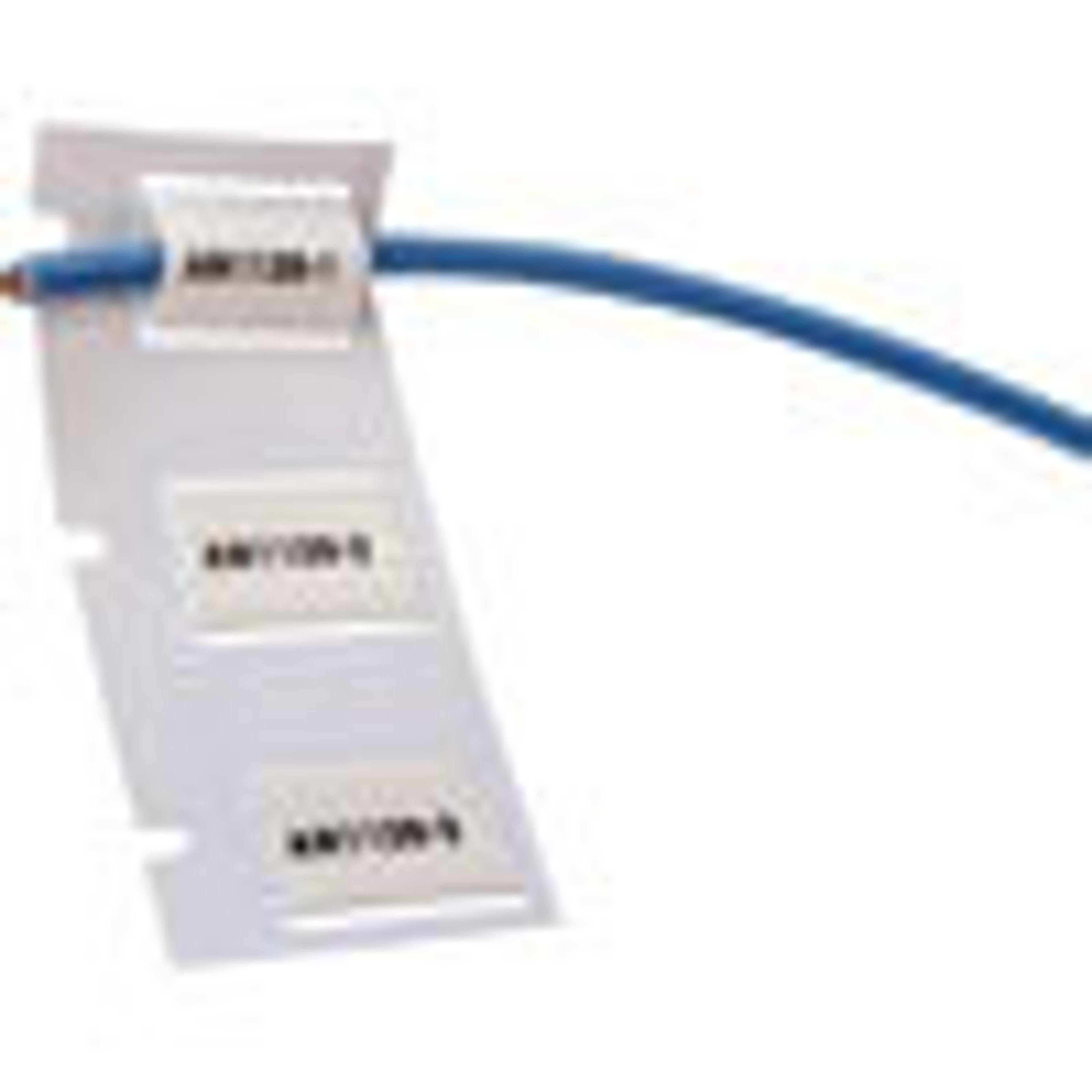

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
| Dimensions | Dimensions | 0.235 in H x 1.5 in W |
| Height | 0.235 in | |
| Width | 1.5 in | |
| Sleeve Size | 0.125 in Dia x 1.5 in W | |
| Vertical Repeat | 0.5 in | |
| Recovered Diameter | 0.046 in | |
| Recovered Wall Thickness | 0.02 in | |
| Web Width | 3.49 in | |
| Diameter as Supplied | 0.125 in | |
| Core Diameter | 3 in |
| Material Characteristics | ||
| Material | Heat-shrink Polyolefin | |
| Material Properties | Flame-retardant, Heat-shrinkable | |
| Label Properties | Heat Shrink | |
| Finish | Matte | |
| Color | White | |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant | |
| Shrink Ratio | 3:1 | |
| Service Temperature Range °F | -67 °F - 275 °F |
