PermaSleeve Heat Shrink Wire and Cable Labels, 1/8" Dia, 0.5", White, Double-Sided
Brady
SALE PRICE$1,182.87
REGULAR PRICE $1,619.00
UPC:662820022565
MFG#:3PS-125-2-WT-4
Product Category:Printer Labels
Additional information
Overview

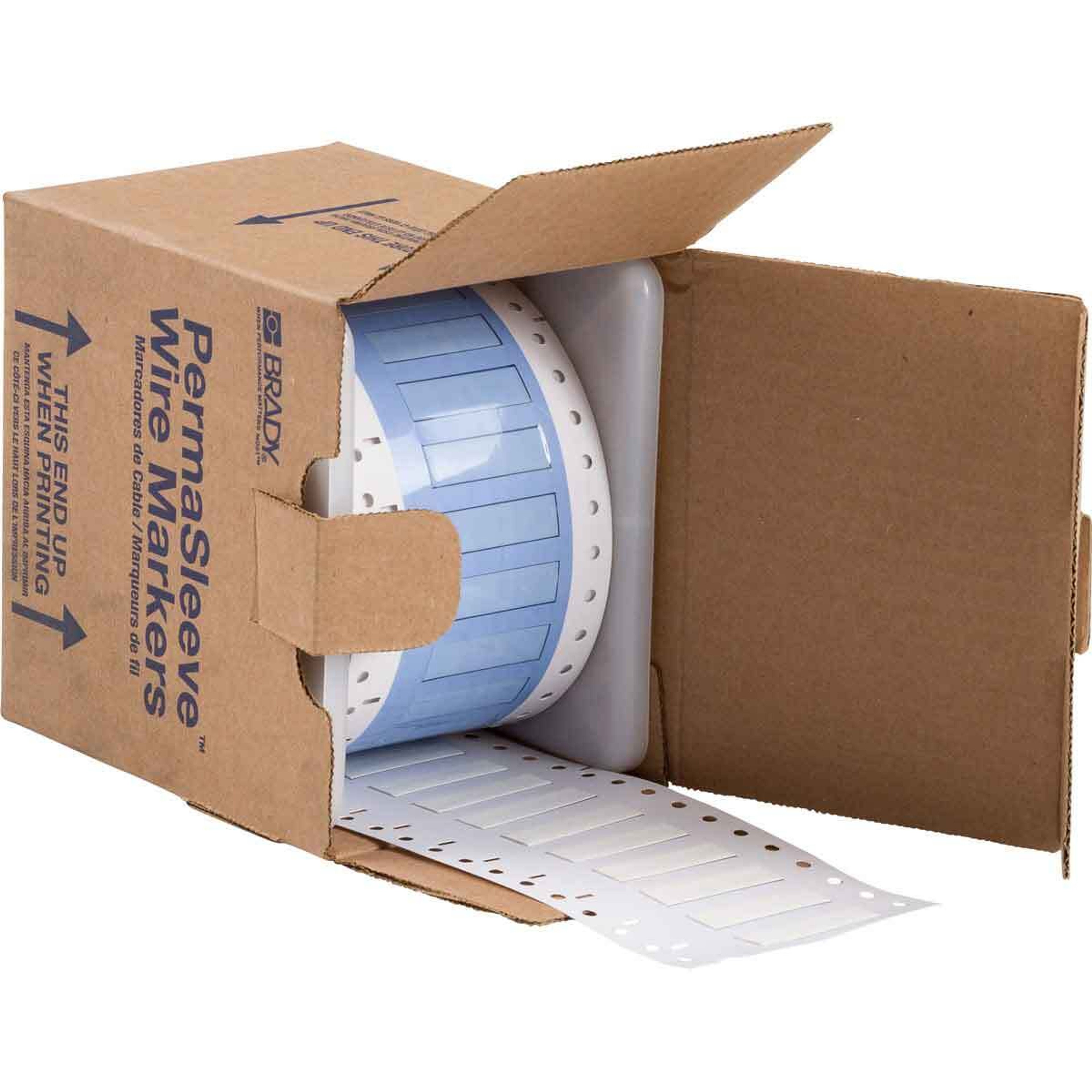

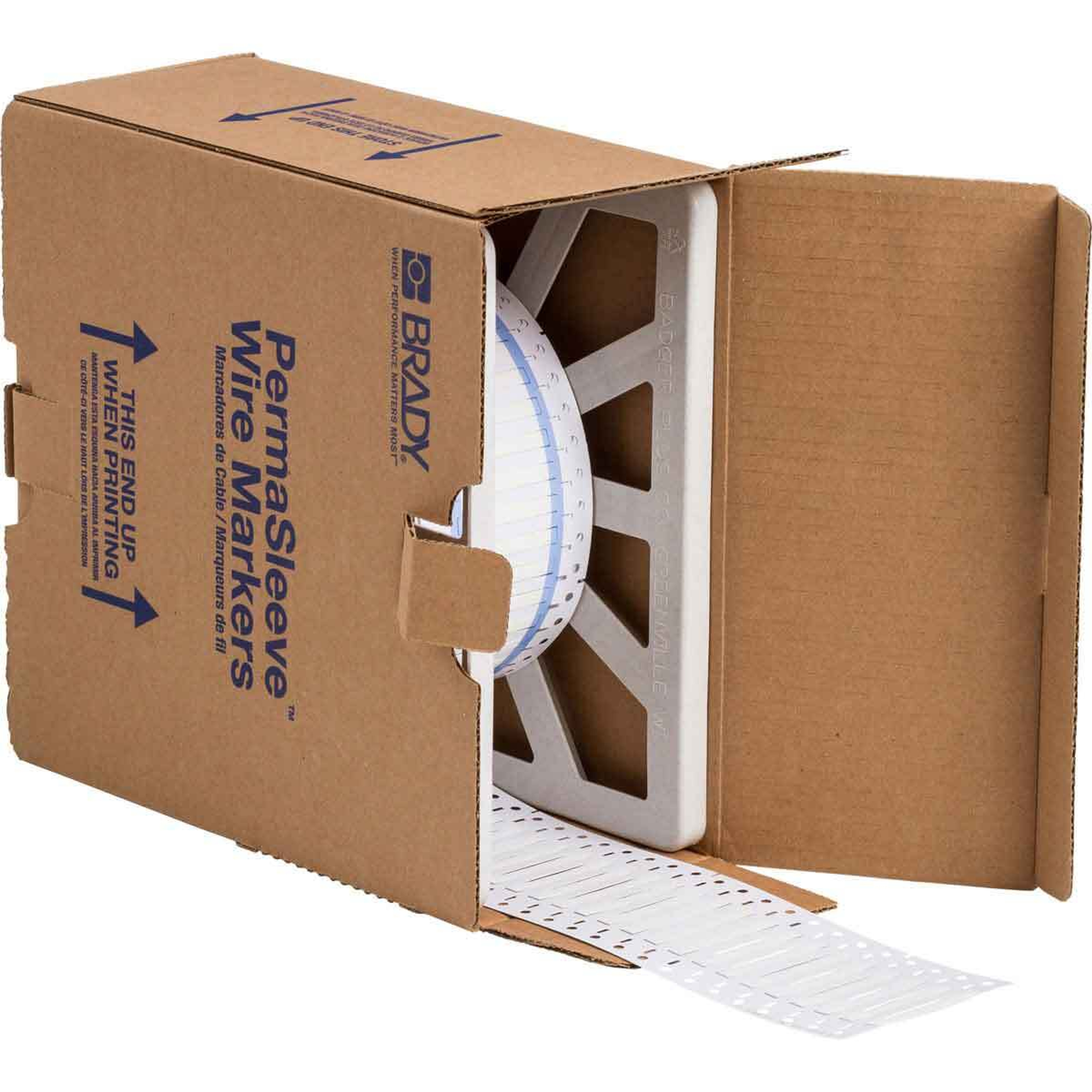

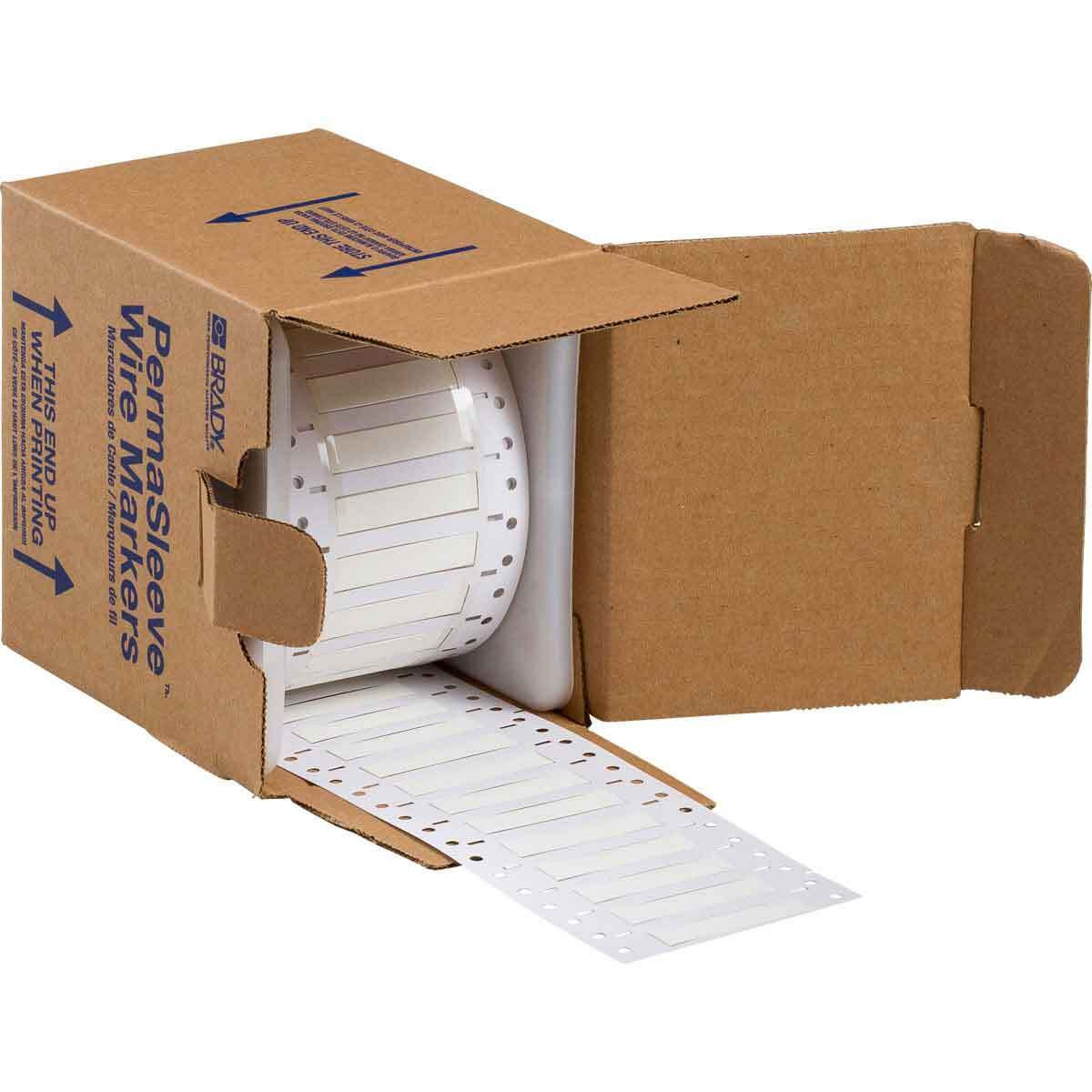

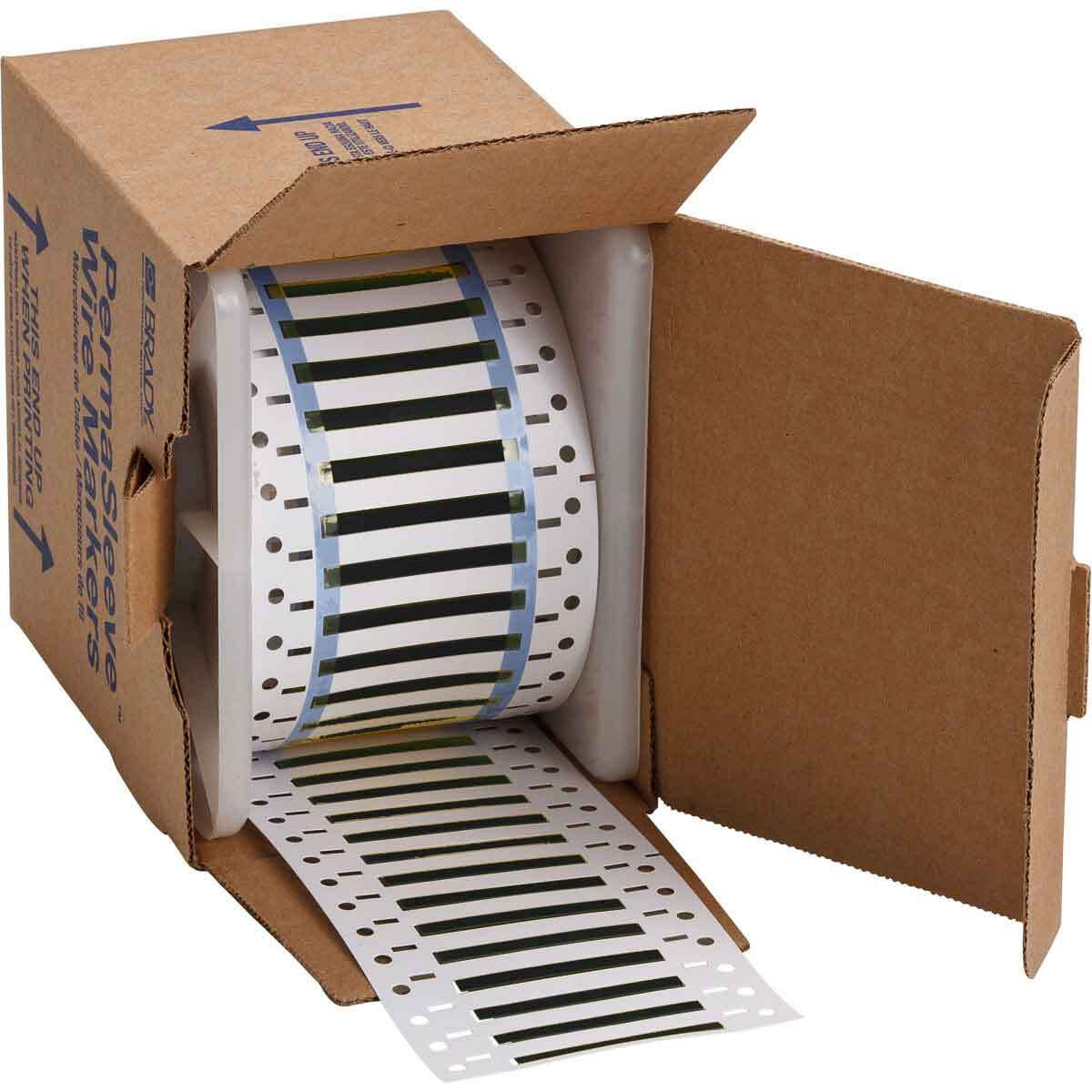

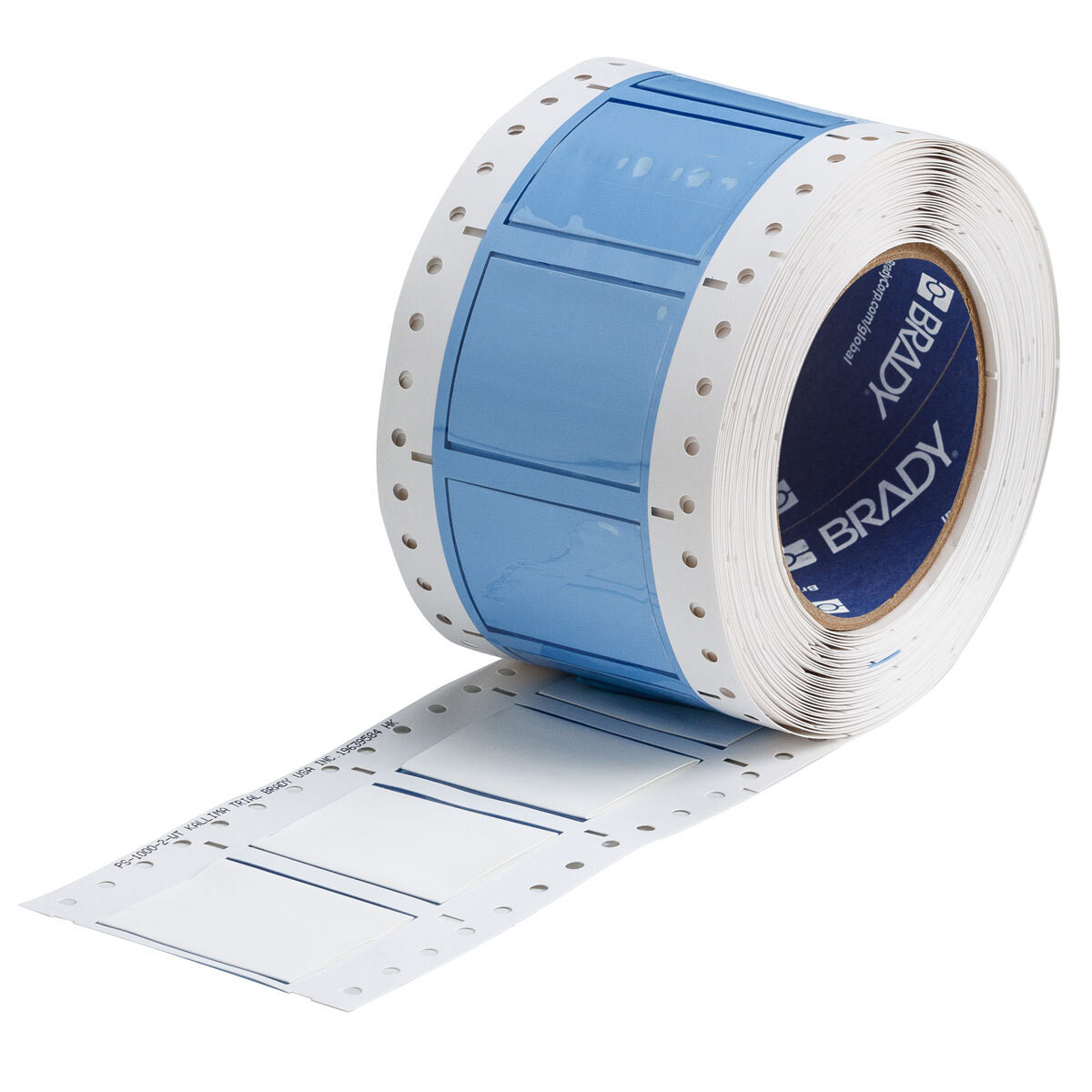

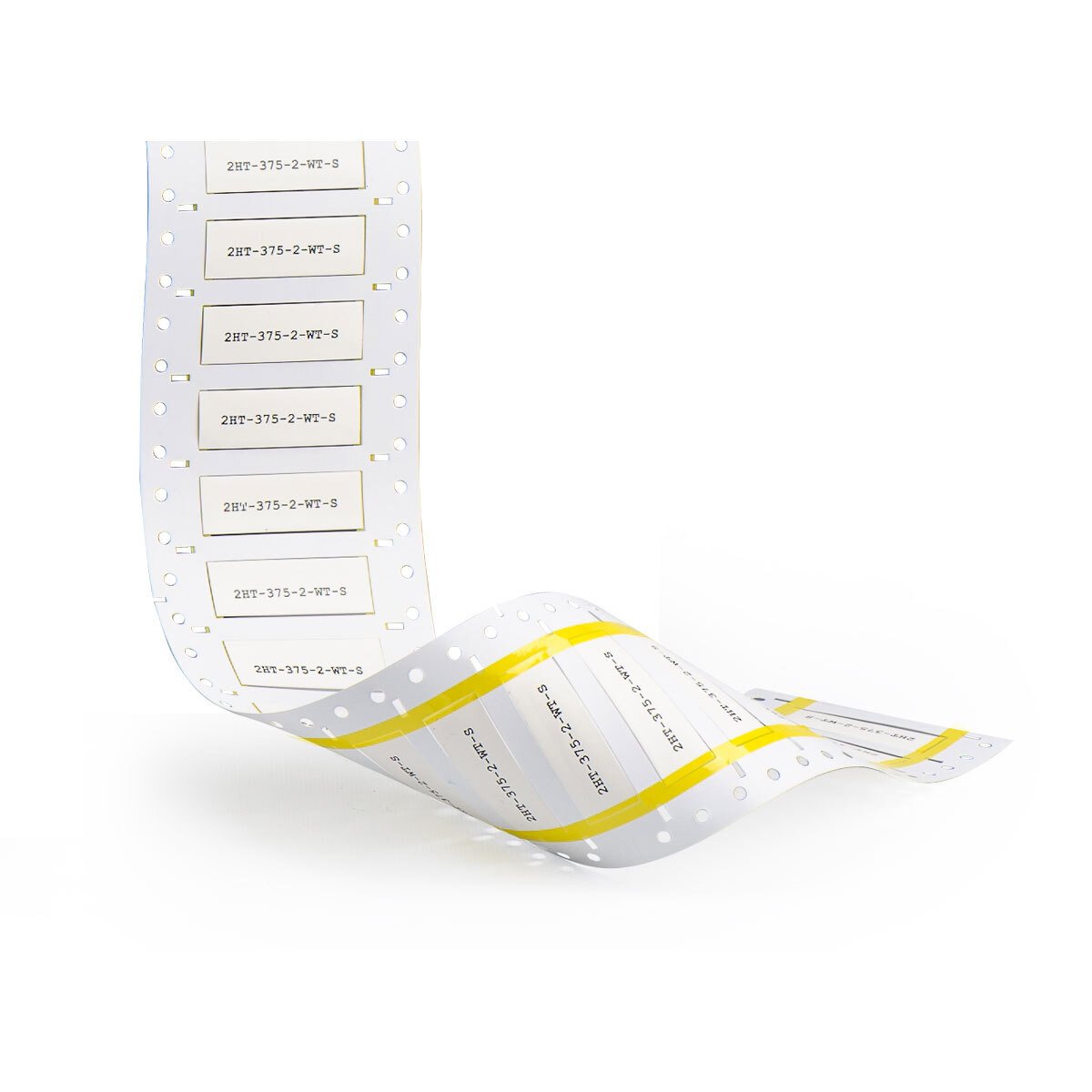

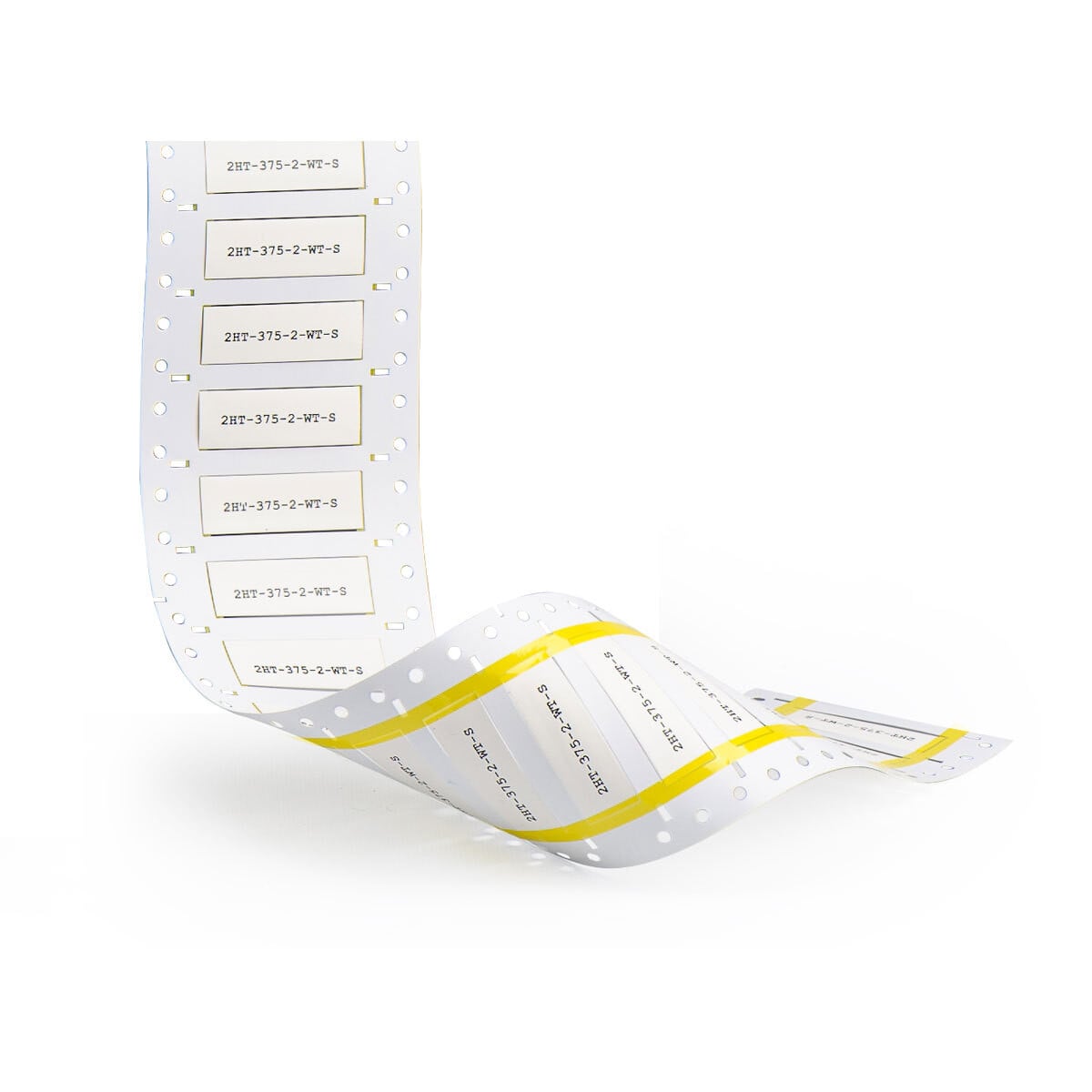

PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
- A ribbon is required to print this material. Use Part Number IP-R6600 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6600 for a different printer
Specifications
| Key Characteristics | ||
| Product Number | 104713 | |
| UPC | 662820022565 | |
| UOM | Roll of 10000 Each | |
| Quantity per Roll | 10000 | |
| Trade Name | PermaSleeve® | |
| Brand Name | Brady® |
| Dimensions | Dimensions | 0.235 in H x 0.5 in W |
| Height | 0.235 in | |
| Width | 0.5 in | |
| Sleeve Size | 0.125 in Dia x 0.5 in W | |
| Vertical Repeat | 0.5 in | |
| Recovered Diameter | 0.046 in | |
| Recovered Wall Thickness | 0.02 in | |
| Web Width | 3.49 in | |
| Diameter as Supplied | 0.125 in | |
| Core Diameter | 3 in |
