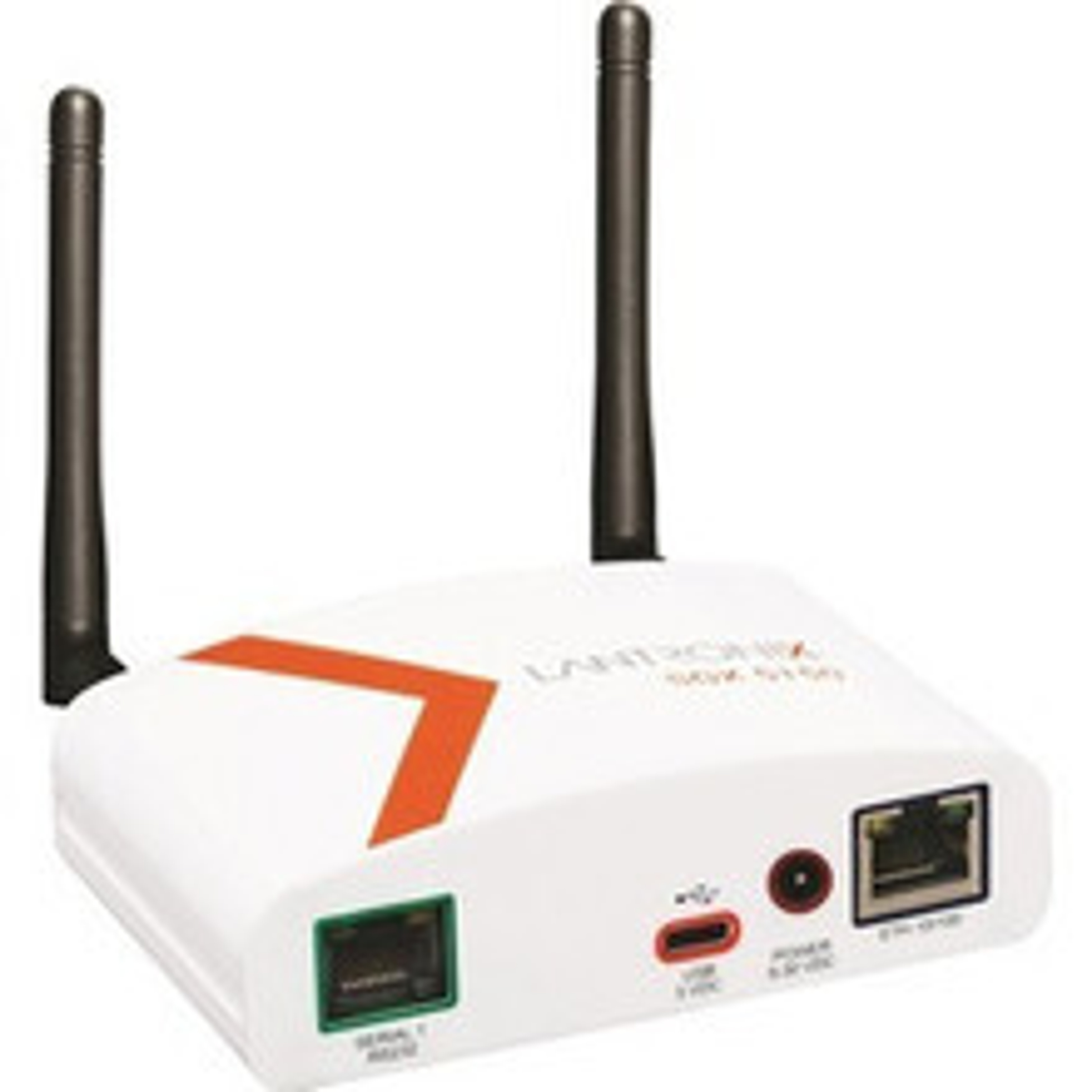

Lantronix SGX5150102US Wireless IoT Gateway

Lantronix SGX5150102US Wireless IoT Gateway

Lantronix

Regular Price $459.20
Discount Price: $446.00
Product Overview:

SGX 5150 Wireless IoT Gateway, 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, US Model - Twisted Pair

MFG#:
SGX5150102US
Product Category:
Network Devices
Adding to cart… The item has been added

Description

Lantronix SGX 5150 Wireless IoT Gateway, 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, US Model - Twisted Pair - 1 x Network (RJ-45) - 1 x USB - 1 x Serial Port - 10Base-T, 100Base-TX - Fast Ethernet - IEEE 802.11ac - Wireless LAN - Wall Mountable 11AC 1XRS232 USB & ETHERNET

Connect Your Business-Critical Assets and Data Securely to the Enterprise Network

High Performance Wi-Fi®

Your device requires a trustworthy wireless connection. Equipped with industry-leading high-performance 5GHz (802.11ac) Wi-Fi, the SGX 5150 ensures reliable and persistent wireless enterprise connections and bandwidth for high-speed data processing.

TruPort Security

The SGX 5150 was designed from the ground up to support critical enterprise, government and military grade standards, so that your private data is delivered securely with absolute data integrity.

Essential IoT Applications

IoT deployment and network integration has never been easier. The SGX 5150 includes essential IoT apps that deliver multi-interface connectivity, full networking, extensive security, industry-leading device configuration management and robust system diagnostics so that you can quickly accelerate to an IoT business solution.

Multi-Interface Access

The SGX 5150 provides multiple interface options to connect to virtually any edge asset with singular or multiple RS-232/485 serial ports, USB 2.0 with host and device modes and Ethernet interfaces. The SGX 5150 provides an elegant and robust solution for organizations seeking compatibility with multiple devices or product lines.

Media & Performance
Media Type Supported Twisted Pair
Warranty
Limited Warranty 5 Year
Wireless Specifications
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Network & Communication
Network Standard 100Base-TX
10Base-T
Ethernet Technology Fast Ethernet
Miscellaneous
Additional Information

Wirelss Specifications:

  • 5G Wi-Fi (IEEE 802.11ac), 1x1 ac (MCS0 - MCS9)
  • 20, 40 and 80 MHz Channels with optional SGI
  • IEEE 802.11 n, 1x1 n (MCS0 - MCS7)
  • Bluetooth/WLAN Coexistence
  • Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i
  • Dual band 2.4 GHz and 5 GHz

Ethernet Specifications:

  • IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT
  • USB Specifications - Configurable USB 2.0 HS/FS port with USB type C connector
  • USB Device (default setting) powered by a VBUS 5V
  • USB configurable host can provide VBUS 5V 0.5A (power supply or PoE)

Physical Interface:

  • Upto 2xRJ-45 Serial Ports, can be RS-232 or Multi-protocol RS-232/422/485, Data rates - up to 921 Kbps
  • 15 KV ESD Protection
  • (1) USB port - Type C Host / Device Connector
  • (1) RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge IsolationWLAN Security

TruPort Security:

  • AES/CCMP and TKIP encryption, 802.11i
  • WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP
  • Enterprise Security (WPA2-Enterprise)
  • EAP-TLS, EAP-TTLS (MS-CHAPv2), EAP-PEAPv0/EAP-MS-CHAP v2), EAP-PEAPv1, EAP-FAST

Management Interfaces:

  • DeviceInstaller, Web Manager (HTML5 Browser HTTP/HTTPS)
  • CLI (over serial ports, telnet or SSH)
  • OTA Field upgradeable
  • Supports SNMP v2, V3
  • XML Configuration records via CLI or FTP

Environmental:

  • Extended Operating Temp: -40° to 70° C, (-40° to 158° F)
  • Extended Storage Temp: -40° to 85° C, (-40° to 185° F)
  • IP Rating: 30, Relative Humidity: 5 to 95%, Non-condensing
  • ESD tolerance: Contact Discharge= 4Kv; Air Discharge=15Kv
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
Physical Characteristics
Weight (Approximate) 12.35 oz
Form Factor Wall Mountable
Height 1"
Width 3.5"
Depth 4.3"
!
