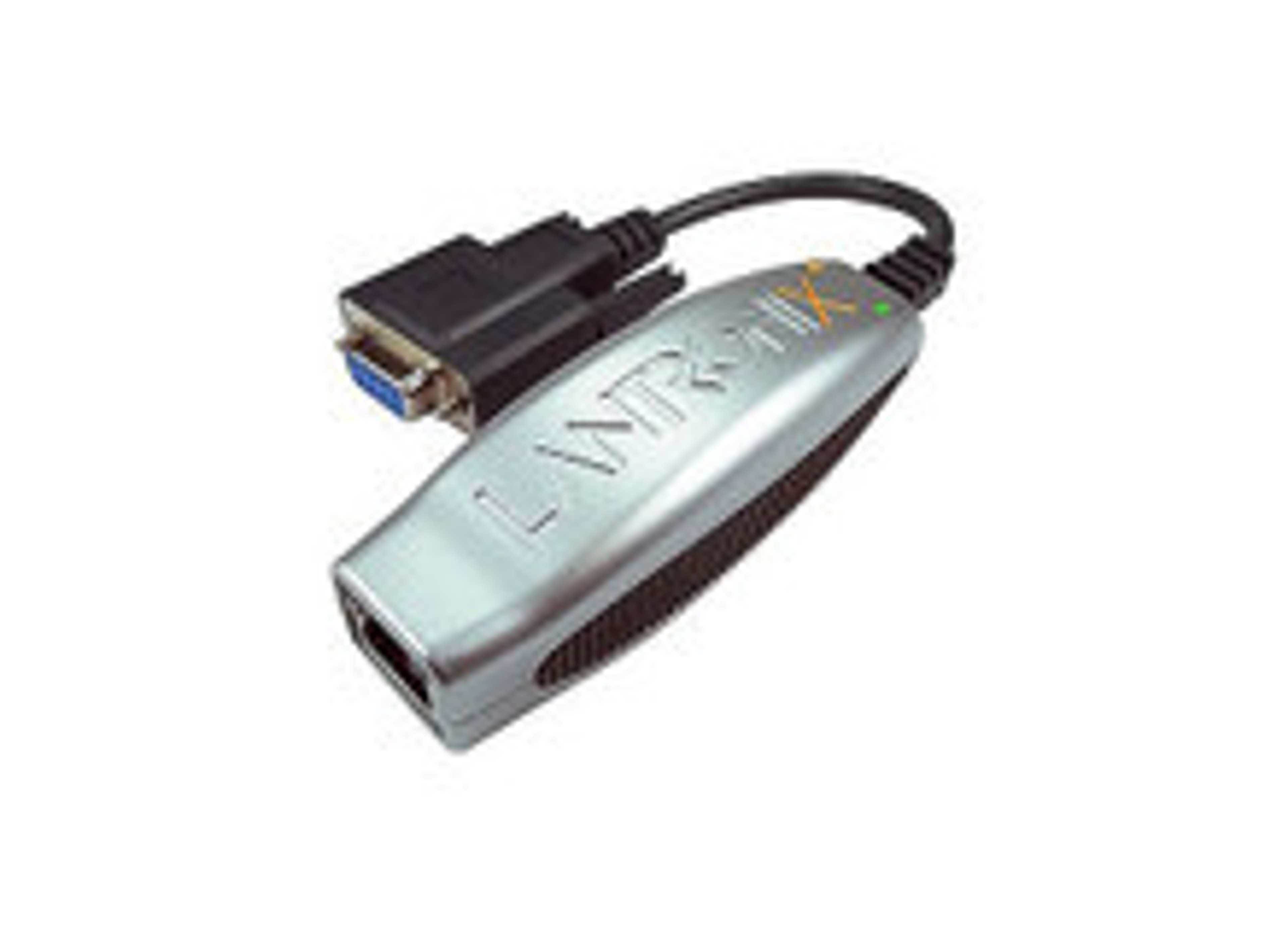

Lantronix XDT10P0IA-01-S 1 Port Secure Serial to IP

Description:

xDirect-IAP is a sleek and compact Serial-to-Ethernet device server with Modbus support, providing quick and easy Ethernet connectivity to manage and control industrial automation equipment over Ethernet or the Internet.

Specifications:

• Flash Memory

  • Installed Size : 1 MB

• RAM

  • Installed Size : 256 KB
  • Technology : SRAM

• Environmental Parameters

  • Humidity Range Operating : 0 - 90% (non-condensing)
  • Max Operating Temperature : 158 °F
  • Min Operating Temperature : -40 °F

• Header

  • Brand : Lantronix
  • Compatibility : PC
  • Manufacturer : Lantronix
  • Model : Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet with Power Over Ethernet (PoE)
  • Packaged Quantity : 1
  • Product Line : Lantronix xDirect IAP

• Interface Provided

  • Connector Type : DB-9
  • Qty : 1
  • Type : RS-232/422/485
  • Connector Type : RJ-45
  • Type : 100Base-TX (PoE)

• Miscellaneous

  • Compliant Standards : AS/NZS CISPR 22, C-Tick, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class B, EN55024, IEC 60950-1 Second Edition, RoHS, UL 60950-1 Second Edition, VCCI

• Networking

  • Compliant Standards : IEEE 802.3af
  • Connectivity Technology : Wired
  • Data Link Protocol : ASCII, Ethernet, Fast Ethernet, Modbus, RS-232, RS-422, RS-485
  • Data Transfer Rate : 115.2 Kbps
  • Features : 15 KV Electrostatic Discharge Protection, Auto-sensing per device, Flow control
  • Form Factor : External
  • Network Transport Protocol : ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
  • Power Over Ethernet (PoE) : PoE
  • Remote Management Protocol : HTTP, SNMP, Telnet, TFTP
  • Status Indicators : Link/activity, Power, Serial, Status
  • Type : Device server

• Power Device

  • Power Consumption Operational : 2 Watt

• Processor

  • Installed Qty : 1

• Service

  • Support Details Full Contract Period : 5 years
  • Support Details Type : Limited warranty

• Software

  • Type : Drivers & Utilities, Lantronix Com Port Redirector, Lantronix DeviceInstaller

• System Requirements

  • Min Operating System : Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)

• Dimensions & Weight

  • Depth : 9.4 in
  • Height : 1.1 in
  • Weight : 2.4 oz
  • Width : 1.3 in

• Service & Support

  • Type : 5-year warranty
