Description:

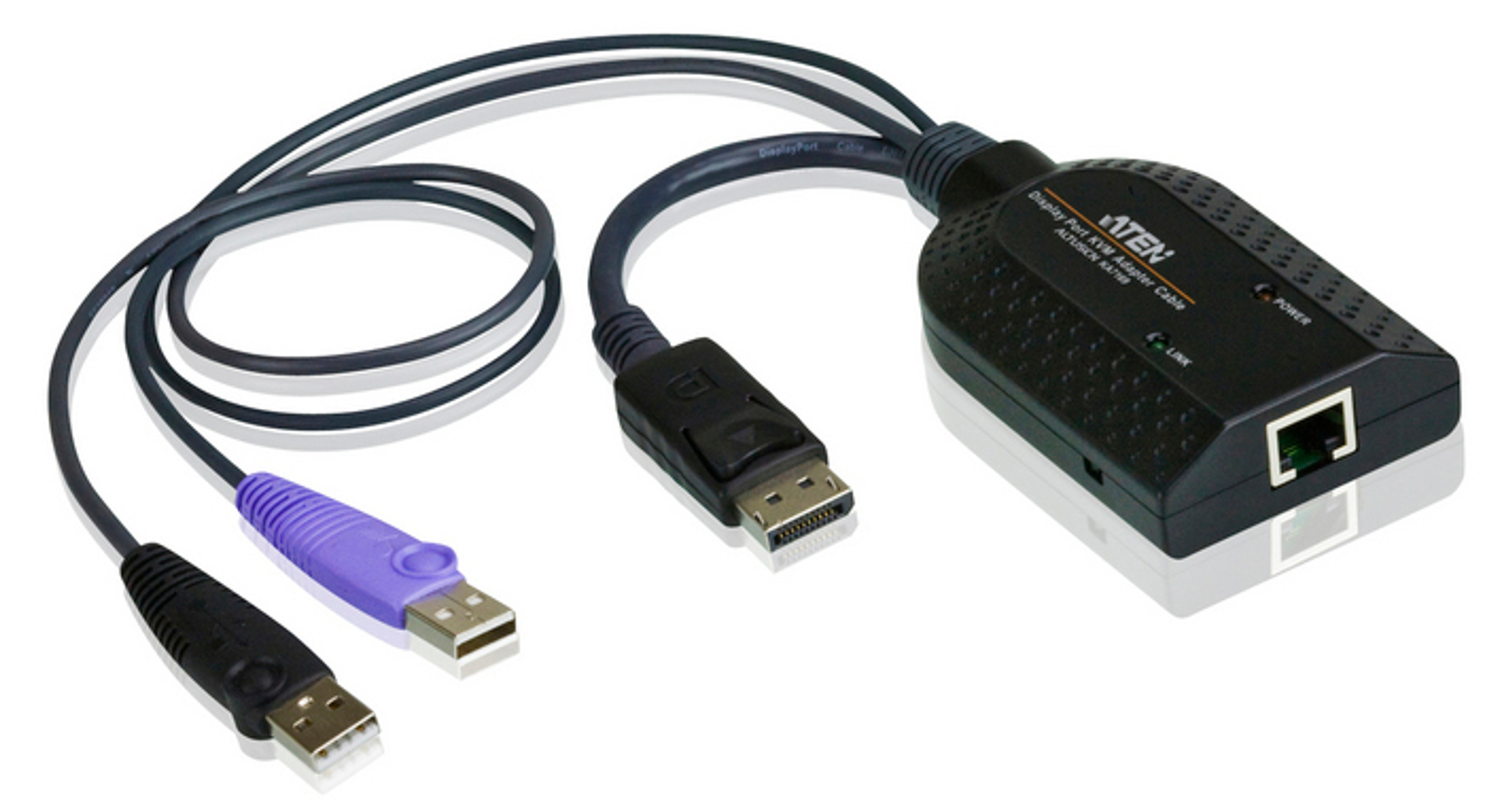

The KA7169 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. The KA7169 supports a DisplayPort connection and provides a USB plug to connect a target computer for Smart Card/CAC support*. With its small size and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew technologies for greatly enhanced video quality.
* Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
Specifications:
| Connectors | Link | 1 x RJ-45 Female |
| USB to Computer | 1 x USB Type A Male | |
| Smart Card / CAC to Computer | 1 x USB Type A Male | |
| DisplayPort to Computer | 1 x DisplayPort Male | |
| LEDs | On Line | 1 (Green) |
| Power | 1 (Orange) | |
| Physical Properties | Housing | Plastic |
| Weight | 0.10 kg | |
| Dimensions ( L x W x H ) |
9.10x5.60x2.12cm |
