Product Description:

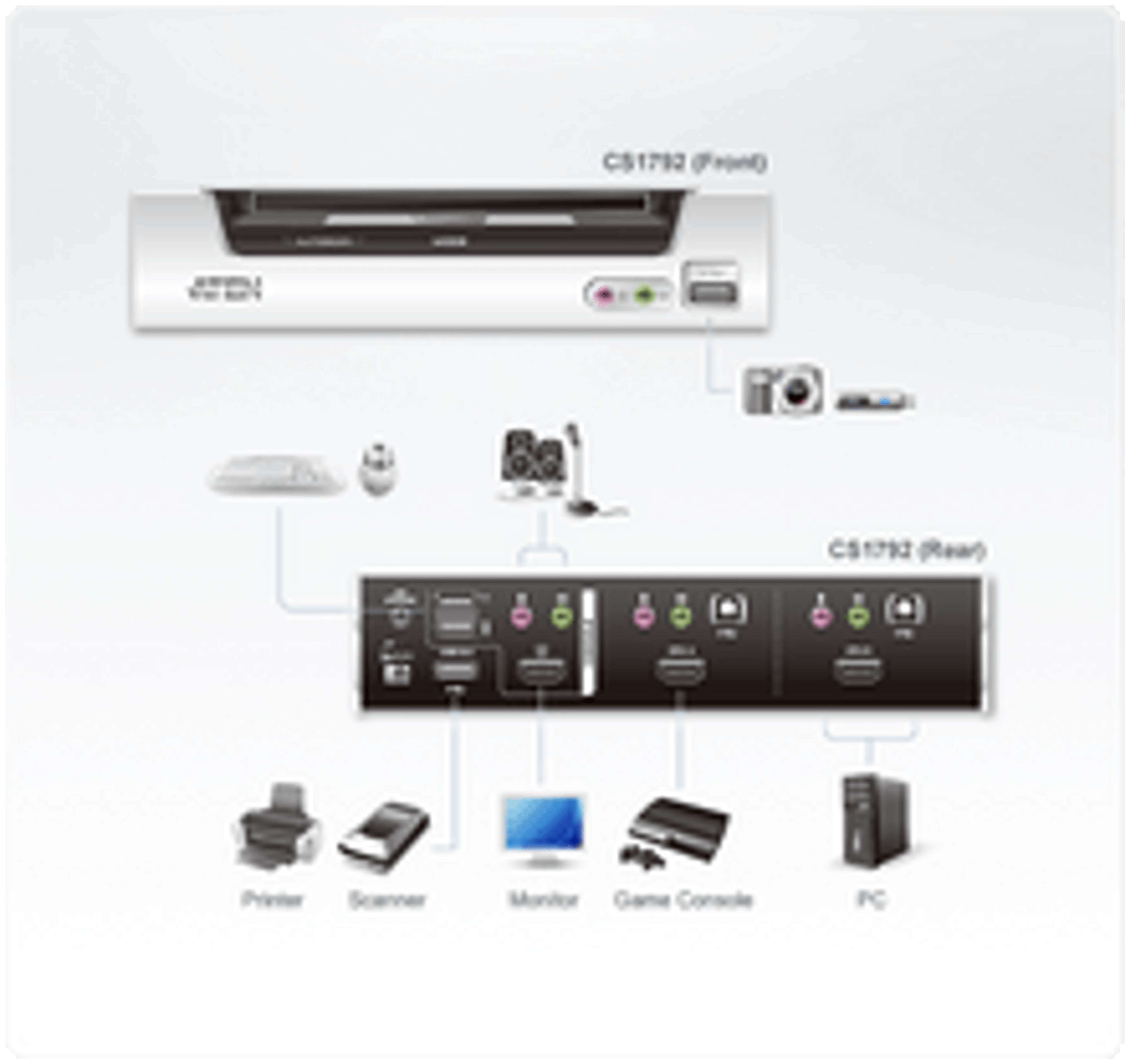

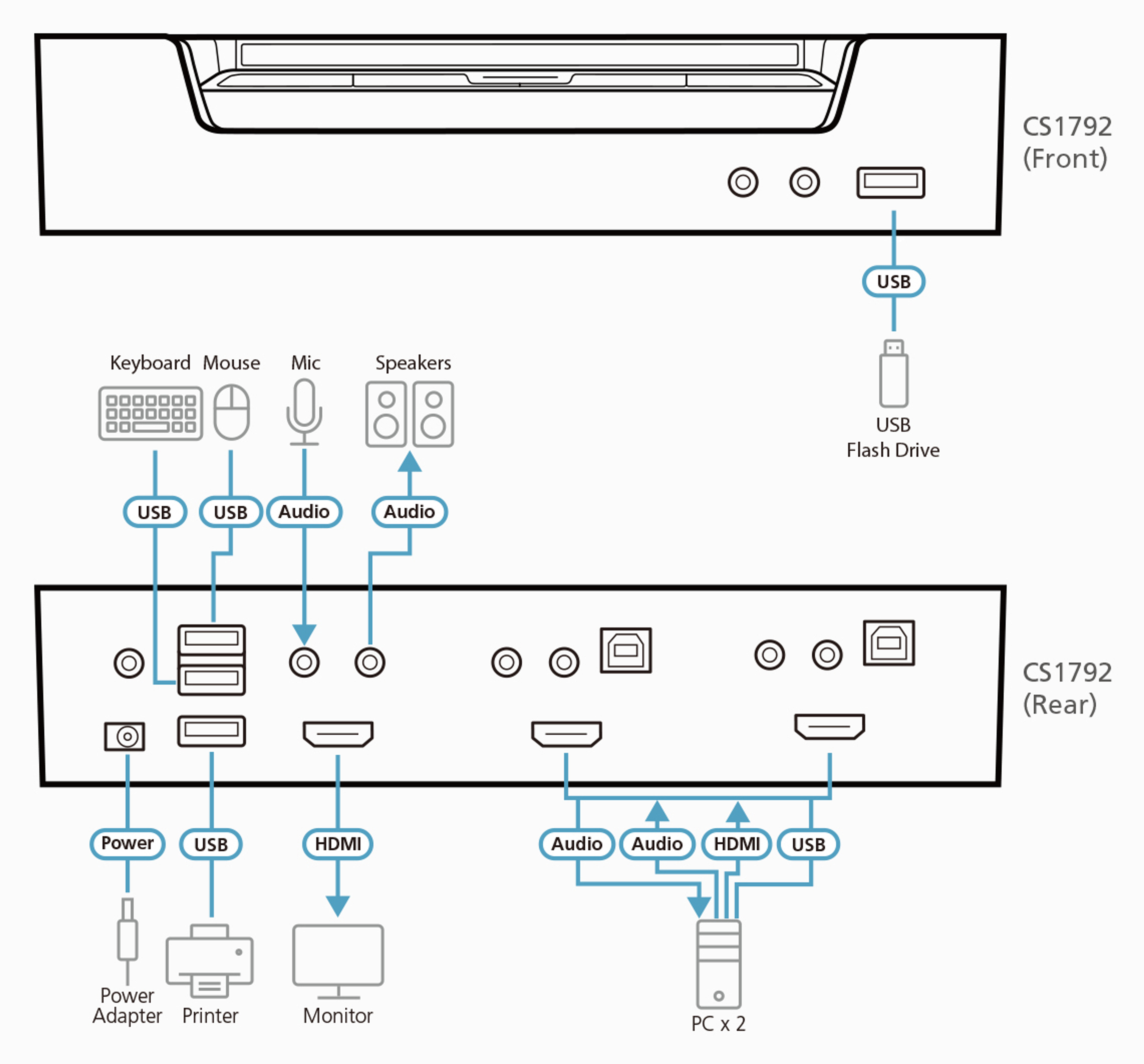

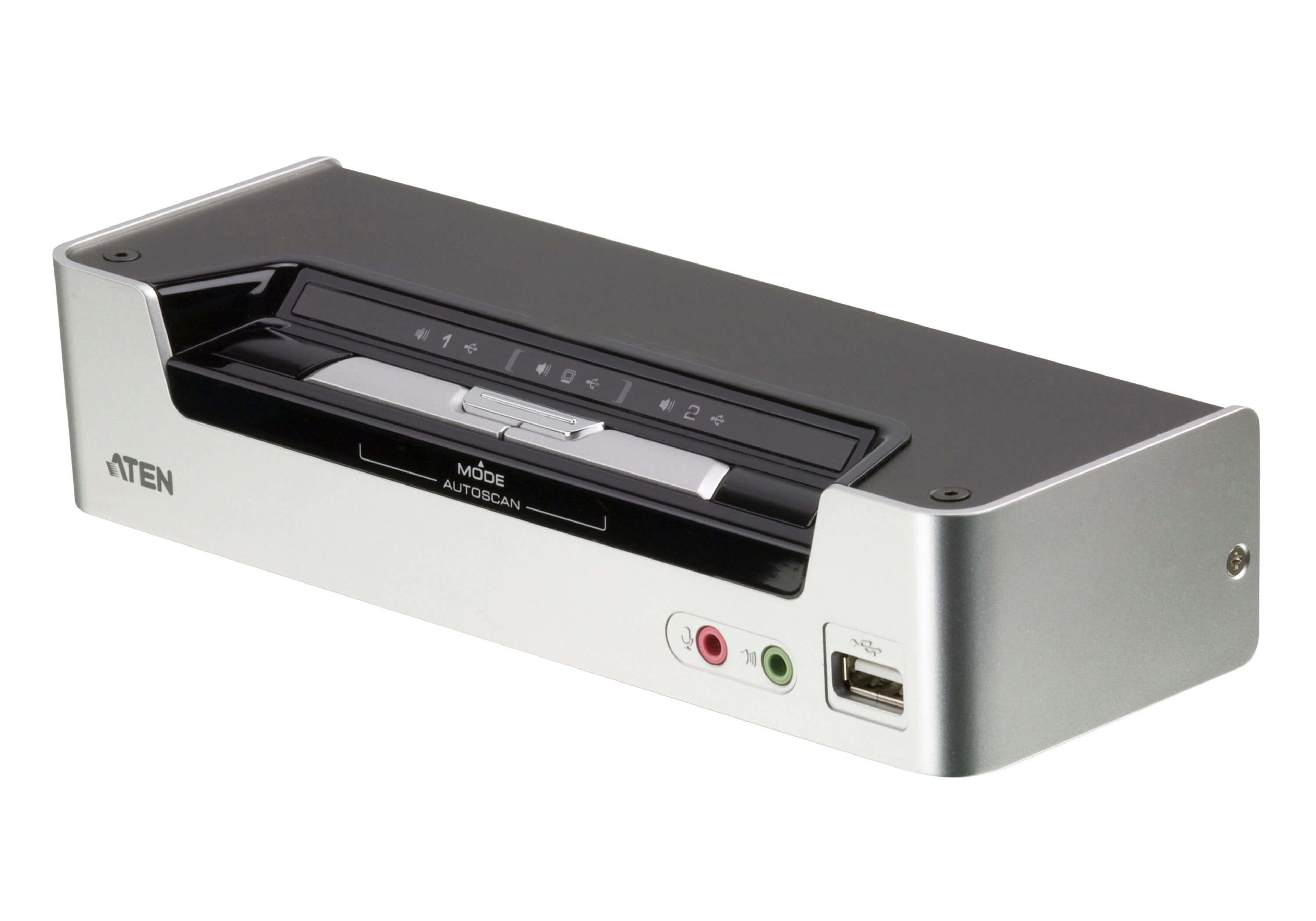

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
Features:
- 2-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

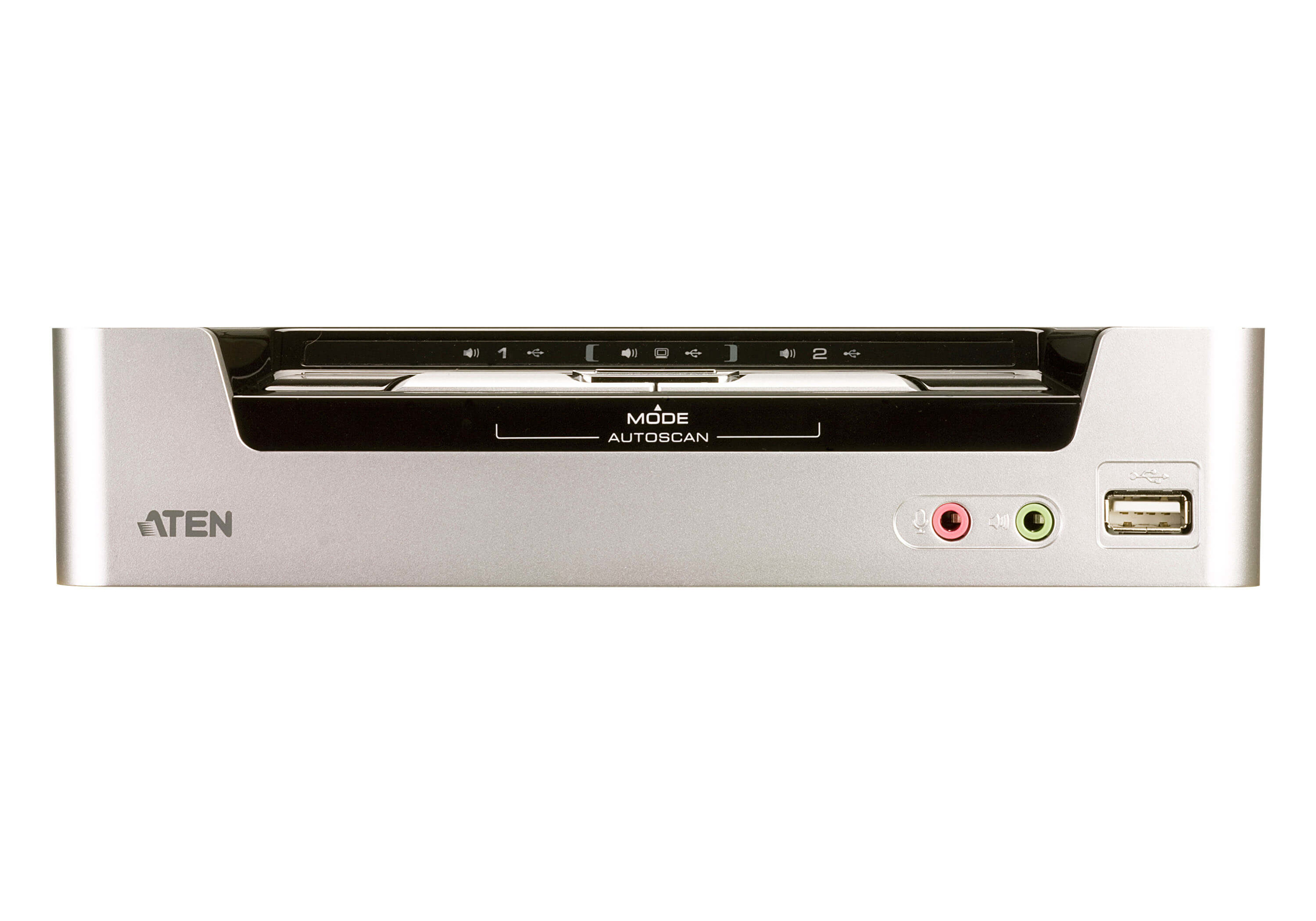

- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers
Specifications:
| Computer Connections | 2 | ||
| Port Selection | Front Panel Pushbuttons; Hotkeys | ||

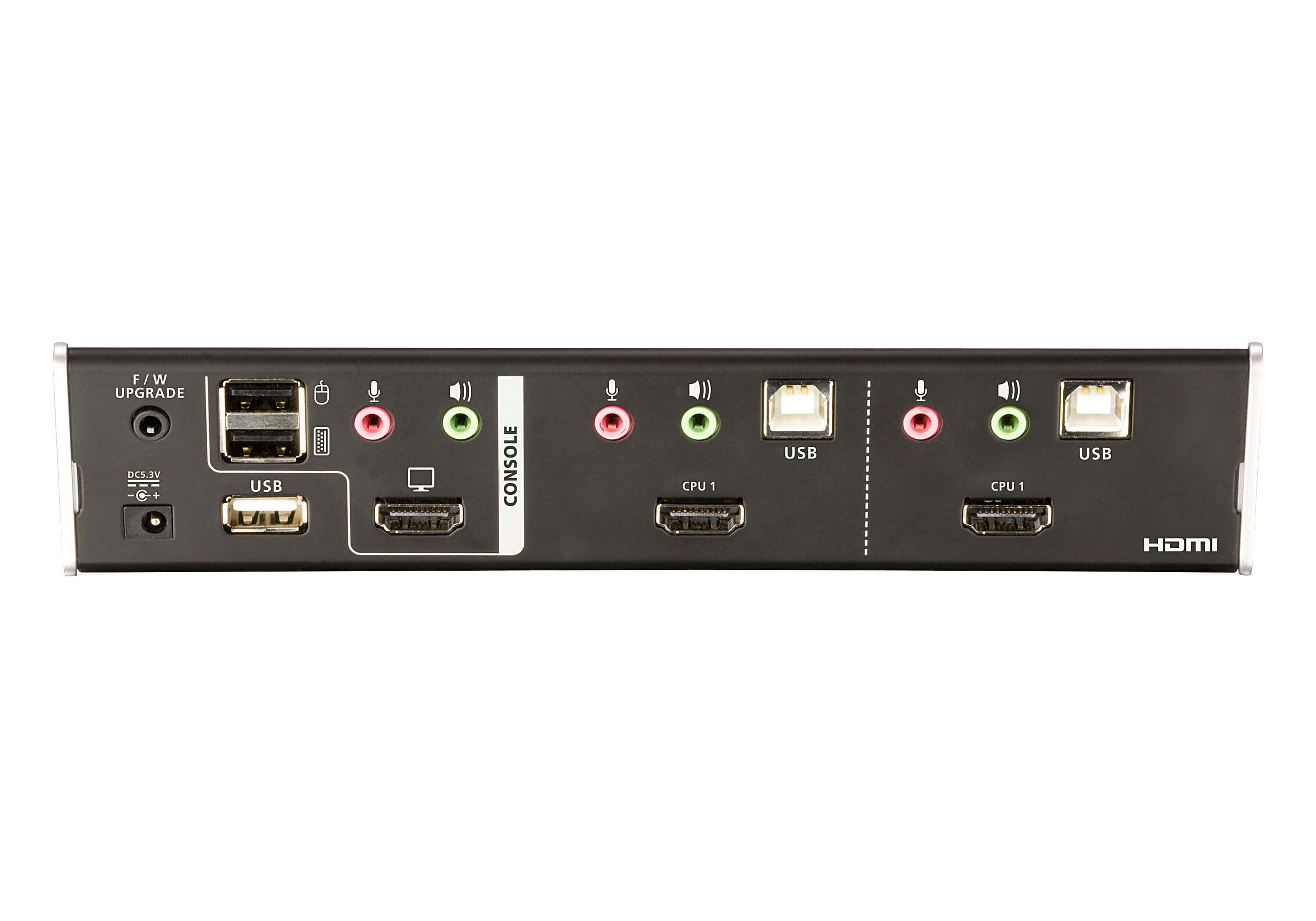

| Connectors | Console Ports |
Keyboard | 1 x USB Type A Female (Black; rear panel) |
| Video | 1 x HDMI Type A Female (Black) | ||
| Mouse | 1 x USB Type A Female (Black; rear panel) |
||
| Speaker | 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) |
||
| KVM Ports |
Keyboard / Mouse | 2 x USB Type B Female (White) | |
| Video | 2 x HDMI Type A Female (Black) | ||
| Speaker | 2 x Mini Stereo Jack Female (Green) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink) | ||
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) | ||
| Power | 1 x DC Jack | ||
| USB 2.0 Hub | 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel) |
||
| Switches | Selected | 3 x Pushbutton | |
| LEDs | Audio | 3 (Green) | |
| KVM | 3 (Orange) | ||
| USB | 3 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 1080p (HDTV) / 1920 x 1200 (DVI) | ||
| Scan Interval | 1-99 secs. (Default: 5 secs) | ||
| Power Consumption | DC 5.3 V, 3.2 W | ||
| Environment | Operating Temp. | 0-50￠XC | |
| Storage Temp. | -20-60￠XC | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal, Plastic | |
| Weight | 0.42 kg | ||
| Dimensions (L x W x H) |
20.50 x 7.30 x 4.50 cm | ||
