Product Description:

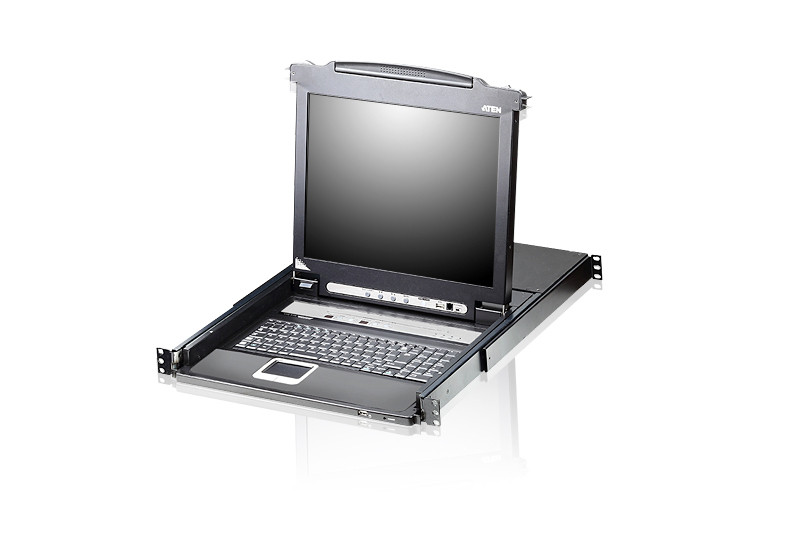

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console
Features:
- Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
Specifications:
| Computer Connections | Direct | 8 | |
| Max. | 256 (via Daisy-chain) | ||
| Port Selection | OSD, Hotkey, Pushbutton | ||
| Connectors | External Console Port | 1 x SPHD-18 Male (Yellow) | |
| External Mouse Port | 1 x USB Type-A Female (White) | ||
| KVM Ports | 8 x SPHD-15/17 Female (Yellow) | ||
| Daisy-chain Port | 1 x DB-25 Male (Black) | ||
| FW Upgrade | 1 x RJ-11 Female | ||
| Power | 1 x 3-prong AC Socket | ||
| USB Port | 1 x USB Type-A Female (White) | ||
| Switches | Reset | 1 x Semi-recessed Pushbutton | |
| Power | 1 x Rocker Switch | ||
| Firmware Upgrade | 1 x Switch | ||
| LCD Adjust | 4 x Pushbutton | ||
| LCD On/Off | 1 x LED Pushbutton (Orange) | ||
| Port Selection | 2 x Pushbutton | ||
| Station Selection | 2 x Pushbutton | ||
| LEDs | On Line | 8 (Orange) | |
| Port ID | 2 x 7-segment LED Display (Yellow) | ||
| Station ID | 2 x 7-segment LED Display (Yellow) | ||
| Power | 1 (Dark Green) | ||
| Lock | Num Lock | 1 (Green) | |
| Caps Lock | 1 (Green) | ||
| Scroll Lock | 1 (Green) | ||
| Emulation | Keyboard / Mouse | PS/2, USB | |
| Video | 1280 x 1024 @ 75 Hz; DDC2B | ||
| Scan Interval (OSD Select) | 1-255 sec. | ||
| I/P Rating | 100-240 V AC, 50/60 Hz, 1 A | ||
| Power Consumption | 17" LCD | 120V, 27.5W/230V, 28W | |
| 19" LCD | 120V, 18.9W/230V, 19.5W | ||
| Environment | Operating Temp. | 0-40°C | |
| Storage Temp. | -20-60°C | ||
| Humidity | 0-80% RH, Noncondensing | ||
| Physical Properties | Housing | Metal + Plastic | |
| Weight | 17" LCD |
13.77 kg |
|
| 19" LCD | 14.40 kg | ||
| Dimensions ( D x W x H ) |
63.40 x 48.00 x 4.40 cm | ||
