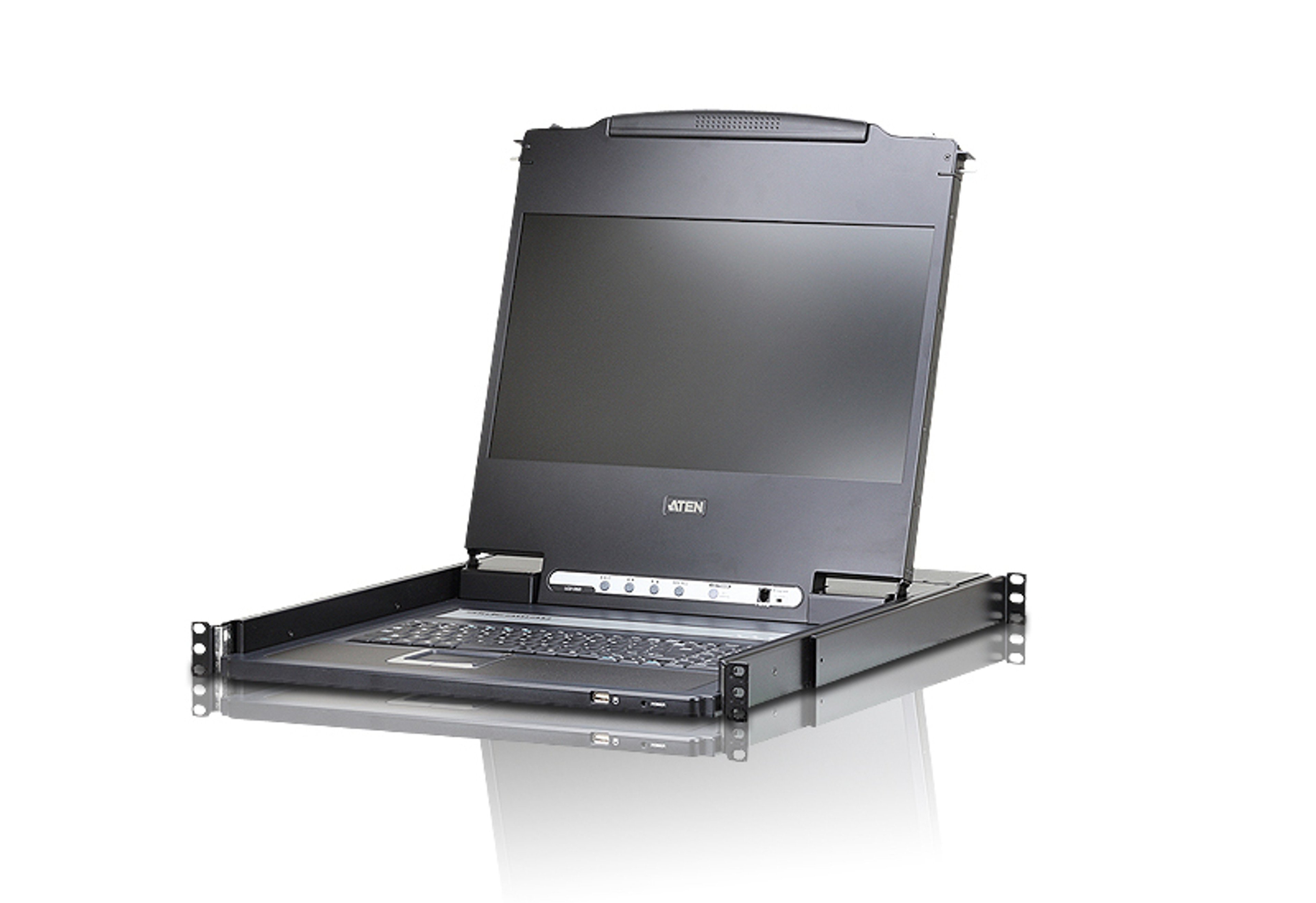

Aten CL1000M 17" LCD Integrated Console

Description:

The CL1000 is a KVM console module that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.

Features

Integrated KVM console with 17" LCD monitor - in a Slideaway™ housing LCD module rotates up to 115 degrees for a more comfortable viewing angle Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack Compatible with most PS/2 KVM Switches Internal power built in Adjustable depth to fit within a rack High video resolution: -Up to 1280 x 1024 @75Hz -Supports DDC, DDC2, DDC2B DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian Improved design - single person installation (optional) Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD Rack Mounting Kit Depth Long (Optional) 68cm - 100cm Short (Standard) 42cm - 72cm Easy Installation Rack Mounting Kit Depth Long (Optional) 68cm - 105cm Short (Optional) 42cm - 70cm

Package Content

1x CL1000 with Standard Rack Mount Kit 1x Custom KVM Cable Set 1x Power Cord 1x User Manual 1x Quick Start Guide

Specification

Connectors KVM Ports Keyboard/ Video/Mouse 1 x SPHD Female (Yellow) Power 1 x 3-prong AC Socket Switches LCD Adjustment 4 x Pushbuttons Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker LEDs Power 1 (Dark Green) Num Lock 1 (Green) Caps Lock 1 (Green) Scroll Lock 1 (Green) Emulation Keyboard / Mouse PS/2 Video 17" LCD 1280 x 1024; DDC2B I/P Rating 100 - 240 VAC; 50/60 Hz; 1A Power Consumption 17" LCD 120V/21W; 230V/24W Environment Operating Temp. 0-40˚C Storage Temp. -20-60˚C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal+Plastic Weight 17" LCD 12.30kg Dimensions ( D x W x H ) 53.40 x 48.00 x 4.40 x cm (19"/1U)
