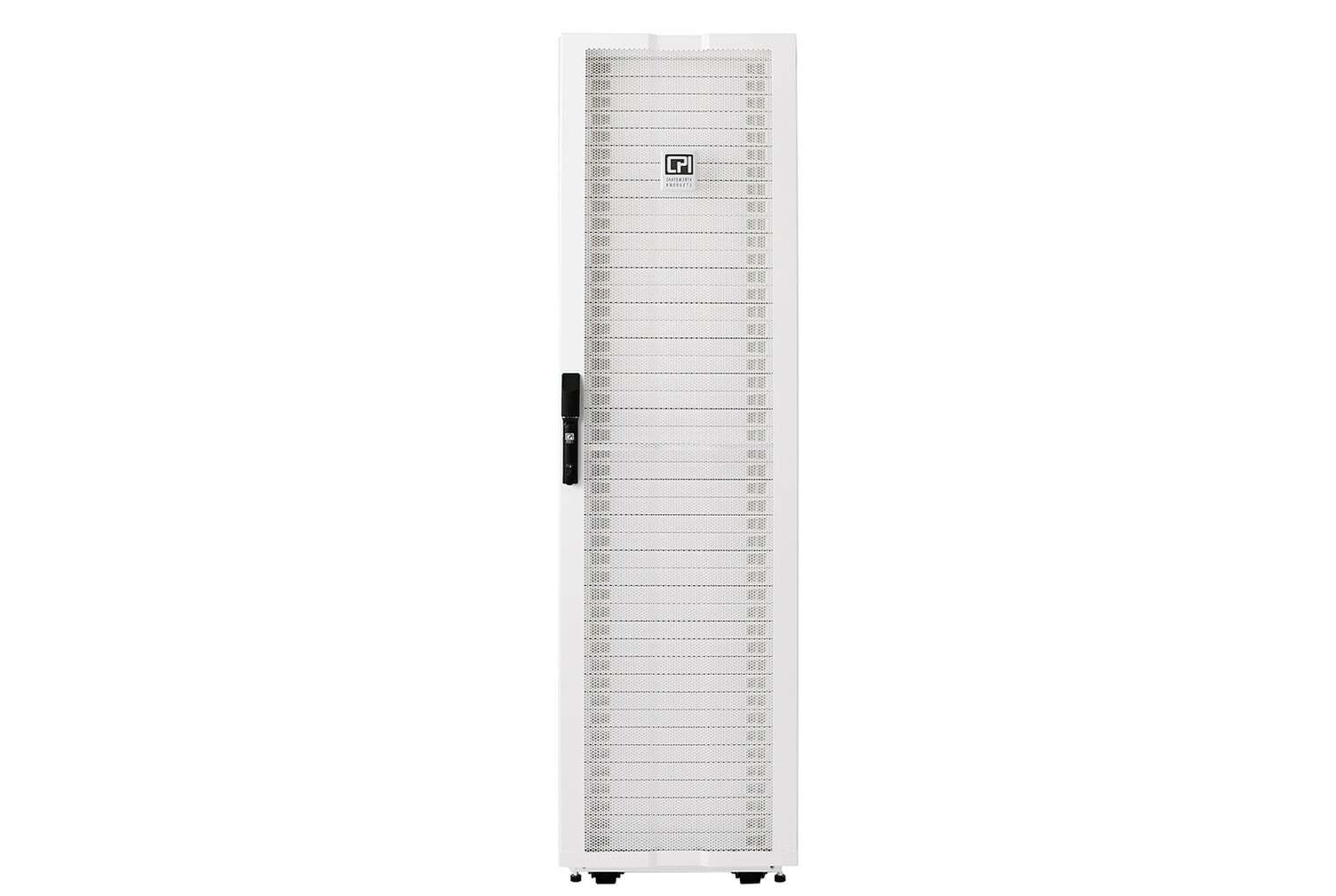

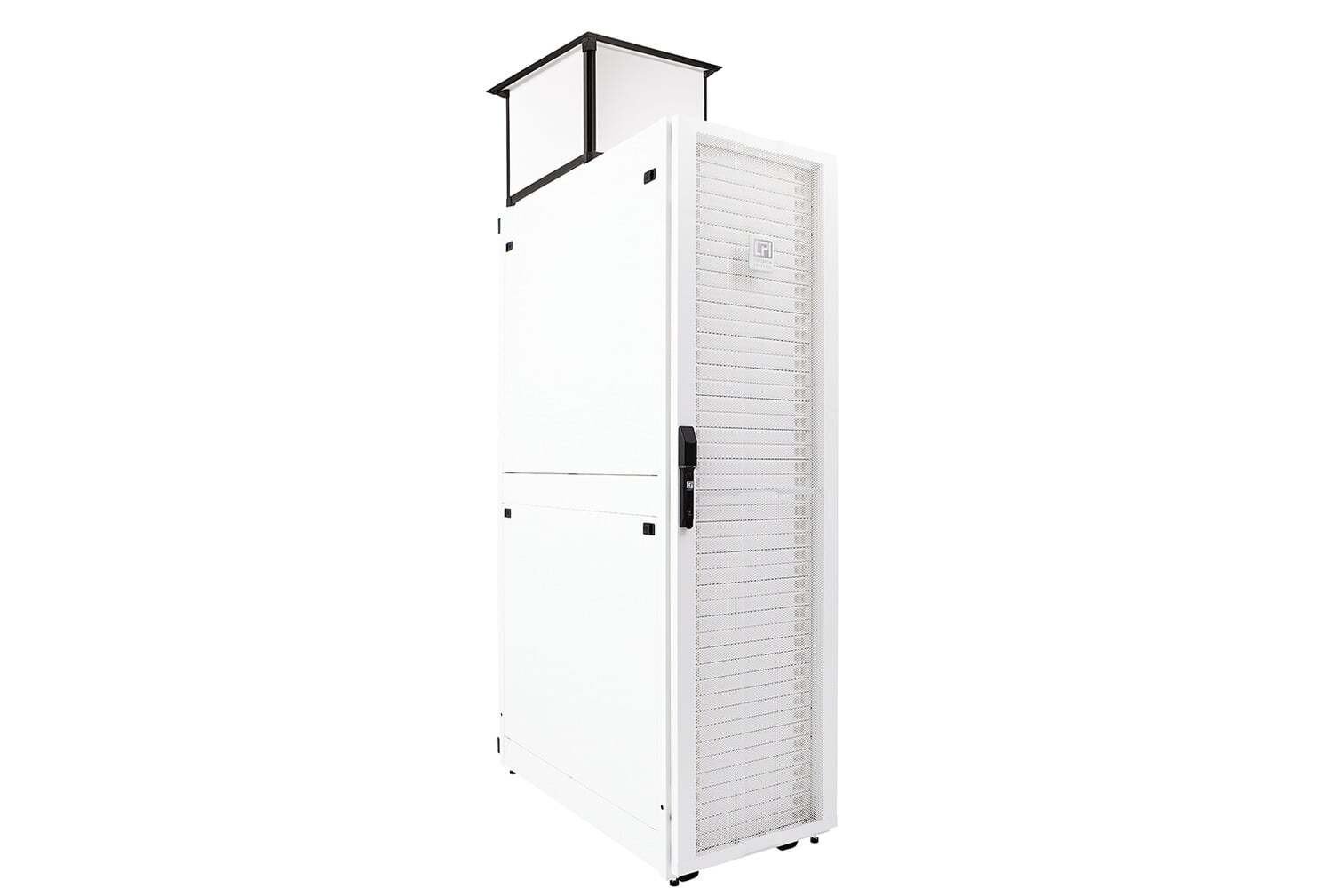

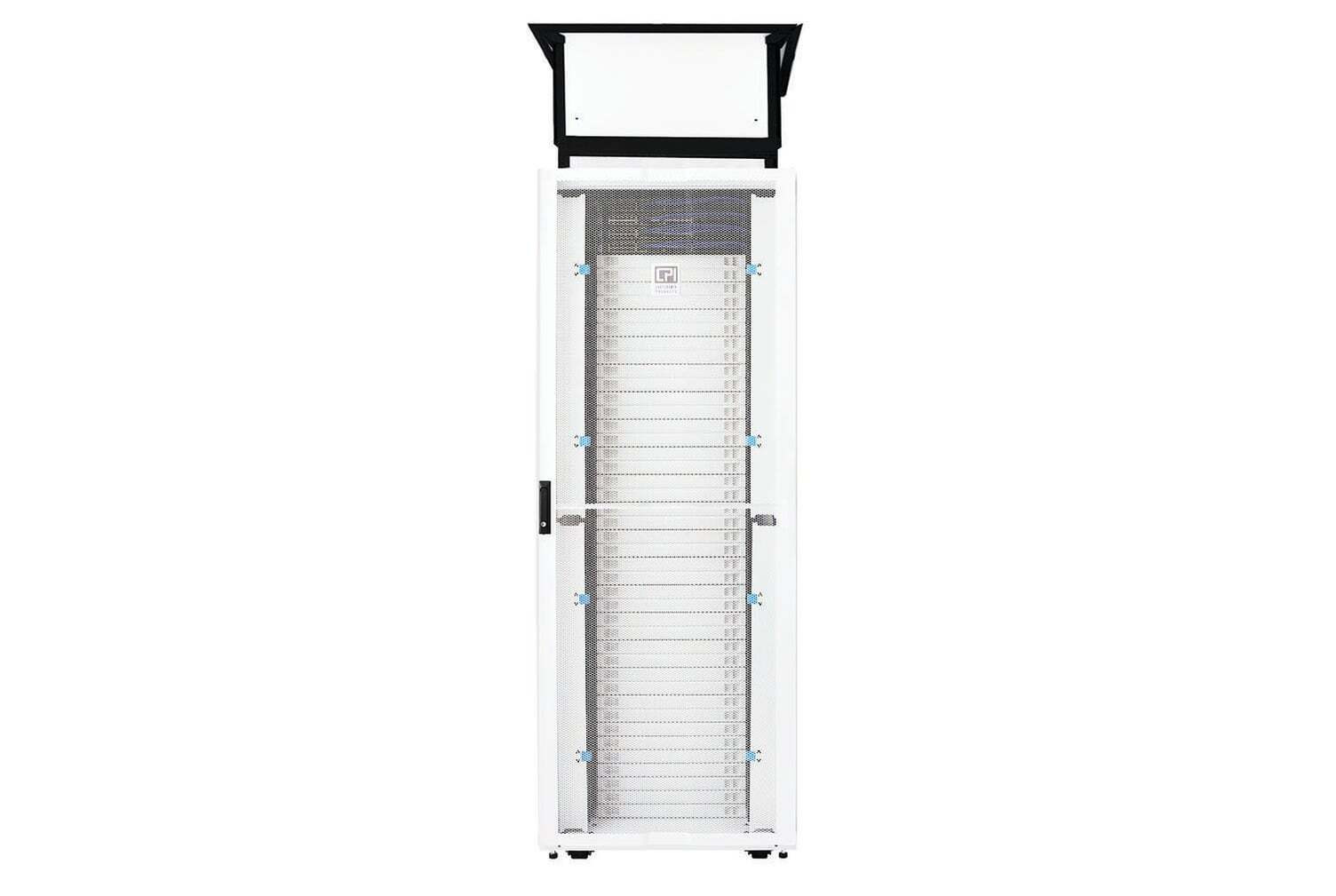

Chatsworth ZB44-A120A-E2 ZetaFrame Cabinet; 84.6"H x 31.5"W x 43.3"D 45U

Chatsworth ZB44-A120A-E2 ZetaFrame Cabinet; 84.6"H x 31.5"W x 43.3"D 45U

Chatsworth

Regular Price $5,091.01
Discount Price: $4,226.00
Product Overview:

ZetaFrame Cabinet; 84.6"H x 31.5"W x 43.3"D (2149 mm x 800 mm x 1000 mm); 45U; Perf Front Door; Double Perf Rear Door; Grommet Top Panel; 2 Side Panels; No Bottom Panel

MFG#:
ZB44-A120A-E2
Adding to cart… The item has been added


Description

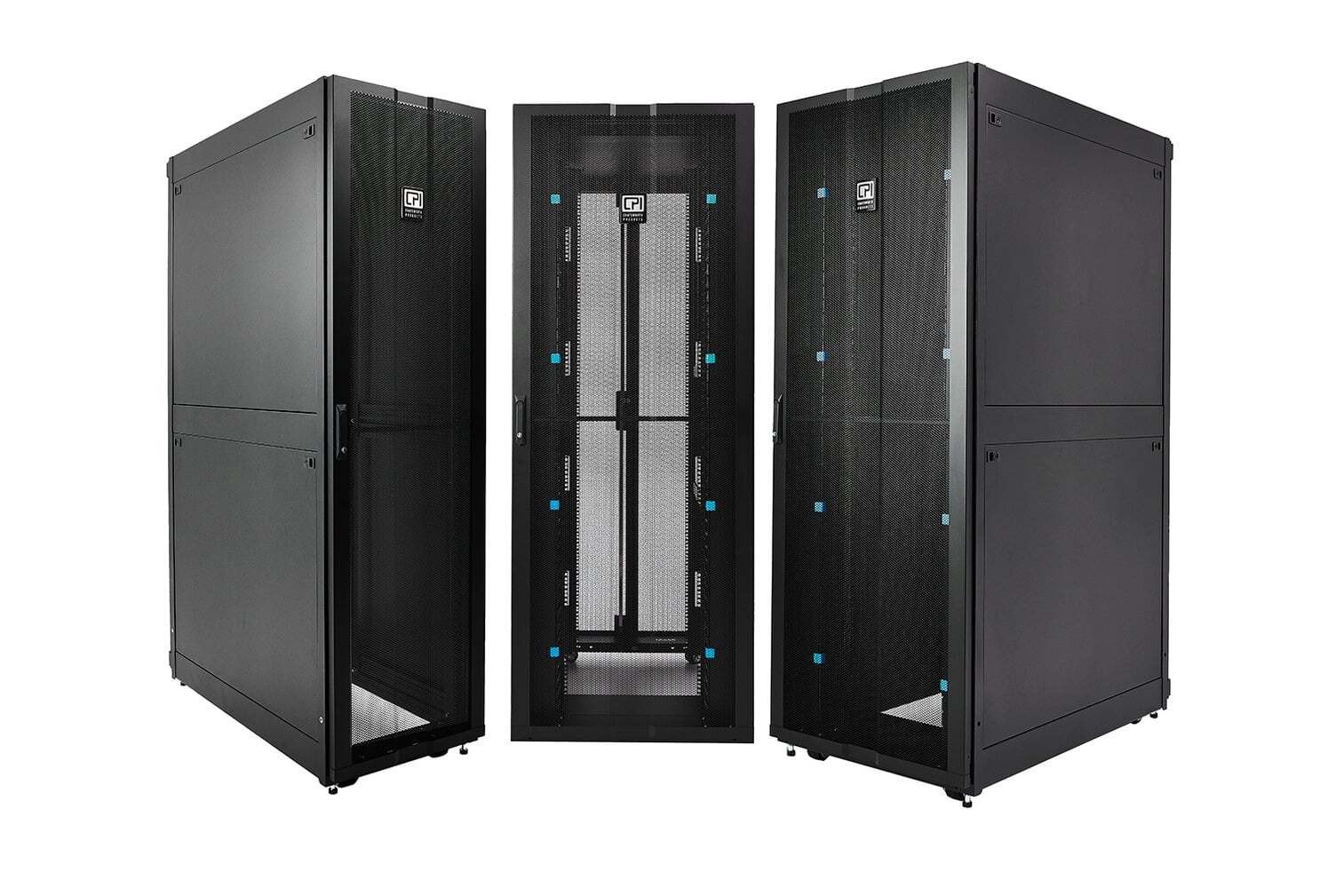

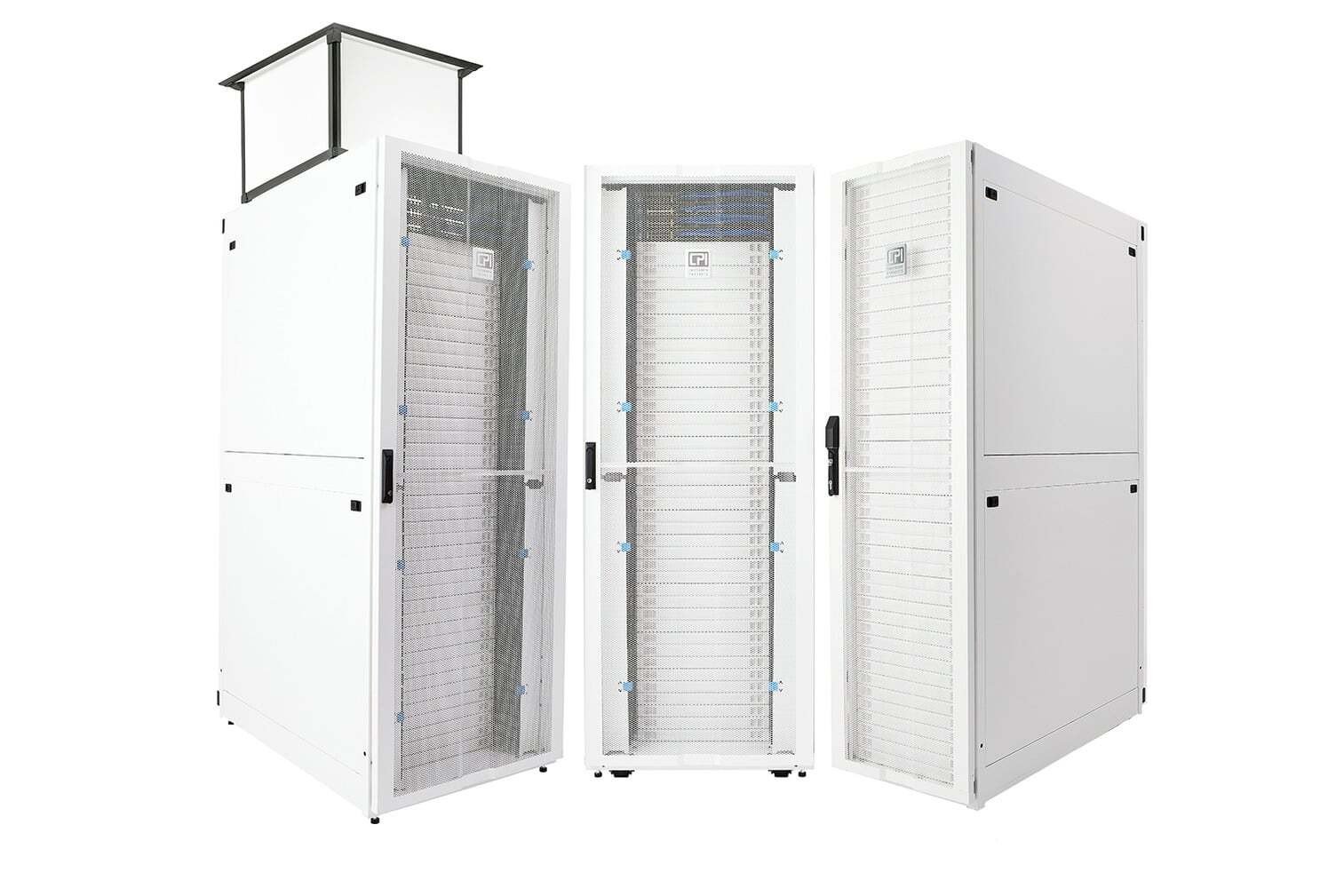

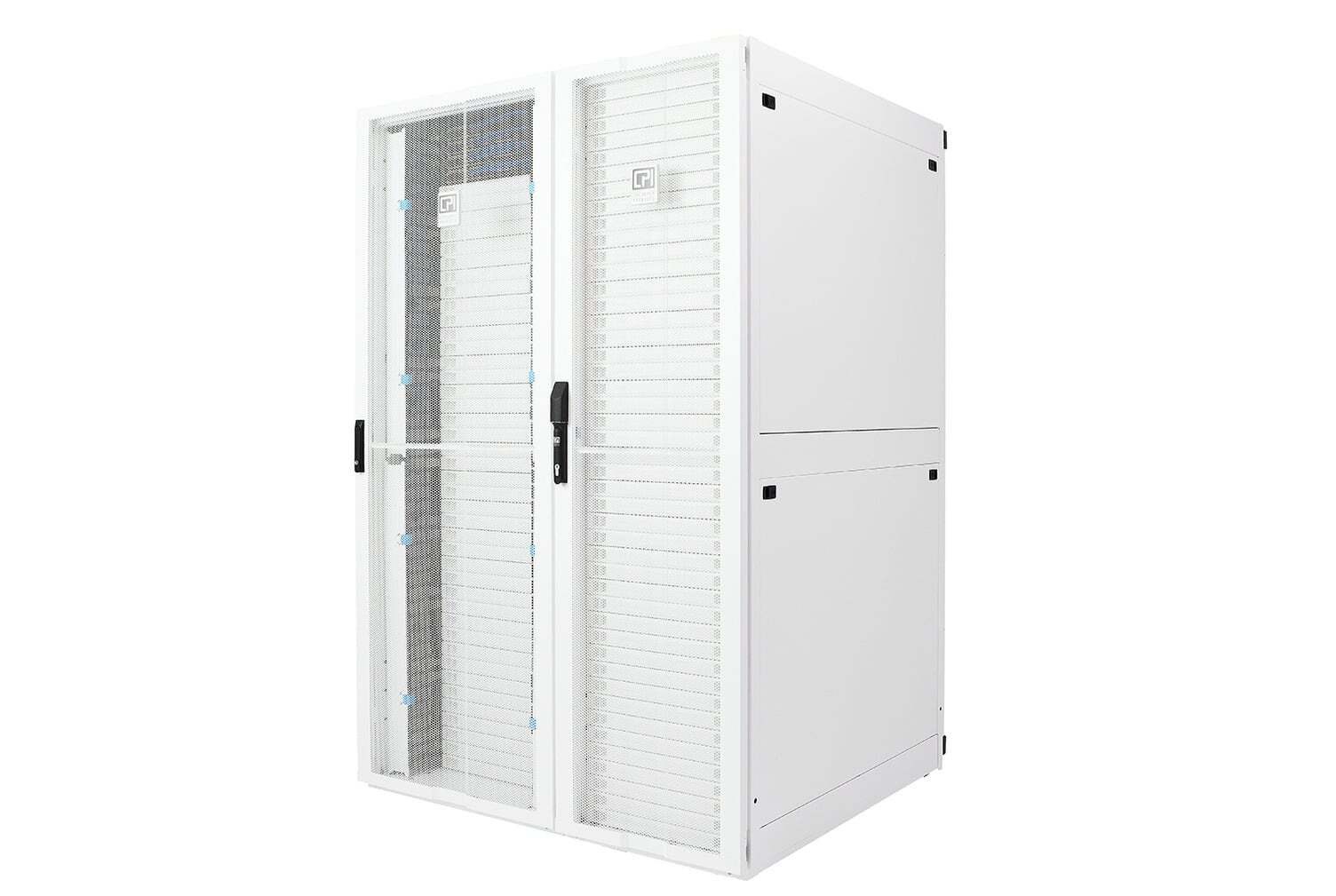

ZetaFrame™ Cabinet System Overview

  Speedy Deployment
  • Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
  • Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
  • Easy attachment and positioning of accessories allow for faster deployment and maintenance
  • Optional shock pallet ensures safe delivery of racked ICT equipment
  Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements.
  Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
  Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components


Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications


Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling

Height:84.6" (2149 mm) 45U
Width:31.5" (800 mm)
Depth:43.3" (1100 mm)
Doors:Single Perforated Front/ Double Perforated Rear
Top Panel:Grommet-Sealed
Side Panels:2 Sides
Bottom Panel:None
Thermal Management:Air Dam
Color:Glacier White
Shipping:Shock Pallet
!
