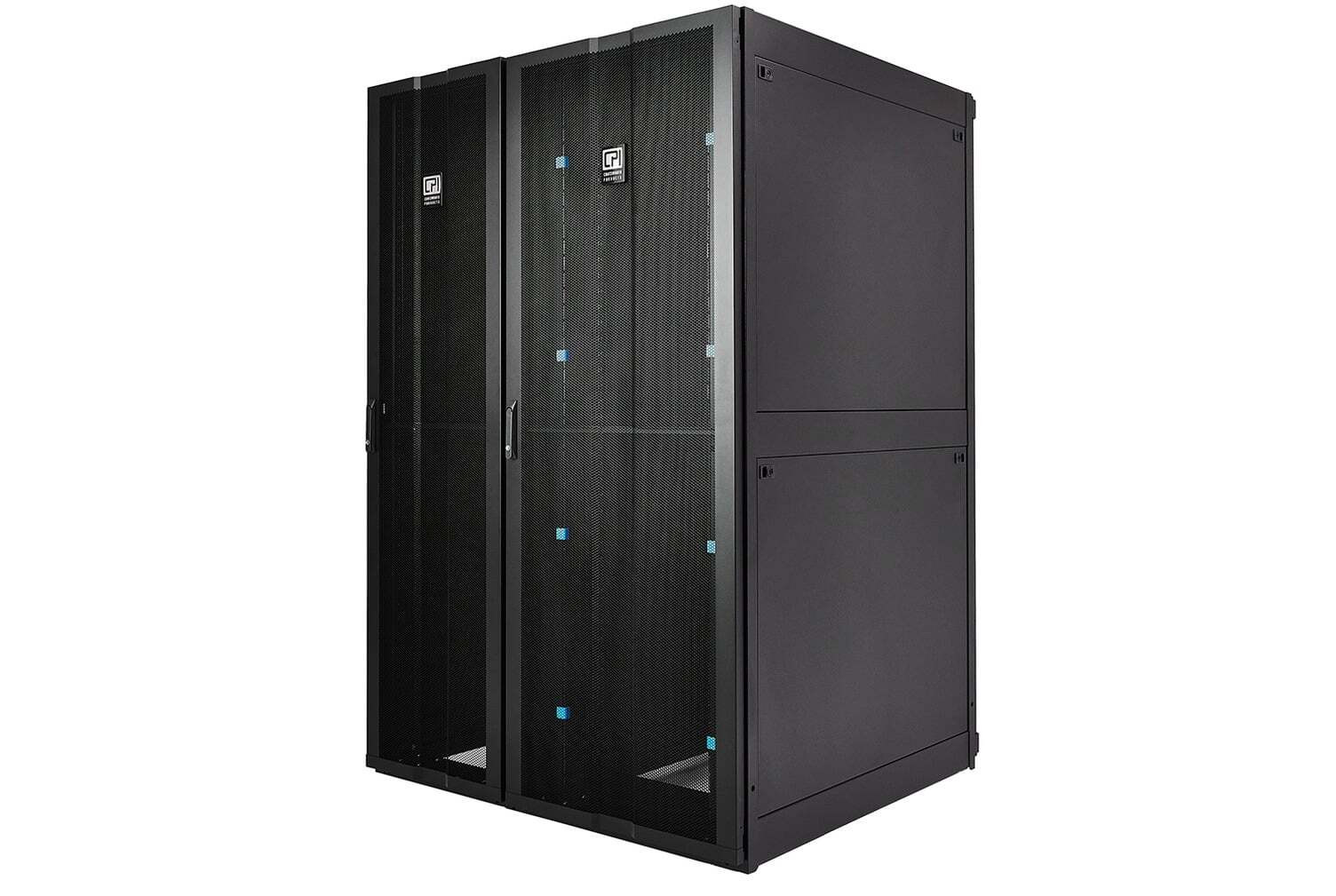

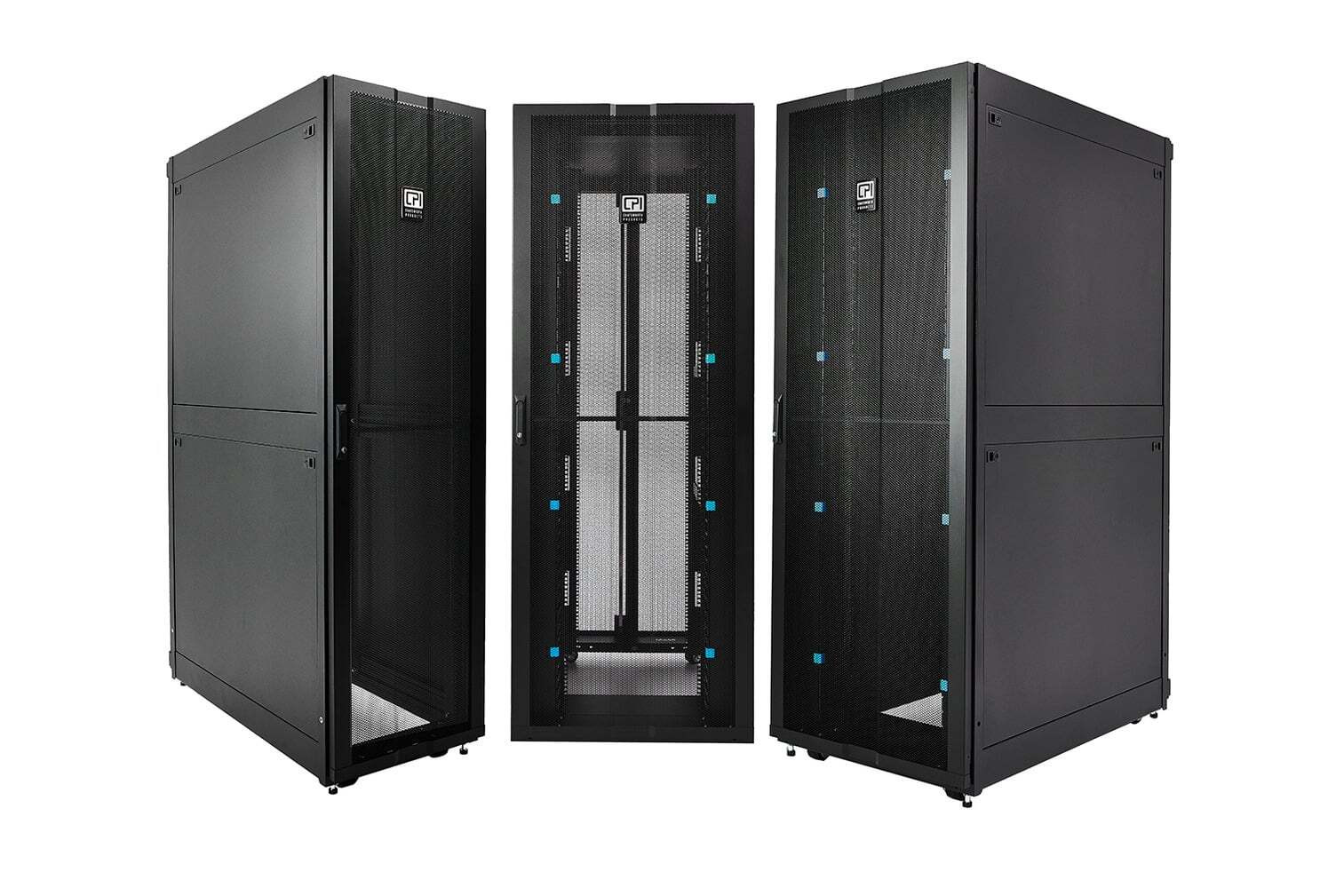

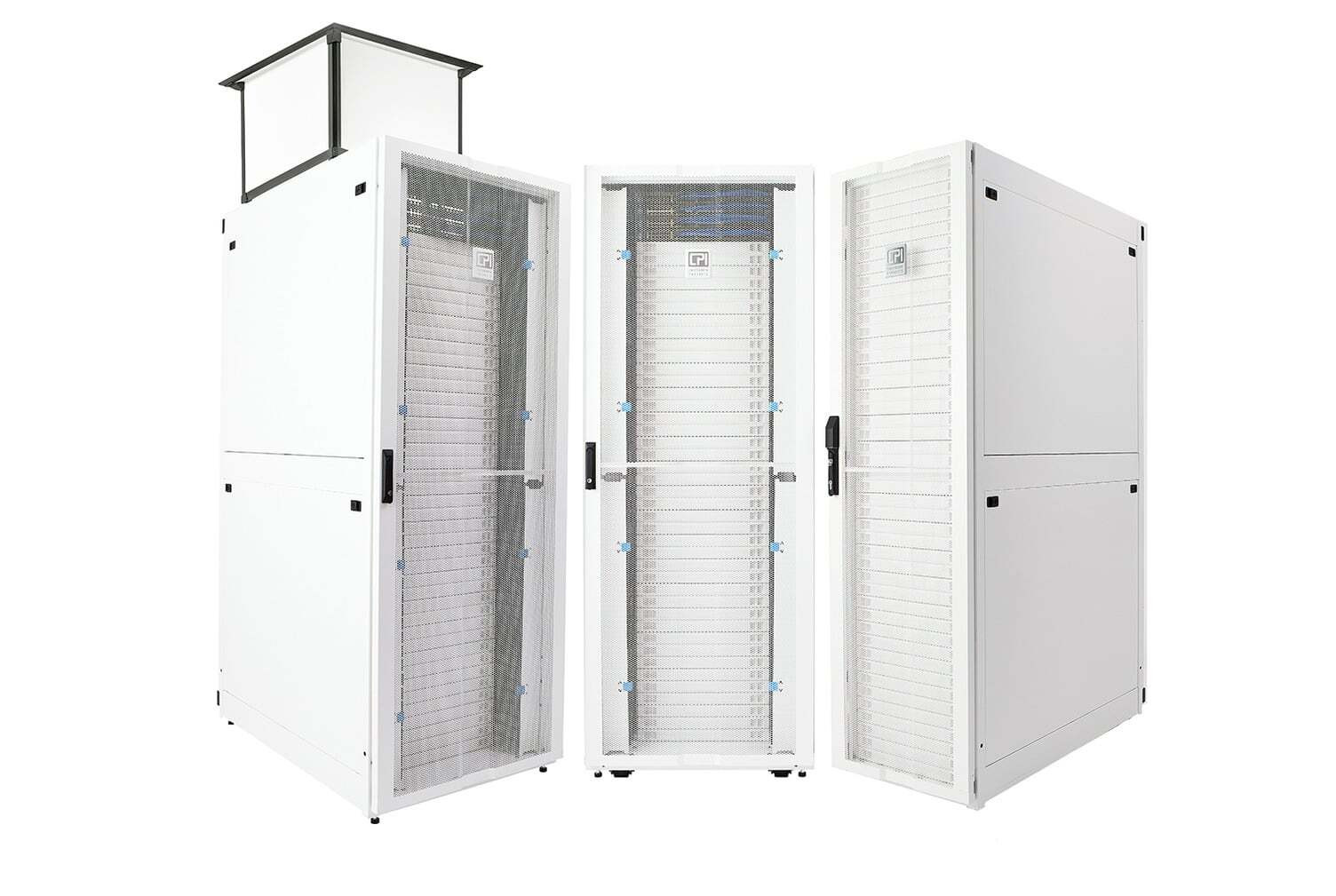

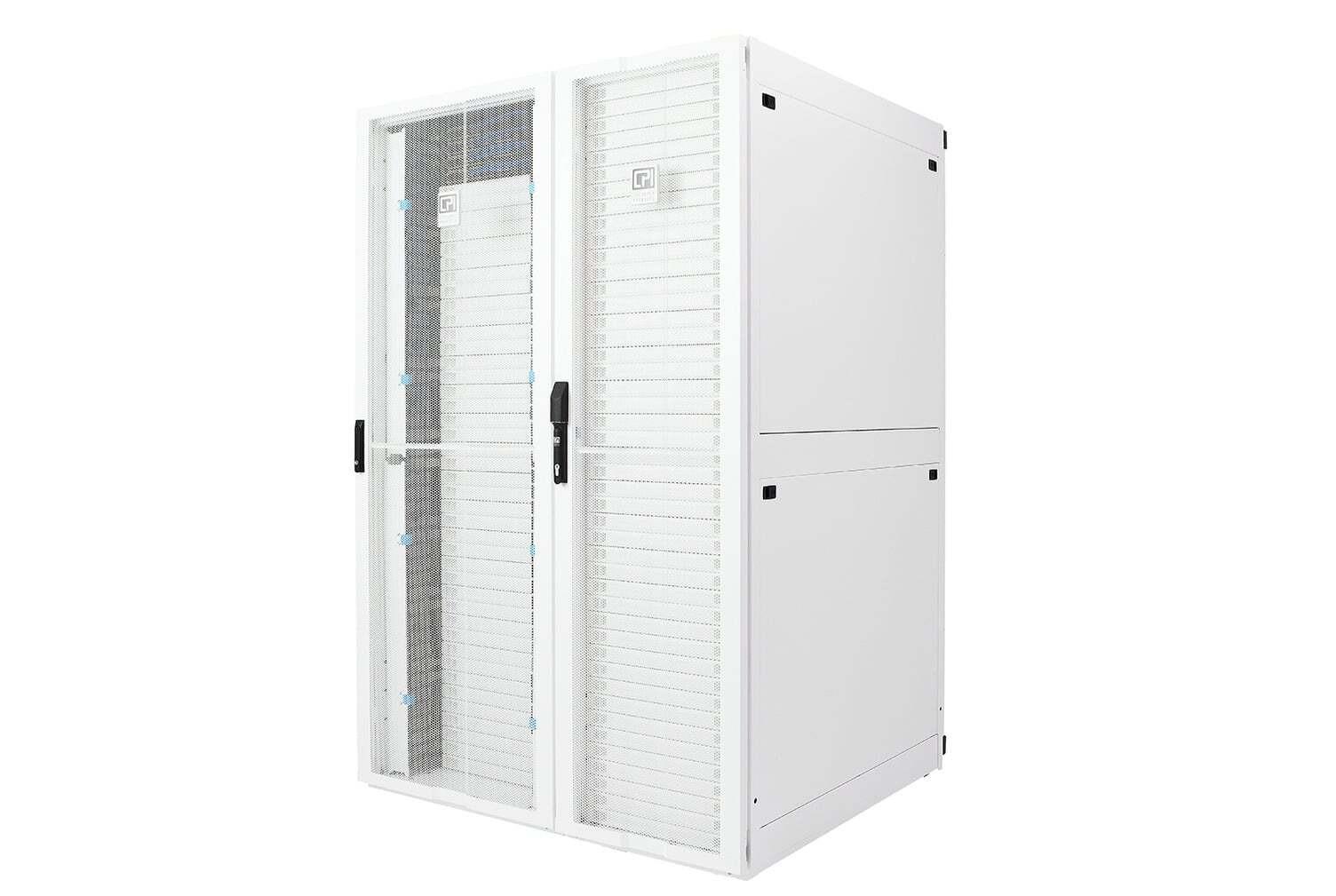

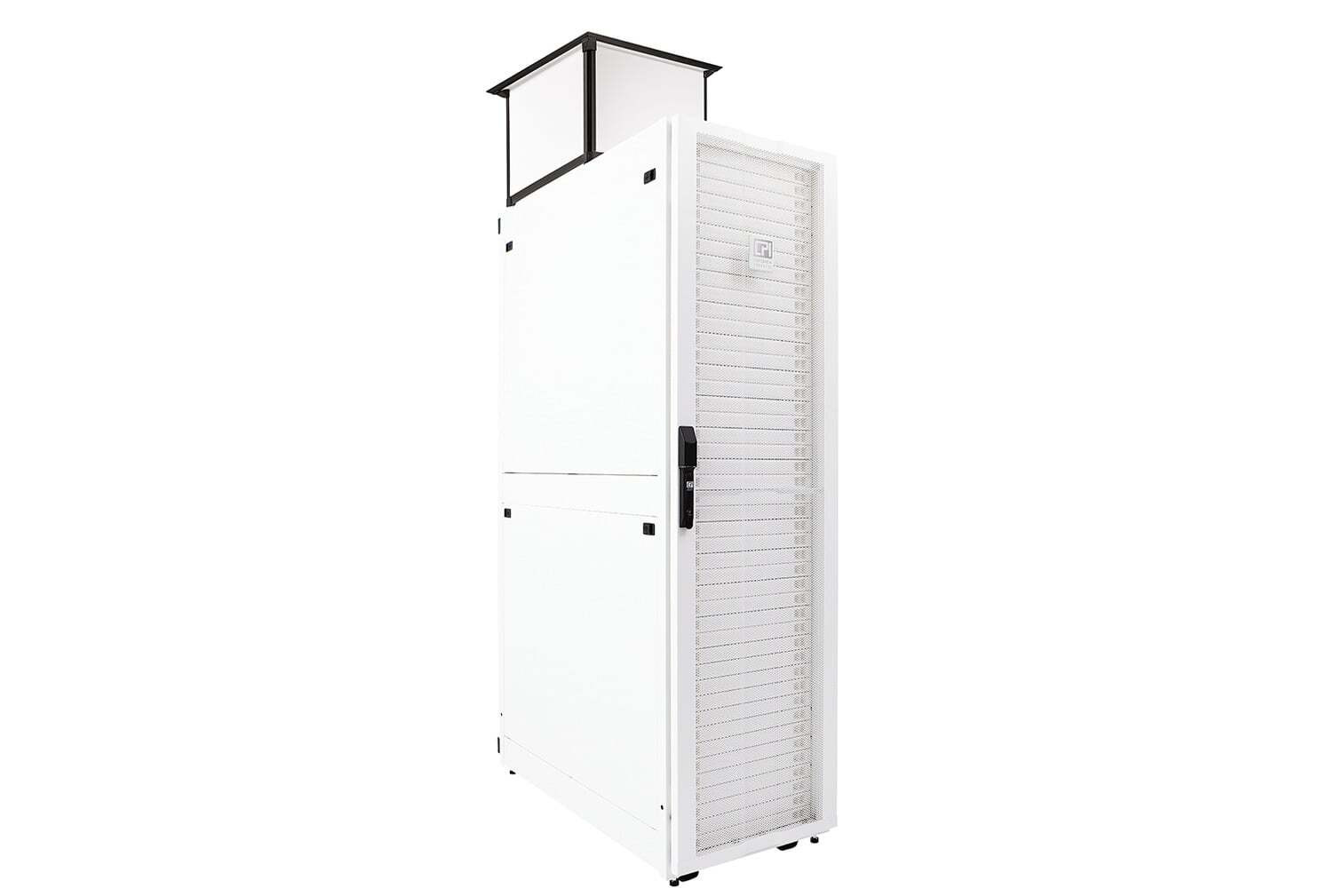

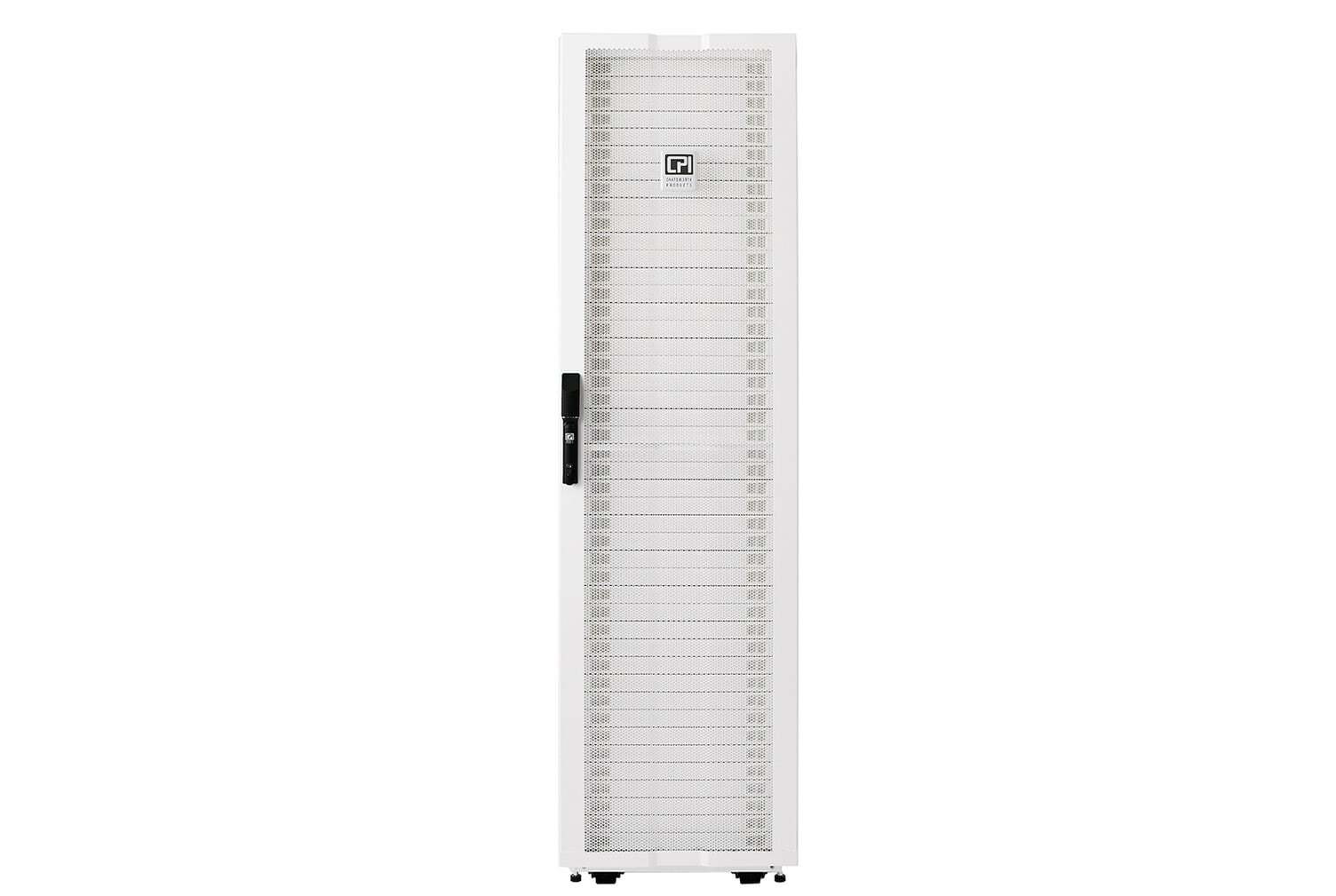

Chatsworth ZB15-A1100-71 ZetaFrame Cabinet 84.6"H x 23.6"W x 47.2"D

Chatsworth ZB15-A1100-71 ZetaFrame Cabinet 84.6"H x 23.6"W x 47.2"D

Chatsworth

Regular Price $2,693.36
Discount Price: $2,235.00
Product Overview:

ZetaFrame Cabinet; 84.6"H x 23.6"W x 47.2"D (2149 mm x 600 mm x 1200 mm); 45U; Perf Front Door; Double Perf Rear Door; Grommet Top Panel; 1 Side Panel; No Bottom Panel

MFG#:
ZB15-A1100-71
Product Category:
Cabinets
Adding to cart… The item has been added

Description

ZetaFrame™ Cabinet System Overview

  Speedy Deployment
  • Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
  • Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
  • Easy attachment and positioning of accessories allow for faster deployment and maintenance
  • Optional shock pallet ensures safe delivery of racked ICT equipment
  Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements.
  Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
  Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components
  Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications


Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling

Height:84.6" (2149 mm) 45U
Width:23.6" (600 mm)
Depth:47.2" (1200 mm)
Doors:Single Perforated Front/ Double Perforated Rear
Top Panel:Grommet-Sealed
Side Panels:1 Side
Bottom Panel:None
Thermal Management:None
Color:Black
Shipping:Standard Pallet
!
