Description

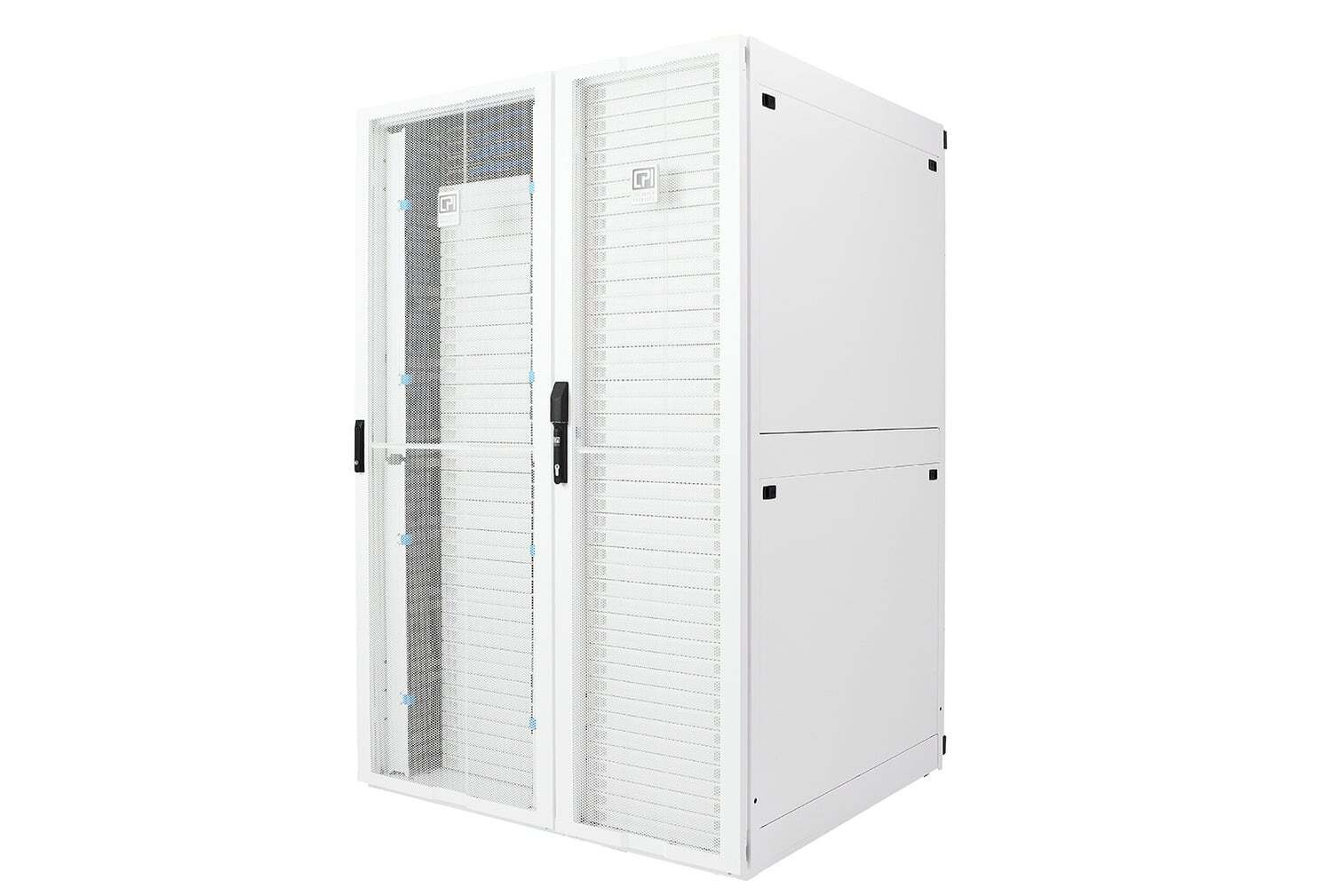

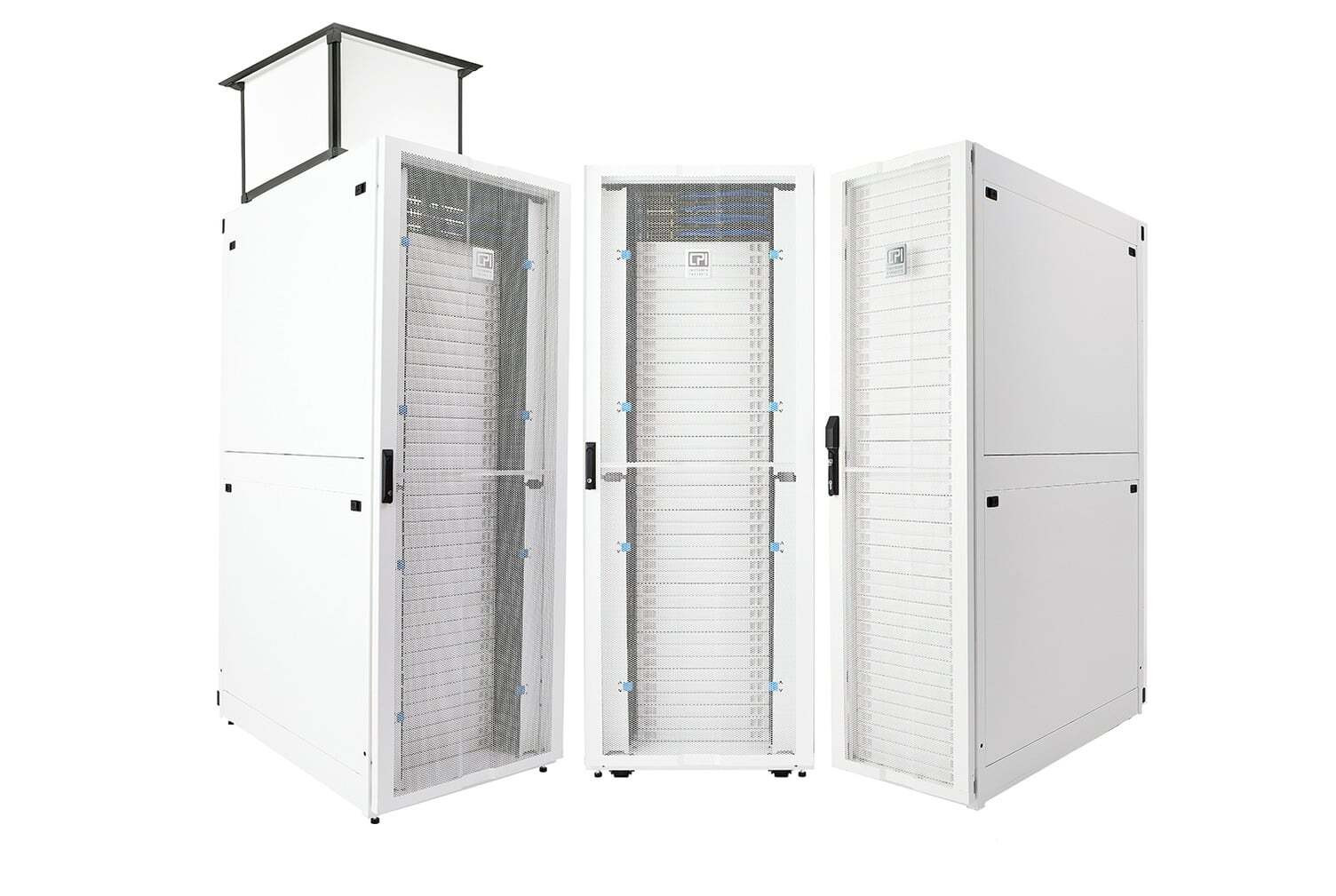

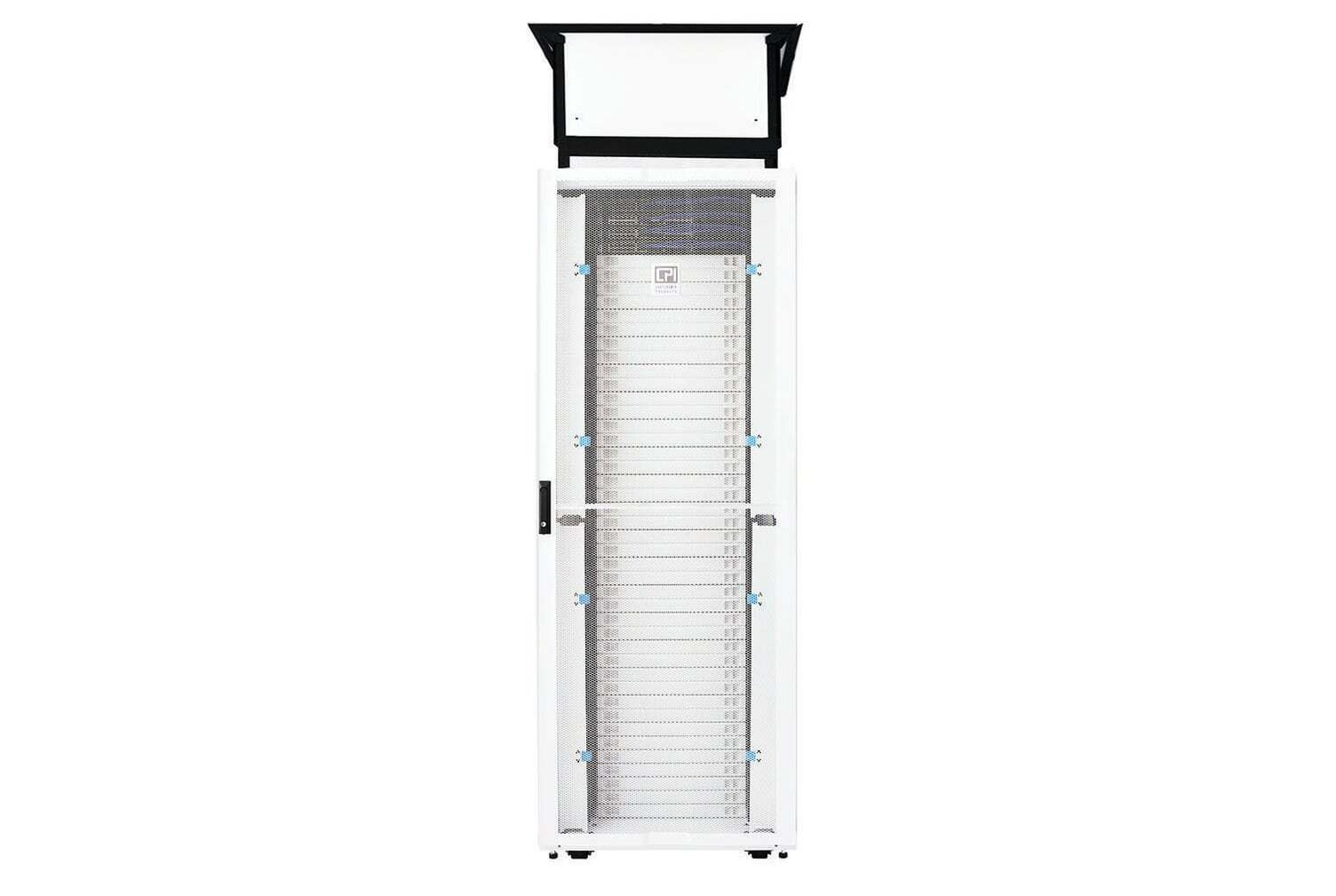

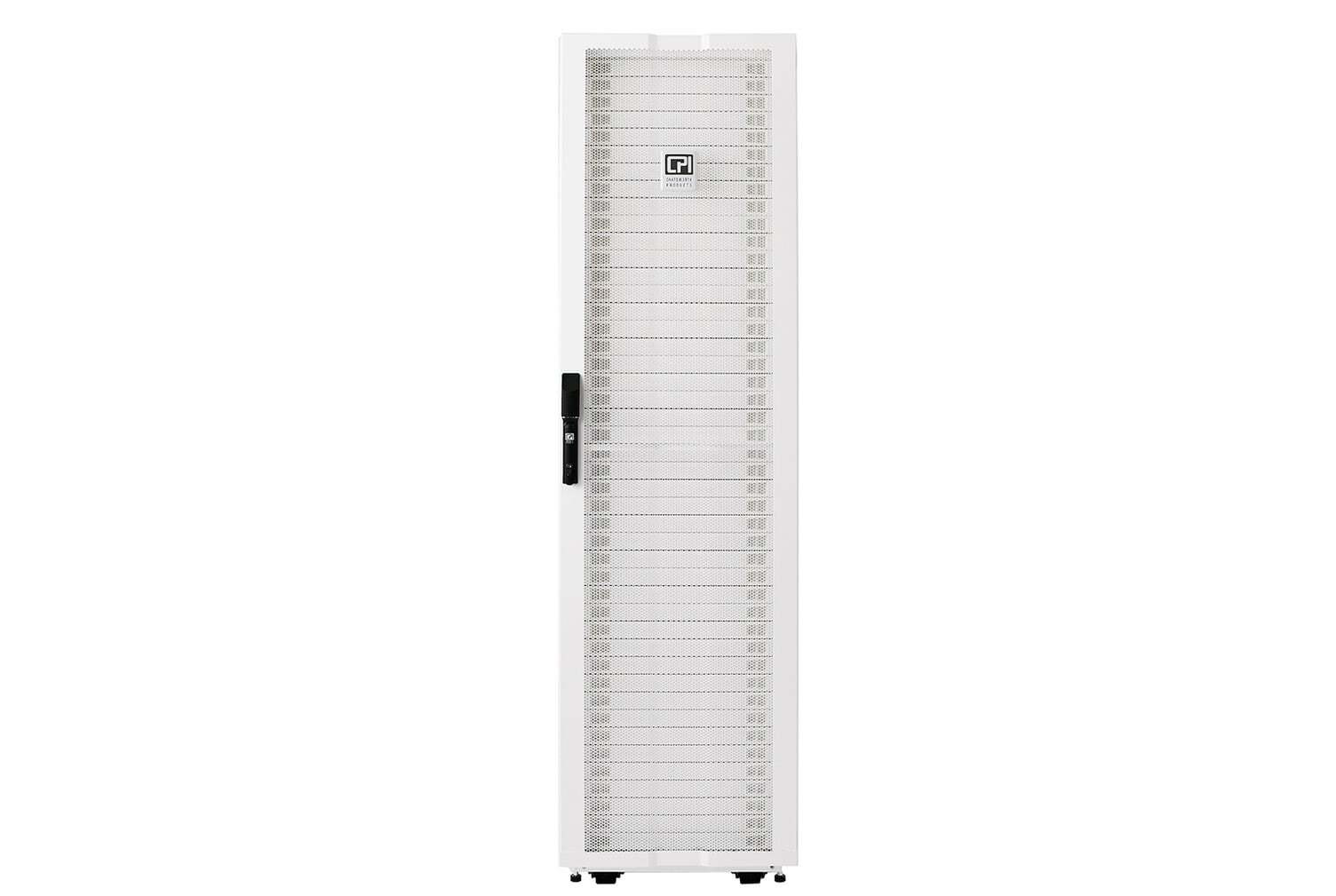

ZetaFrame™ Cabinet System Overview
![]() |
Speedy Deployment
|
![]() |
Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements. Design now |
![]() |
Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads |
![]() |
Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components |
![]() |
Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications |
![]() |
Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling Height:79.4" (2017 mm) 42U
Width:31.5" (800 mm)
Depth:47.2" (1200 mm)
Doors:Single Perforated Front/ Double Perforated Rear
Top Panel:Grommet-Sealed
Side Panels:2 Sides
Bottom Panel:None
Thermal Management:Air Dam
Color:Glacier White
Shipping:Standard Pallet
|
