Description

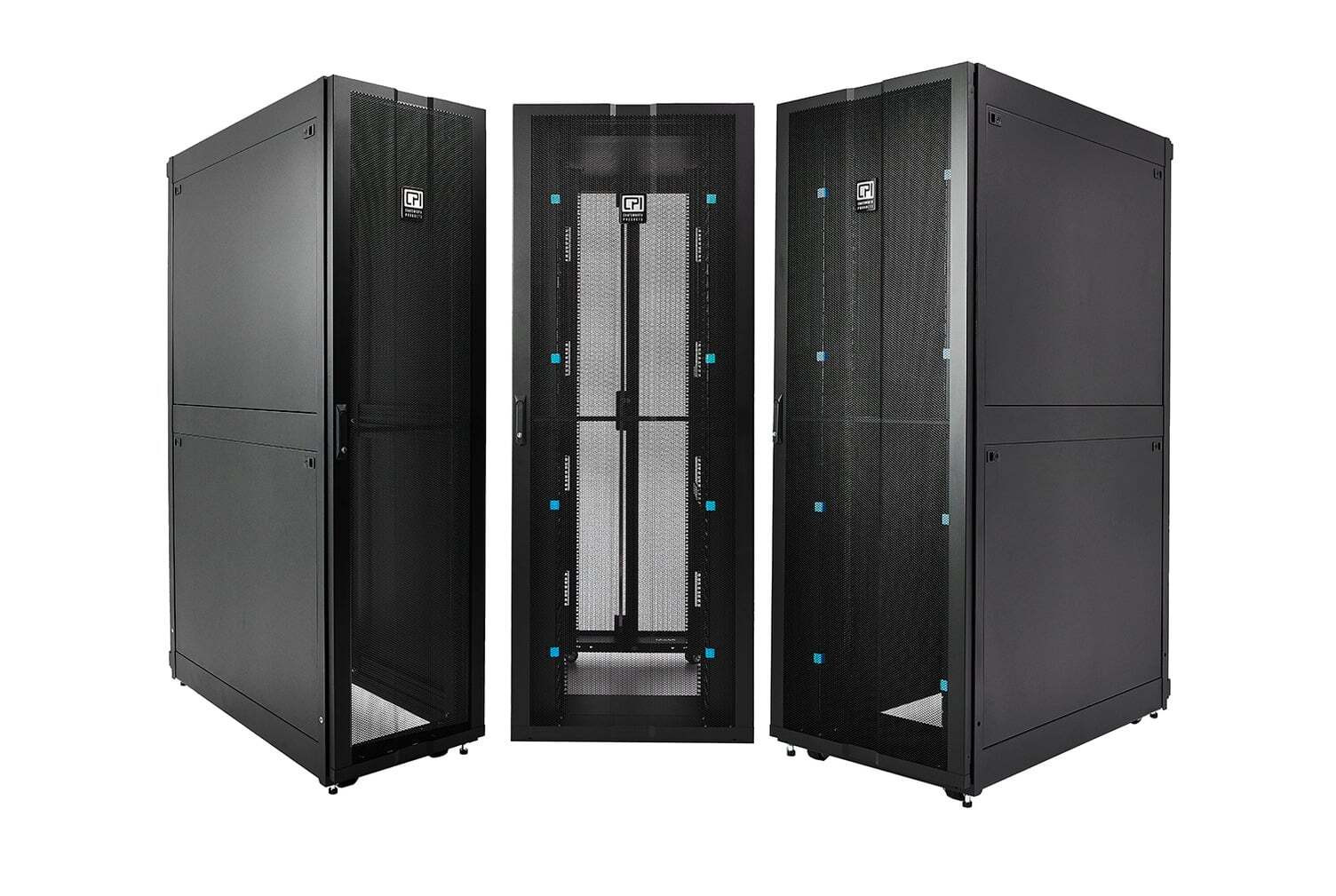

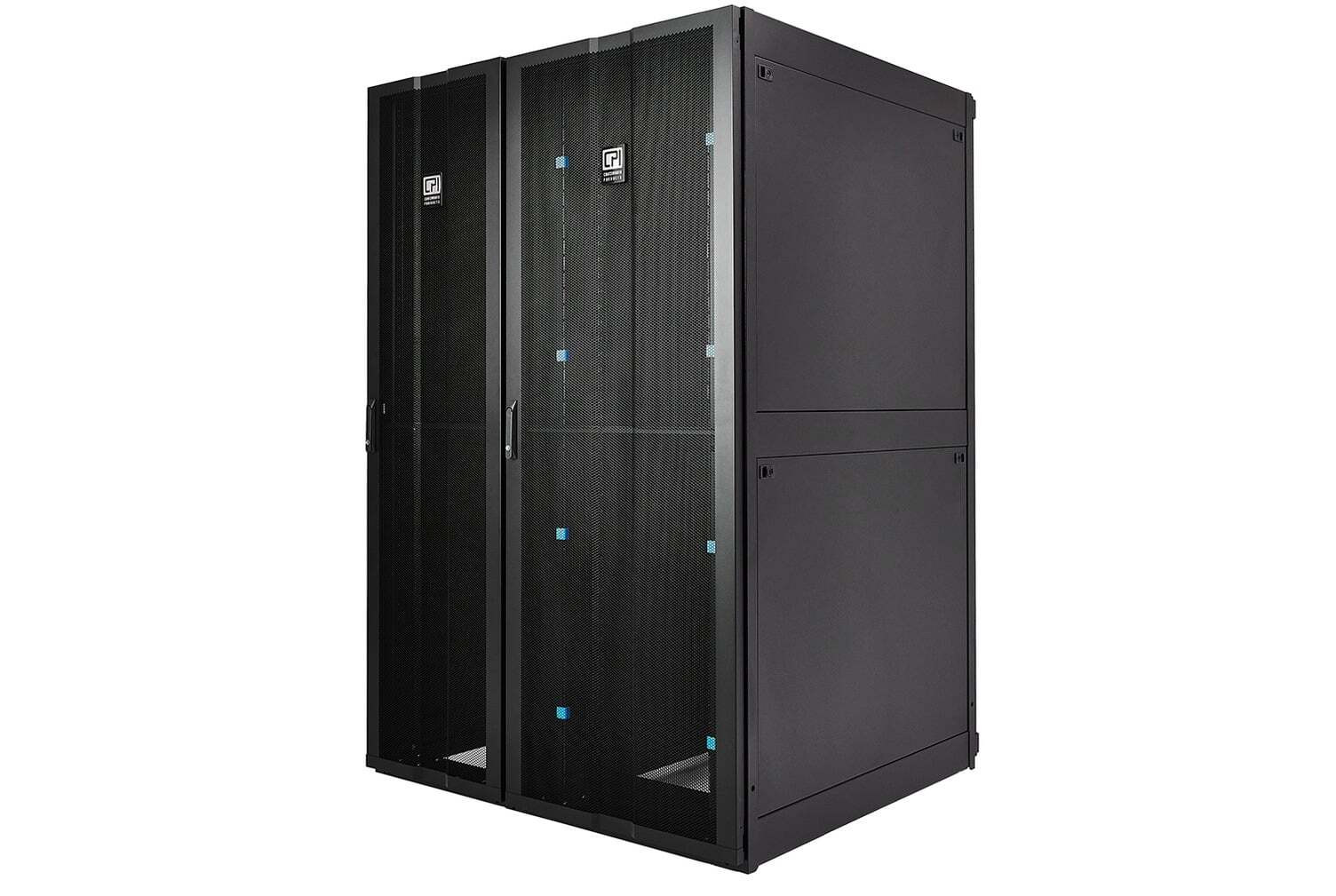

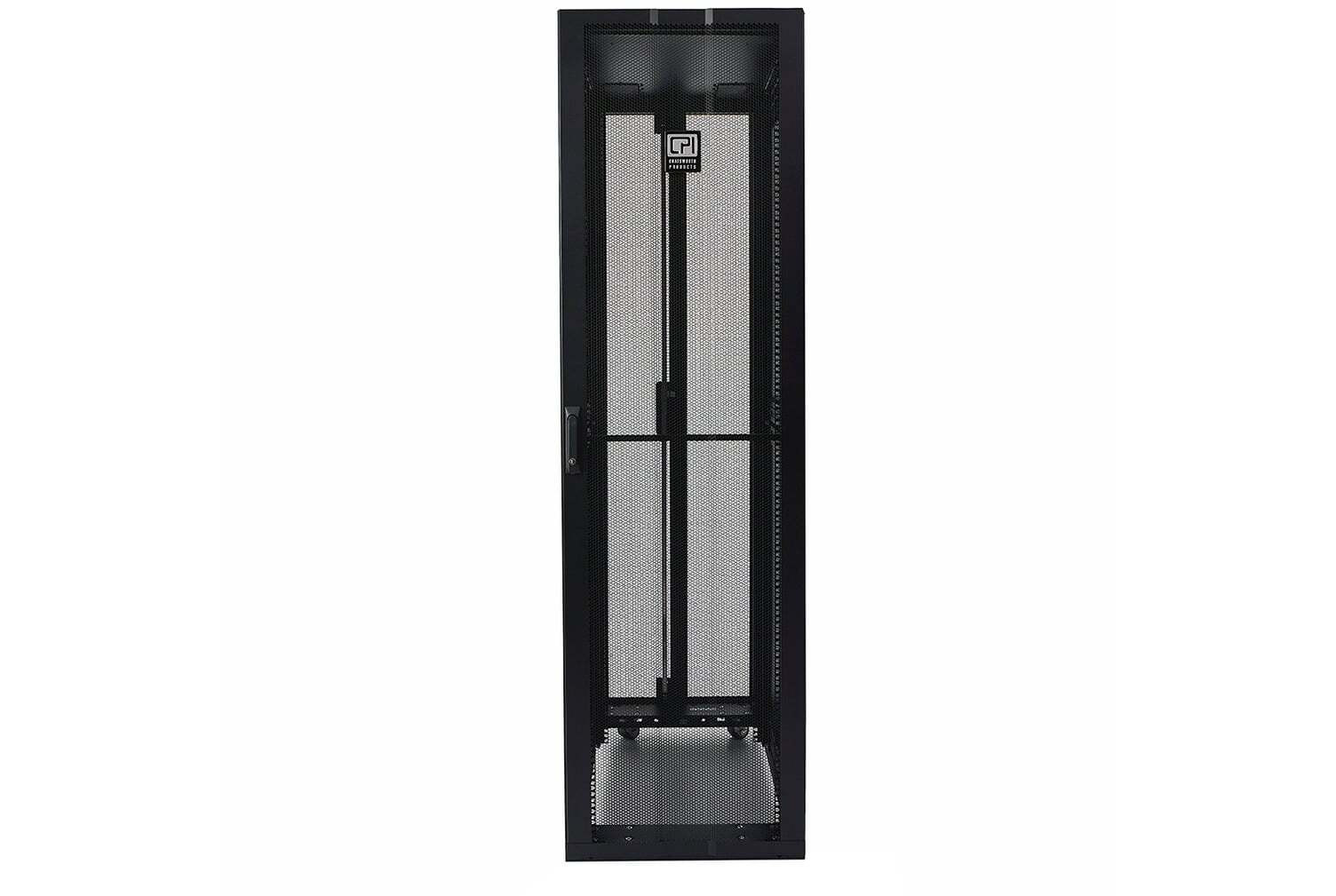

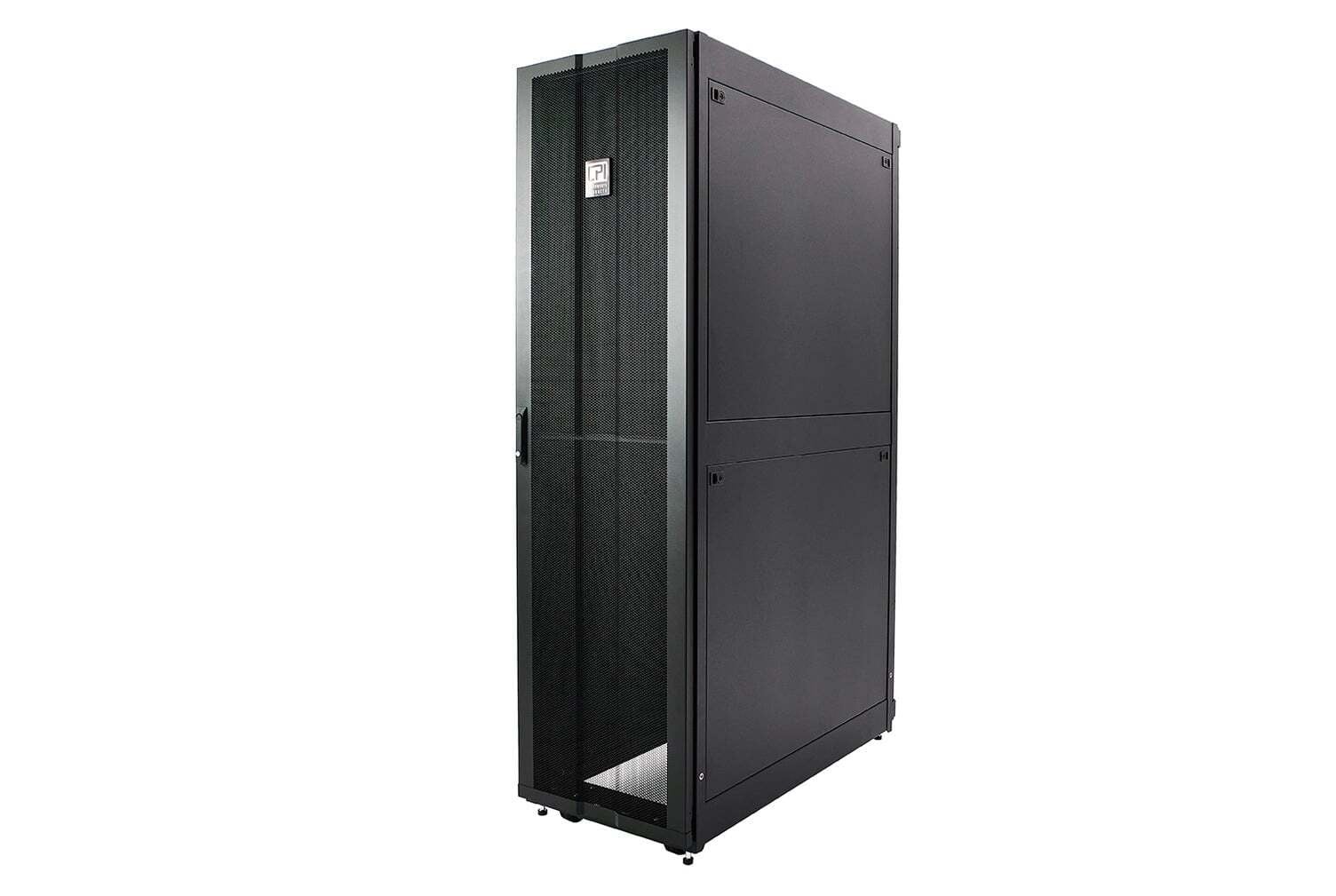

ZetaFrame™ Cabinet System Overview
 |
Speedy Deployment
|
 |
Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements. Design now |
 |
Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads |
 |
Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components |
 |
Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications |
 |
Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling Height:
79.4" (2017 mm) 42U
Width:
29.5" (750 mm)
Depth:
39.4" (1000 mm)
Doors:
Single Perforated Front/ Double Perforated Rear
Top Panel:
Grommet-Sealed
Side Panels:
2 Sides
Bottom Panel:
None
Thermal Management:
None
Color:
Black
Shipping:
Standard Pallet
|
