Description

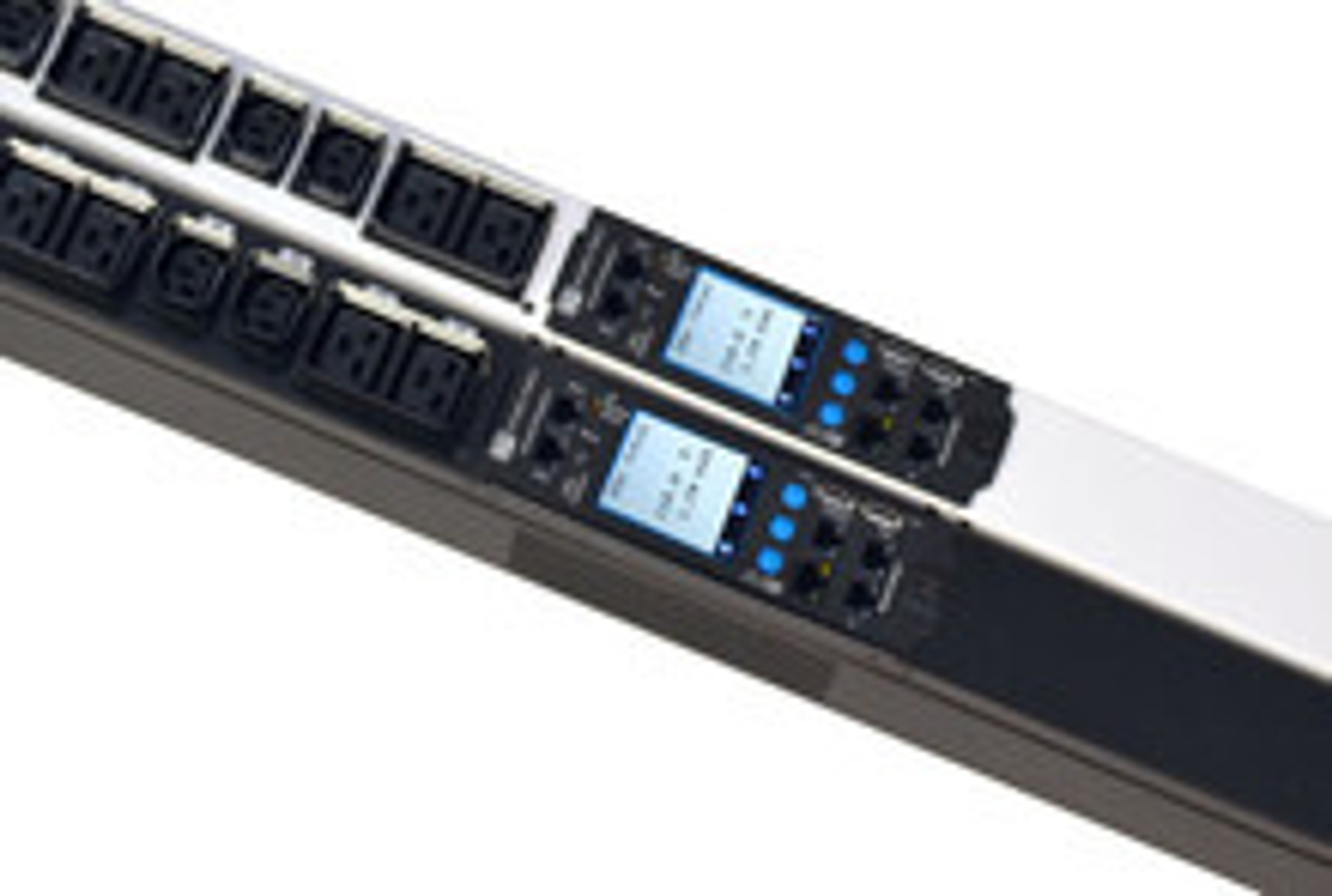

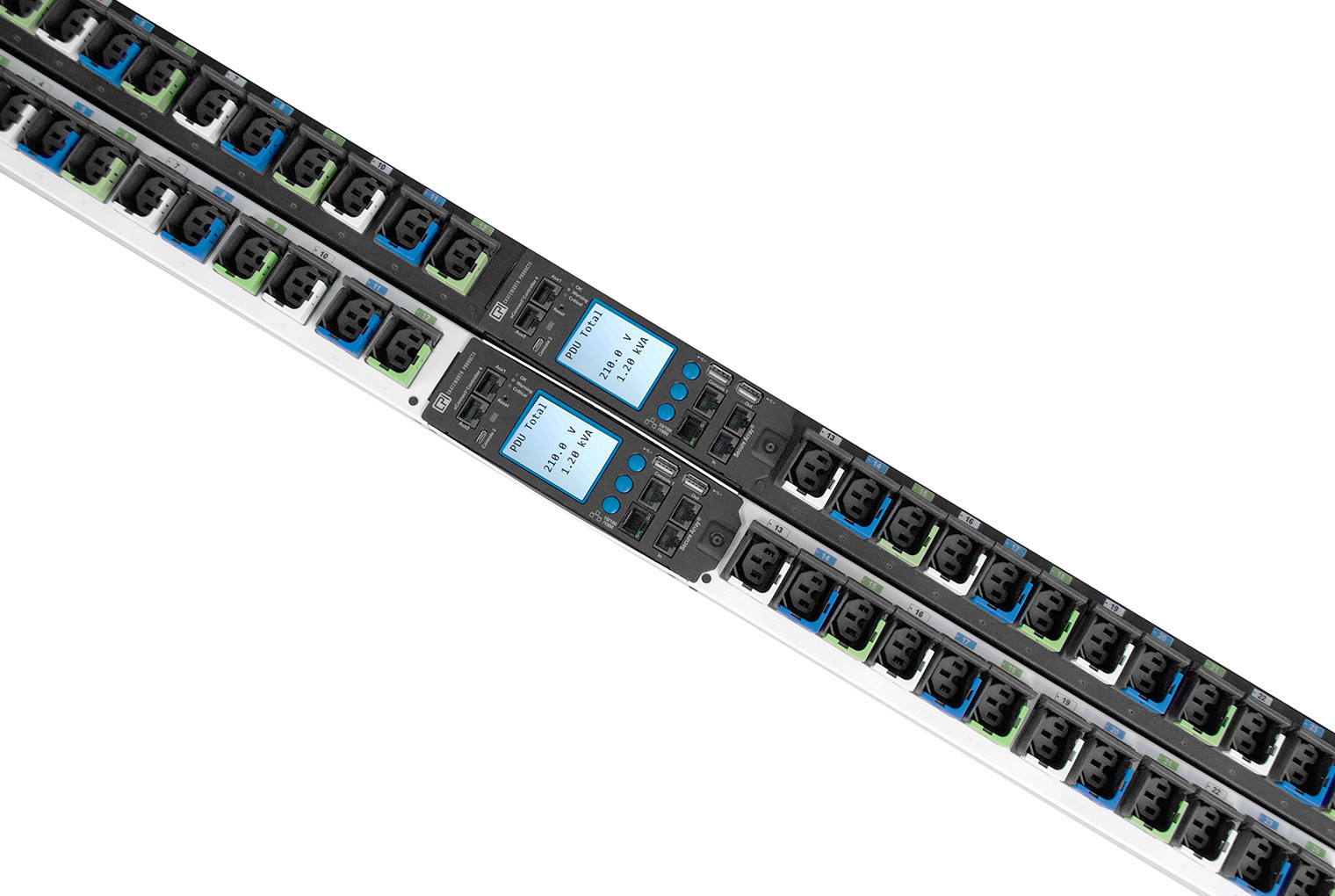

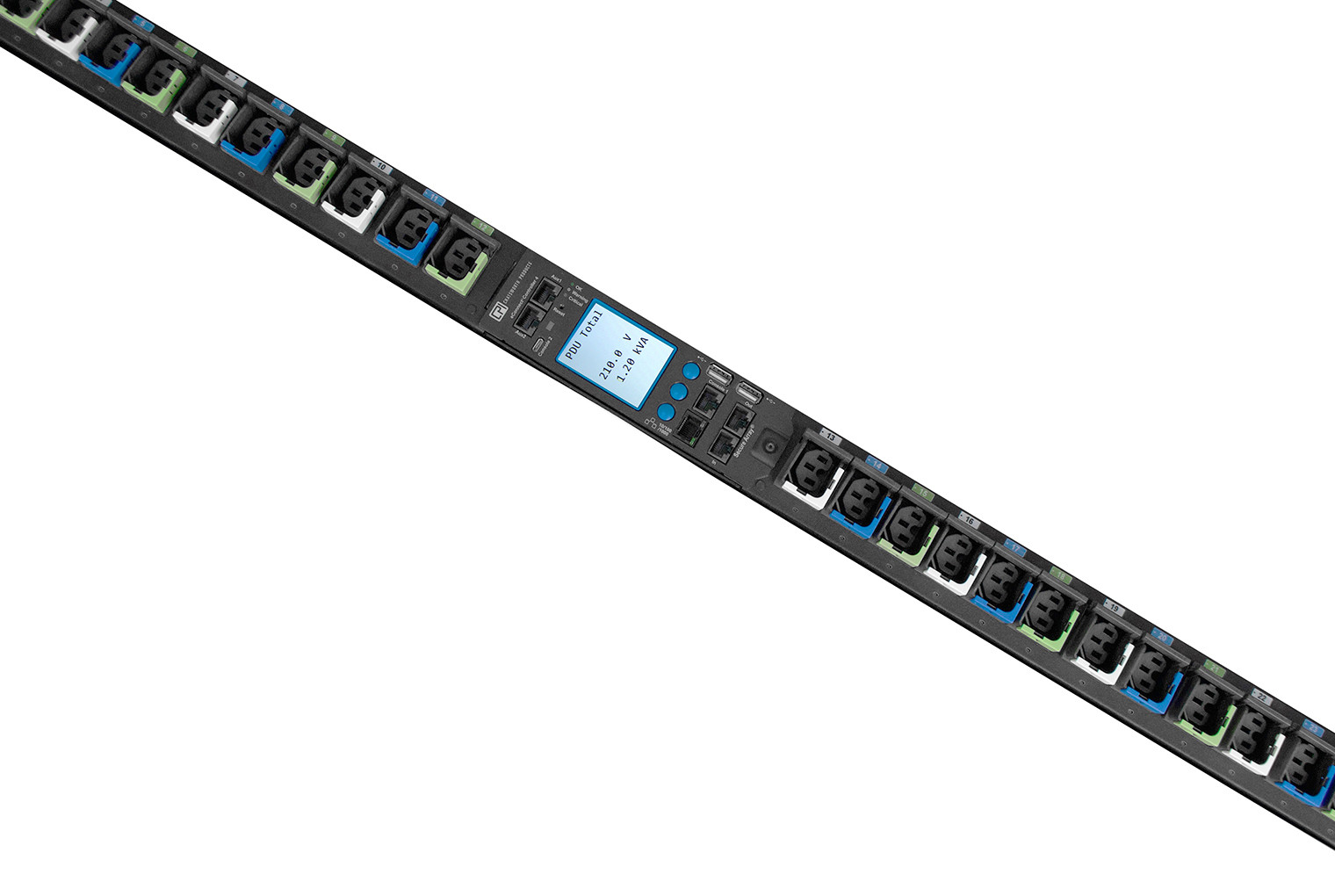

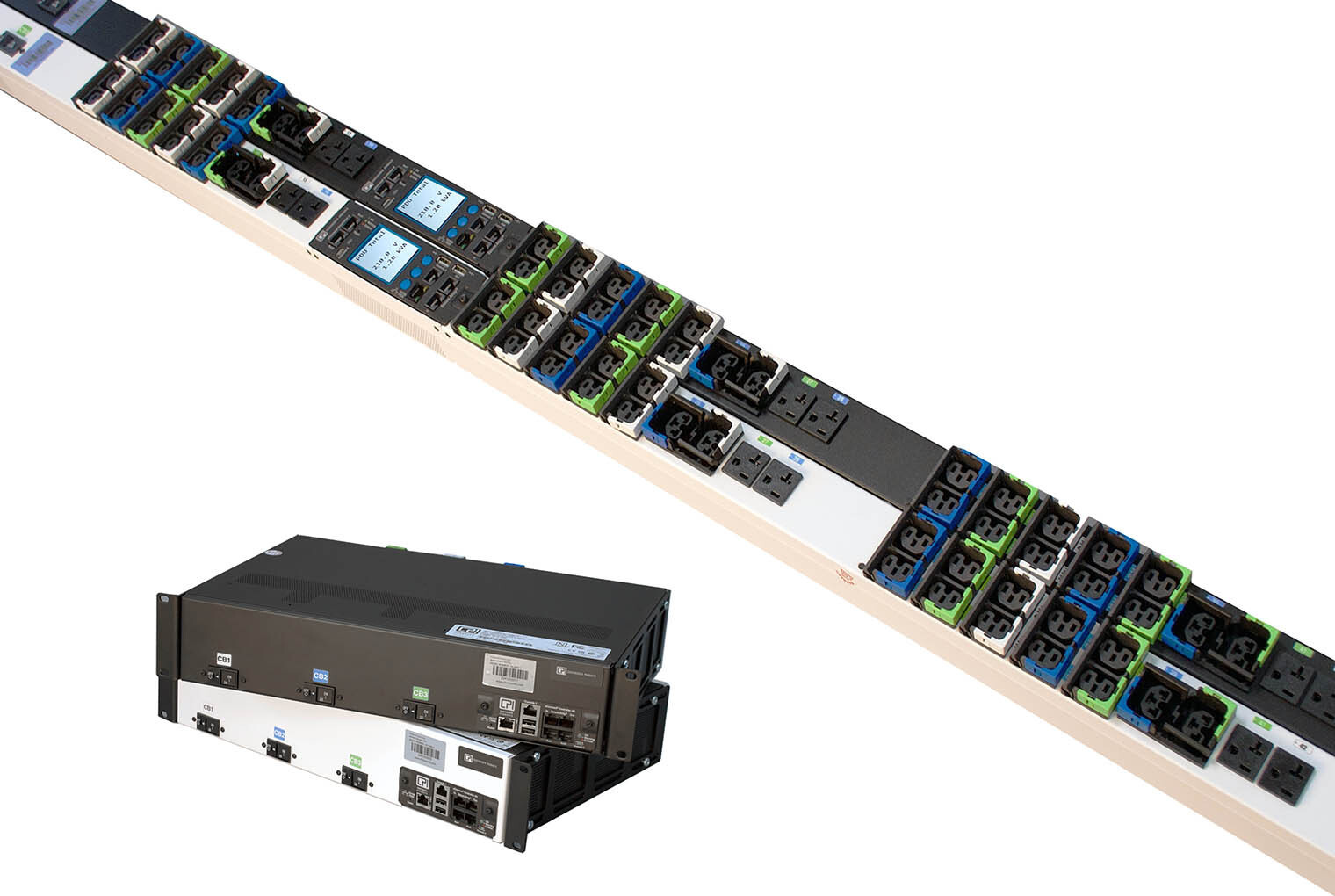

Monitored eConnect® PDU Overview
Monitored eConnect® PDUs provide remote power monitoring to the input and branch circuit level, making it possible to obtain and manage power consumption at the cabinet level.
Product Notice: Please note this product is temporarily being shipped with a minor change.
![]() |
Reduced Networking Costs and Complexity – Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability |
![]() |
Resistance to High Temperature – Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles |
![]() |
Simplified Load Balancing – Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management |
![]() |

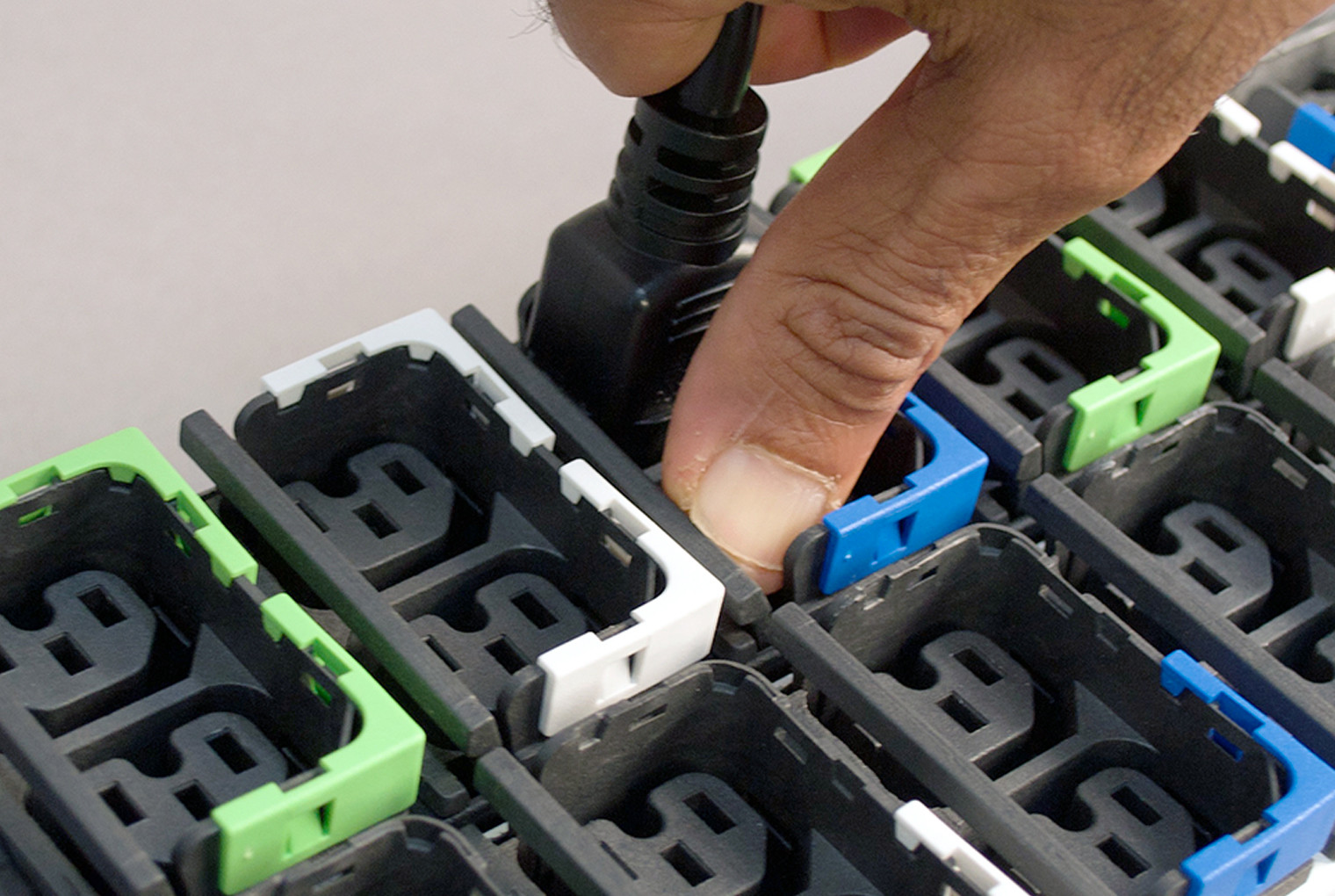

No Accidental Disconnections – Patent-pending, low-profile locking outlets prevent accidental disconnections without requiring special cords |
![]() |

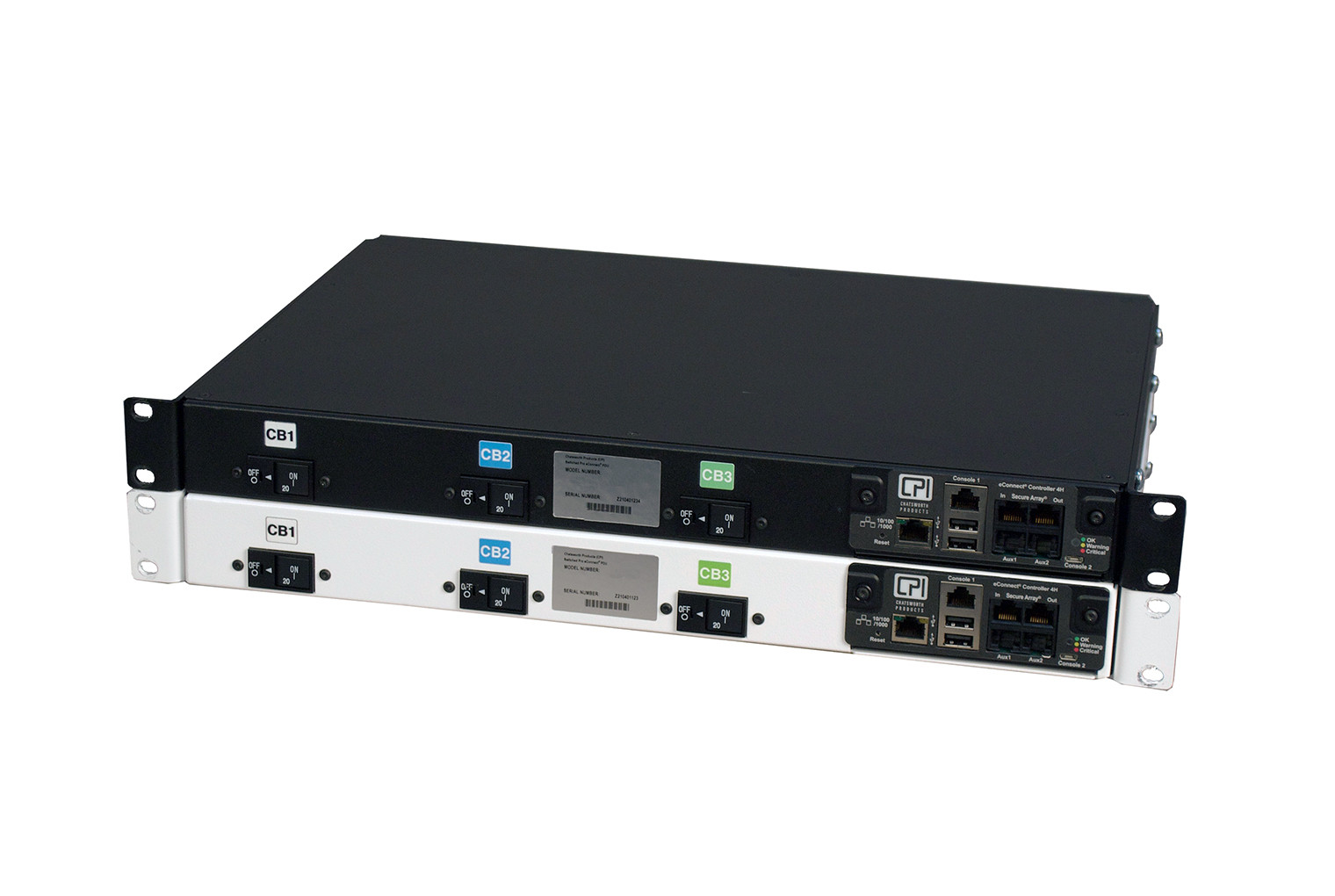

Easy Identification of Failover Unit – Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit |
![]() |
Electronic Lock Integration – Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution |
![]() |
Gigabit Ethernet – Ensures compatibility with enterprise routers and switches |
![]() |
Latest UL Compliance – Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union |
Specifications:
Plug:
NEMA L5-30P
Outlets:
(24) 5-20 Standard Outlets
Volts:
120V
Phase:
Single-Phase
AMP:
30A
kW Capacity:
2.9kW
Cabinet Compatibility:
42U & Higher
Finish/ Color:
1 Black + 1 Glacier White
