Description
Cable Pathway Elevation Kit For ZetaFrame™ Cabinet Overview

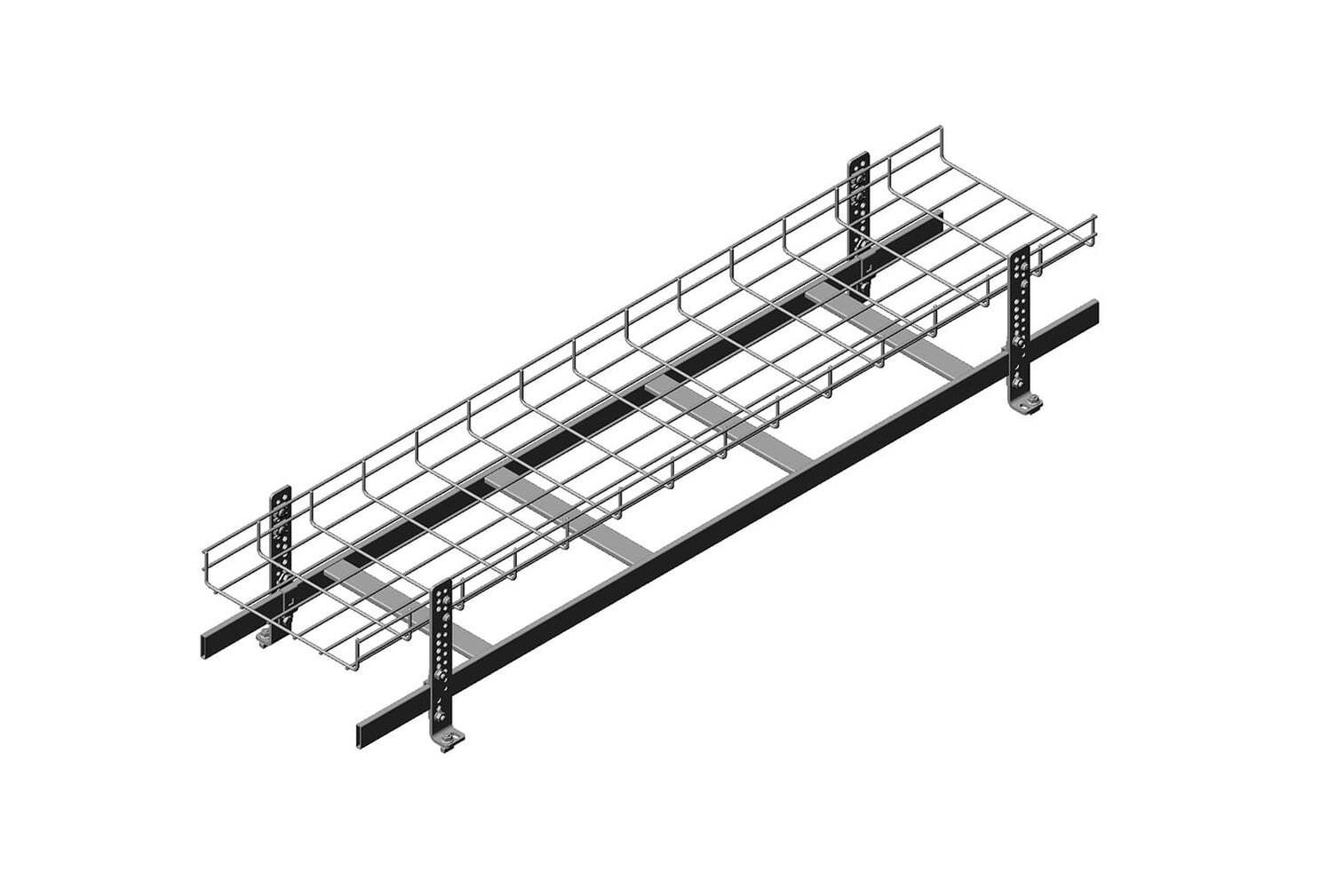

Supports CPI Cable Runway or Pemsa® Rejiband® Wire Mesh Cable Tray above a continuous row of ZetaFrame Cabinet, providing additional space between the tops of the cabinets and the cable runway and trays.- Three ranges of incremental elevation
- Two Tier version supports two levels of cable runway or wire mesh cable tray
- Recommended pathway support span is 5' (1.5 m)
- Attaches to top track of ZetaFrame Cabinet frame. Position pathway front-to-rear on track

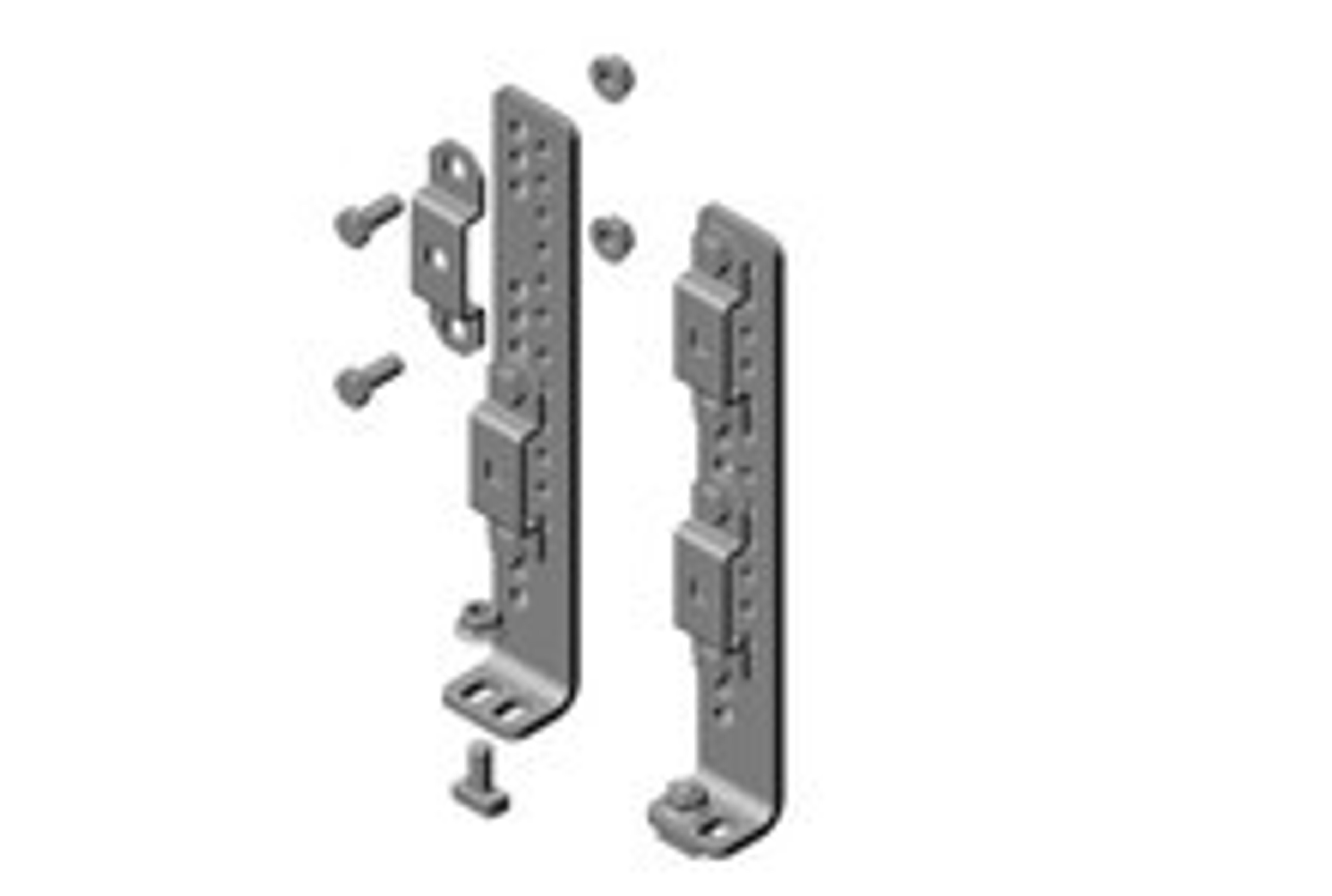

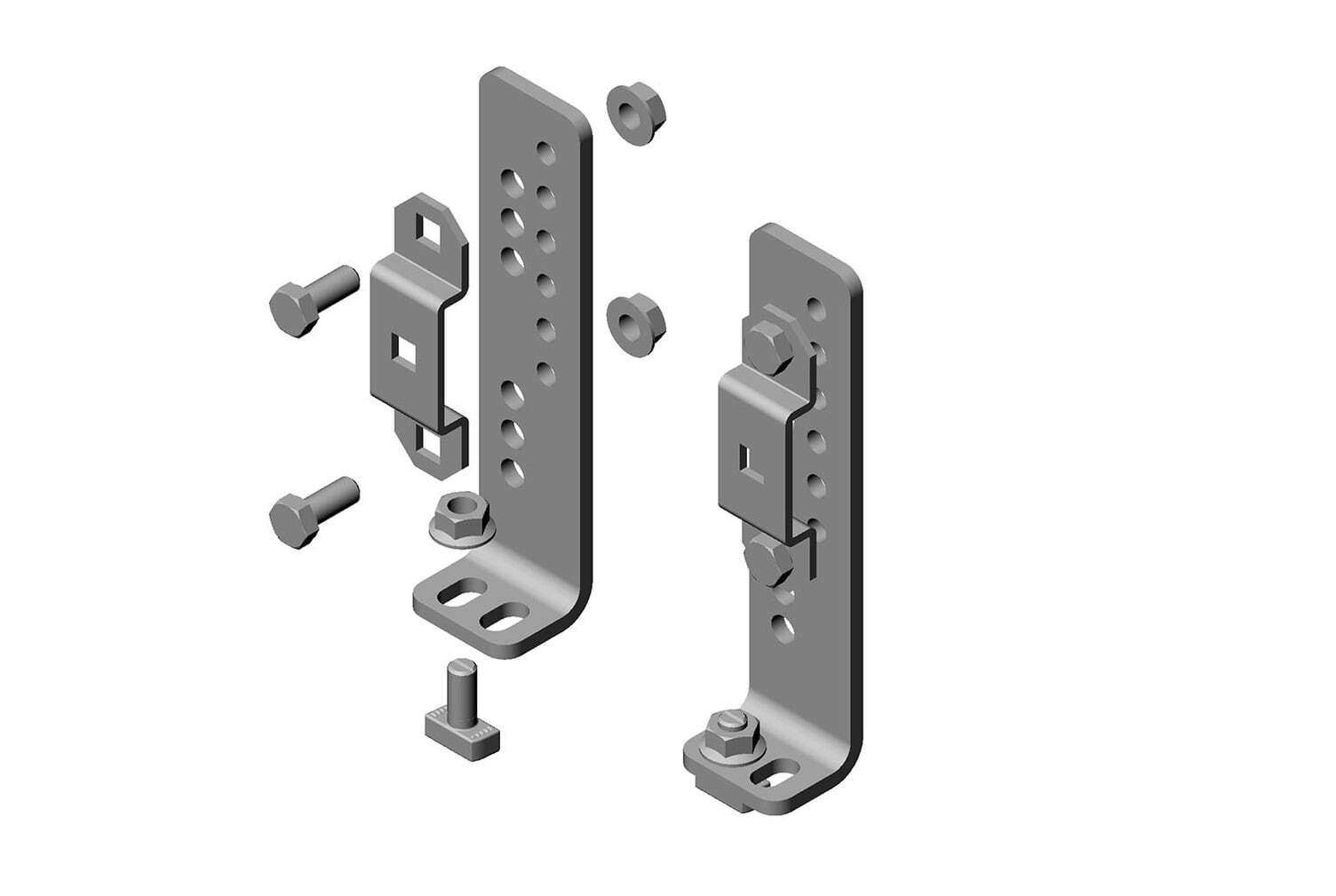

- Kit includes (1) pair of elevation brackets, all hardware to attach the brackets to the cabinet, and all required hardware to attach Cable Runway to elevation brackets
- Use Part Clamp (P/N 64010060-050; ordered separately) to attach Pemsa Rejiband Wire Mesh Cable Tray
Specifications:
Type:
2 Tier; 2"-3"H (50 mm-75 mm)
Color:
Glacier White
