Description

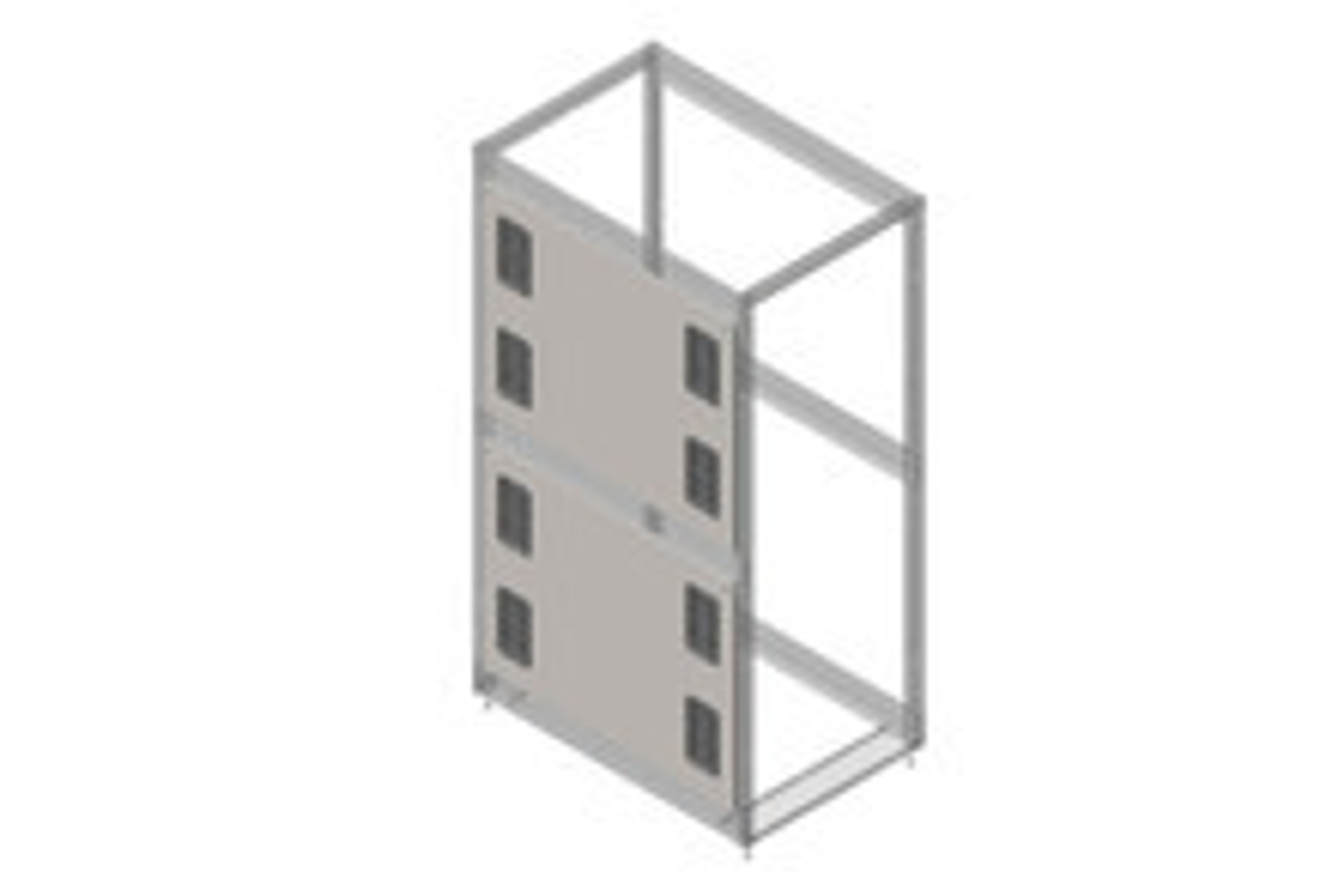

Side Panel with Grommets for ZetaFrame™ Cabinet Overview
Key Features and Benefits:- Includes: Side panel (two halves, solid or with grommets), set of keys

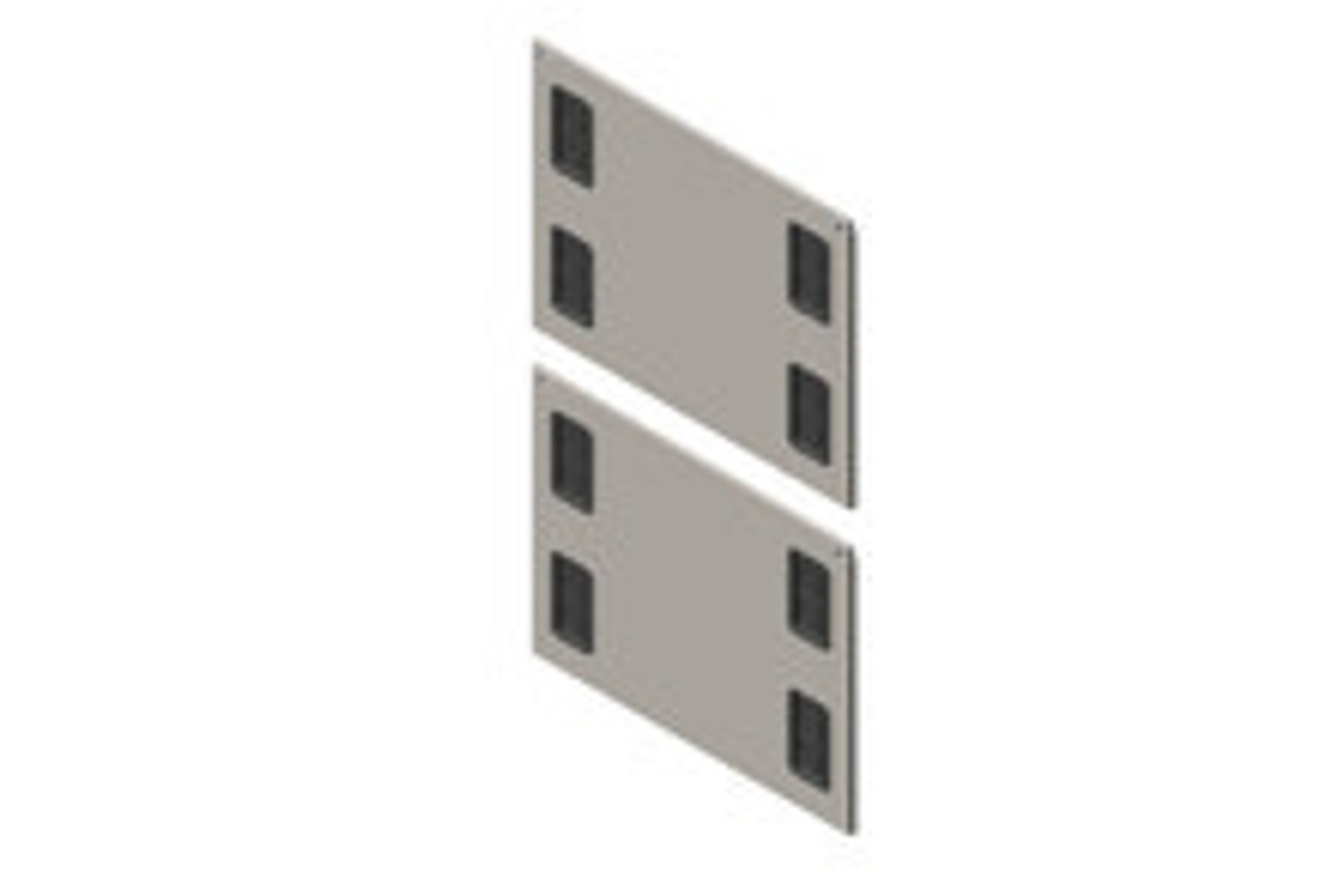

- Two-piece design with top and bottom halves for easier handling
- Tool-less removal, drop-in design with integrated locking spring latch secures the side panel to the cabinet frame
- Features integral bonding, no bonding strap required
- Side Panel with Grommets feature multiple grommet-sealed cable openings, allowing cables to enter the side of the cabinet while containing exhaust air within each cabinet

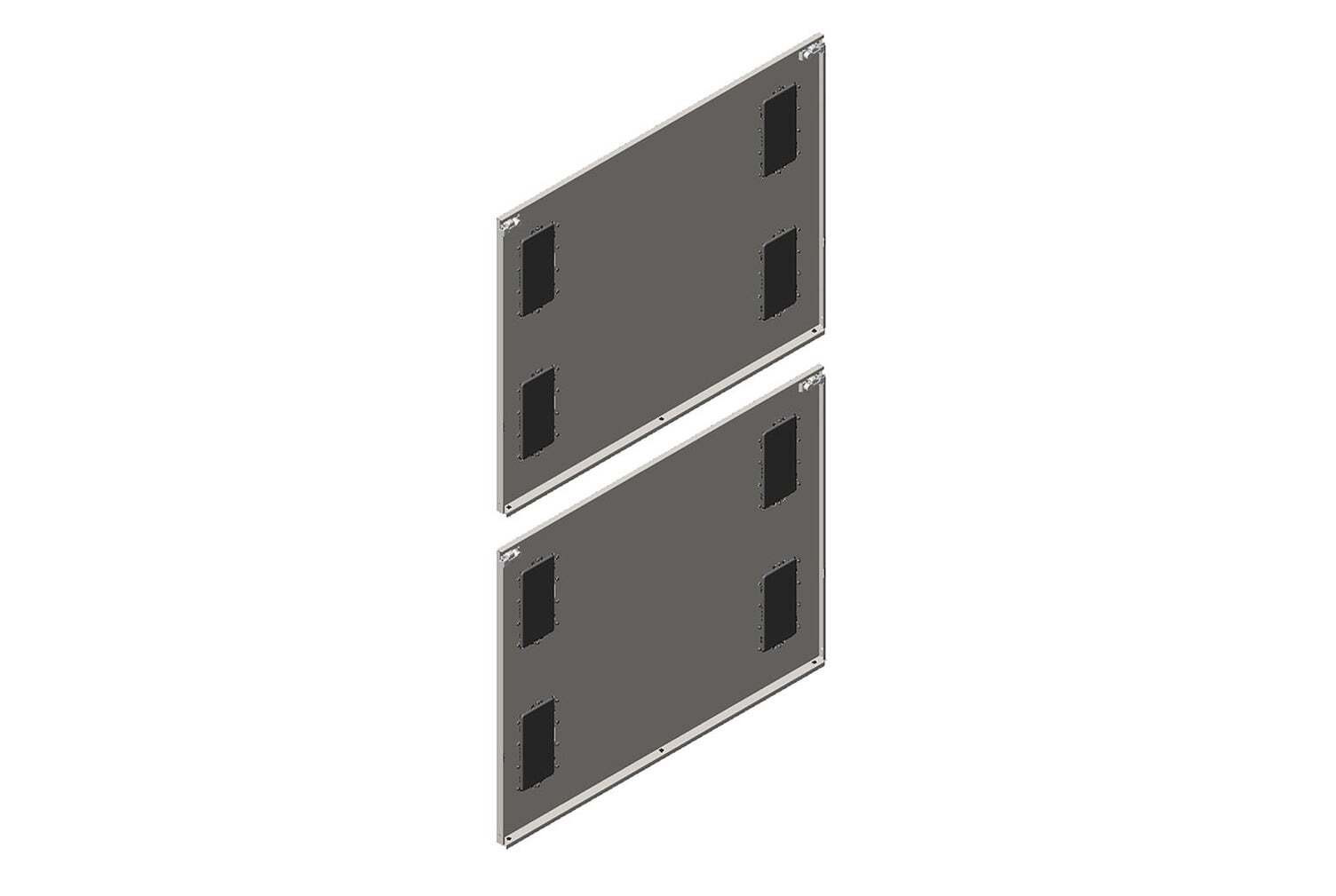

- Side Panel with Grommets feature (8) cable openings per side, (4) per half-height panel, (1) per corner; Cable opening size without grommet is 4.5”W x 9”D (114 mm x 228 mm), sized for large power plugs
- Grommets are plastic, snap-on and can be cut to pass cables
Specifications:
Cabinet Frame Depth:
47.2" (1200 mm)
Color:
Glacier White
Height (U):
45U
