Description:

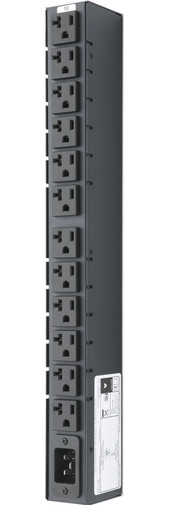

Basic PDU, 12 NEMA 5-20R outlets, 120V w/ C20 Inlet (Input power cord ordered separately)
Specifications:
- Branch Monitoring:None
- Branch Overcurrent Protection:
- Branch Overcurrent Protection Type:None
- Dual Input:No
- High Retention Outlets:No
- Input Current Display:None
- Input Monitoring:None
- Locking Outlets:No
- Max Operating Temperature:40 °C
- Fast Movers:No
- Mounting:1U Horizontal
- Outlet Monitoring:None
- PDU Platform:CDU1
- Power Pivot Input:No
- Product Height (inch):1.75
- Product Height (mm):45
- Product Max Depth (inch):2.25
- Product Max Depth (mm):58
- Product Nominal Depth (inch):2.25
- Product Nominal Depth (mm):58
- Product Width (inch):17.0
- Product Width (mm):432
| input Power Capacity (kW): | 1.9 |
| Input Plug Type: | IEC C20 100-120V Inlet |
| Input Current (A): | 20 |
| Input Current Rated (A): | 16 |
| Input Nominal Voltage (V): | 120 |
| Input Phase: | 1-Phase (L-N) |
| Input Cord Location: | Horizontal |
| Outlet Form Factor: | Conventional |
| Total Outlets: | 12 |
| NEMA 5-20R Count: | 12 |
| Utility Outlet: | 0 |
