Description:

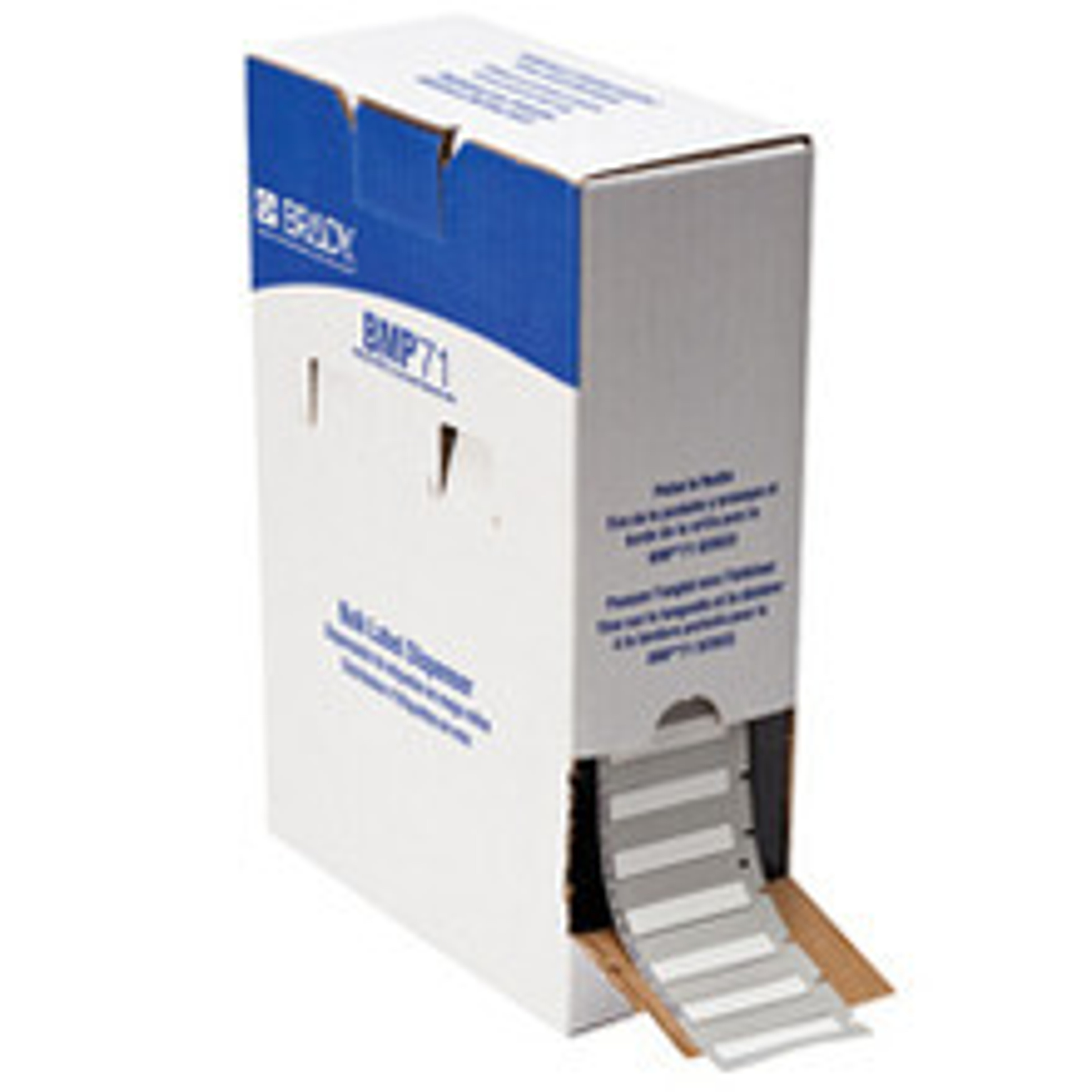

Bulk roll of PermaSleeve® Heat Shrinkable Wire Marker Sleeves for the BMP71 Label Printer.
Specifications:
| Application(s): | Panel Identification, Wire & Cable Marking |
| Agency Approval(s)/Compliance: | MIL-STD-202, SAE-AS-81531, SAE-DTL-23053/5 Class 1, UL Recognized |
| Size: | 1.765" W x 0.335" H (44.830 mm W x 8.510 mm H) |
| Range of Wire Diameter: | 0.062" - 0.150" (1.57 mm - 3.81 mm) |
| Max Characters Per Line For Font #2: | 41 |
| Max Lines of Text For Font #2: | 3 |
| Label Type/Style: | Sleeve |
| Color: | White |
| Wire Gauge: | 20 to 10 |
| Finish: | Matte |
| Qty Per Row: | 1 |
| Material Type: | Polyolefin |
| Material Description: | PermaSleeve® Heat-Shrink Polyolefin |
| Brady Material #: | B-342 |
| Safety Catalog: | pg. 253 |
| General ID Catalog: | pg. 59 |
| Recommended Ribbon Series: | M71-R4300 BK |
| Printer Compatibility: | BMP71 |
| Special Properties: | Heat-shrinkable, Self-Extinguishing |
| RoHS Compatibility: | ???weeeRoHSDetail.pass_2002/95/ec_RoHSCompliance.msg??? |
| QTY/UOM: | 1,000/Roll |
