Description:

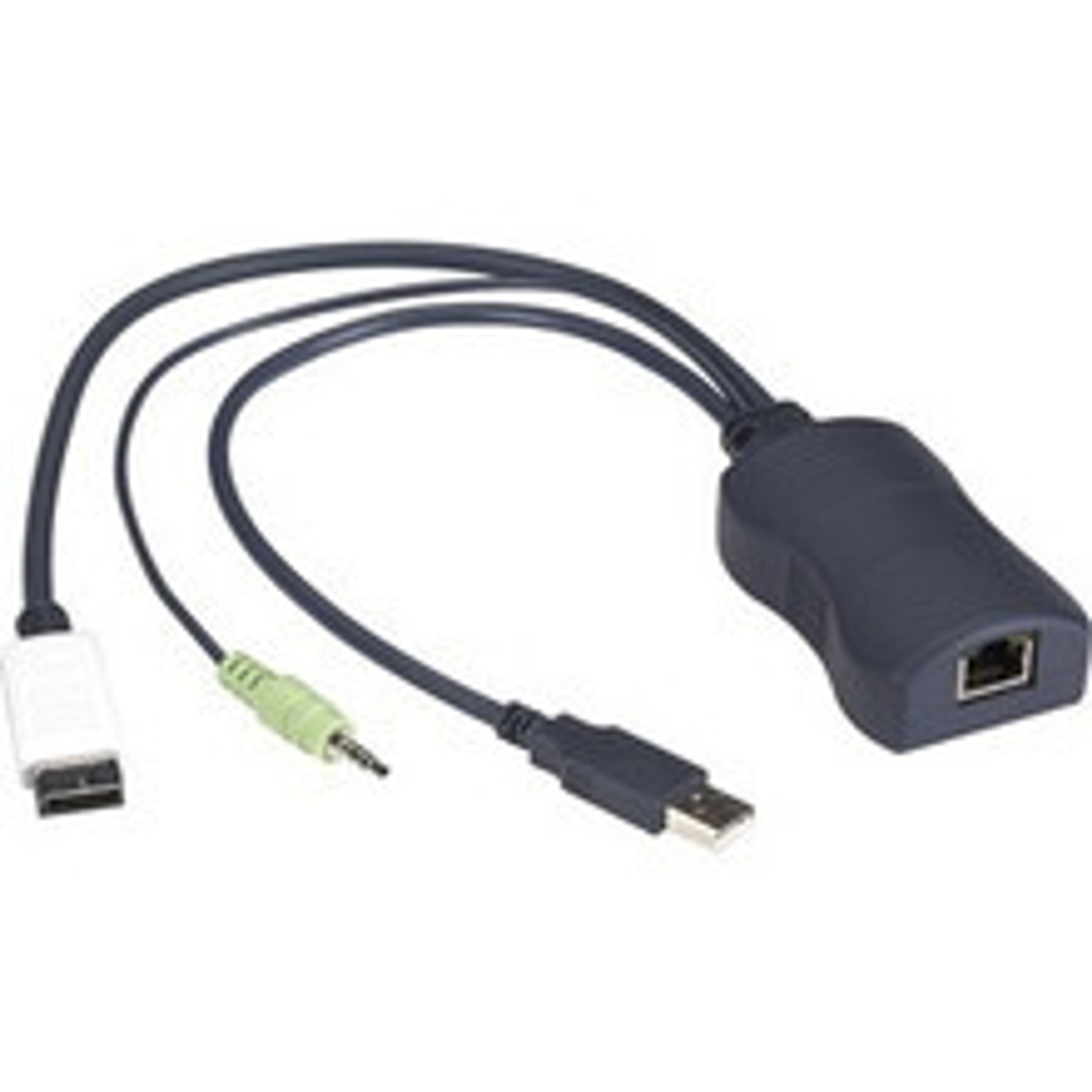

Black Box Series Server Access Module - DisplayPort, USB, and Audio, CATx - KVM Cable for Server, Computer, KVM Switch, Audio/Video Device - First End: 1 x DisplayPort Digital Audio/Video - Male, 1 x USB Type A - Male, 1 x Mini-phone Audio - Male - Second End: 1 x RJ-45 Network - Female - Supports up to 1900 x 1200
- Powered from the computer interface.
- Order one SAM for each server-to-switch connection.
- SAMs also available for USB, PS/2, and Sun® servers, with or without serial and audio.
Features
- Connects a computer or server to a CX Uno (up to 32 feet) ,CX (up to 150 feet), or CX Receiver (up to 980 feet)
- Supports DisplayPort Video up to 1920x1200, and a USB Keyboard and Mouse
Specifications:
| Warranty |
| Limited Warranty |
2 Year |
| Miscellaneous |
| Package Contents |
- 1 x Display Port with Audio and USB Server Access Module
|
| Country of Origin |
China |
| Environmentally Friendly |
Yes |
| General Information |
| Product Type |
KVM Cable |
| Manufacturer Part Number |
KV1408A |
| Manufacturer Website Address |
http://www.blackbox.com |
| Manufacturer |
Black Box Corporation |
| Product Name |
Series Server Access Module - DisplayPort, USB, and Audio, CATx |
| Product Series |
CX |
| Brand Name |
Black Box |
|
| Technical Information |
| Device Supported |
Audio/Video Device |
| |
Server |
| |
KVM Switch |
| |
Computer |
| Connector Type on First End |
USB Type A - Male |
| |
Mini-phone Audio - Male |
| |
DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End |
RJ-45 Network - Female |
| Supported Resolution |
1900 x 1200 |
| Connector on First End Details |
1 x Mini-phone Audio - Male |
| |
1 x DisplayPort Digital Audio/Video - Male |
| |
1 x USB Type A - Male |
| Connector on Second End Details |
1 x RJ-45 Network - Female |
|
