Description:
Premium Performance
Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.
Locking Options Available
These cables allow you to lock down critical network ports when required - without buying new patch cords. Secure your network ports by inserting a locking pin (sold separately) into the built-in locking tab on the patented snagless boot. To unplug the cable, release it with the removal key (sold separately).
Locked: Red Pin Prevent unauthorized access to mission-critical and publicly accessible ports in government offices, lobbies, retail establishments, and more. To lock a port, insert the red locking pin into the patented LockPORT boot on the cable. Unlock the port with the LockPORT Locking Pin Removal Tool.
Secured: Green Pin Prevent accidental disconnects in the office, manufacturing and industrial applications and more. To secure a port, insert the green locking pin into the cable's LockPORT boot. To release the pin, squeeze its butterfly tabs and pull - no removal tool required.
- Two levels of lockability
- Cable tested to 550 MHz, surpassing 250-MHz CAT6 standard
- Cabling ETL verified to ANSI/TIA-568-C2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Superior near-end crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- Ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
Specifications:
| Physical Characteristics | |
| Product Color | White |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | C6PC70-WH-15 |
| Manufacturer Website Address | http://www.blackbox.com |
| Manufacturer | Black Box Corporation |

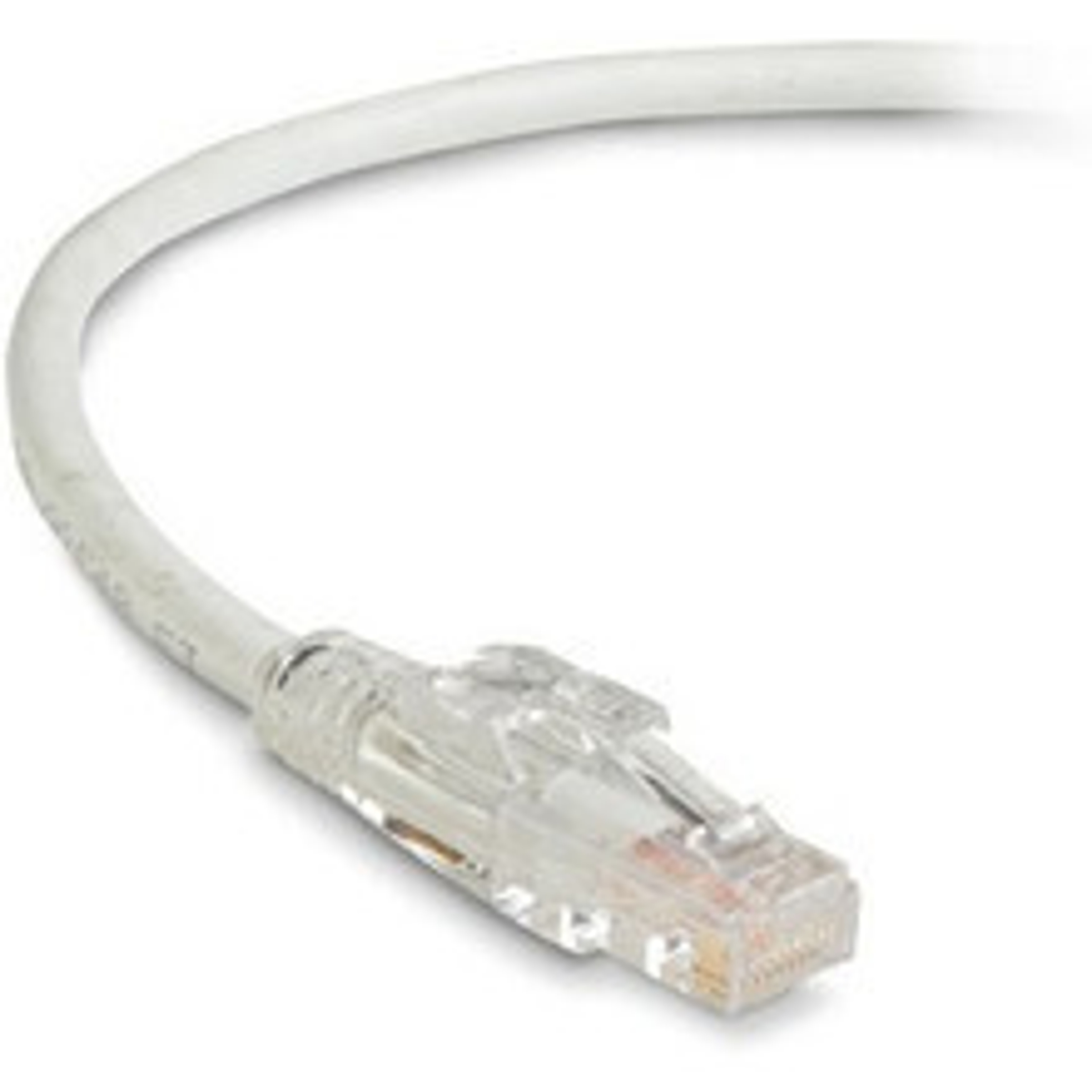

| Product Name | GigaTrue 3 Cat.6 UTP Patch Network Cable |
| Product Line | GigaTrue 3 |
| Brand Name | Black Box |
| Technical Information | |
| Cable Length | 15 ft |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Wallplate |
| Network Device | |
| Patch Panel | |
| Jacket Type | CM |
| Shielding | No |
| Features | Near End Cross Talk (NEXT) |
| PoE | |
| Stranded | |
| Lockable | |
| Damage Resistant | |
| Booted | |
| Rugged | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 24 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
