Locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstations, while maintaining a pixel-perfect desktop experience.

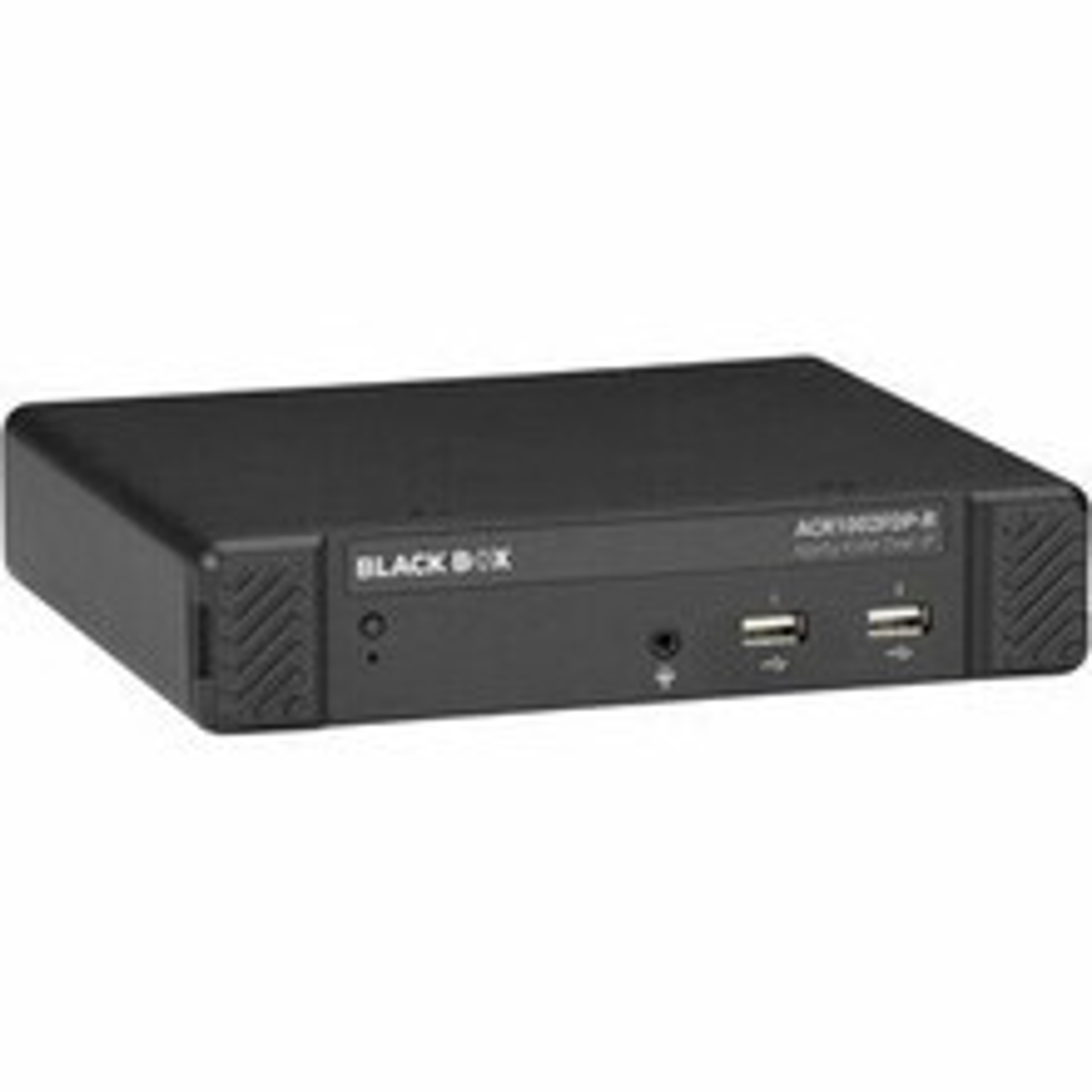

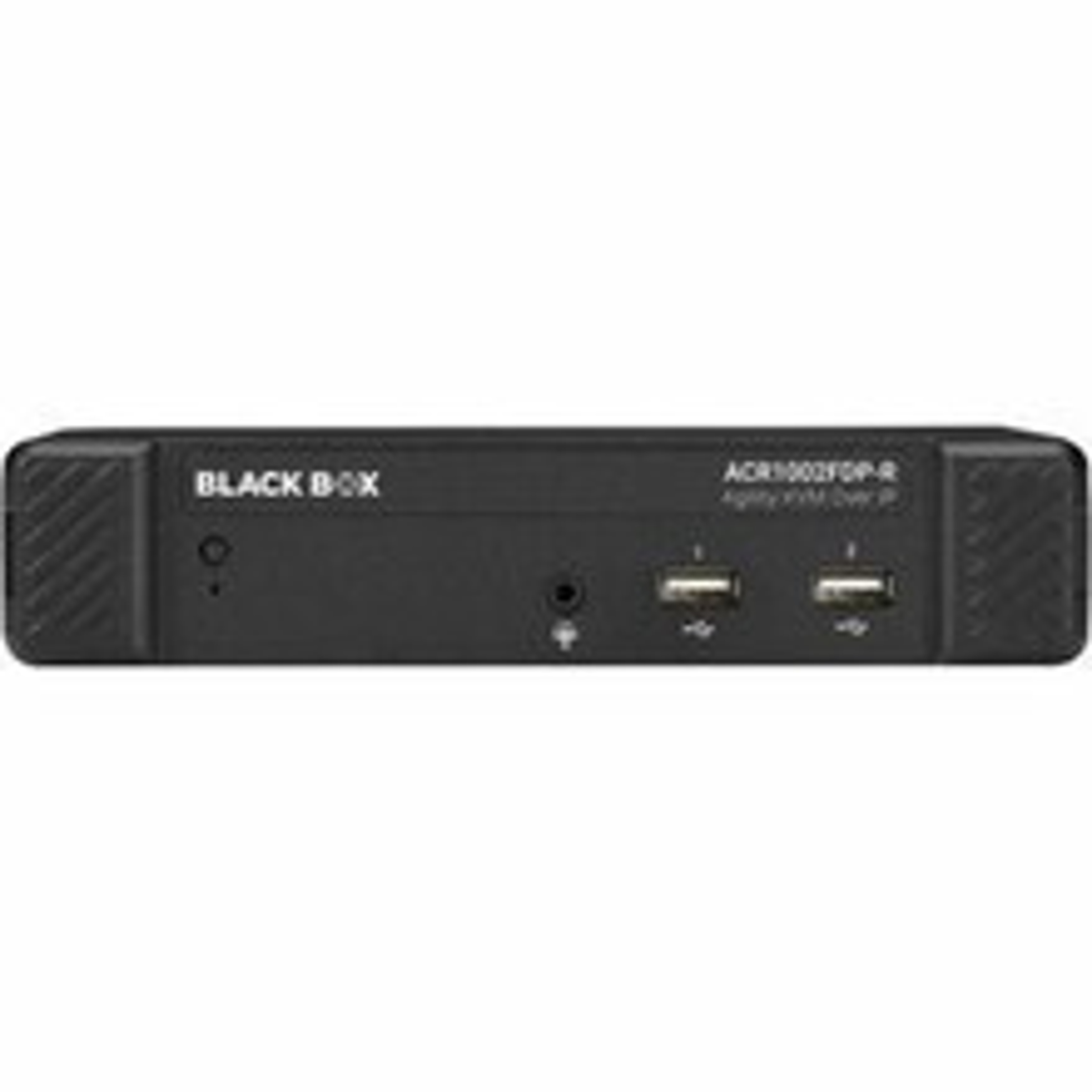

The Black Box Agility high-performance IP KVM (keyboard, video, mouse) extenders drive dual-monitor DisplayPort video, audio, and USB over a single fiber connection. The extenders offer ideal color and pixel-perfect picture quality at up to 2560 x 1600 at 60 Hz and USB 2.0 with fast switching.

Plug-and-Play
Works out of the box with no need to install drivers or other software.

Access via Just One Fiber Cable Using IP Technology
Fiber models are available to suit your application

Drive Signals Long Distances
Extends distance up to 1640 feet (500 m) or 12 miles (20 km) over a single length of fiber via an SFP module

Enjoy Ideal Digital Video, with Real-Time Control
Delivers DisplayPort video resolutions up to (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz. Using a spatially-lossless encoding system, the extenders provide pixel-perfect, color-accurate video with no artifacts in real-time.

Supports USB Mass Storage Devices, Plus Keyboard, Mouse, Tablet, and Touch
Connect a variety of USB devices, ranging from USB-HID devices such as keyboards and mice to USB 2.0 mass storage devices. Disable USB-HID connectivity within the extender if needed for security.

Works with Mac Pro
Supports dithered video, which can significantly increase the normal video data rates. The extender TX uses a feature called Magic Eye that supports dithering without degrading overall link performance.

Redundant Network Operation
If the main network goes down, your extender keeps operating if the second network port is connected to a backup connection.

Offers Dual Touchscreen Support
Includes on-screen keyboard and floating launch button.

• Non-Returnable
• Supports fiber at up to 1 GbE using optional SFP modules (1 SFP included, optional SFP for the second slot is not included)
• Achieves DisplayPort resolutions of (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz
• Provides bi-directional analog audio (with combined headset jack on the receiver)
• Includes USB True Emulation for fast switching
• Works with advanced diagnostic and troubleshooting tools
• Plug-and-play

Specifications:
