Vertiv LRA185KMM8D-G01 KVM switch 8 ports 18.5"

Description:

Avocent Local Rack Access - KVM console with KVM switch - 8 ports - USB - US - 18.5" - rack-mountable - 1366 x 768 - 250 cd/m² - VGA - 1U

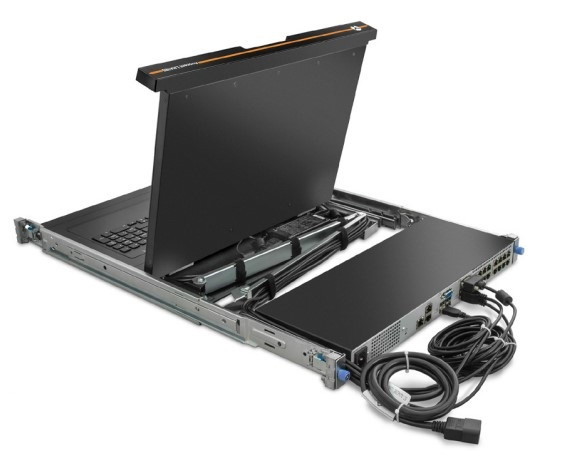

The Vertiv Avocent LRA Console and KVM Bundle makes software upgrades, troubleshooting and system monitoring more convenient and less time consuming by providing easy access to multiple servers and other IT gear, protecting uptime and staff time. The TAA-compliant LRA185KMM8D-G01 model has everything needed for at-the-rack access, including a widescreen LCD console tray, full desktop-style keyboard with touchpad, an 8-port rackmount KVM over IP Switch, and 8 MPUIQ-VMCHS interface module cables. The Vertiv Avocent LRA Console and KVM Over IP Bundle eliminates the clutter of crash carts, monitors and keyboards. The tray features standard USB and VGA interfaces that are broadly compatible with servers and network devices. Its minimal power draw during standby and operation saves energy and money.

• Form factor
• KVM compatibility
• On-screen display
• Ease of use
• Environmentally responsible
• Global availability

Specifications:

Product Description Avocent Local Rack Access - KVM console - 18.5" Device Type KVM console - 18.5" KVM Switch USB - 8 ports Keyboard Layout US Features Touchpad, integrated keyboard, 8-port KVM switch Aspect Ratio 16:9 Native Resolution 1366 x 768 at 60 Hz Pixel Pitch 0.3 mm Brightness 250 cd/m² Input Connectors VGA Dimensions (WxDxH) 19 in x 21 in x 1.8 in Height (Rack Units) 1U Weight 22 lbs Localization US English / North America Compliant Standards FCC Class A certified, UL, VCCI, C-Tick, BSMI, CCC, KCC, EAC

EXTENDED SPECIFICATIONS

General

Display Type KVM console Diagonal Size 18.5" Built-in Devices 8-port KVM switch Aspect Ratio 16:9 Native Resolution 1366 x 768 at 60 Hz Pixel Pitch 0.3 mm Brightness 250 cd/m² Vertical Refresh Rate 55 - 85 Hz Horizontal Viewing Angle 170 Vertical Viewing Angle 160 Backlight Technology LED backlight Dimensions (WxDxH) 19 in x 21 in x 1.8 in Height (Rack Units) 1U Weight 22 lbs

Input

Type Touchpad, integrated keyboard

KVM

Type KVM switch - 8 ports Keyboard / Mouse Interface USB Max Resolution 1600 x 1200 @ 60 Hz Features US keyboard layout

Connectivity

Interfaces Keyboard (USB) ¦ Mouse (USB) ¦ VGA ¦ 2 x USB 2.0 (pass-through) ¦ 8 x KVM (RJ-45)

Miscellaneous

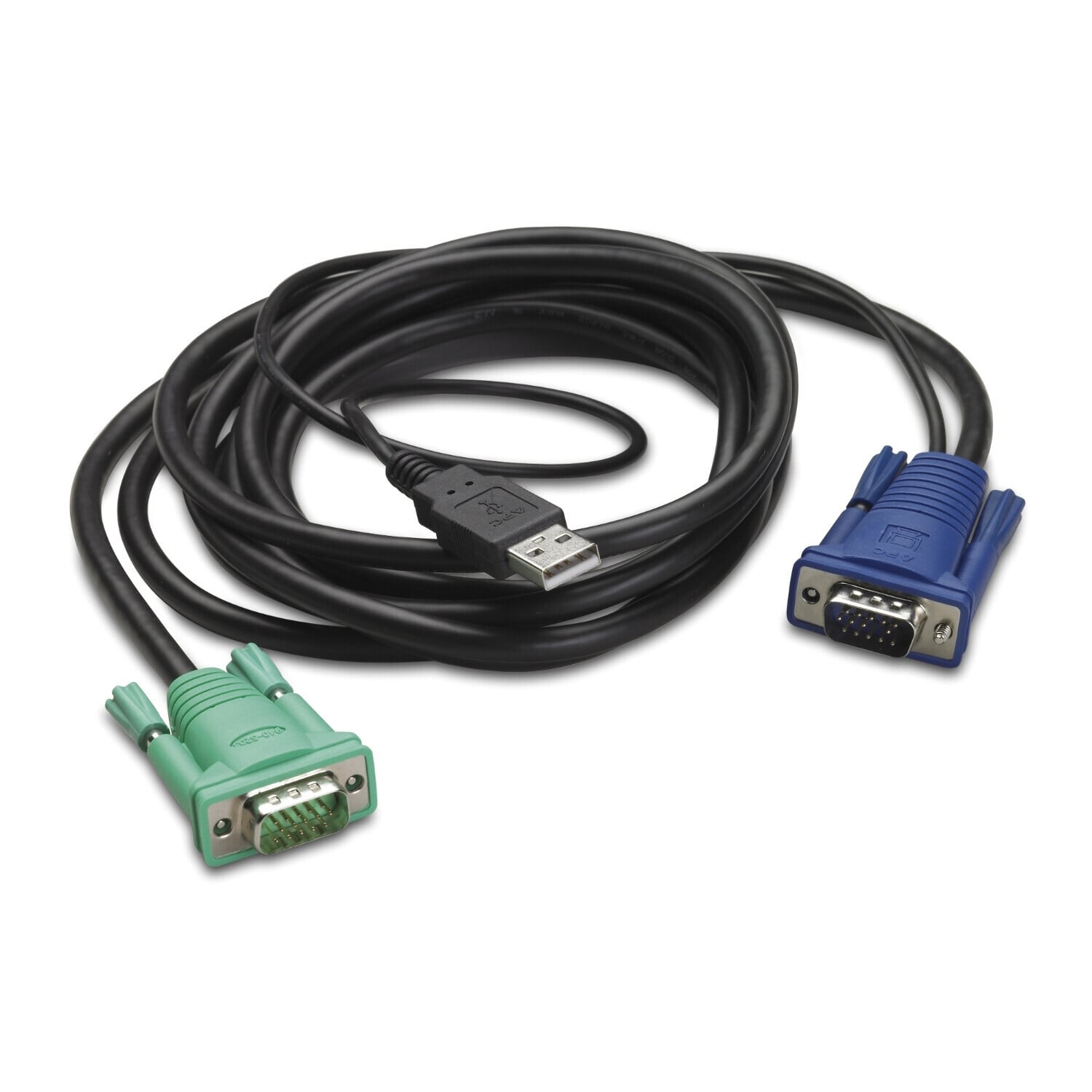

Cables Included 8 x keyboard / mouse / video cable Compliant Standards FCC Class A certified, UL, VCCI, C-Tick, BSMI, CCC, KCC, EAC Localization US English / North America TAA Compliant Yes

Power

Voltage Required AC 120/230 V Power Consumption Operational 17 Watt Power Consumption Stand by 0.5 Watt

Environmental Parameters

Min Operating Temperature 32 °F Max Operating Temperature 122 °F Humidity Range Operating 5 - 80%
