Vertiv HMX 6000 KVM / audio / USB extender 1U

Description:

Avocent HMX 6000 - KVM / audio / USB extender - 1U

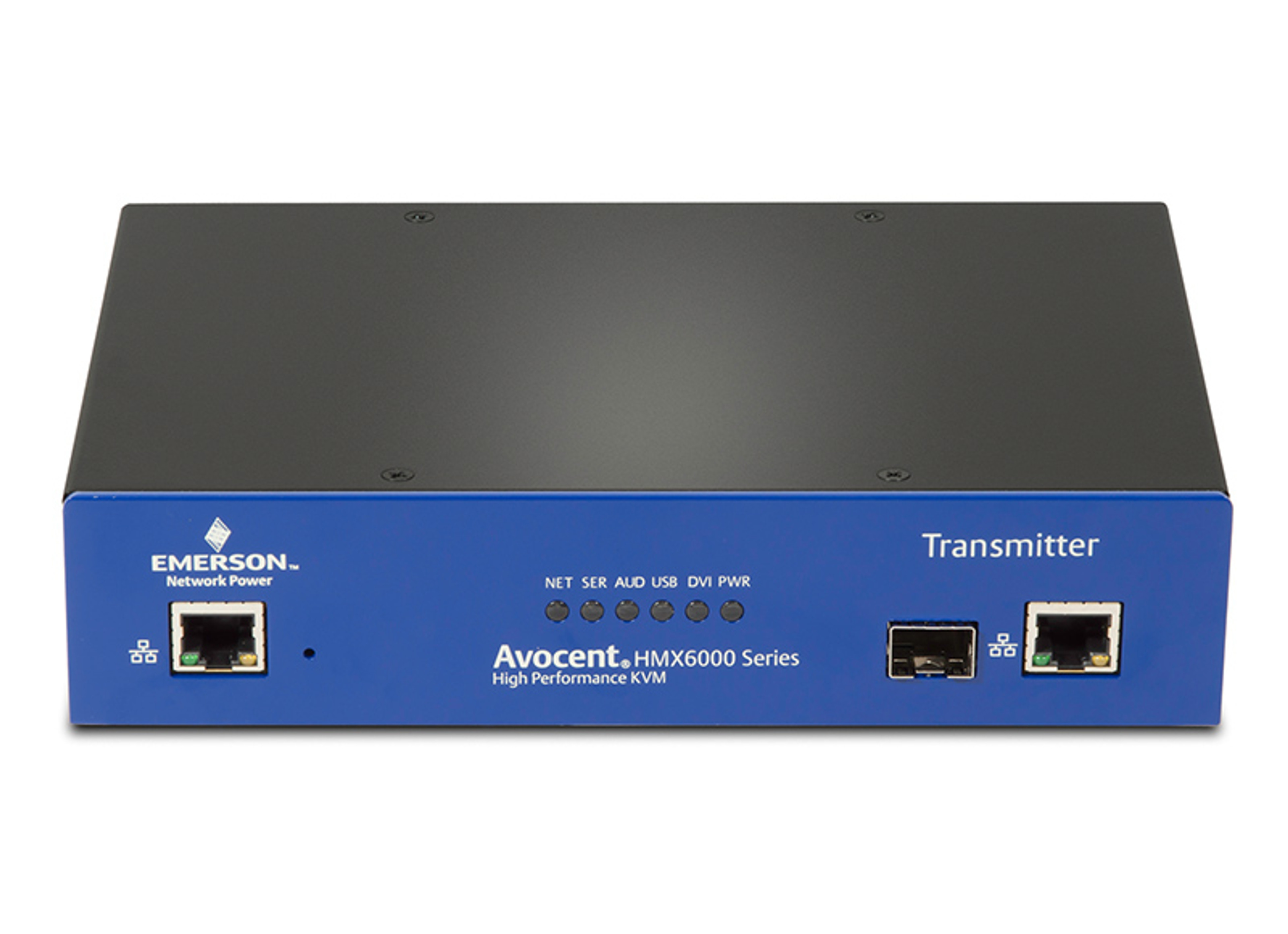

The Vertiv Avocent HMX TX 6210T High Performance KVM System transmitter provides access to system computers via a standard IP infrastructure network, allowing users the ability to access and share computing resources. It provides one USB-B input port, one speaker and mic output port and two DVI-D video connections. The transmitter and computers may be housed remotely from user workstations in secure, temperature-controlled environments to maintain component integrity. System control is managed from a single access point, allowing the administrator to provide system connection through confirmed verification tools. It delivers access to high quality DVI up to 2560x1600 with no loss of quality at any node in the system. It provides high video performance over VNC. It is ideal for demanding applications such as broadcast, control rooms and collaborative environments. The Vertiv Avocent HMX TX 6210T transmitter is part of a high performance digital matrix solution that provides a quality, real-time experience for a wide variety of broadcast, control room and screen management applications.

Specifications:

Product Description Avocent HMX 6000 - KVM / audio / USB extender Device Type KVM / audio / USB extender Form Factor External - 1U Localization North America Power AC 120/230 V Dimensions (WxDxH) 7.8 in x 5.9 in x 1.7 in Weight 2.43 lbs

EXTENDED SPECIFICATIONS

General

Device Type KVM / audio / USB extender Form Factor External - 1U Localization North America

Networking

Connectivity Technology Wired Max Resolution 1920 x 1200 @ 60 Hz Compliant Standards USB 2.0

Expansion / Connectivity

Interfaces 1 x USB 2.0 - Type B ¦ 2 x DVI-D female ¦ 1 x audio (output) - mini jack female ¦ 1 x - RJ-45 female ¦ 1 x audio (input) - mini jack female ¦ 1 x RS-232 - DB-9 ¦ 1 x - SFP

Miscellaneous

Compliant Standards UL, FCC

Power

Power Device External power adapter Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 20 Watt

Dimensions & Weight

Width 7.8 in Depth 5.9 in Height 1.7 in Weight 2.43 lbs

Environmental Parameters

Min Operating Temperature 32 °F Max Operating Temperature 104 °F Humidity Range Operating 10 - 90% (non-condensing)
