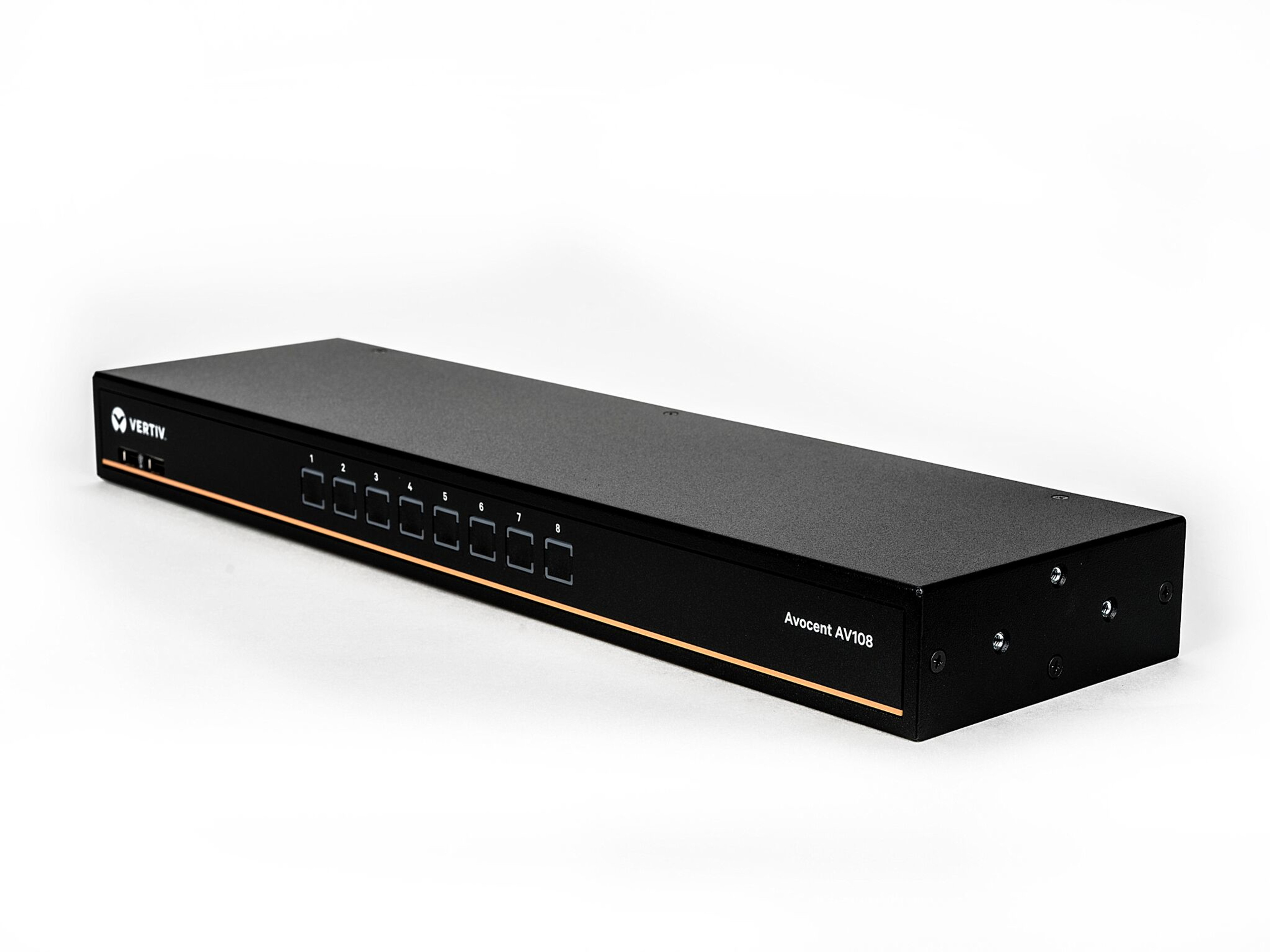

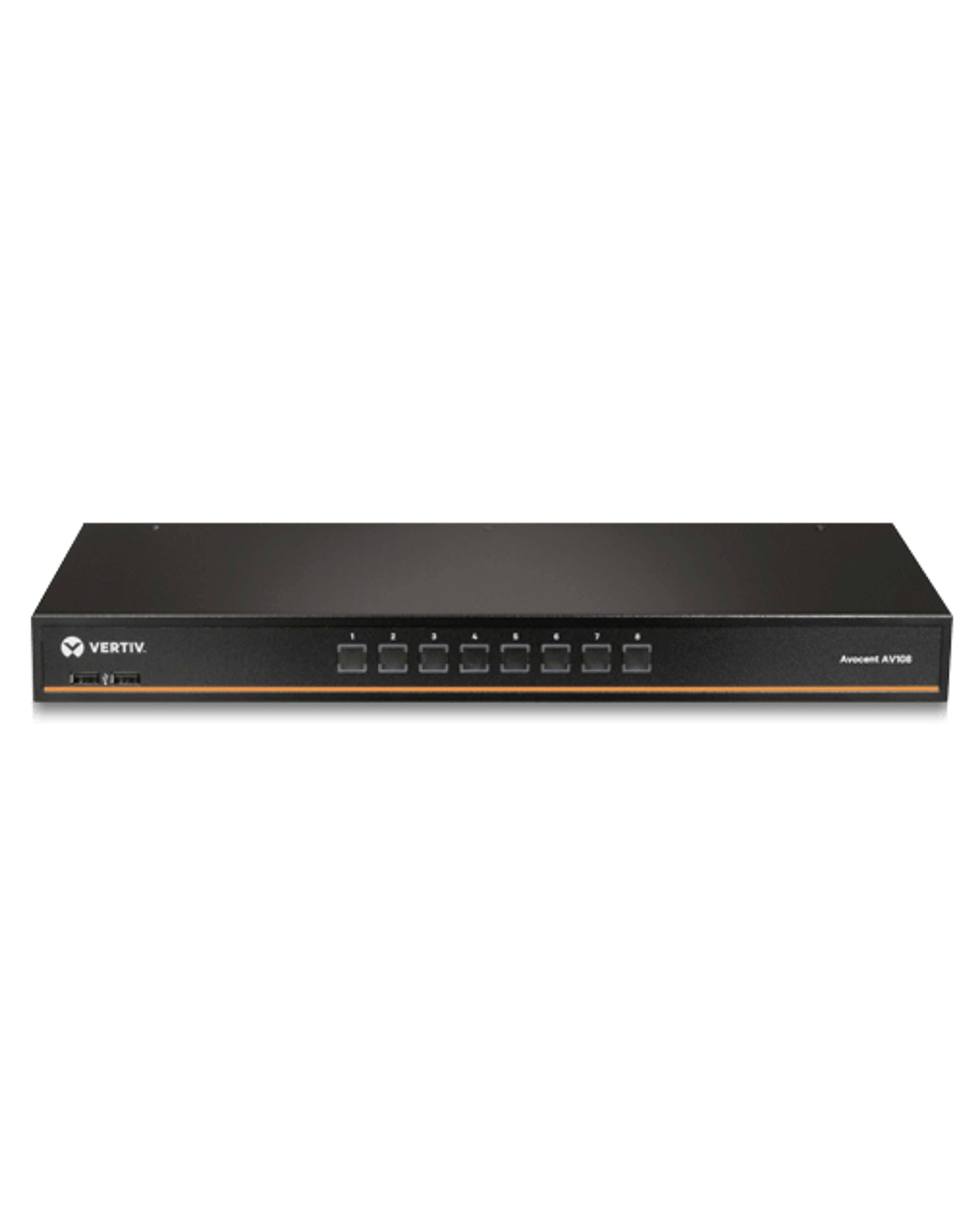

Vertiv AV108BND8-400 KVM switch 8 x KVM port(s)

Vertiv AV108BND8-400 KVM switch 8 x KVM port(s)

Vertiv

Regular Price $710.00
Discount Price: $488.00
UPC:
636430085845
Product Overview:

Avocent AutoView AV108 - KVM switch - 8 x KVM port(s) - 1 local user - desktop, rack-mountable - AC 100 - 240 V - with 8 x 26-pin to VGA cables

MFG#:
AV108BND8-400
Product Category:
KVM Switches
Adding to cart… The item has been added

Description:

Avocent AutoView AV108 - KVM switch - 8 x KVM port(s) - 1 local user - desktop, rack-mountable - AC 100 - 240 V - with 8 x 26-pin to VGA cables

The Vertiv Avocent AV108BND8-400 KVM Switch is a compact, entry-level solution to local server management for small data centers, branch offices and IT rooms. It delivers streamlined local access and control designed to be available when needed, with 8 ports, OSD support, 8 CBL017 VGA cables and user-friendly features for controlling all devices and tasks. The straightforward user experience consists of a basic KVM feature set with on-screen display and simple touch button and hotkey operation. The Vertiv Avocent KVM switch is easy to configure and maintain, is available in 1U, 0U and desktop configurations, and offers centralized access, management and event logging when requirements don’t allow remote (IP) connectivity to the server.

  • ANALOG KVM BUNDLE: Avocent AV108 8-Port Single-User KVM Switch allows a local user to control up to 4 computers with a single monitor, keyboard, and mouse; bundle includes 8 6 ft. 26-Pin to VGA Target Cables
  • AFFORDABLE & EFFICIENT: AV108 basic KVM features consolidated server management to streamline access and control to server resources and increase speed to remediation, which improves operational efficiencies
  • EASE OF USE: Easily switch between targets with simple on-screen display (OSD) menu, intuitive push-buttons, hot-key operation, and scan mode
  • SPACE SAVING: AV108’s smaller 0U, 1U, and desktop form factor provides users with multiple installation options and reduces cable clutter
  • VIDEO CONNECTIONS: Features 1 USB pass-through port, 2 USB ports, cascade support, internal power supply, and support for both VGA and DisplayPort (DP) targets with resolutions up to 2048 x 1536

Specifications:

Product Description Avocent AutoView AV108 - KVM switch - 8 ports - rack-mountable - with 8 x 26-pin to VGA cables
Device Type KVM switch - 8 ports - cascadable - with 8 x 26-pin to VGA cables
Enclosure Type Rack-mountable 1U
Subtype KVM
Ports 8 x KVM port(s)
KVM Users Qty 1 local user
Features On-Screen Display, fanless, Pushbutton/Hotkey switching
Power AC 100 - 240 V (50/60 Hz)
Dimensions (WxDxH) 17 in x 4.8 in x 1.7 in
Weight 3.59 lbs
Manufacturer Warranty 2-year warranty

EXTENDED SPECIFICATIONS

General
Device Type KVM switch - 8 ports - cascadable - with 8 x 26-pin to VGA cables
Enclosure Type Desktop, rack-mountable 1U
Subtype KVM
Ports 8 x KVM port(s)
KVM Local Users Qty 1 local user
Keyboard / Mouse Interface USB
Max Resolution 2048 x 1536
Features On-Screen Display, fanless, Pushbutton/Hotkey switching
Expansion / Connectivity

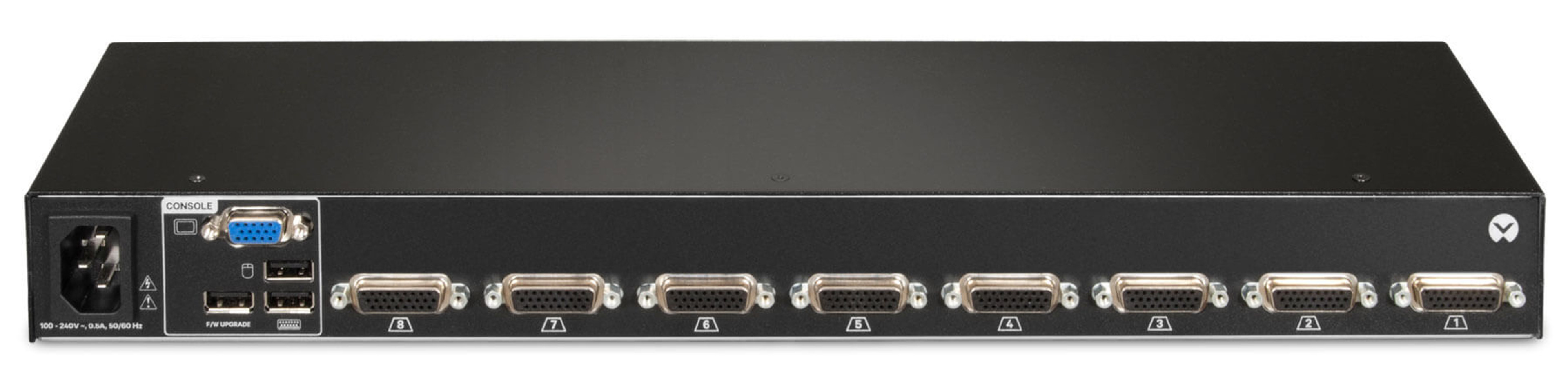

Interfaces 8 x KVM ¦ 1 x USB management ¦ 4 x USB ¦ 1 x VGA HD-15
Power
Power Device Internal power supply
Voltage Required AC 100 - 240 V (50/60 Hz)
Power Consumption Operational 10 Watt
Miscellaneous
Rack Mounting Kit Optional
Compliant Standards FCC Class A certified, UL, BSMI, cUL, ICES Class A, KCC Class A, VCCI Class A, EAC, RCM
Dimensions & Weight
Width 17 in
Depth 4.8 in
Height 1.7 in
Weight 3.59 lbs
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 - 85%
Min Storage Temperature -22 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 95%
!
