Name: Vertiv ACS8048SAC-400 Console Server 48 ports 1U
Brand: Vertiv
SKU: ACS8048SAC-400
Price: 4025 USD
Availability: InStock

Detail

Description:

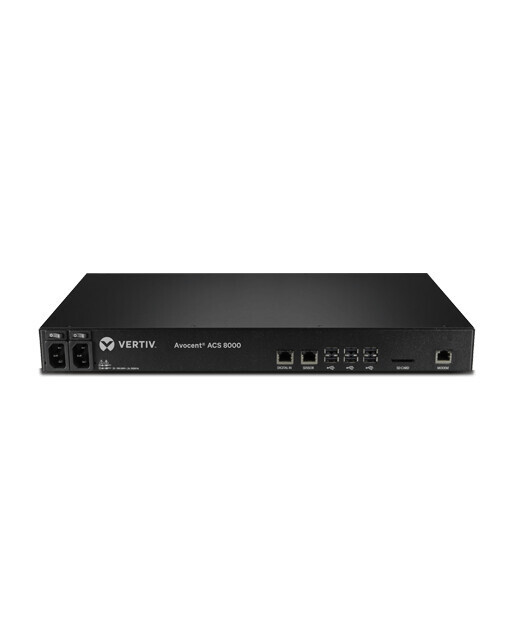

Avocent ACS Advanced Console Server ACS8048SAC-400 - Console server - 48 ports - GigE, RS-232 - 1U

The Vertiv Avocent ACS 8000 Advanced Console Server system integrates connectivity features for secure in-band and out-of-band network remote management of IT assets from anywhere in the world. It includes an AC power supply. The system helps maximize IT asset productivity while providing scalability and reducing operational costs for a range of applications from insurance and financial institutions, to education, government, healthcare, oil and gas, the military, retail/wholesale and more.

Specifications:

Product Description	Avocent ACS Advanced Console Server ACS8048SAC-400 - console server
Device Type	Console server
Form Factor	External - 1U
Processor	1 x ARM Cortex-A9 MPCore
RAM	1 GB
Flash Memory	16 GB
Ports Qty	48
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Power	AC 120/230 V (50/60 Hz)
Power Redundancy	Yes
Dimensions (WxDxH)	17.3 in x 9.5 in x 1.8 in
Weight	7.5 lbs

EXTENDED SPECIFICATIONS

General

Device Type	Console server
Height (Rack Units)	1U
Width	17.3 in
Depth	9.5 in
Height	1.8 in
Weight	7.5 lbs

Processor / Memory / Storage

Processors Installed	1 x ARM Cortex-A9 MPCore
Max Supported Qty	1
RAM	1 GB DDR3L SDRAM
Flash Memory	16 GB

Networking

Form Factor	External
Ports Qty	48
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network / Transport Protocol	IPSec, NFS
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI
Features	NAT support, Syslog support, packet filtering, IPv6 support, temperature sensor, SNMP trap, e-mail notification
Authentication Method	Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory, Extensible Authentication Protocol (EAP), DSView

Communications

Supported Flash Memory Cards

SD Memory Card

Expansion / Connectivity

Interfaces

48 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x - SFP (mini-GBIC) ¦ 8 x USB 2.0 - Type A ¦ 1 x sensor - RJ-45 ¦ 4 x sensor

Miscellaneous

Compliant Standards

FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, KCC, RCM, CU

Power

Power Device	Internal power supply
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Yes
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	28 Watt
