Description:

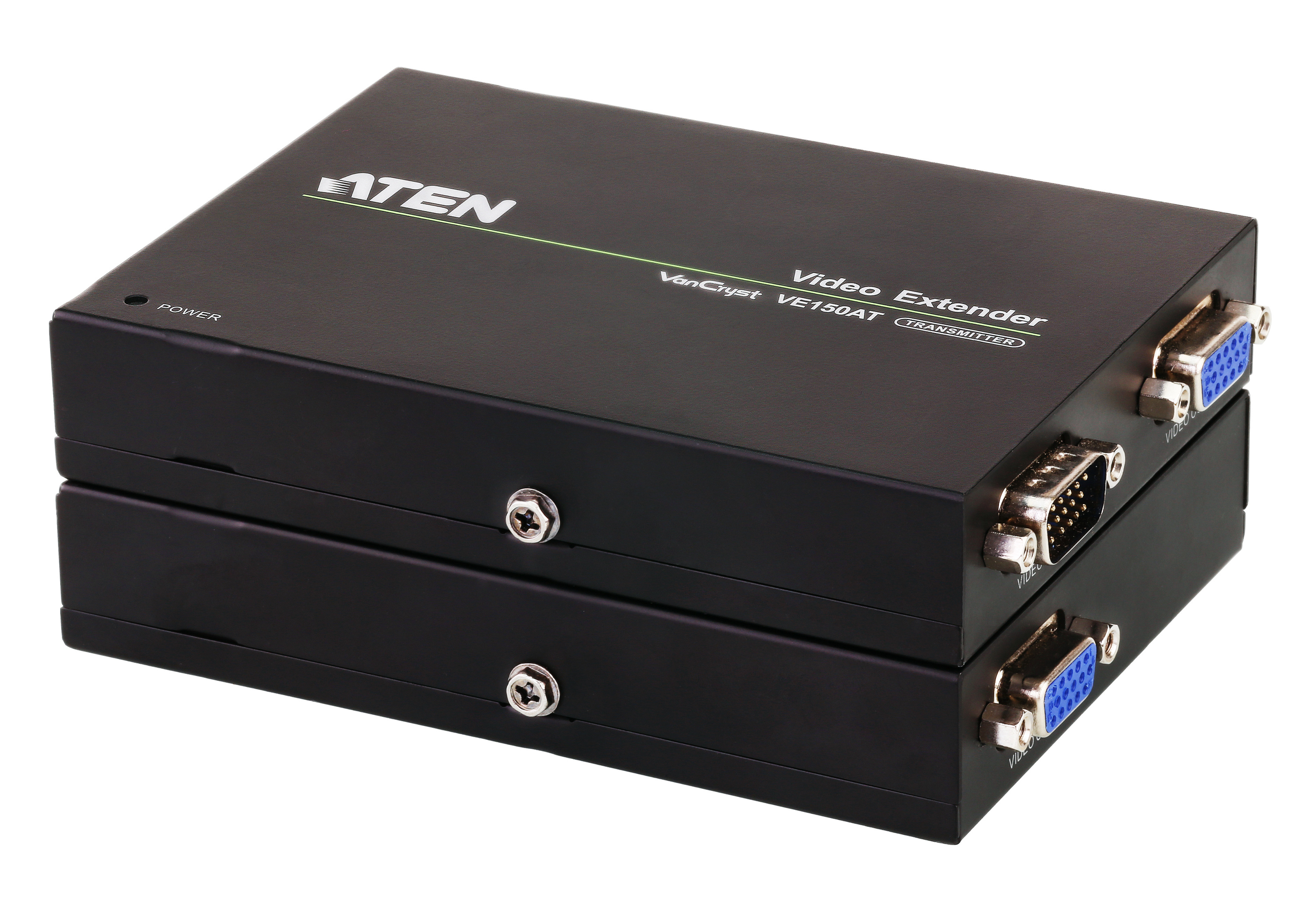

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
Specifications:
| Product Type: |
Video Extender Transmitter/Receiver |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
492.13 ft |
| Number of Network (RJ-45) Ports: |
2 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
2 |
| Number of Input Devices Supported: |
1 |
| Number of VGA Inputs: |
1 |
| General Information |
| Product Type: |
Video Extender Transmitter/Receiver |
| Manufacturer Part Number: |
VE150A |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Name: |
Video Extender |
| Brand Name: |
ATEN |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Number of VGA Outputs: |
2 |
| VGA In: |
Yes |
| VGA Out: |
Yes |
| Number of VGA Inputs: |
1 |
| Media & Performance |
| Twisted Pair Cable Standard: |
Category 5 |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
| Package Contents: |
- 1 x VE150AT Video Extender (Local unit)
- 1 x VE150AR Video Extender (Remote unit)
- 2 x Power Adapters
- 1 x VGA Cable
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
| |
RoHS |
| Physical Characteristics |
| Material: |
Metal |
| Form Factor: |
Rack-mountable |
| Length: |
5" |
| Transmitter Height: |
0.89" |
| Transmitter Width: |
3.56" |
| Transmitter Weight (Approximate): |
8.47 oz |
| Power Description |
| Input Voltage: |
5.3 V DC |
| Technical Information |
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Number of Output Devices Supported: |
2 |
| Number of Input Devices Supported: |
1 |
| Video |
| Graphics Modes: |
SVGA |
| |
UXGA |
| |
XGA |
| |
WUXGA |
| |
VGA |
| Maximum Video Resolution: |
1920 x 1200 |
