Description:

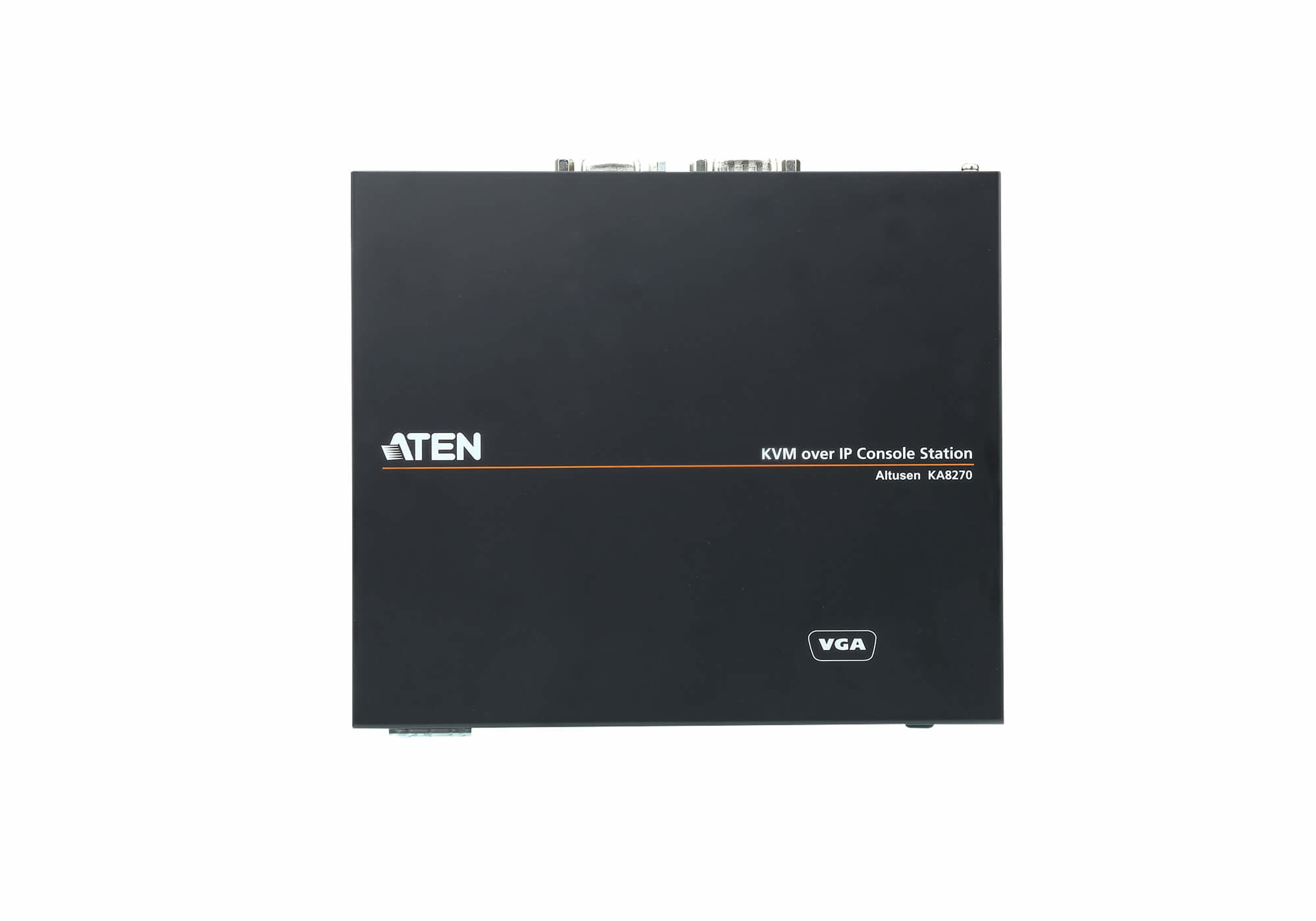

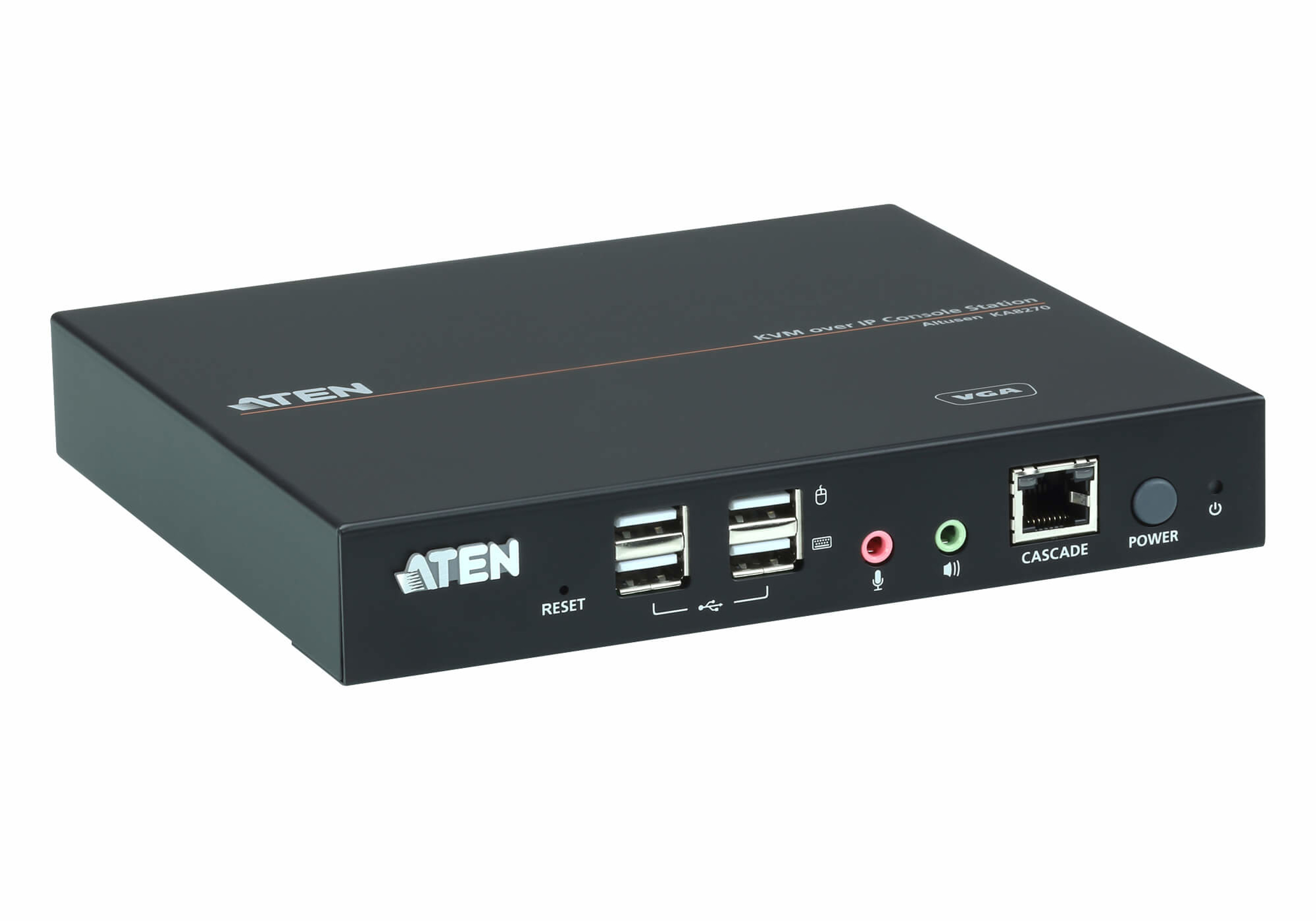

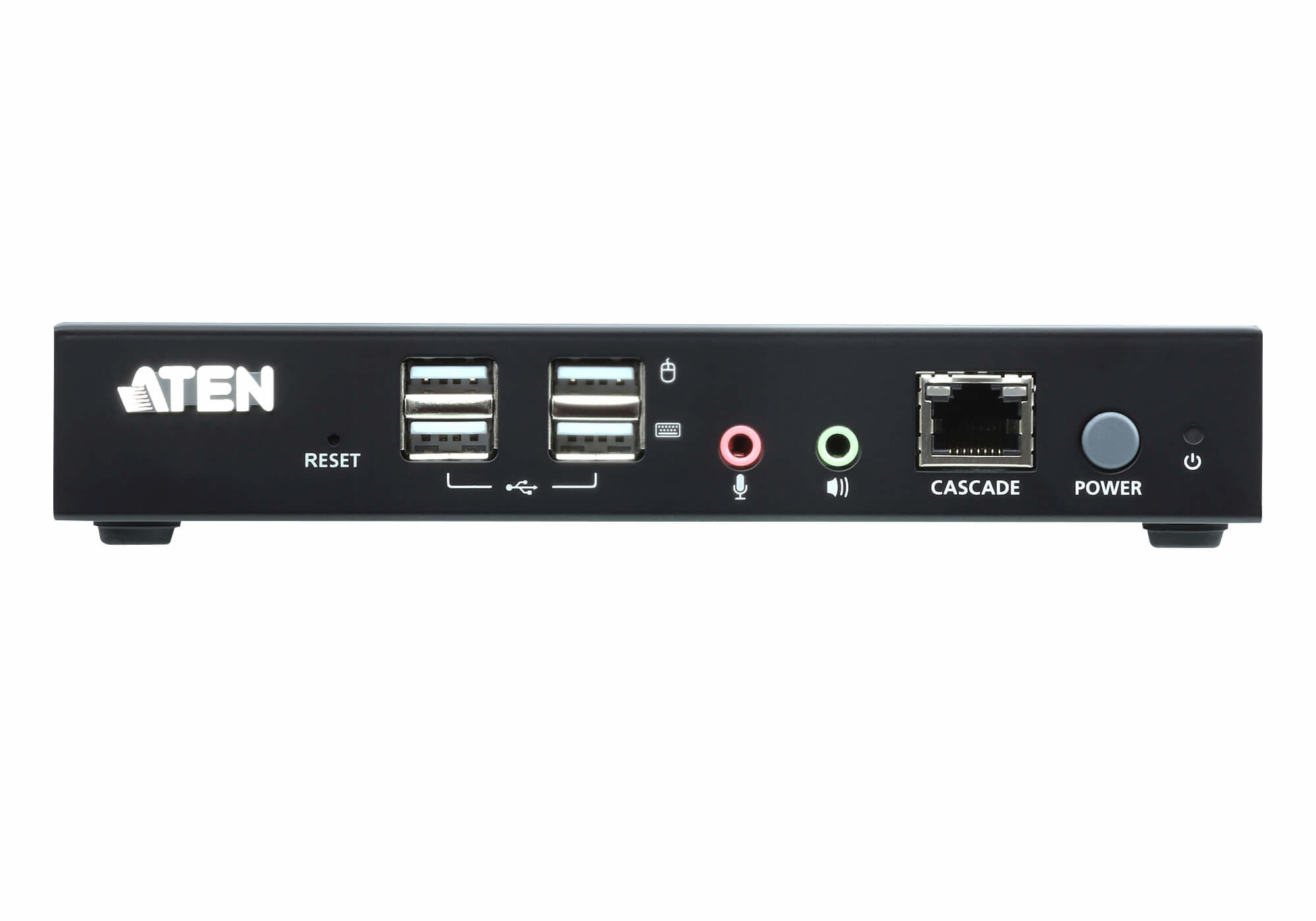

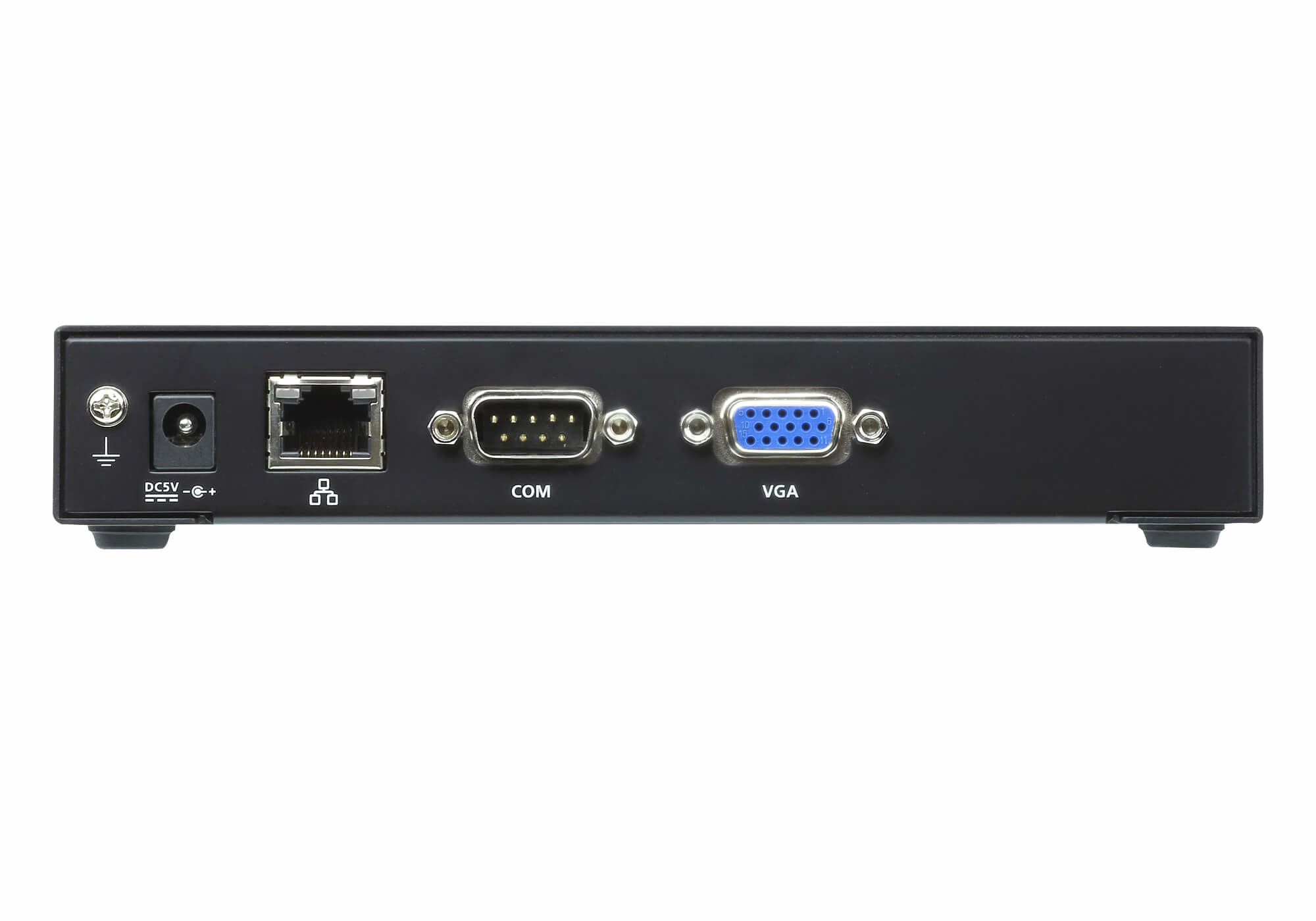

The KVM over IP Console Station KA8270 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC). The KA8270 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 VGA video output at resolutions up to 1920 x 1200 @ 60 Hz.
In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments
Specifications:
Product Type: |
KVM Console |
Connectivity Technology: |
Wired |
Form Factor: |
Desktop |
|
Rack-mountable |
|
Wall Mountable |
Brand Name: |
ATEN |
Maximum Video Resolution: |
1920 x 1200 |
USB: |
Yes |
VGA: |
Yes |
Network (RJ-45): |
Yes |
Product Family: |
ALTUSEN |
KVM Technology: |
Digital |
Number of Computers Supported: |
64 |
Number of Remote Users Supported: |
1 |
General Information |
Product Type: |
KVM Console |
Manufacturer Part Number: |
KA8270 |
Manufacturer Website Address: |
http://www.aten-usa.com |
Packaged Quantity: |
1 |
Manufacturer: |
ATEN Technology Inc |
Product Model: |
KA8270 |
Product Name: |
VGA KVM over IP Console Station |
Product Line: |
ALTUSEN |
Brand Name: |
ATEN |
Interfaces/Ports |
Microphone: |
Yes |
USB: |
Yes |
VGA: |
Yes |
Headphone: |
Yes |
Number of Network (RJ-45) Ports: |
2 |
Network (RJ-45): |
Yes |
Number of USB Ports: |
4 |
Number of VGA Ports: |
1 |
Miscellaneous |
Platform Supported: |
PC |
Environmentally Friendly: |
Yes |
Environmental Certification: |
RoHS |
|
WEEE |
Physical Characteristics |
Form Factor: |
Wall Mountable |
|
Rack-mountable |
|
Desktop |
Rack Height: |
0U |
Receiver Height: |
1.13" |
Receiver Width: |
6.12" |
Receiver Depth: |
6.86" |
Receiver Weight (Approximate): |
1.65 lb |
Power Description |
Power Consumption: |
4.66 W |
Technical Information |
Connectivity Technology: |
Wired |
KVM Technology: |
Digital |
Number of Computers Supported: |
64 |
Number of Remote Users Supported: |
1 |
Video |
Maximum Video Resolution: |
1920 x 1200 |
