Description:

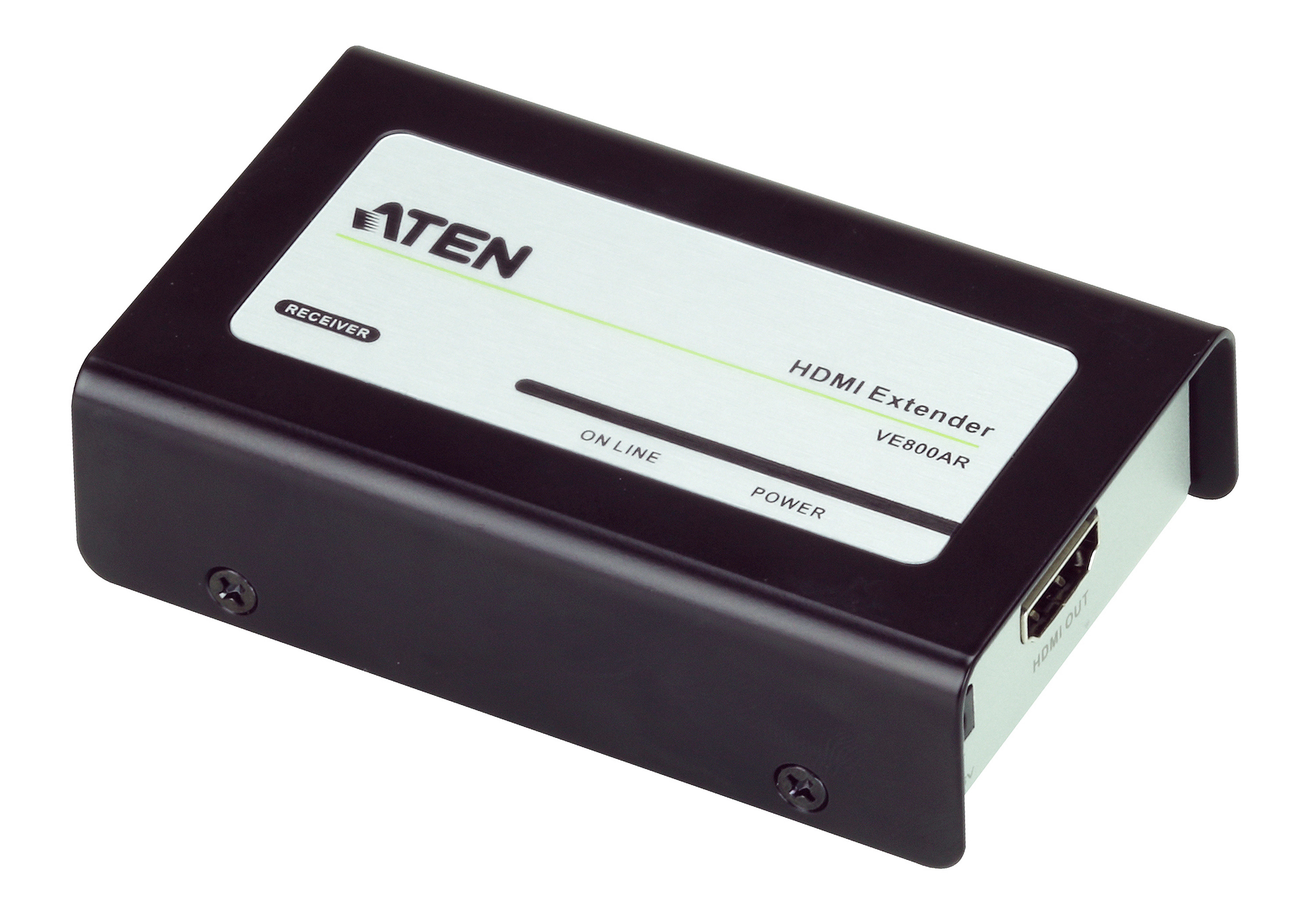

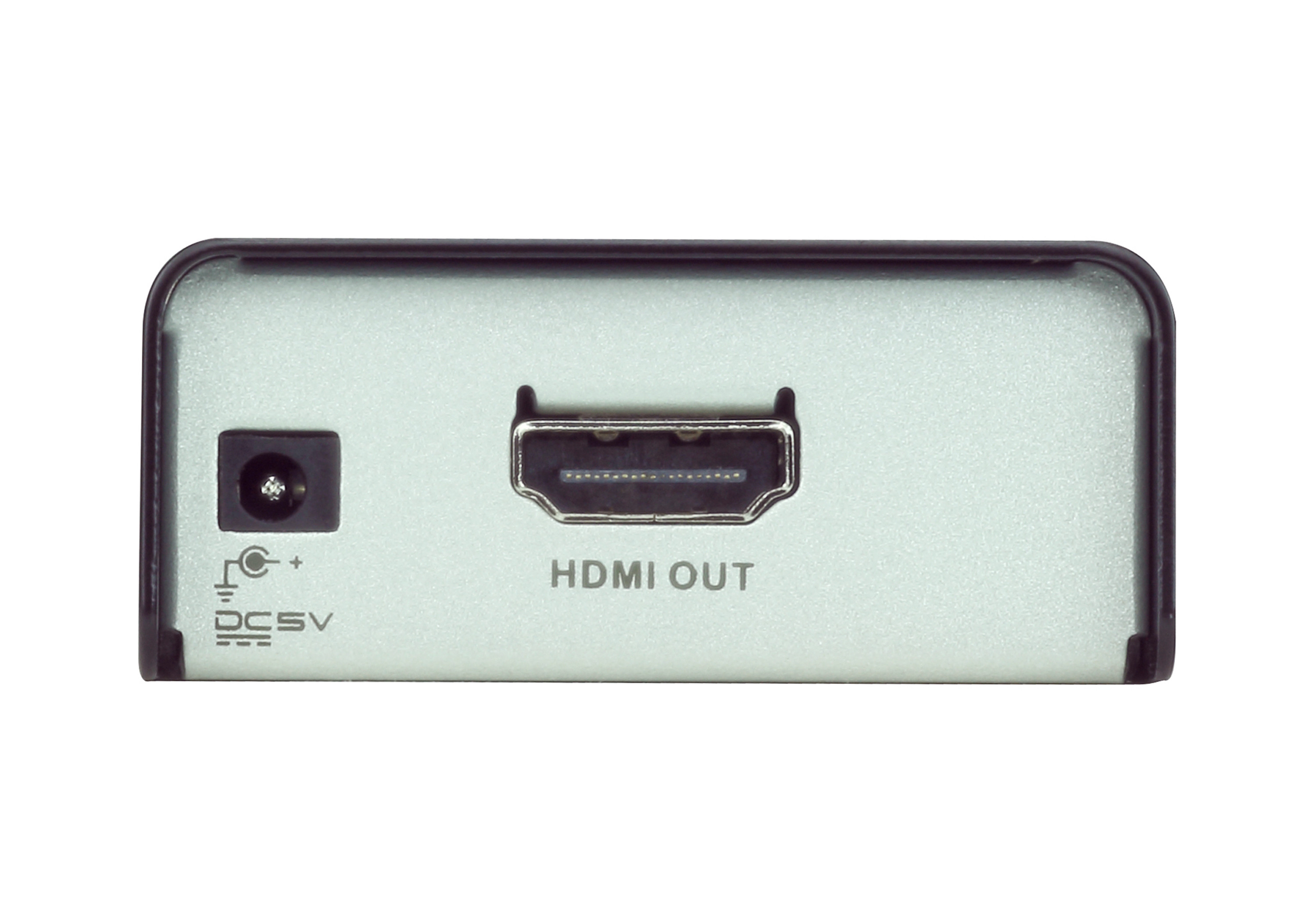

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
Specifications:
| Product Type: |
Video Extender Receiver |
| Connectivity Technology: |
Wired |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
200 ft |
| Number of Network (RJ-45) Ports: |
2 |
| Media Type Supported: |
Twisted Pair |
| Number of Output Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Receiver |
| Manufacturer Part Number: |
VE800AR |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE800AR |
| Product Name: |
VE800AR HDMI Receiver |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
2 |
| Network (RJ-45): |
Yes |
| Number of HDMI Outputs: |
1 |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 5e |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- VE800AR HDMI Receiver
- 1 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
|
RoHS |
| Physical Characteristics |
|---|
| Receiver Height: |
0.90" |
| Receiver Width: |
2.20" |
| Receiver Depth: |
3.50" |
| Receiver Weight (Approximate): |
6.40 oz |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
200 ft |
| Number of Output Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
Full HD |
| Maximum Video Resolution: |
1920 x 1080 |
