Aten VC010 RELIABLE EDID DATA FOR VGA SOURCE

Aten

Regular Price $77.00
Discount Price: $59.00
UPC:
672792004179
Product Overview:

 VGA EDID Emulator-TAA Compliant - Functions: Video Emulation, Video Switcher - 1920 x 1200 - VGA - 1 Pack - External

MFG#:
VC010
Product Category:
Switches Receivers Transmitters
Adding to cart… The item has been added

Description:

VanCryst VC010 VGA EDID Emulator-TAA Compliant - Functions: Video Emulation, Video Switcher - 1920 x 1200 - VGA - 1 Pack - External

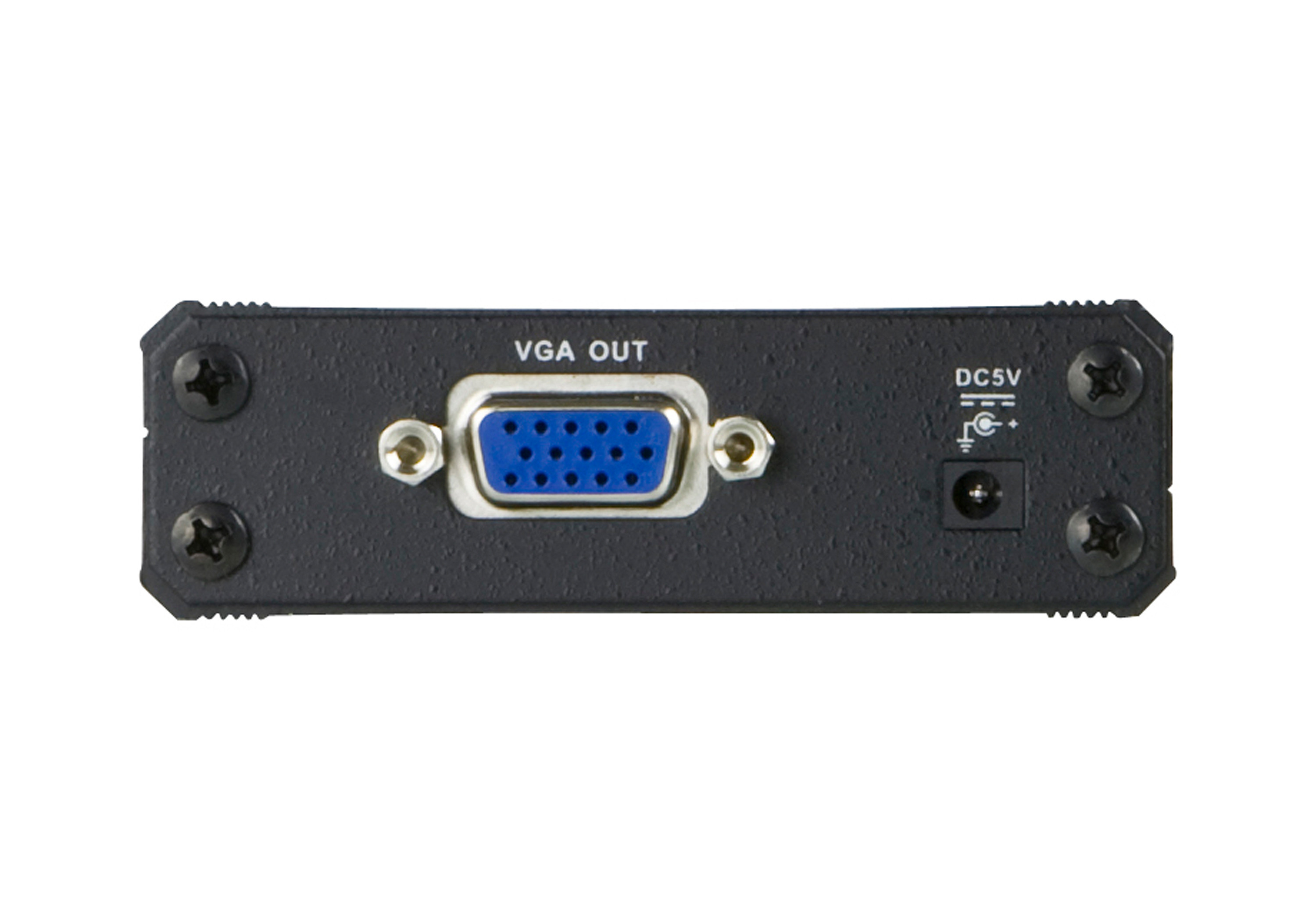

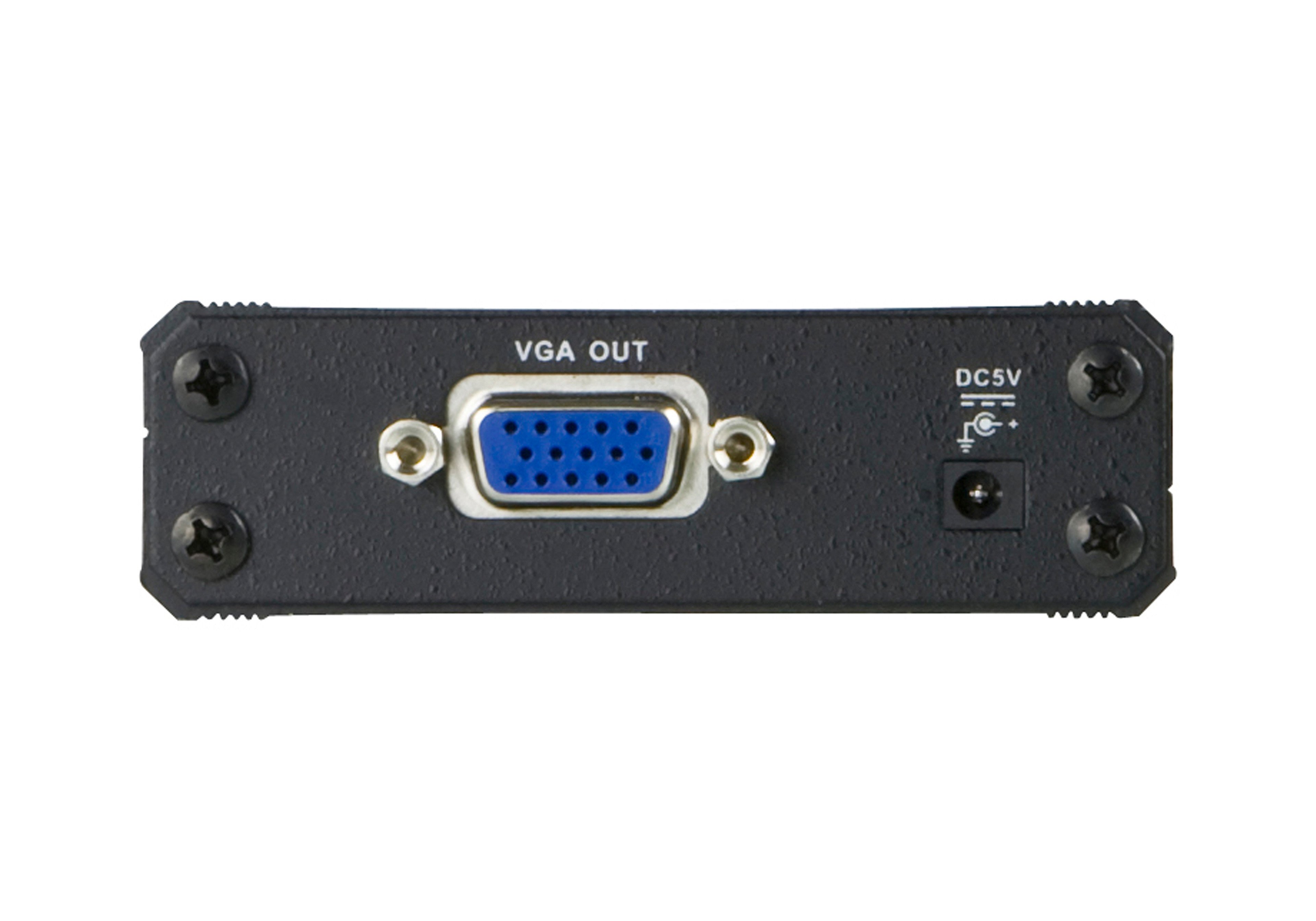

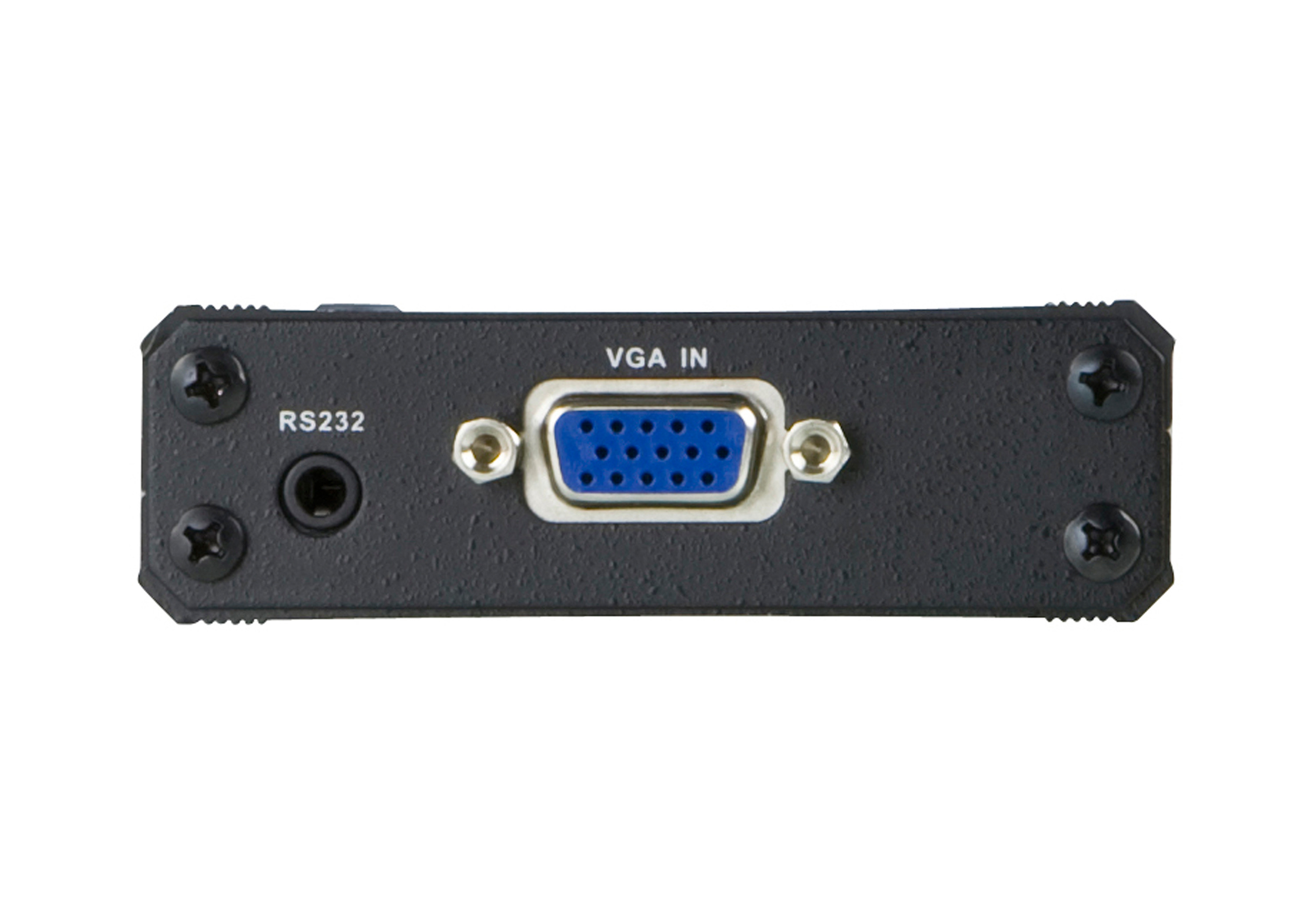

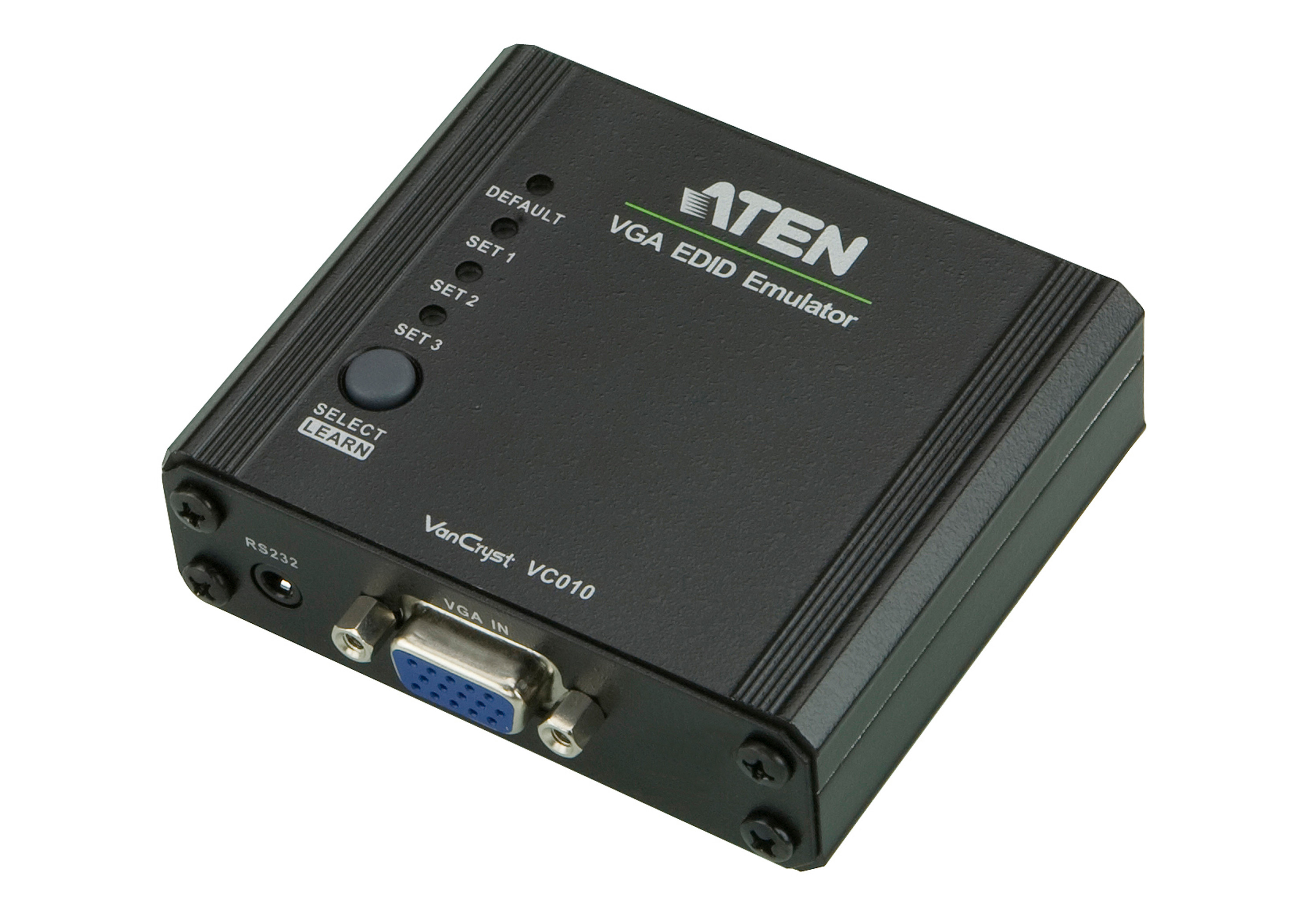

The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.

The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Features
  • No hassle of internal installation, install externally
  • Plug and Play your video emulator with the PC and go
  • Memorizes the display to reduce loss of signals and display quality as you disconnect or reconnect the device
  • To fulfill your needs, this video emulation function is a perfect choice

Specifications:

Miscellaneous
Package Contents
  • VC010 VGA EDID Emulator
  • 1 x RS-232 Configuration Cable
  • 1 x USB to DC Power Cord
  • 1 x User Instructions
Country of Origin Taiwan
Environmentally Friendly Yes
Interfaces/Ports
VGA Yes
Serial Port Yes
Number of VGA Outputs 1
Number of VGA Inputs 1
Physical Characteristics
Weight (Approximate) 0.5 lb
Form Factor External
Height 1"
Width 3.1"
Depth 3.1"
Technical Information
Platform Supported PC
Functions Video Switcher
  Video Emulation
Maximum Resolution 1920 x 1200
Analog Signal Yes
Maximum Data Transfer Rate 18 Gbit/s
General Information
Product Type Video Emulator
Manufacturer Part Number VC010
Manufacturer Website Address http://www.aten.com/us/en/
Packaged Quantity 1
Manufacturer ATEN Technology, Inc
Product Model VC010
Product Name VC010 VGA EDID Emulator
Brand Name VanCryst
